AZ-600 Configuring and Operating a Hybrid Cloud with Microsoft Azure Stack Hub Questions and Answers

Graphical user interface, text, application, email Description automatically generated

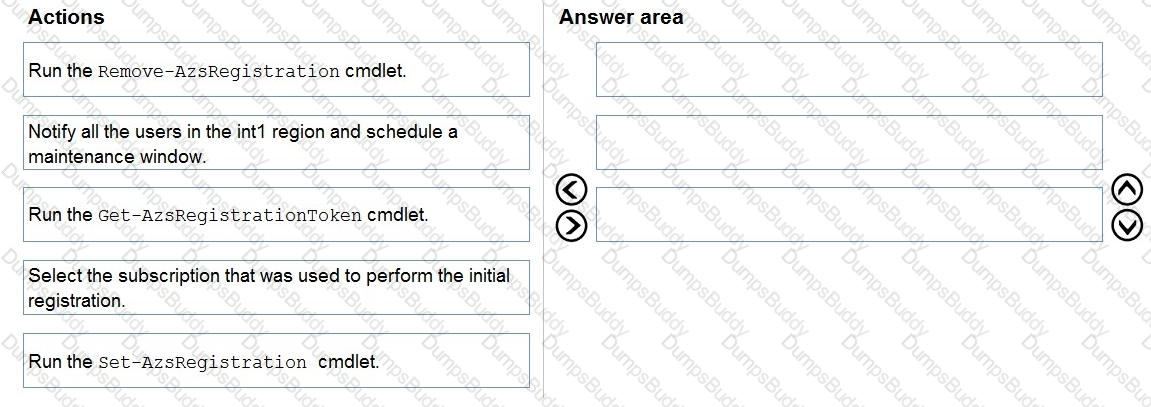

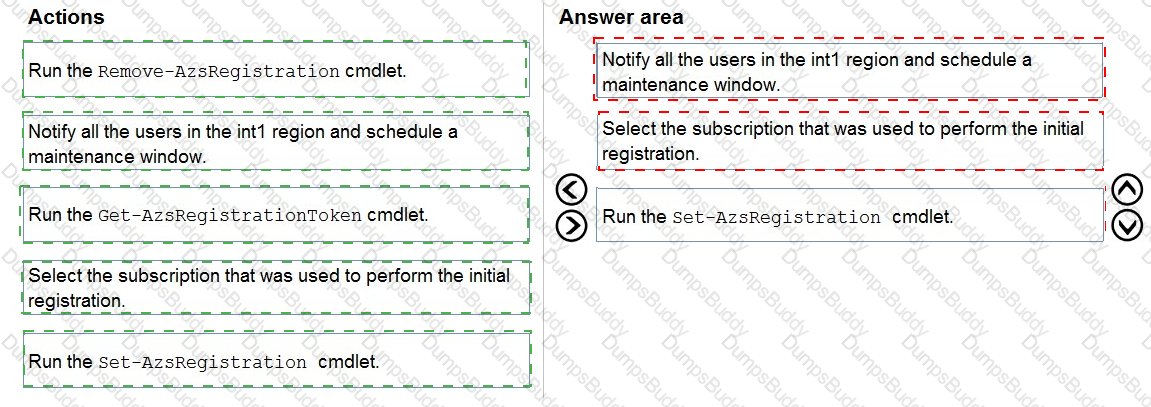

Step 1: Notify all the users in the int1 region and schedule a maintenance window.

Step 2: Select the subscription that was used to perform the initial registration.

Note: You need to change the int1 region to use the capacity model.

Change the billing model and registration name of the int1 region.

The int1 region runs a high number of Windows virtual machines that use pay-as-you-use images.

Change billing model, how features are offered, or re-register your instance

This section applies if you want to change the billing model, how features are offered, or you want to re-register your instance. For all of these cases, you call the registration function to set the new values. You don't need to first remove the current registration.

# select the subscription used during the registration

Select-AzSubscription -Subscription ''

# rerun registration with new BillingModel (or same billing model in case of re-registration) but using other parameters values from portal

Set-AzsRegistration -PrivilegedEndpointCredential $YourCloudAdminCredential -PrivilegedEndpoint $YourPrivilegedEndpoint -BillingModel '' -RegistrationName '' -ResourceGroupName ''

Step 3: Run the Set-AzsRegistration cmdlet.

You can use Set-AzsRegistration to register Azure Stack Hub with Azure and enable or disable the offer of items in the marketplace and usage reporting.

To run the cmdlet, you need:

A global Azure subscription of any type.

To be signed in to Azure PowerShell with an account that's an owner or contributor to that subscription.

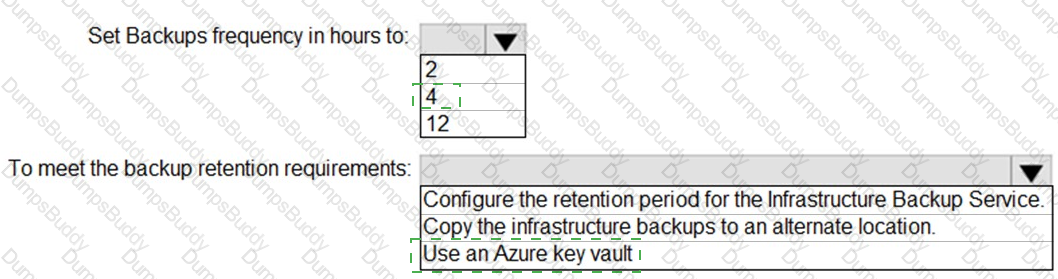

Box 1: 4

The infrastructure of the integrated system must be backed up as frequently as possible.

Enable backup for Azure Stack Hub from the administrator portal

The frequency in hours determines how often backups are created. The default value is 12. Scheduler supports a maximum of 12 and a minimum of 4.

Box 2: Azure key vault

The integrated system backups must be retained for 28 days.

Online retention policy. This specifies the time period during which daily, weekly, monthly, and yearly backups are retained in the Azure Site Recovery vault that's associated with the local MABS instance.

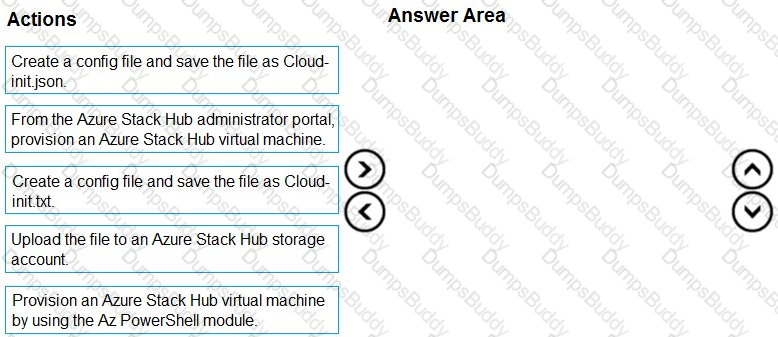

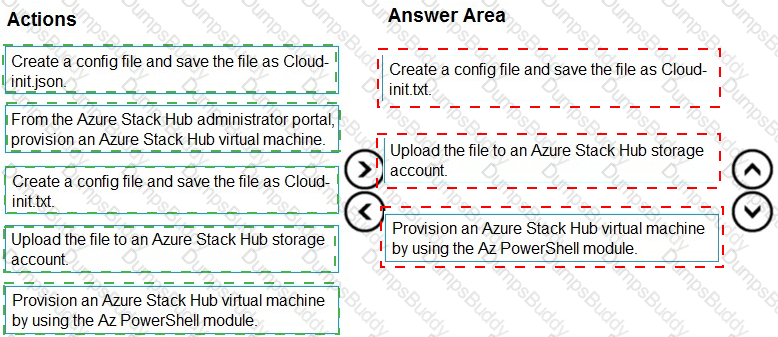

Step 1: Create a config.file and save the file as Sloud-init.txt file.

Publish a custom cloud-init built image of a Linux virtual machine to Azure Stack Hub Marketplace on the integrated system.

Add Linux images to the Azure Stack Hub Marketplace

1: Create a cloud-init.txt file with your cloud-config

Step 2: Upload the file to Azure Stack Hub storage account.

2: Reference cloud-init.txt during the Linux VM deployment

Upload the file to an Azure storage account, Azure Stack Hub storage account, or GitHub repository reachable by your Azure Stack Hub Linux VM.

Step 3: Provision on Azure Stack Hub virtual machine by using Az PowerShell moduel.

You can create an Ubuntu Server 16.04 LTS virtual machine (VM) by using Azure Stack Hub PowerShell.

Make sure to reference the cloud-init.txt as a part of the -CustomData flag:

$VirtualMachine =Set-AzVMOperatingSystem -VM $VirtualMachine `

-Linux `

-ComputerName "MainComputer" `

-Credential $cred -CustomData "#include https://cloudinitstrg.blob.core.windows.net/strg/cloud-init.txt "

Use the Azure Stack Hub Readiness Checker tool to validate that generated public key infrastructure (PKI) certificates which are suitable for pre-deployment. Validate certificates by leaving enough time to test and reissue certificates if necessary.

The Readiness Checker tool performs the following certificate validations:

* Parse PFX

Checks for valid PFX file, correct password, and whether the public information is protected by the password.

* Expiry Date

Checks for minimum validity of seven days.

* Signature algorithm

Checks that the signature algorithm isn't SHA1.

* Private Key

Checks that the private key is present and is exported with the local machine attribute.

* Etc.

Note: Perform core services certificate validation

Use these steps to validate the Azure Stack Hub PKI certificates for deployment and secret rotation:

1. Install AzsReadinessChecker from a PowerShell prompt (5.1 or above) by running the following cmdlet:

Install-Module Microsoft.AzureStack.ReadinessChecker -Force -AllowPrerelease

2. Create the certificate directory structure.

3. Etc.

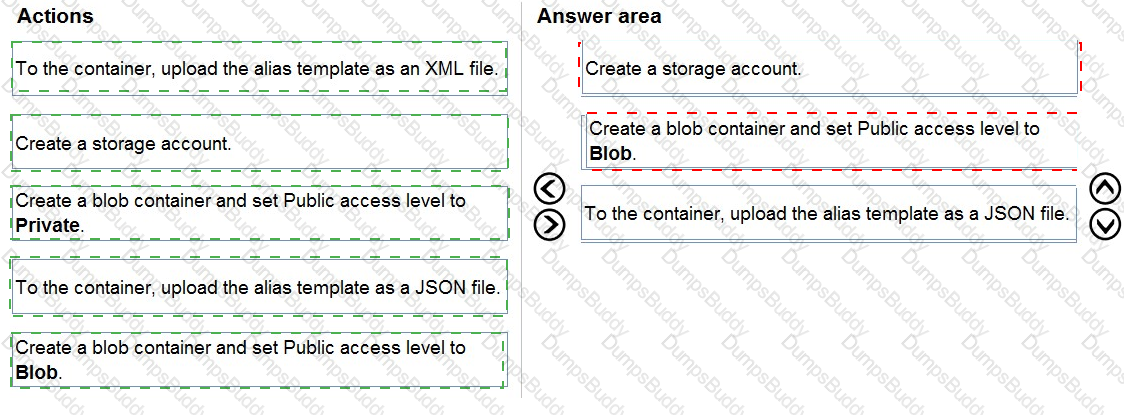

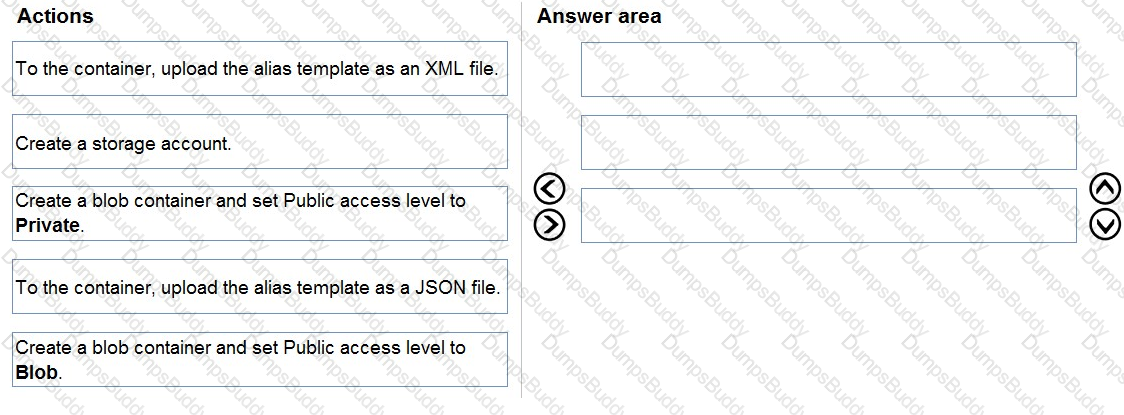

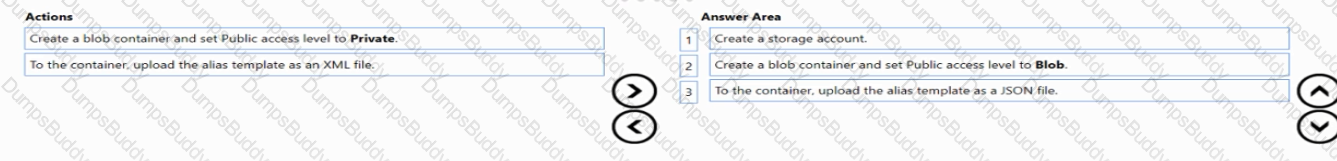

Step 1: Create a storage account

A sample alias file with many common image aliases is available. You can use that as a starting point. Host this file in a space where your CLI clients can reach it. One way is to host the file in a blob storage account and share the URL with your users:

1. Download the sample file from GitHub.

2. Create a storage account in Azure Stack Hub (Step 1). When that's done, create a blob container. Set the access policy to "public." (Step 2)

3. Upload the JSON file to the new container (Step 3). When that's done, you can view the URL of the blob. Select the blob name and then select the URL from the blob properties.

Step 2: Create a blob container and set the Public access to Blob.

Set up the VM aliases endpoint

Azure Stack Hub operators should set up a publicly accessible endpoint that hosts a VM alias file. The VM alias file is a JSON file that provides a common name for an image. You use the name when you deploy a VM as an Azure CLI parameter.

Note: When public access is allowed for a storage account, you can configure a container with the following permissions:

* Public read access for blobs only: Blobs within the container can be read by anonymous request, but container data is not available anonymously. Anonymous clients cannot enumerate the blobs within the container.

* Public read access for container and its blobs: Container and blob data can be read by anonymous request, except for container permission settings and container metadata. Clients can enumerate blobs within the container by anonymous request, but cannot enumerate containers within the storage account.

* No public read access: The container and its blobs can be accessed only with an authorized request. This option is the default for all new containers.

Step 3: To the container, upload the alias template as a JSON file.

Create a new cloudadmin user named User2.

Add a new Azure Stack Hub user account in Azure Active Directory (Azure AD)

Before you can test offers and plans and create resources, you'll need a user account for the Azure Stack Hub user portal. You create a user account in your Azure AD tenant, by using the Azure portal or PowerShell.

Graphical user interface, text, application, chat or text message Description automatically generated

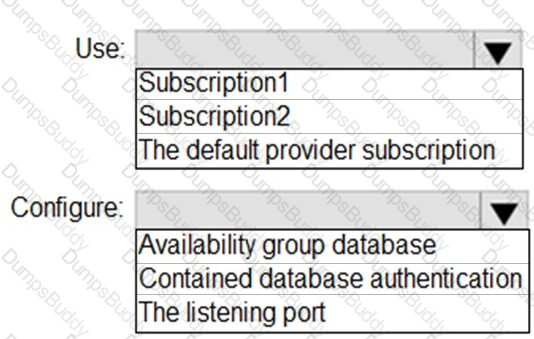

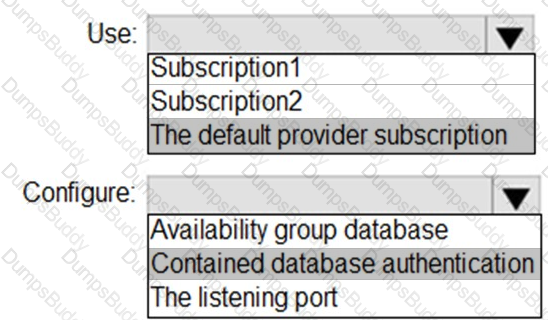

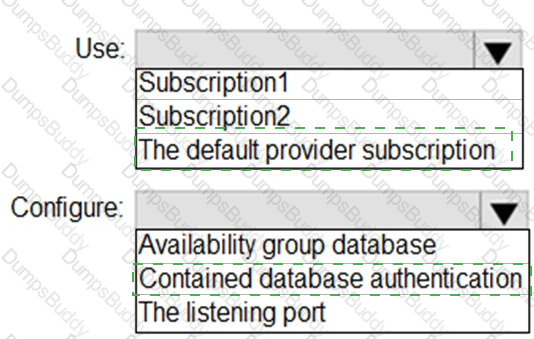

Box 1: The Default Provider Subscription

A default Microsoft SQL Server instance will host the database of the App Service resource provider.

In Azure Stack Hub Subscriptions, select the Default Provider Subscription. Azure App Service on Azure Stack Hub must be deployed in the Default Provider Subscription.

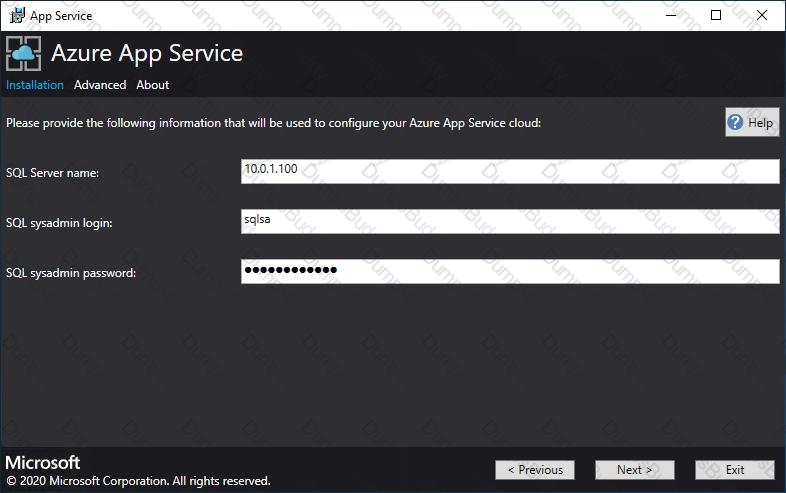

Box 2:

Enter the SQL Server details for the server instance used to host the App Service resource provider database and then select Next. The installer validates the SQL connection properties.

Graphical user interface, website Description automatically generated

Configure the integrated system to resolve external names by using a DNS Server that has an IP address of 10.100.100.100.

Resolving external DNS names from Azure Stack Hub

To resolve DNS names for endpoints outside Azure Stack Hub (for example: www.bing.com), you need to provide DNS servers that Azure Stack Hub can use to forward DNS requests for which Azure Stack Hub isn 't authoritative. For deployment, DNS servers that Azure Stack Hub forwards requests to are required in the Deployment Worksheet (in the DNS Forwarder field). Provide at least two servers in this field for fault tolerance. Without these values, Azure Stack Hub deployment fails. You can edit the DNS Forwarder values with the Set-AzSDnsForwarder cmdlet after deployment.

Configure conditional DNS forwarding

Important

This only applies to an AD FS deployment.

To enable name resolution with your existing DNS infrastructure, configure conditional forwarding.

To add a conditional forwarder, you must use the privileged endpoint.

For this procedure, use a computer in your datacenter network that can communicate with the privileged endpoint in Azure Stack Hub.

1. Open an elevated Windows PowerShell session (run as administrator), and connect to the IP address of the privileged endpoint. Use the credentials for CloudAdmin authentication.

$cred=Get-Credential

Enter-PSSession -ComputerName -ConfigurationName PrivilegedEndpoint -Credential $cred

2. After you connect to the privileged endpoint, run the following PowerShell command. Substitute the sample values provided with your domain name and IP addresses of the DNS servers you want to use.

Register-CustomDnsServer -CustomDomainName "contoso.com" -Custom

Box 1: Subject Alternative Name

Implement the App Service resource provider and the Event Hubs resource provider on the integrated system/

Only the Subject Alternative Name is used.

Box 2: DNS Name = =*.eventhub.east.azurestack.treyresearch.net

Event Hubs prerequisites

Procure public key infrastructure (PKI) SSL certificates for Event Hubs. The Subject Alternative Name (SAN) must adhere to the following naming pattern: CN=*.eventhub... Subject Name may be specified, but it's not used by Event Hubs when handling certificates. Only the Subject Alternative Name is used. See PKI certificate requirements for the full list of detailed requirements.

Assign the delegated provider role to User1.

Delegation steps

There are two steps to setting up delegation:

1. Create a delegated provider subscription: Subscribe a user to an offer containing only the subscription service. Users who subscribe to this offer can then extend the delegated offers to other users by signing them up for those offers.

2. Delegate an offer to the delegated provider: This offer enables the delegated provider to create subscriptions or to extend the offer to their users. The delegated provider can now take the offer and extend it to other users.

Note:

Move subscriptions between delegated providers

If needed, a subscription can be moved between new or existing delegated provider subscriptions that belong to the same directory tenant. You can move them using the PowerShell cmdlet Move-AzsSubscription.

Moving subscriptions is useful when:

* You onboard a new team member that will take on the delegated provider role and you want to assign to this team member user subscriptions that were previously created in the default provider subscription.

* You have multiple delegated providers subscriptions in the same directory tenant (Azure AD) and need to move user subscriptions between them. This scenario could occur when a team member moves between teams and their subscription must be allocated to the new team.

Graphical user interface, text, application Description automatically generated

Step 1: Run Get-AzsRegistrationToken

Change the Azure Stack Hub integrated system registration to use an Azure subscription named Subscription3 that has a GUID of 12345678-1234-1234-1234-222222222222.

Get-AzsRegistrationToken

Get-AzsRegistrationToken generates a registration token from the input parameters.

To register the Azure Stack Hub resource provider with Azure, start PowerShell ISE as an administrator and use PowerShell cmdlets with the EnvironmentName parameter set to the appropriate Azure subscription type.

Step 2: Run the Register-AszEnvironment cmdlet and specify the –RegistrationToken $Token parameter.

Step 3: Run the Select-AzSubscription cmdlet and specify the –Subscription 12345678-1234-1234-1234-222222222222 parameter.

To change the azure subscription using PowerShell, we can use the Select-AZSubscription command. When you use this command, you can use either the subscription ID, Subscription Name, or the Tenant ID.

Step 4: Run Set-AszRegistration.

Before proceeding, in the same PowerShell session, verify again that you're signed in to the correct Azure PowerShell context.

This context is the Azure account that was used to register the Azure Stack Hub resource provider. In the same PowerShell session, run the Set-AzsRegistration cmdlet:

$CloudAdminCred = Get-Credential -UserName -Message "Enter the cloud domain credentials to access the privileged endpoint."

$RegistrationName = ""

Set-AzsRegistration `

-PrivilegedEndpointCredential $CloudAdminCred `

-PrivilegedEndpoint `

-AgreementNumber `

-BillingModel Capacity `

-RegistrationName $RegistrationName

Integrate Azure Stack Hub with monitoring solutions using syslog forwarding

The syslog channel exposes audits, alerts, and security logs from all the components of the Azure Stack Hub infrastructure. Use syslog forwarding to integrate with security monitoring solutions and to retrieve all audits, alerts, and security logs to store them for retention.

Cmdlets to configure syslog forwarding

Configuring syslog forwarding requires access to the privileged endpoint (PEP). Two PowerShell cmdlets have been added to the PEP to configure the syslog forwarding:

### cmdlet to pass the syslog server information to the client and to configure the transport protocol, the encryption and the authentication between the client and the server

Set-SyslogServer [-ServerName ] [-ServerPort ] [-NoEncryption] [-SkipCertificateCheck] [-SkipCNCheck] [-UseUDP] [-Remove]

### cmdlet to configure the certificate for the syslog client to authenticate with the server

Set-SyslogClient [-pfxBinary ] [-CertPassword ]

Table Description automatically generated
