OMG-OCUP2-FOUND100 OMG Certified UML Professional 2 (OCUP 2) - Foundation Level Questions and Answers

The correct answer is Option C based on the UML 2 Foundation concepts for activities and pre/postconditions.

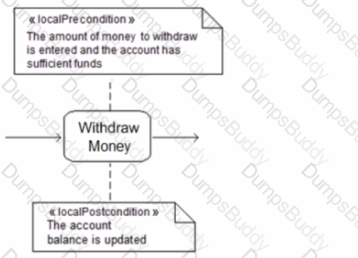

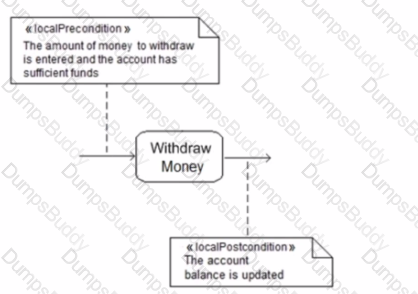

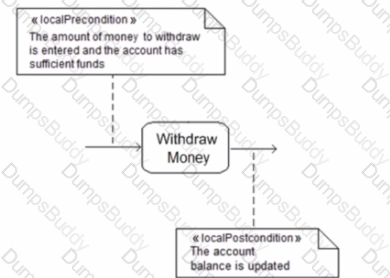

Analysis of the Diagram in Option C:

• The diagram depicts an activity named "Withdraw Money".
• There are two diamonds preceding the activity, representing preconditions. Preconditions are conditions that must be true before the activity can be executed.
• The text within the first diamond indicates that "the amount of money to withdraw is entered".
• The text within the second diamond indicates that "the account has sufficient funds".
• This aligns with the scenario where the user must enter a withdrawal amount and the account must have enough money to cover the withdrawal before the "Withdraw Money" activity can proceed.
• Following the activity, there's a diamond labeled "postcondition," indicating a condition that becomes true after the activity is completed.
• The text within the postcondition diamond states that "the account balance is updated." This reflects the scenario where the account balance is updated after a successful withdrawal.

Comparison with Other Options:

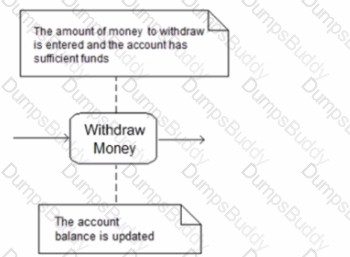

• Option A, B, and D do not explicitly show preconditions and postconditions using the diamond notation, making them less suited to represent the scenario where certain conditions need to be met before and after the action.

References

• UML 2.5.1 Specification (Superstructure): Sections on Activity Diagrams and Pre/Postconditions https://www.omg.org/spec/UML/2.4/Superstructure/PDF

Pseudostates in UML state machines serve a different purpose than regular states. They are used as markers or waypoints to facilitate complex state transitions. Key distinctions include:

• Transient Nature: Pseudostates do not represent persistent states of an object. They are not associated with entry/exit actions or internal activities like regular states. The state machine immediately transitions through a pseudostate.
• Run-to-Completion Restrictions: A run-to-completion step (the sequence of states and transitions activated by a single event) cannot end in a pseudostate.

Let's analyze why the other options are incorrect:

• Option A (A pseudostate must have an outgoing transition):While most pseudostates have outgoing transitions to guide the flow of the state machine, this is not a strict requirement. For example, the 'terminate' pseudostate signifies the end of a statemachine and thus has no outgoing transitions.
• Option B (An outgoing transition from a pseudostate must always terminate on a regular state):While true in many cases, outgoing transitions can also target other pseudostates for more intricate state machine designs.
• Option D (The outgoing transitions of a pseudostate must have triggers that consist exclusively of guard conditions):Pseudostate transitions can have a mix of triggers, including events, timeouts, and guard conditions.

References:

• UML Specification (Superstructure) Version 2.5.1: Specifically, sections covering statemachines (Chapter 14), pseudostates (Section 14.2.3.8), and run-to-completion steps (Section 14.2.3.13). You can find it on the OMG website: https://www.omg.org/spec/UML/2.5.1

In UML, a behavioral feature is a feature of a classifier that specifies an aspect of the behavior of its instances. A behavioral feature is implemented (realized) by a method. Operations are a kind of behavioral feature; they are the specifications of transformations or queries that can be requested from an object of the classifier.

Here's why the other options are not correct:

A) "Method" is not a behavioral feature; it is a realization of one. B) "Function" is more of a programming concept than a UML term and would likely be modeled as an operation if it's part of a classifier. D) "Constraint" is not a behavioral feature but a restriction on some aspect of a classifier or a stereotype. E) "Method Invocation" is not a feature; it's an action that invokes a method. F) "Classifier behavior" is a broader concept that defines the behavior characteristic of classifiers as a whole, not a behavioral feature in itself.

Therefore, the correct answer is:

C. Operation

The correct answer is Option B based on its visual representation and alignment with the given scenario:

• Class Start Condition: Both diagrams (Option B and Option C) include a decision diamond labeled "10 Students Present?". This captures the condition for the class to start.
• Professor Arrival: Option B explicitly shows the arrival of the professor using an action rectangle labeled "Professor Arrives". This directly addresses the second part of the scenario where the professor's presence is required.
• Start Activity: Both Option B and C have a subsequent activity labeled "Start Class".

Why Option B is More Accurate:

While both Option B and Option C depict the 10 student condition, Option B goes a step further by including the professor's arrival as a separate action, making it a more precise representation of the two-part requirement for the class to start.

Other Options Analysis:

• Option A: This diagram lacks the "10 Students Present?" condition and the professor's arrival, making it unsuitable for the given scenario.
• Option D: This diagram entirely misses the concept of students or the professor, focusing on a different situation.

References

• UML 2.5.1 Specification (Superstructure): Sections on Activity Diagrams, Decisions, and Actions https://www.omg.org/spec/UML/2.5.1/

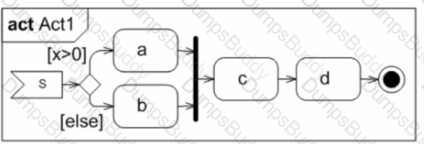

The provided image depicts a block diagram with a signal, decisions, and actions. Here's a breakdown of the elements and why answer choice A is the most accurate:

• Signal: Represented by a vertical arrow labeled "Signal", indicating an external stimulus that triggers the process.
• Decision Diamond labeled "x>0": This diamond represents a decision point based on the condition "x greater than 0". The flow splits into two paths based on whether the condition is True (Yes) or False (No).
• Paths from the Decision:
• Action c: This action is positioned below the decision diamond.

Analysis of Action c's Execution:

• Upon receiving a Signal, the decision point is evaluated.
• Depending on the value of x:
• In either case (True or False), after the corresponding action (a or b) finishes, action "c" is then executed once.

Other Answer Choices Analysis:

• B. Two or more Signals must be received... The diagram suggests execution upon receiving one Signal.
• C. Action c will get executed twice... The diagram indicates c executes only once after either a or b.
• D. Nothing can be said... The diagram conveys a clear sequence of actions based on the signal and the decision.

In UML, an Object Diagram is a type of static structure diagram that shows a snapshot of the detailed state of a system at a point in time. It focuses on some particular set of objects and attributes, and the links between them. When it comes to the number of instances that can be represented in an Object Diagram, it can range from zero (in cases where the diagram is used to show that no instances of a class exist under certain conditions) to many instances. Therefore, an Object Diagram can show 0 instances, 1 instance, or many instances, which is represented by the multiplicity notation 0..*.

Therefore, the correct answer is:

D. 0..*

In UML, Comments are annotations that can be attached to most elements within UML diagrams. Their primary function is not to affect the semantics of the model directly but to provide useful information to anyone reading the model. Comments can help explain or clarify design decisions, make notes about specific parts of the model, or provide any other context necessary for understanding the model better.

The role of Comments in UML is not to enable automatic generation of code comments or to add constraints or semantics to model elements, although they can be associated with model elements to highlight or explain specific attributes or relationships.

References:

• UML 2.x Superstructure Specification: This document describes Comments as a way to provide human-readable descriptions and notes that do not impact the execution or structure of the model but are crucial for documentation and understanding.
• UML 2.x Infrastructure Specification: Further delineates the role of comments in providing clarifications and additional information useful for model interpretation.

In UML, when a class diagram shows an operation with a parameter that has a multiplicity of [0..1], it indicates that the parameter is optional. The range [0..1] means that the parameter can have 0 or 1 occurrence. This does not mean it accepts a collection, nor does it specify the values it accepts (it specifies how many times the parameter can occur).

The correct interpretation of the parameterpar1 : Integer [0..1]is:

A. It is optional.

B is incorrect because the multiplicity [0..1] does not mean a collection of items; rather, it signifies that the parameter can be omitted or present, but not multiple times. C is incorrect because the multiplicity [0..1] does not constrain the values to 0 or 1; it refers to the number of instances of the parameter. D is incorrect because [0..1] is not a range of values but a range of occurrences or instances of the parameter.

Therefore, the correct answer is:

A. It is optional.

The diagram fragment shows an instance specification for anEmployee. The different prefixes before each attribute indicate the visibility of that attribute:

• +Public: Visible to everyone.
• -Private: Visible only within the defining class.
• #Protected: Visible to subclasses and package.
• ~Package: Visible to all classes within the same package.

Given these visibility indicators, the attribute with the private visibility is-salary: Real. This means that thesalaryattribute is the one that is hidden outside of thecurrent:Employeeclassifier and cannot be accessed by entities that do not belong to theEmployeeclass.

Therefore, the correct answer is:

C. salary

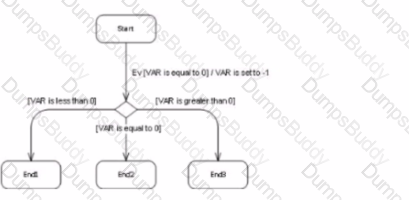

UML 2 state machine concepts, here's the analysis of the state machine's behavior after the event and the most likely answer:

State Transition Triggered by Event Ev:

The state machine starts in the "Start" state. When the event "Ev" occurs, there's a transition leaving "Start" with a condition "[VAR is equal to 0]".

Value of Local Variable VAR:

The prompt specifies that the value of local variable VAR is equal to zero at the time of the event.

State Transition Evaluation:

Since the condition "[VAR is equal to 0]" is true (given VAR's value is zero), the transition from "Start" to state "State1" is triggered.

Completion of Run-to-Completion Step:

Upon reaching "State1", there are no further outgoing transitions or events to consider. "State1" itself has no exit actions specified. Therefore, the run-to-completion step reaches its end at "State1".

Most Likely Answer:

Based on the analysis above, the most likely answer is:

C. End3

Explanation for Other Options:

• A. End1: There's no direct path from "Start" to "End1".
• B. End2: Similar to option A, there's no transition leading to "End2" when the event occurs and VAR is zero.
• D. Start: The state machine transitions out of "Start" upon the event "Ev". It won't return to "Start" without another transition.

Possible Ambiguity:

It's important to note that state machines can involve complex logic and actions within states. While "State1" appears to be a terminal state in this case, it's conceivable that there could be hidden actions within "State1" that modify VAR or trigger further transitions. The prompt and the provided image don't provide enough information to definitively rule out such possibilities.

Considering the Absence of Mentioned Ambiguity:

Assuming there are no such hidden actions or unspecified behaviors within "State1", then answer C (End3) is the most reasonable conclusion based on the information available in the prompt and image.

In UML modeling, a constraint is defined as:

A. a condition that must be satisfied when it is evaluated

A constraint is a semantic condition or restriction expressed in natural language text or a machine-readable language for expressing constraints, such as OCL (Object ConstraintLanguage). Constraints specify invariants that must hold for the system being modeled at all times. This means that whenever the constraint is evaluated, the condition it expresses must be satisfied (UML 2.5 specification, section 7.9).

The other options do not accurately define what a constraint is in the context of UML:

B. A condition that should be met depending on system operation – This is not precise as constraints are not optional and do not depend on system operation; they are always applicable.

C. A condition that causes the state of the objects to change over time – This describes a side effect, which is not the purpose of a constraint. A constraint is a condition that must always be met, not something that induces change.

D. A condition that constrains what can or cannot be put in a class diagram – This is too broad and imprecise. Constraints apply to elements within the class diagram and are not about the content of the diagram itself.

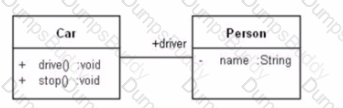

In UML, the features of a class are the combined set of attributes (properties) and operations (methods) that are defined for that class. A feature is a characteristic that classifiers (like classes) can possess. In the context of UML, operations are considered behavioral features, while attributes are considered structural features.

Let's analyze the given options in the context of the Car class:

A. "drive()" is an operation (method) of the Car class, but "Car" itself is the name of the class, not a feature.

B. "stop()" is an operation of the Car class, but "driver" is a role name for an association, not a feature of the Car class.

C. "name" is an attribute of the Person class, not the Car class. "stop()" is indeed an operation of the Car class.

D. "drive()" and "stop()" are operations of the Car class. "Person" is not a feature of the Car class, but no attributes of the Car class are shown in the diagram, and since features include both operations and attributes, the correct answer from the available options isD. It is understood that operations of a class are features, so the answer includes both operations of the Car class: "drive()" and "stop()".

According to the UML 2 Foundation specification, both structural features (attributes) and behavioral features (operations) are considered features of a class, so the correct answer would be the operations "drive()" and "stop()" since those are the only features explicitly represented in the Car class in the diagram.

Modeling as part of the software analysis and design process offers several advantages, one of the primary being the reduction in the risk of inconsistent or improper implementations. By using models, developers can visualize the structure and behavior of the system before actual coding begins, allowing for the identification and correction of potential issues in the early stages of development. This practice helps ensure that all components of the software work together as intended, reducing the likelihood of bugs and inconsistencies that could arise if parts of the system were developed in isolation. UML, as a standardized modeling language, provides a coherent and universally understood set of diagrams and symbols, which facilitates clear communication among team members and stakeholders, further mitigating the risk of misunderstandings that could lead to improper implementations.

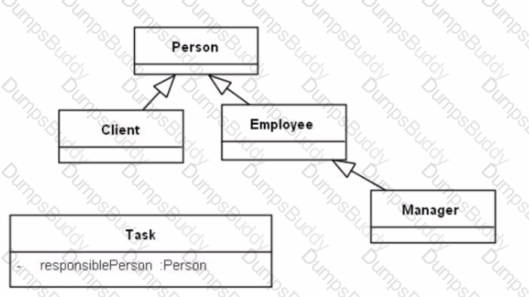

In UML class diagrams, relationships between classes are represented in a number of different ways, including generalization, association, and composition.

Looking at the provided options, let's analyze each one:

A. responsiblePerson inherits from Person – This is incorrect because theresponsiblePersonis an attribute of theTaskclass, not a class itself, so it cannot inherit fromPerson.

B. Client and Manager have nothing in common – This is incorrect because bothClientandManagerare specialized types ofPersonas indicated by the generalization arrows pointing toPerson.

C. responsiblePerson can not refer to an object of class Client – This is incorrect.responsiblePersonis typed byPerson, which means that it can refer to an instance of any subclass ofPerson, includingClient.

D. The object referred to as responsiblePerson can be a Manager – This is correct. SinceresponsiblePersonis an attribute of theTaskclass with the typePerson, andManageris a subclass ofPerson,responsiblePersoncan indeed refer to an instance ofManager.

The correct answer is based on the UML 2 Foundation specification that describes how attributes are typed by classes and can refer to instances of these classes or their subclasses (UML 2.5 specification, sections 9.3.3 and 9.5.3). The generalization relationship (represented by a triangle followed by a line) establishes a hierarchy between a more general element and a more specific element, which in this case means thatClientandManagerare both specific types ofPersonand can be used whereverPersonis expected (UML 2.5 specification, section 9.4.5).

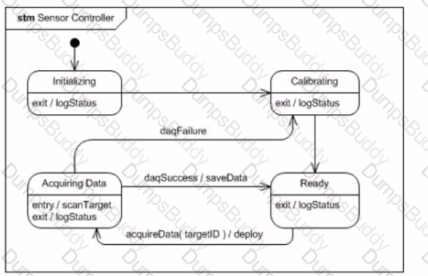

The provided image depicts a block diagram of a sensor controller represented as a state machine. The state machine transitions between the following states:

• Initializing
• Calibrating
• Ready
• Acquiring Data

The question specifies the state machine starts in the Ready state and theacquireDataevent triggers the transition.

Analyzing the image, we can identify the following behaviors for the scenario:

• logStatus: This behavior is depicted in the diagram as the first action upon exiting the Ready state. It most likely logs the current state of the sensor controller.
• deploy: The transition from Ready to Acquiring Data triggers the deploy behavior. This likely involves preparing the sensor for data acquisition.
• scanTarget: Upon entering the Acquiring Data state, the scanTarget behavior is initiated. This suggests the sensor controller is actively collecting data from the target.

Therefore, the complete sequence of behaviors islogStatus, followed bydeploy, and lastlyscanTarget, before reaching the Acquiring Data state.

Justification for excluding other options:

• Option A (deploy only) excludes the initial state logging and target scanning actions.
• Option B (logStatus.deploy) excludes the target scanning upon entering the Acquiring Data state.
• Option C (deploy, scanTarget) omits the initial state logging.
• Option E (logStatus.deploy.scanTarget.logStatus) includes an extra logStatus action after target scanning, which is not supported by the diagram.

In conclusion, based on the state machine diagram and the behavior descriptions, option D (logStatus.deploy.scanTarget) accurately reflects the sequence of actions that occur before the sensor controller arrives at the Acquiring Data state.

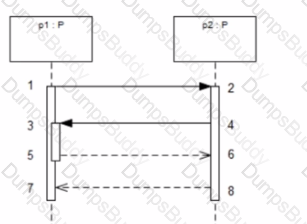

In UML sequence diagrams, an execution specification is represented by a thin rectangle along a lifeline. It shows where in time the execution takes place, starting with the initiation of an operation or process and ending when that process is complete.

In the interaction diagram provided, we can see an execution specification on the lifelinep1: Pthat starts after the message corresponding to point 3 is received and ends just before the message corresponding to point 5 is sent. This means the execution specification is bracketed by points 3 and 5.

Points 1 and 2 represent message sends, 1 and 4 could represent a message send and receive for the same message, which doesn't typically represent the full execution specification. Points 2 and 3 don't represent a logical start and end of an execution specification because they're on different lifelines.

Therefore, the correct answer is:

D. 3, 5

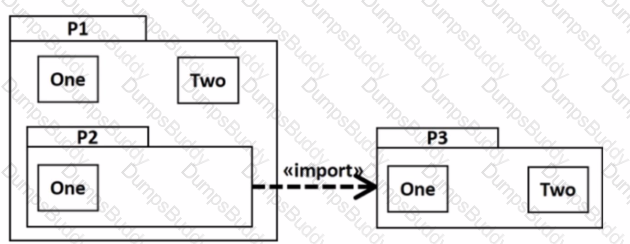

In UML, the<<import>>relationship indicates that the namespace of the target element (in this case,P3) is added to the namespace of the source (in this case,P2). However, it's important to distinguish between different types of imports. There are two types of import relationships:

• Public Import: IfP2were to importP3publicly (using<>), then all public members ofP3would become accessible toP2as if they were part ofP2.
• Private Import: IfP2were to importP3privately (using<>), then the public members ofP3are only accessible withinP2and not to elements that useP2.

Given the diagram, it seems thatP2is importingP3(the nature of the import, public or private, is not explicitly mentioned). Assuming it is a public import and considering thatP2itself is withinP1, which is the higher-level package, thenP1has visibility over its own contents as well as any elements imported intoP2.

ElementOneinP3has the same name asOneinP1, and typically in UML, when an element is imported into a namespace where an element with the same name exists, the imported element is not accessible without a qualified name to avoid ambiguity. However, sinceP2is withinP1, it could be argued thatOneinP3, when imported, would effectively "merge" withOneinP1, thereby makingOnevisible insideP2without a qualified name due to its presence in the higher-level packageP1.

Therefore, the correct answer is:

B. One

A key characteristic that should apply to any useful model, including those created with UML, is that it abstracts away irrelevant details. This abstraction is crucial for managing complexity by focusing on the essential aspects of the system that are relevant to the current perspective or analysis task. By removing unnecessary information, the model remains understandable and manageable, even as the underlying system grows in complexity. This principle helps maintain a clear and concise representation of the system, enabling stakeholders to focus on strategic decisions without being overwhelmed by details.

Having all the UML diagrams of a model maintain the same level of detail is typically required by tools that automatically transform the model into other forms, such as code or other types of models. Consistency in the level of detail across different diagrams ensures that automated tools can reliably interpret and convert the UML diagrams without encountering discrepancies that could lead to errors or misrepresentations in the generated outputs. This consistency is crucial for maintaining the integrity of the transformations and for ensuring that the resultant products accurately reflect the intended design and specifications.

The most appropriate use of UML during software development is to capture the essential characteristics and design decisions of a planned or existing system. UML (Unified Modeling Language) is primarily utilized to visually represent the architecture, design, and behavior of a system, which includes detailing the components, relationships, and interactions within the system. This makes it a critical tool for understanding complex systems and making informed design decisions that align with project requirements and constraints. UML facilitates clear communication among development team members and stakeholders, ensuring that design decisions are well-understood and accurately implemented.

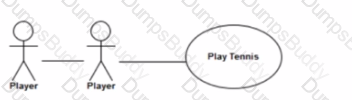

In UML use case diagrams, when specifying the number of actors involved in a use case, a multiplicity marker can be used. The multiplicity marker is a number placed near the actor symbol that denotes how many instances of the actor are involved in the use case.

Option C correctly uses a multiplicity marker of '2' next to the actor 'Player', which indicates that exactly two instances of 'Player' are involved in the "Play Tennis" use case.

Here is a brief explanation of why the other options are incorrect:

A) Option A shows two separate 'Player' actors involved in "Play Tennis" without a multiplicity marker, implying possibly different kinds of players, but does not specify that exactly two instances are required. B) Option B shows two 'Player' actors involved in "Play Tennis" without a multiplicity marker, also not specifying the exact number of instances required. D) Option D uses a multiplicity marker, but it is incorrectly placed near the 'Play Tennis' use case instead of the 'Player' actor, which does not follow UML notation for indicating actor multiplicity.

Therefore, the correct answer is:

C. Option C

DataTypes in UML are a type of classifier that represents a set of values that do not have identity, which means that two instances of a DataType are indistinguishable if all their attributes are equal. This is in contrast to instances of Classes, which are distinguishable by their identity - each instance is considered unique even if their attributes have the same values.

Option A is incorrect because DataTypes can indeed have operations in UML. Option B is also incorrect; DataTypes can have attributes of any complexity. Option D is incorrect because DataTypes can also have features inherited from their super DataTypes; it is not solely about instantiation.

The UML 2.5 specification discusses DataTypes in section 10.5.8, stating that DataTypes do not have an identity and are often used to type attributes and operation parameters. The equality of DataType instances is based on the equality of their attribute values. Classes, however, are described in section 9.2 of the UML 2.5 specification as elements that can have identity, and instances of a Class are distinguished based on that identity.

The UML term pair that captures complementary ways of looking at a relationship is "aggregation / composition". Both terms describe types of associations between classes but differ in the degree of ownership and lifecycle dependency between the involved objects. Aggregation implies a weaker relationship where the parent class contains or is linked to other classes but does not strictly control their lifecycle (e.g., a university and its students). Composition, on the other hand, implies a stronger relationship where the parent class has full responsibility for the lifecycle of the associated classes (e.g., a house and its rooms). Understanding these relationships helps model systems more accurately in terms of object ownership and lifecycle management.

• Represent the movement of data or objects between activities.
• Can support multicast, meaning sending a single token to multiple recipients.
• Can support transformation, where input tokens are altered or transformed into different output tokens.

Control Flows

• Represent the sequence of execution between activities.
• Generally carry control tokens to indicate when the next activity can begin.

Explanation for why Answer B is Correct

• Multicast and Transformation: Object flows are specifically designed to handle more complex scenarios with multiple inputs, outputs, and the ability to transform data. Control Flows are focused on the order of execution and don't directly support these capabilities.

Analysis of Other Options:

• A. Both object flows and control flows can pass... : While both can carry tokens, the specializations of multicast and transformation are unique to object flows.
• C. Only control flows provide additional support... : This is incorrect. As mentioned above, these features are associated with object flows, not control flows.
• D. Only object flows may reorder... : This is potentially true, but less central to the main difference between object flows and control flows, which is the ability of object flows to support multicast and transformation.

References

• UML 2.5.1 Specification (Superstructure): Sections on Activity Diagrams, Object Flow, and Control Flow https://www.omg.org/spec/UML/2.5.1/
