NCSE-Core Nutanix Certified Systems Engineer-Core (NCSE-Core 6.8) Questions and Answers

Understanding the Context:

The project to migrate to the public cloud was largely unsuccessful, indicating underlying issues that need to be identified.

Effective Open-Ended Questions:

What challenges triggered the public cloud initiative?:

Explanation: This question helps understand the initial pain points and motivations for the migration attempt, providing insight into what problems the company was trying to solve.

Analyze the CPU utilization data:

Historical CPU utilization data indicates that peak CPU utilization never exceeds 50% on either physical host.

This implies that the existing physical CPUs are underutilized.

Calculate vCPU

ratio:

Given that peak utilization is only 50%, a conservative approach would be to use a lower vCPU to pCore ratio to avoid overcommitment and ensure performance.

Recommended ratio:

A 2:1 vCPU to pCore ratio is appropriate in this scenario to ensure that there is ample CPU capacity and to avoid potential performance bottlenecks.

References:

Nutanix Sizer tool recommendations and best practices for CPU allocation in virtualized environments.

When using Live Optics to assist with sizing a partial infrastructure refresh, it's crucial to capture data that accurately reflects the peak usage periods to ensure the sizing will accommodate the highest demands placed on the infrastructure. Here are the detailed steps and reasons:

Peak Utilization:

Capturing data during peak utilization provides a realistic picture of the maximum load the infrastructure needs to handle.

It ensures that the proposed sizing can accommodate the highest performance and capacity demands, reducing the risk of undersizing.

24-hour Window:

A 24-hour window captures a full day’s cycle, including peak and off-peak hours, providing a comprehensive view of the utilization patterns.

This duration helps in understanding not only the peak loads but also the variations and average loads throughout the day.

Combining these two factors, the most accurate and comprehensive data for sizing would be gathered during 24-hour windows at periods of peak utilization.

Current Configuration:

The customer has a 3-node cluster configured for RF2 with 100TB of raw disk space.

Erasure Coding Requirements:

Erasure Coding (EC-X) improves storage efficiency by using a parity-based method to store data.

For EC-X to be enabled, a minimum of 4 nodes is required in the cluster.

Explanation:

RF2 (Replication Factor 2): Requires data to be replicated across at least two nodes.

Erasure Coding: Requires additional nodes beyond the replication factor to store parity information. In this case, a minimum of 4 nodes is needed to implement EC-X.

Required Change:

Add 1 Node: Adding one more node to the existing 3-node cluster will meet the minimum requirement of 4 nodes, allowing the customer to enable Erasure Coding.

Outcome:

By adding an additional node, the cluster will be able to utilize Erasure Coding, thereby gaining additional usable space.

When setting up Acropolis File Service (AFS) for the first time on a Nutanix cluster, the system creates three file services VMs by default. These VMs are distributed across different nodes in the cluster to ensure high availability and load balancing of the file services.

References:

Nutanix Bible

Nutanix Community Edition Getting Started Guide​

C. Expand the cluster by adding an additional node:

Demonstrating the ease of expanding the Nutanix cluster by adding an additional node showcases the scalability and simplicity of Nutanix’s hyperconverged infrastructure. This is a critical success criterion for customers looking for a solution that can grow with their needs.

D. Use a single interface to manage and monitor the full stack:

One of Nutanix’s key advantages is the ability to manage and monitor the entire infrastructure stack from a single interface, Prism. This feature simplifies management and reduces operational overhead, which aligns with the customer’s requirement for an “All in One” solution.

For a prospective customer concerned about the suitability and design of using Nutanix for an Avaya IP Office migration, the appropriate document to provide is a Reference Architecture.

Definition:

A Reference Architecture document provides a detailed technical blueprint, including the design, configuration, and deployment guidelines specific to an application or solution.

Content Relevance:

It includes validated configurations and best practices that have been tested and recommended by Nutanix for running Avaya IP Office.

This document will address concerns about performance, reliability, and integration specific to Avaya IP Office.

Design Validation:

Reference Architectures are created based on real-world implementations and are designed to ensure that the proposed solution will meet the customer’s requirements.

References:

Nutanix Reference Architecture documents and guidelines.

Avaya IP Office deployment guides on Nutanix platforms.

Shadow Clones:

Shadow Clones are a Nutanix feature designed to enhance performance for read-heavy workloads like VDI during peak operations such as boot storms.

This feature ensures that frequently accessed data is available locally on all nodes, significantly reducing latency and improving read performance during boot operations​​​​.

Implementation Benefits:

Minimizes the boot time for linked clone desktops during shift changes.

Enhances overall user experience by reducing the I/O bottleneck during mass reboots

To verify if all network cards associated with BridgeO are being used by nodes in an AHV cluster, you need to examine the network configuration and the network interface cards (NICs) on the hosts. The following menus in the Prism interface will provide the necessary information:

Host NICs tab in Hardware menu:

This tab provides a detailed view of all NICs available on each host in the cluster.

It shows the status, speed, and configuration of each NIC, which helps determine if all network cards are active and properly associated with BridgeO.

Host view in Network menu:

The Network menu under the Host view provides insights into the network configuration for each host.

It includes information on how NICs are bridged, VLAN assignments, and overall network topology, confirming if all NICs are effectively used and contributing to the bridge.

These menus collectively ensure that the administrator can verify the network setup and utilization of all network interfaces.

References:

Nutanix Bible, Networking section detailing NIC and bridge configuration​​.

Nutanix-Community-Edition-Getting-Started, Sections on network management and host configuration​​.

To troubleshoot high I/O latency and correlate it with other potential resource issues, such as network or memory constraints, the administrator should create a VM entity chart. This type of chart allows for:

Inclusion of Multiple Metrics:

The VM entity chart can incorporate various relevant metrics such as I/O latency, CPU usage, memory usage, and network throughput, providing a comprehensive view of the VM's performance.

Ease of Data Export:

The chart can be easily exported to CSV format, facilitating detailed offline analysis. This is essential for correlating different metrics over the same time period and identifying patterns or anomalies that could explain the high I/O latency.

By using a VM entity chart, the administrator ensures that all pertinent data is collected and can be analyzed together, providing a holistic view of the VM's performance and aiding in pinpointing the root cause of the latency issue.

References:

Nutanix Prism Central User Guide

Nutanix Documentation on Performance Monitoring

In Nutanix Files (formerly known as Acropolis File Services or AFS) 3.5, home shares require a multi-FSVM deployment to function correctly. A single FSVM deployment does not support the configuration of home shares.

Single FSVM Limitation: A single FSVM deployment lacks the necessary redundancy and performance capabilities required for supporting home shares. Home shares require multiple FSVMs to provide high availability and load balancing, which is essential for managing user home directories effectively.

Home Shares Configuration: Home shares are designed to distribute user data across multiple nodes to ensure availability and performance. This distribution requires at least three FSVMs in a typical deployment setup.

Troubleshooting: When home shares cannot be configured, one of the first checks is to ensure that the deployment consists of the required number of FSVMs. In this case, the deployment having only a single FSVM directly explains the issue.

References:

Nutanix Bible, Section on File Services and Multi-FSVM requirements​​.

Nutanix-NDB-User-Guide, Network Requirements for Nutanix File Deployments​​.

A. 1-Node and 2-Node Clusters:

Nutanix offers 1-node and 2-node cluster configurations, which are ideal for small remote locations with limited hardware requirements. These configurations are cost-effective and provide the necessary compute and storage resources for small workloads, addressing the cost concerns for the prospect’s remote sites.

D. AHV:

AHV (Acropolis Hypervisor) is included with Nutanix at no additional licensing cost, which can significantly reduce the total cost of ownership compared to environments that require separate hypervisor licenses (such as VMware vSphere). Highlighting the cost savings of using AHV can help address the prospect's concerns about pricing.

References:

Nutanix documentation on small cluster configurations and the benefits of AHV in reducing costs and simplifying management for remote and edge locations.

Nutanix Era is a tool that provides database management with one-click operations for provisioning, patching, and managing databases. It includes capabilities for self-service and lifecycle management for both Kubernetes containers and SQL databases, making it ideal for building a private cloud for internal developers. Era simplifies database operations and integrates seamlessly with Nutanix infrastructure to provide a comprehensive solution for database lifecycle management.

References:

Nutanix Bible​

Nutanix handles node failures by immediately beginning the rebuild process. When two nodes fail within a short time frame, Nutanix automatically initiates the data replication and rebuild process to ensure data integrity and availability. The system leverages the remaining capacity and resources in the cluster to redistribute and rebuild the data from the failed nodes, minimizing the risk of data loss and maintaining cluster resilience.

References:

Nutanix Bible​

Understanding Customer Pain Points:

The customer is frustrated due to a lack of transparency and difficulty correlating performance issues with specific events, indicating a need for comprehensive monitoring and analytical tools.

Prism Analysis Page:

Explanation: The Analysis page in Prism provides custom charts and detailed event reporting, allowing users to visualize performance data over time and correlate it with specific events.

Qualifying a POC (Proof of Concept):

The initial goal is to understand the specific requirements and expectations of the prospect.

This helps in designing a relevant and focused POC that addresses the prospect's needs directly.

Reason for Asking About Evaluation Plans:

Identifying the specific aspects of Nutanix they wish to test ensures the POC is relevant.

It allows tailoring the demo environment to closely match their production environment or test scenarios.

This question also uncovers the prospect's priorities, such as performance, ease of use, scalability, etc.

Alternative Questions:

Other Solutions: This might come later to understand the competitive landscape but does not help in designing the POC.

Project Budget: Important for project feasibility but not immediately necessary for qualifying the need for a POC.

Splunk Version: Relevant for technical compatibility but not for initial qualification.

References:

Nutanix presales best practices and qualification guidelines.

X-rayis a performance testing tool designed by Nutanix to simulate real-world application workloads and provide detailed performance metrics. It can effectively demonstrate the performance of Microsoft SQL Server on Nutanix compared to the existing infrastructure.

Xtractsimplifies the migration process by automating the migration of workloads from existing infrastructure to Nutanix, reducing the effort and time required for the POC.

By using these tools, the SE can provide the customer with comprehensive performance data without the need for a lengthy POC, thereby addressing their concerns more efficiently.

In the Nutanix Distributed Storage Fabric, write I/O that is deemed sequential first enters the Oplog. The Oplog is designed to handle high-throughput write operations efficiently by temporarily storing the incoming writes before they are later consolidated and written to the extent store.

References:

Nutanix Bible

B. Data Locality:

Nutanix's data locality feature ensures that data is always written and read from the local storage of the node where the VM is running. This minimizes latency and provides consistent performance, which addresses the unpredictable storage performance and latency spikes the prospect is experiencing.

By keeping data local to the VM, Nutanix reduces the dependency on the network for storage operations, resulting in improved and predictable performance, especially during peak utilization.

Erasure Coding (EC) Analysis:

Erasure Coding is a Nutanix feature that provides efficient storage utilization by distributing data across multiple nodes.

Write-cold Data Requirement:

Write-cold duration: Data must be 'write-cold' for a specific period before Erasure Coding can begin optimization.

Duration: The required duration for data to be considered 'write-cold' is 7 days.

Explanation:

Erasure Coding optimizes storage usage by encoding data across nodes. However, this process is applied to data that is infrequently accessed or modified.

The 7-day period ensures that the data is stable and not subject to frequent changes, making it suitable for EC optimization.

Outcome:

After 7 days of being 'write-cold', the data will be eligible for Erasure Coding, thereby optimizing storage efficiency while maintaining data resiliency.

References: For more details on Erasure Coding and its operational requirements, refer to Nutanix documentation on storage optimization and EC processes.

Customer Requirement:

Failover capability to a secondary datacenter with an RPO and RTO of no more than 15 minutes.

Round trip latency between sites can reach up to 6ms.

Nutanix Feature:

NearSync: This feature provides a low RPO/RTO disaster recovery solution with support for low-latency inter-site communication.

Explanation:

NearSyncallows for frequent asynchronous replication with very low RPOs (as low as 1 minute) and ensures rapid recovery times.

It is designed to handle round trip latencies up to 6ms, making it suitable for the customer’s inter-site latency requirements.

Outcome:

NearSync will enable the customer to meet their stringent RPO and RTO requirements, ensuring that VMs can be powered on in the secondary datacenter quickly in the event of a primary datacenter failure.

References: For further details on NearSync capabilities and configuration, refer to Nutanix documentation on disaster recovery and NearSync features.

Understanding the Requirements:

Replicating data offsite involves several key considerations to ensure data integrity, availability, and compliance with business needs.

Key Questions:

Retention Requirements: Determines how long the replicated data needs to be kept, which impacts storage needs and costs. This helps in defining the replication and retention policies (Nutanix Bible, Data Protection section)​​.

Data Volume: Knowing the amount of data to be replicated ensures proper sizing of network and storage resources. It also helps in understanding the replication bandwidth and storage capacity required (Nutanix-NDB-User-Guide)​​.

WAN Speed and Latency: The speed and latency of the WAN link between source and target sites affect replication performance and the ability to meet RPO (Recovery PointObjective) and RTO (Recovery Time Objective). High latency can impact data transfer rates and consistency (Nutanix-NDB-User-Guide, Network Requirements section)​​.

Conclusion:

Asking these questions ensures the SE can design a replication solution that meets the prospect's business continuity and disaster recovery needs effectively.

References:

Nutanix Bible on Data Protection

Nutanix NDB User Guide on Network Requirements and Best Practices

Nutanix Foundation is the tool used for imaging nodes that are either bare metal or require a different hypervisor. Foundation is designed for bootstrapping the imaging and deployment of Nutanix clusters. It installs the desired version of the Acropolis Operating System (AOS) and the hypervisor of choice. By default, Nutanix nodes ship with AHV pre-installed, but Foundation can be used to re-image the nodes with a different hypervisor if required.

References:

Nutanix Bible

Stargate is the CVM service responsible for providing storage to the hypervisor. It manages I/O operations, handles data distribution, replication, deduplication, compression, and other storage-related tasks. Stargate ensures that data is read and written efficiently, maintaining high performance and reliability within the Nutanix Distributed Storage Fabric (DSF).

References:

Nutanix Bible

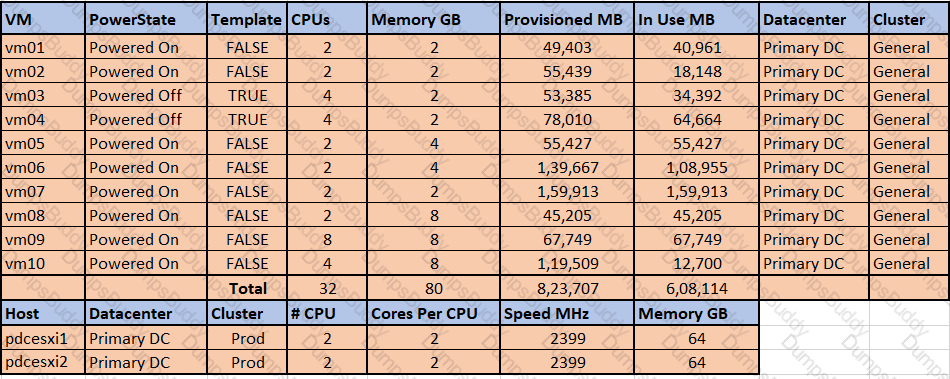

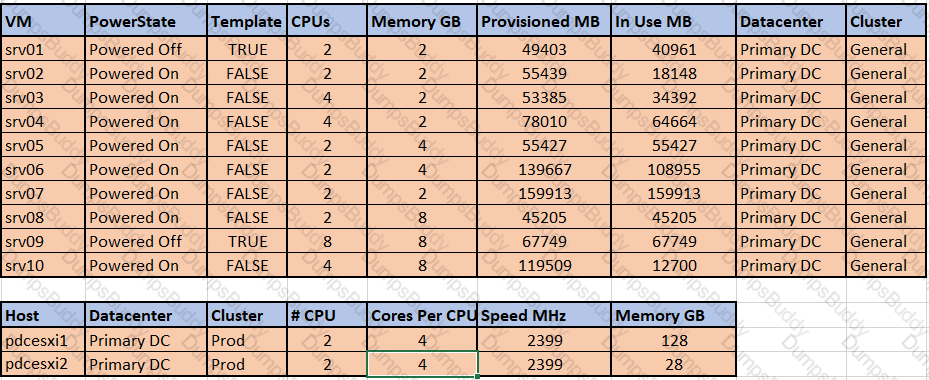

When using RVTools output for sizing a solution, it is crucial to understand that it represents a point in time snapshot of the environment. This snapshot captures the state of the VMs and hosts at a specific moment, which is important for making accurate assessments and planning based on the current environment's status​​​​.

C. ABS (Acropolis Block Services):

Acropolis Block Services (ABS) enables Nutanix storage to be used by external servers, providing the performance and benefits of Nutanix’s distributed storage fabric while allowing the customer to continue using their existing investment in Oracle servers.

ABS allows the integration of all-flash storage with the existing Oracle environment, addressing the prospect's preference for all-flash arrays while leveraging Nutanix’s advanced storage capabilities.

References:

Nutanix documentation on ABS describes its features and benefits, particularly its ability to integrate Nutanix storage with external servers and support high-performance applications like Oracle databases.

Three valid configuration scenarios for deploying Prism Central include:

Environments use Network Address Translation (NAT): Prism Central can be deployed in environments where NAT is used to manage network addresses.

Prism Elements and Prism Central are in different subnets: It is possible to configure Prism Central and Prism Elements in different subnets as long as network connectivity is maintained.

Environments do not have Internet access: Prism Central can be deployed and operated in environments that do not have direct Internet access, relying instead on internal network configurations and management​​.

To increase availability by enabling rack awareness in a current configuration with a single RF2 cluster consisting of 7 identical NX-3170 1U nodes, the systems engineer should:

Add Nodes: Increase the node count to enhance redundancy.

Add 2 additional NX-3170 1U nodesto bring the total to 9 nodes. This ensures there are enough nodes to distribute across multiple racks while maintaining the RF2 configuration.

Distribute Nodes Across Racks:

Distribute nodes across 2 separate racksto achieve rack awareness. This means placing nodes in such a way that the failure of a single rack does not impact the availability of the entire cluster.

By following these steps, the cluster will be resilient to a single rack failure, enhancing the overall availability.

References:

Nutanix documentation on RF2 configurations and rack awareness.

Best practices for node and rack distribution to ensure high availability.

D. 2400 Users:

The number of users (2400) directly impacts the performance and scalability requirements of the Nutanix Files (AFS) deployment. High user counts can lead to increased demand for resources and necessitate additional nodes to ensure optimal performance and responsiveness.

References:

Nutanix Files (AFS) documentation and sizing guidelines highlight user count as a critical factor in determining the resource requirements for file workloads.

A. Gartner Magic Quadrant:

The Gartner Magic Quadrant is a well-recognized industry report that evaluates technology vendors based on their completeness of vision and ability to execute. It is a credible source that highlights Nutanix’s position as a leader in the hyperconverged infrastructure (HCI) market.

Highlighting Nutanix’s leadership position in the Gartner Magic Quadrant can help address the management’s concerns about Nutanix’s market presence and reinforce its credibility as a major player in the HCI space.

B. The frequency and lifespan of each application build:

Understanding how often builds occur and how long they need to be retained is crucial for sizing storage and compute resources. This information helps determine the I/O and storage requirements for the Nutanix environment.

D. The configuration/specs of the VMs within each application build:

Knowing the specifications of the VMs, such as CPU, memory, and storage requirements, is essential for accurately sizing the Nutanix cluster. This information ensures that the infrastructure can handle the workload generated by the CI/CD pipeline.

References:

Nutanix Sizer tool and best practices for sizing environments based on specific workload requirements, particularly for CI/CD pipelines.

1 x 480GB SSD:

For a hybrid cluster running both general-purpose VMs and an ERP application with a 500GB database, having a single 480GB SSD may lead to performance bottlenecks.

Nutanix best practices recommend using multiple SSDs for better I/O performance and redundancy​​​​.

2 x 1GB NIC:

The network interface cards (NICs) with only 1GB capacity each are insufficient for a production environment expected to handle significant data and application traffic.

Nutanix typically recommends 10GB NICs for adequate bandwidth and performance in such scenarios​​.

References:

Nutanix Community Edition Hardware Recommendations​​.

Nutanix Bible - Network and Storage Configuration Best Practices​​​​.

Shadow Clones is the AOS feature that provides enhanced read performance specifically for virtual desktop environments. This feature allows frequently read data to be cached locally on each node, reducing read latency and improving performance in environments with multiple virtual desktops accessing the same data​​.

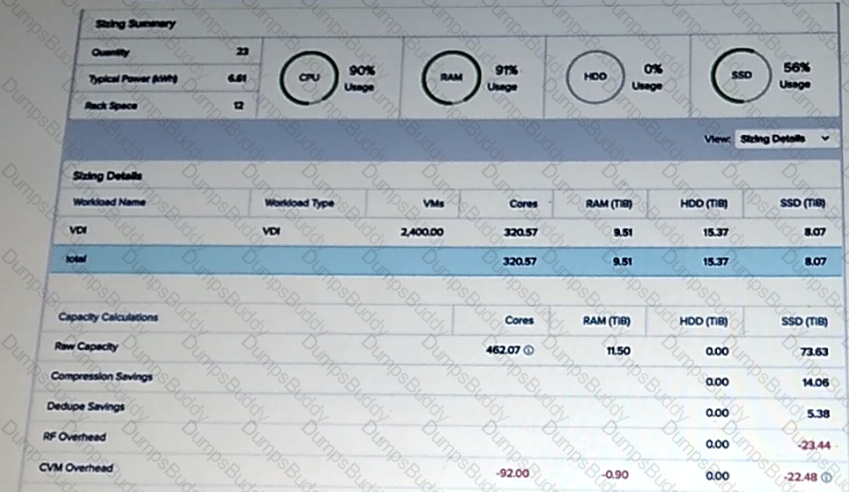

Manual Sizing Considerations:

Switching to manual mode requires a more detailed consideration of various factors to ensure the configuration meets the desired requirements.

Key Considerations:

N + 1 Availability:

Explanation: Ensures high availability and fault tolerance by adding redundancy. This means the system can tolerate the failure of one node without impacting the overall system availability.

When an HA event causes a SQL virtual machine to restart on a different node, Nutanix's data locality feature ensures that the active VM data is localized to the new node. This means that the data associated with the VM will be migrated to the storage local to the new node, ensuring optimal performance by reducing the need for cross-node data access.

References:

Nutanix Bible​

C. Inline compression:

Inline compression compresses data as it is written to the storage, reducing the amount of storage used and improving capacity utilization immediately. This is highly effective for reducing the storage footprint of a Splunk workload.

D. Capacity tier de-duplication:

Capacity tier de-duplication eliminates duplicate copies of data, further reducing the storage requirements. This is particularly useful for environments with repetitive data patterns, like log files generated by Splunk.

References:

Nutanix documentation and best practices on storage capacity optimization highlight the use of inline compression and de-duplication as key techniques for reducing storage usage and improving overall storage efficiency.

C. 48GB:

Based on the provided exhibit, the SE should enter the total amount of RAM required for the entire workload into the Sizer tool. The exhibit shows multiple VMs with different memory allocations.

Summing up the memory allocations: 8GB (VM1) + 8GB (VM2) + 8GB (VM3) + 8GB (VM4) + 8GB (VM5) + 8GB (VM6) = 48GB

Therefore, the SE should input 48GB as the total RAM required for the workload.

References:

Nutanix Sizer tool documentation and guidelines for entering raw input workloads and calculating total memory requirements.

To report on any alerts generated by a Nutanix cluster that affected the cluster's availability over the past 10 days, the administrator should use the Alerts dashboard in Prism. The steps are as follows:

Navigate to the Alerts dashboard in the Prism web console.

Use the filter options to select the Impact Type, specifically filtering for alerts that impact cluster availability.

Set the desired Time Range to the past 10 days to view relevant alerts within this period.

Review the filtered alerts to identify any that affected the cluster's availability.

This method provides a focused view of alerts related to cluster availability and allows for efficient reporting and analysis.

References:

Nutanix Prism Web Console Guide

Nutanix Alerts Dashboard Documentation

To get timely notifications of significant product issues, customers should register for Field Advisories email notifications. This ensures that they receive updates directly and promptly, keeping them informed about any critical issues or advisories related to Nutanix products.

References:

Nutanix support resources and customer documentation provide guidance on how to register for email notifications for Field Advisories, ensuring customers are kept up to date with important product information.

When an HDD fails, Nutanix's high availability (HA) system ensures the continuation of VM operations by initiating an HA event. The affected VMs will be restarted on a node that contains the replica data, ensuring minimal downtime and data availability​​.

Understanding the Scenario:

The customer has mission-critical applications that need to be backed up to a remote location with a latency of 7 ms.

Nutanix Technology Options:

AsyncDR: Provides asynchronous replication with typically higher RPO (Recovery Point Objective) than NearSync.

NearSync: Offers near-synchronous replication with RPO as low as 1 minute, suitable for low-latency connections like the 7 ms latency mentioned.

Metro Availability: Provides synchronous replication with zero RPO but requires a higher bandwidth and lower latency connection (typically sub-millisecond).

Leap: A comprehensive DR orchestration solution that includes AsyncDR and NearSync but is not a standalone replication technology.

Evaluation of NearSync:

NearSync is designed to provide low RPO (as low as 1 minute) by taking frequent lightweight snapshots.

It is well-suited for environments with moderate latency (like 7 ms) and can handle the backup requirements efficiently without the need for extremely low latency and high bandwidth required by synchronous replication solutions like Metro Availability​​​​.

Conclusion:

Given the latency of 7 ms and the need for short RPO, NearSync is the most suitable Nutanix technology to provide the shortest RPO.

References: Nutanix Bible and Nutanix NDB User Guide details on NearSync and its operational parameters.

Current User Metrics:

The financial institution has 5000 named VDI users.

Peak concurrent users are 2800.

Growth Factor Calculation:

To account for growth, an additional 10% needs to be added to the peak concurrent users.

Calculation: 2800 concurrent users * 1.10 = 3080 users.

Conclusion:

The SE should size the VDI environment for 3080 VMs to accommodate current and near-future needs.

References:

VDI sizing guidelines from Nutanix best practices.

Growth factor considerations from industry standards.

To calculate the minimum amount of required SSD storage for the active working set:

Determine the active working set size:

The data growth pattern shows an increase of 1TB per month.

Considering the most recent data point (May: 14TB), the active working set can be approximated as the difference between the highest and the lowest value in the given period.

Consider the read/write ratio:

Average Read/Write Ratio: 75/25

Typically, write operations require more SSD space for better performance.

SSD storage calculation:

Given the active working set and growth pattern, a prudent estimate would be to ensure sufficient SSD space to handle peak loads and ensure performance.

Based on the pattern and industry best practices, 6TB of SSD storage would be a reasonable minimum to accommodate the active working set and ensure performance.

References:

Nutanix Sizer guidelines and industry best practices for SSD storage estimation in virtualized environments.

For running a single instance Oracle Database VM on AHV that is driving over 250,000 IOPS, the AOS feature that should be positioned to deliver the highest level of performance is Data Locality.

Data Locality Overview:

Data Locality ensures that data is kept local to the node where the VM is running. This minimizes the latency involved in data access because it avoids traversing the network to fetch data from remote nodes.

Performance Benefits:

By keeping the data local to the node, it leverages the local SSDs and RAM for the highest possible performance.

This is crucial for high IOPS workloads such as an Oracle Database VM, where low latency and high throughput are essential.

Implementation:

Nutanix AOS automatically manages data locality, ensuring that read and write operations are performed on the local storage as much as possible.

References:

Nutanix Bible on Data Locality.

Nutanix Documentation on Performance Optimization.

Nutanix ABS (Acropolis Block Services) is used in the certified configuration for Oracle Linux and Oracle VM via iSCSI. ABS allows external servers to leverage Nutanix’s distributed storage by presenting Nutanix storage as iSCSI LUNs.

This feature enables Oracle workloads to benefit from Nutanix’s high-performance and resilient storage infrastructure while maintaining compatibility with Oracle’s storage requirements.

Change Block Tracking (CBT) Requirements:

For CBT to function correctly when using Xtract to migrate VMs from ESXi to AHV, certain conditions must be met.

Source VM Requirements:

Minimum Guest OS Version: Ensure that the guest OS version is compatible with CBT. Some older OS versions may not support CBT or may have limited functionality.

VMware Tools Installed: VMware Tools must be installed and running in the guest VM. This is essential for enabling and managing CBT.

Explanation:

Minimum Guest OS Version: Ensures compatibility and functionality of CBT, which is critical for efficient VM migration.

VMware Tools: Provides the necessary drivers and utilities to support CBT, ensuring that the VM's change tracking is accurate and reliable during the migration process.

Outcome:

Verifying and ensuring these two requirements are met will facilitate a smooth migration process using Xtract with Change Block Tracking.

References: Refer to Nutanix Xtract documentation for detailed requirements and best practices for VM migration.

To address the concern about rebuilding data when a node hosting 100TB of data goes offline, Nutanix uses the distribution of rebuild tasks across all nodes. This approach significantly reduces the time required for data rebuilding by leveraging the collective resources of the entire cluster, ensuring faster recovery and minimizingthe impact on performance​​.

When selecting a remote site to Prism, the valid targets include:

XI Cloud Services: This allows integration with Nutanix's cloud services for remote management and disaster recovery.

Physical Cluster: This option enables management and failover to another physical Nutanix cluster, ensuring high availability and business continuity​​.

When gathering information about the configuration of VM storage, it is important to understand the provisioning type of the disks. Thin provisioning allows more efficient use of storage by allocating disk space dynamically based on actual usage rather than pre-allocating the entire disk size. The majority of VMs being thin provisioned indicates a strategy to optimize storage utilization and capacity management.

References:

Nutanix Bible

To accurately size resources for VMs, certain VMs require further data analysis. Specifically, VMs with varying or unpredictable workloads, or those that have shown performance issues in the past, should be analyzed in more detail.

VM Analysis Criteria:

prodsrv02: If this VM has variable workload patterns or is known to run resource-intensive applications periodically, it requires detailed analysis to ensure that the resources allocated can handle peak loads without performance degradation.

prodsrv06: Similarly, if this VM has been identified to have inconsistent performance or varying resource utilization, further analysis is necessary to properly size the resources to meet its demands.

Data Collection:

Performance metrics such as CPU, memory, disk I/O, and network usage should be collected over a representative period to understand the peak and average resource requirements.

Sizing Tools:

Tools like Nutanix Sizer and Nutanix Collector can be used to gather detailed performance data and provide recommendations based on real usage patterns.

References:

Nutanix Sizing and Performance Best Practices.

Detailed Analysis Methods in Nutanix Documentation.

Compared to a traditional 3-tier architecture, Nutanix offers the following benefits:

Elimination of Siloed Storage:

Nutanix consolidates file, block, and object storage into a single platform, eliminating the need for separate, siloed storage systems. This simplifies management and improves resource utilization.

Avoidance of Generational Infrastructure Silos:

Nutanix's modern lifecycle management allows for seamless upgrades and expansions, avoiding the creation of generational silos. This ensures that the infrastructure remains up-to-date and can easily adapt to new technologies and requirements without disruptive forklift upgrades.

References:

Nutanix Bible​

To logically separate management and data traffic on a Nutanix cluster, the administrator should use Network Segmentation. This feature allows for the isolation of different types of traffic, ensuring that management and data operations do not interfere with each other and enhancing security and performance​​.

To achieve N+2 resiliency for the entire cluster, the configuration can be adjusted by:

Increasing the number of Nodes: Adding more nodes enhances the cluster's ability to tolerate failures by distributing data across a larger number of nodes.

Increasing the SSD capacity per Node: Higher SSD capacity per node can improve data distribution and redundancy, ensuring that the cluster can maintain performance and availability even during failures​​.

To resolve an SSL error when connecting to a Nutanix cluster, the administrator should:

Generate a New SSL Certificate:

The administrator should create a new SSL certificate for the cluster. This certificate should be signed by a trusted Certificate Authority (CA), such as an Active Directory (AD) certificate authority.

Install the Certificate on the Cluster:

Once the certificate is generated and signed, it needs to be installed on the Nutanix cluster. This ensures that the certificate is trusted by the clients connecting to the cluster.

Update Trust Stores:

Ensure that the clients and workstations connecting to the Nutanix cluster trust the CA that signed the new SSL certificate. This can often be achieved by updating the trusted root certificate authorities on the client systems.

Creating a new SSL certificate signed by an AD certificate authority ensures that the certificate is recognized and trusted within the organization, thereby resolving the SSL errors and establishing secure connections.

References:

Nutanix Security Best Practices

Nutanix Documentation on SSL Certificate Management

Customer Concern:

The customer prefers an all-flash array over HCI due to a recent investment in physical servers for their Oracle environment.

Nutanix Feature:

Volumes: Nutanix Volumes provide block storage that can be used to present storage to physical servers, similar to traditional SAN storage.

Explanation:

Nutanix Volumes: This feature allows customers to connect their existing physical servers to Nutanix storage using iSCSI. This can be beneficial for environments where physical servers are used to optimize licensing costs, such as Oracle databases.

Benefits: By using Nutanix Volumes, the customer can leverage their recent investment in physical servers while still benefiting from the capabilities of the Nutanix platform.

Outcome:

Discussing Nutanix Volumes will address the customer’s objection by showing how they can integrate their existing physical infrastructure with Nutanix storage, thus leveraging their recent investment.

References: For more information, refer to Nutanix documentation on Volumes and block storage capabilities.

To enable prospective customers to gain hands-on experience with Nutanix without the need for support from a systems engineer or Nutanix, the following resources are available:

Test Drive:

Nutanix Test Drive provides a hands-on, guided tour of Nutanix solutions in a live environment. It allows customers to explore and interact with Nutanix features and functionalities, simulating real-world scenarios and workflows.

Community Edition (CE):

Nutanix Community Edition is a free version of Nutanix AOS that customers can deploy on their own hardware. It allows users to test and evaluate Nutanix software in a non-production environment, providing full access to Nutanix features and capabilities for learning and experimentation.

References:

Nutanix Community Edition Getting Started Guide
