MCIA-Level-1 MuleSoft Certified Integration Architect - Level 1 Questions and Answers

Explanation

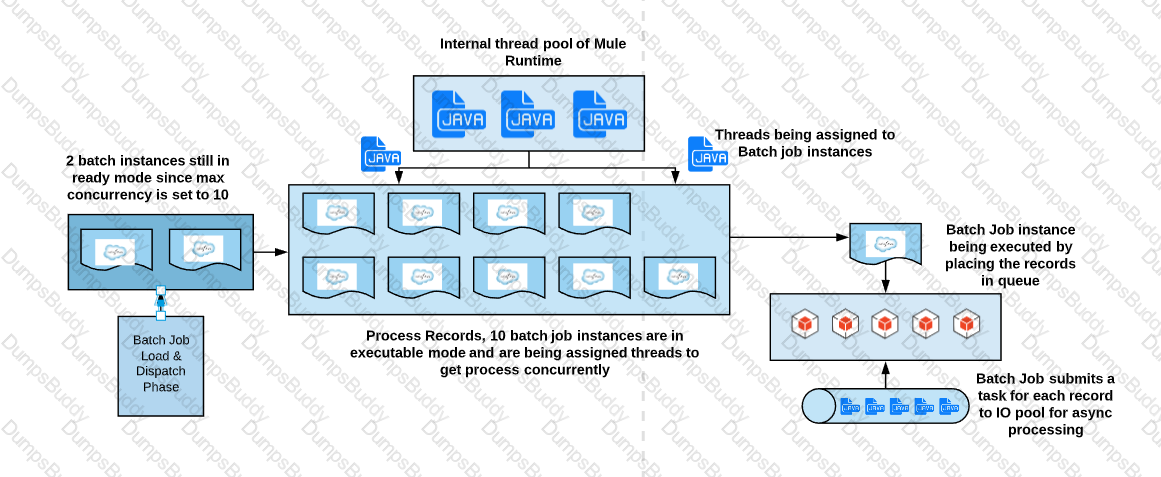

Correct answer is Use a Batch job scope to bulk insert records into the database

* Batch Job is most efficient way to manage millions of records.

A few points to note here are as follows :

Reliability: If you want reliabilty while processing the records, i.e should the processing survive a runtime crash or other unhappy scenarios, and when restarted process all the remaining records, if yes then go for batch as it uses persistent queues.

Error Handling: In Parallel for each an error in a particular route will stop processing the remaining records in that route and in such case you'd need to handle it using on error continue, batch process does not stop during such error instead you can have a step for failures and have a dedicated handling in it.

Memory footprint: Since question said that there are millions of records to process, parallel for each will aggregate all the processed records at the end and can possibly cause Out Of Memory.

Batch job instead provides a BatchResult in the on complete phase where you can get the count of failures and success. For huge file processing if order is not a concern definitely go ahead with Batch Job

According to the MuleSoft Catalyst framework, an Integration Architect plays a crucial role in defining and achieving business outcomes. One of their key responsibilities is to agree upon Key Performance Indicators (KPIs) and help develop an overall success plan. This involves working with stakeholders to identify measurable goals and ensure that the integration initiatives align with the organization’s strategic objectives.

KPIs are critical for tracking progress, measuring success, and making data-driven decisions. By agreeing on KPIs and developing a success plan, the Integration Architect ensures that the organization can objectively measure the impact of its integration efforts and adjust strategies as needed to achieve desired business outcomes.

References:

• MuleSoft Catalyst Knowledge Hub

A design-first approach in API development focuses on creating a detailed API specification before any implementation begins. This specification acts as a contract that defines the API's endpoints, request/response formats, and error codes. By developing this specification early, potential consumers can provide feedback, and testing can be conducted against mock implementations to ensure the API meets their needs. This approach helps identify issues early in the development process, improving the likelihood of successful implementation and adoption.

References:

• API Design Best Practices
• Design-First API Development

To address the reliability and scalability issues faced by the insurance provider, adding a load balancer and configuring additional servers in a cluster configuration is the optimal solution. Here's why:

• Load Balancing: Implementing a load balancer will help distribute incoming API requests evenly across multiple servers. This prevents any single server from becoming a bottleneck, thereby improving the overall performance and reliability of the system.
• Cluster Configuration: By setting up a cluster configuration, you ensure that multiple servers work together as a single unit. This provides several benefits:
• Maintenance: With a cluster configuration, servers can be taken offline for maintenance one at a time without affecting the overall availability of the applications, as the load balancer can redirect traffic to the remaining servers.
• VM Queues and Object Stores: In a clustered environment, the use of VM queues and object stores can be more efficiently managed as these resources are distributed across multiple servers, reducing the risk of contention and improving throughput.

References:

• MuleSoft Documentation on Clustering: https://docs.mulesoft.com/mule-runtime/4.3/clustering
• Best Practices for Scaling Mule Applications: https://blogs.mulesoft.com/dev/mule-dev/mule-4-scaling-applications/

To close the IT delivery gap, MuleSoft recommends that IT organizations make their technology assets easily discoverable via a central repository. This approach ensures that existing assets, such as APIs, connectors, templates, and other reusable components, are accessible to all teams within the organization. By having a central repository, teams can quickly find and leverage these assets, reducing duplication of effort, speeding up project delivery, and fostering a culture of reuse and collaboration. This strategy aligns with the principles of an API-led connectivity approach, where reusable assets and APIs form the foundation for scalable and efficient IT delivery.

References

• MuleSoft Documentation on API-led Connectivity
• Anypoint Platform Best Practices for Asset Management

Scatter-Gather sends a request message to multiple targets concurrently. It collects the responses from all routes, and aggregates them into a single message.

Explanation

Correct answer is Untill Successful scope can be implemented while calling backend API's The Until Successful scope repeatedly triggers the scope's components (including flow references) until they all succeed or until a maximum number of retries is exceeded The scope provides option to control the max number of retries and the interval between retries The scope can execute any sequence of processors that may fail for whatever reason and may succeed upon retry

Explanation

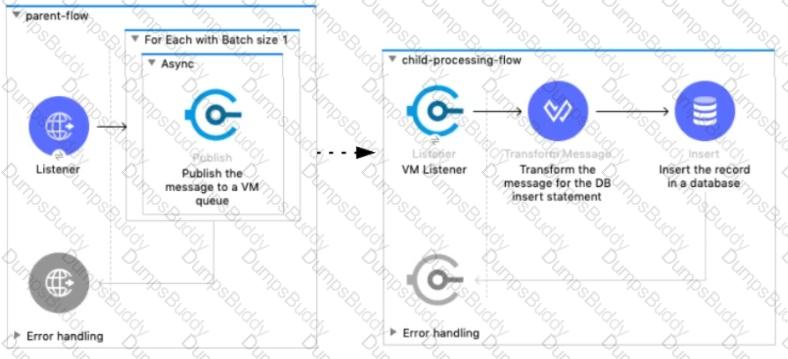

Correct answer is EACH item VM message is processed AT LEAST ONCE by ONE ARBITRARY CloudHub worker. Each of the four CloudHub workers can be expected to process some item VM messages In Cloudhub, each persistent VM queue is listened on by every CloudHub worker - But each message is read and processed at least once by only one CloudHub worker and the duplicate processing is possible - If the CloudHub worker fails , the message can be read by another worker to prevent loss of messages and this can lead to duplicate processing - By default , every CloudHub worker's VM Listener receives different messages from VM Queue Referenece: https://dzone.com/articles/deploying-mulesoft-application-on-1-worker-vs-mult

The described approach of gathering all requirements upfront and proceeding through sequential, non-repeating phases is characteristic of the Waterfall methodology. Waterfall is a linear project management approach where each phase must be completed before the next one begins, and there is typically no going back to a previous phase once it is completed. This methodology is well-suited for projects with well-defined requirements and deliverables, but it can be inflexible if changes or new requirements arise during the project.

References:

• Waterfall Model
• Waterfall vs. Agile: Which is the Right Development Methodology for Your Project?

Explanation

Correct answer is Create a mocking service that replicates the backend system’s production performance characteristics. Then configure the API implementation to use the mocking service and conduct the performance tests

* MUnit is for only Unit and integration testing for APIs and Mule apps. Not for performance Testing, even if it has the ability to Mock the backend.

* Bypassing the backend invocation defeats the whole purpose of performance testing. Hence it is not a valid answer.

* Scaled down performance tests cant be relied upon as performance of API's is not linear against load.

In a typical REST request, the order of interaction is:

• API Client: The client initiates the request to access data or functionality exposed by the API.
• API Interface: This represents the contract or the definition of the API, often specified in OpenAPI or RAML. It defines the endpoints, request/response formats, and other API details.
• API Implementation: This is the actual backend logic that processes the request and returns the response. It interacts with databases, other services, or performs business logic to fulfill the request.

References:

• Understanding REST APIs
• API Design and Implementation

Before API developers implement the API specification, it is crucial for the API designer to publish the API specification to Anypoint Exchange and solicit feedback from the API's consumers. This step aligns with MuleSoft's recommended approach to full lifecycle API development, which emphasizes collaboration and feedback to ensure the API meets the needs and expectations of its consumers.

Generating test cases, creating an API portal, and versioning the API specification are important steps in the development lifecycle, but soliciting feedback ensures that any potential issues or improvements are identified early in the process. This collaborative approach helps in building a more effective and consumer-friendly API.

References

• MuleSoft API Design Best Practices
• Anypoint Platform Documentation on API Development Lifecycle

• Requirement Analysis: The Mule application needs secure access to both an on-premises database and a Kafka cluster in AWS VPC.
• Solution: Setting up Anypoint VPN for the on-premises corporate data center and VPC peering with AWS VPC ensures secure and seamless connectivity.
• Implementation Steps:
• Advantages:

References

• MuleSoft Documentation on Anypoint VPN
• AWS Documentation on VPC Peering

In the given scenario, a rate limiting policy has been applied to the SOAP API and a global error handler is configured to handle HTTP:RETRY_EXHAUSTED errors with a 429 status code. The rate limiting policy will trigger when the client exceeds the allowed quota of API calls. Since the HTTP:RETRY_EXHAUSTED error specifically catches quota exhaustion errors and the error handler is configured to return a 429 status code, the expected HTTP status returned to the client when the quota is exceeded will be 429. This error code indicates that the user has sent too many requests in a given amount of time ("rate limiting").

References:

• MuleSoft Documentation on Error Handling
• HTTP Status Codes

In a microservices architecture, a service mesh manages the communication between microservices. This involves handling service discovery, load balancing, failure recovery, metrics, and monitoring. Service meshes also provide more complex operational requirements like A/B testing, canary releases, rate limiting, access control, and end-to-end authentication. By abstracting these functionalities away from individual microservices, a service mesh allows developers to focus on business logic while ensuring reliable and secure inter-service communication.

References:

• Understanding Service Mesh
• Service Mesh for Microservices

The interaction composition pattern used by the integration architect for the order processing API that coordinates stateful interactions with various microservices is called orchestration. Orchestration involves managing and coordinating multiple services to achieve a specific business process or workflow. In this case, the order processing API is responsible for validating, creating, and fulfilling new product orders by coordinating interactions with different microservices.

Orchestration provides a centralized control mechanism where the order processing API acts as the orchestrator, handling the sequence of service calls, managing state, and ensuring that the business process is executed correctly.

References

• MuleSoft API-led Connectivity Approach
• Patterns for Microservices and API Design

A synchronous invocation of a RESTful API using HTTP to get an individual customer record from a single system exemplifies the request-reply interaction pattern. In this pattern, a client sends a request to a service and waits for a response. The interaction is synchronous because the client expects an immediate reply and is blocked until it receives the response.

This pattern is common in scenarios where the client needs to retrieve specific data or perform an action that requires immediate feedback from the server, such as retrieving a customer record from a database.

References

• MuleSoft Integration Patterns Documentation
• Request-Reply Pattern Overview

To migrate Mule applications from CloudHub to Runtime Fabric (RTF) while maintaining the same automated CI/CD deployment strategy, follow these steps:

• Add runtimefabricDeployment Profile: Add a runtimefabricDeployment profile to the pom.xml file in all Mule applications. This profile will include the necessary configurations specific to RTF deployments.
• Modify CI/CD Scripts: Update the CI/CD deployment scripts to use the new runtimefabricDeployment profile. This modification ensures that the deployment process will correctly reference the RTF-specific configurations when deploying applications.
• Keep Configuration Files Unchanged: There is no need to change the pom.xml and Mule configuration YAML files other than adding the runtimefabricDeployment profile. This maintains consistency and reduces the risk of errors during the migration.

This approach ensures a smooth transition to RTF while leveraging existing CI/CD scripts with minimal changes, maintaining the automated deployment strategy.

References

• MuleSoft Documentation on Runtime Fabric Deployment
• Best Practices for CI/CD with MuleSoft

Explanation

Types of logging:

A) Synchronous: The execution of thread that is processing messages is interrupted to wait for the log message to be fully handled before it can continue.

● The execution of the thread that is processing your message is interrupted to wait for the log message to be fully output before it can continue

● Performance degrades because of synchronous logging

● Used when the log is used as an audit trail or when logging ERROR/CRITICAL messages

● If the logger fails to write to disk, the exception would raise on the same thread that's currently processing the Mule event. If logging is critical for you, then you can rollback the transaction.

Chart, diagram Description automatically generated

Chart, diagram, box and whisker chart Description automatically generated

B) Asynchronous:

● The logging operation occurs in a separate thread, so the actual processing of your message won’t be delayed to wait for the logging to complete

● Substantial improvement in throughput and latency of message processing

● Mule runtime engine (Mule) 4 uses Log4j 2 asynchronous logging by default

● The disadvantage of asynchronous logging is error handling.

● If the logger fails to write to disk, the thread doing the processing won't be aware of any issues writing to the disk, so you won't be able to rollback anything. Because the actual writing of the log gets differed, there's a chance that log messages might never make it to disk and get lost, if Mule were to crash before the buffers are flushed.

------------------------------------------------------------------------------------------------------------------

So Correct answer is: Asynchronous logging can improve Mule event processing throughput while also reducing the processing time for each Mule event

Explanation

* Correct answer is To directly reference one shared and customized log4j2.xml file from multiple Mule applications. Key word  to note in the answer is directly.

* By default, CloudHub replaces a Mule application's log4j2.xml file with a CloudHub log4j2.xml file. This specifies the CloudHub appender to write logs to the CloudHub logging service.

* You cannot modify CloudHub log4j2.xml file to add any custom appender. But there is a process in order to achieve this. You need to raise a request on support portal to disable CloudHub provided Mule application log4j2 file.

Graphical user interface, application, Word Description automatically generated

* Once this is done , Mule application's log4j2.xml file is used which you can use to send/export application logs to other log4j2 appenders, such as a custom logging system MuleSoft does not own any responsibility for lost logging data due to misconfiguration of your own log4j appender if it happens by any chance.

Graphical user interface, text, application, email Description automatically generated

* One more difference between customer-hosted Mule runtimes and CloudHub deployed mule instance is that

- CloudHub system log messages cannot be sent to external log management system without installing custom CH logging configuration through support

- where as Customer-hosted runtime can send system and application log to external log management system

MuleSoft Reference:

https://docs.mulesoft.com/runtime-manager/viewing-log-data

https://docs.mulesoft.com/runtime-manager/custom-log-appender

Anypoint MQ is a cloud-based messaging service provided by MuleSoft, and it cannot be deployed on-premises. If there is a requirement for the messaging broker to be deployed on-premises, Anypoint MQ would not be suitable. Other considerations such as payload format (XML), encryption, and point-to-point messaging are supported by Anypoint MQ, but the deployment environment requirement is a critical constraint.

References

• MuleSoft Anypoint MQ Documentation
• Cloud vs. On-Premises Messaging Solutions

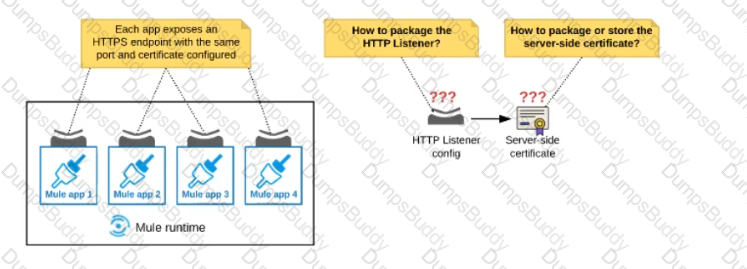

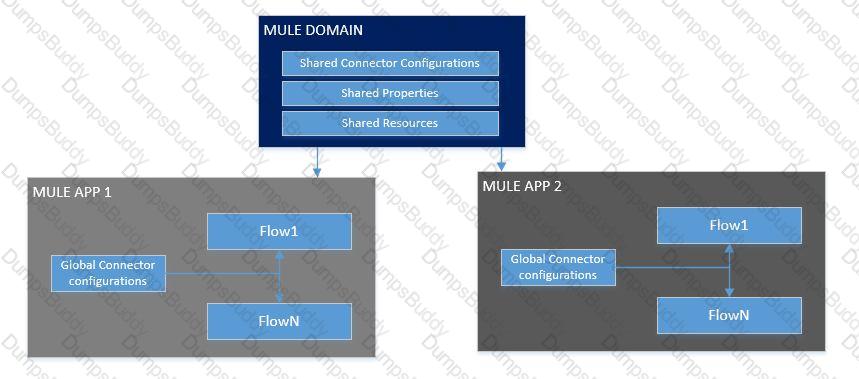

When multiple Mule applications need to listen on the same port (e.g., port 443), configuring them individually will cause a conflict because only one application can bind to a specific port on a server at a time. To resolve this, you can use a Mule domain project, which allows multiple Mule applications to share configurations, including HTTP listeners. Here’s how you can do it:

• Create a Mule Domain Project:
• Configure the Shared HTTP Listener:

• Reference the Shared HTTP Listener in Mule Applications:

• Deploy the Domain Project and Applications:

By using a domain project to centralize the HTTP listener configuration, you ensure that both APIs can listen on port 443 without conflicts, allowing customers to access both APIs through the same port.

References

• MuleSoft Documentation: Domain Projects
• MuleSoft Documentation: HTTP Listener Configuration

Leveraging existing Java-based capabilities for data transformations in a Mule application can enhance efficiency and reuse. Here’s how to integrate Java classes for transformations:

• Create Java Classes:
• Configure DataWeave to Call Java Methods:

%dw 2.0 import * from my.package.ClassName output application/json --- { transformedData: ClassName::methodName(payload) }

• Perform Transformations:
• Test Transformations:

This approach allows for seamless integration of existing Java logic into Mule applications, leveraging DataWeave’s power for comprehensive data transformations.

References

• MuleSoft Documentation: DataWeave and Java Integration
• MuleSoft Documentation: Using Java with Mule

To ensure the high availability and reliability of critical APIs, it is essential to monitor their liveliness and readiness. Anypoint Monitoring provides comprehensive monitoring capabilities for Mule applications. Here’s how it can be implemented:

• Application Monitoring: Enable monitoring for each individual Mule application. This allows for real-time visibility into the performance and health of each API.
• Custom Dashboards: Create custom dashboards in Anypoint Monitoring to track key metrics such as response time, error rates, and throughput.
• Alerts and Notifications: Configure alerts based on specific failure conditions or performance thresholds. These alerts can notify the Ops team immediately when an outage or performance degradation is detected.
• Proactive Management: With detailed insights and proactive alerts, the Ops team can quickly respond to issues, ensuring that the APIs remain available and meet the defined SLAs.

References:

• Anypoint Monitoring
• Configuring Alerts

To meet the requirements of enriching logging with more context and improving throughput while reducing latency, the customer should use an asynchronous logging approach. Here's why option B is correct:

• Async Logger: Asynchronous logging helps in improving the performance by decoupling the logging from the main thread of execution. This reduces the latency of message processing since logging operations are offloaded to a separate thread.
• Logging Level Greater than INFO: Logging at levels such as WARN, ERROR, or FATAL ensures that only essential logs are written asynchronously, further enhancing performance. Avoiding DEBUG or TRACE levels unless necessary reduces the overhead of logging.
• Pattern Layout with [%MDC]: Using the pattern layout with [%MDC] in the log4j2.xml configuration file allows the inclusion of mapped diagnostic context in the logs. MDC is a feature that provides context-specific information, such as transaction IDs or user IDs, which helps in tracing and debugging.

Example configuration in log4j2.xml:

This configuration ensures that the logs are enriched with context information provided by MDC and processed asynchronously to maintain high throughput and low latency.

References

• Log4j2 Asynchronous Logging
• Mapped Diagnostic Context (MDC) in Log4j2

Explanation

Correct answer is: Add a Mulesoft hosted Anypoint VPC configured and with VPC Peering to the AWS VPC * Connecting to your Anypoint VPC extends your corporate network and allows CloudHub workers to access resources behind your corporate firewall.

* You can connect on-premises data centers through a secured VPN tunnel, or a private AWS VPC through VPC peering, or by using AWS Direct Connect.

MuleSoft Doc Reference : https://docs.mulesoft.com/runtime-manager/virtual-private-cloud

Explanation

* "Create a Mule domain project that maintains the credentials as Mule domain-shared resources" is wrong as domain project is not supported in Cloudhub * We should Avoid Creating duplicates in each Mule application but below two options cause duplication of credentials - Store the credentials in properties files in a shared folder within the organization’s data center. Have the Mule applications load properties files from this shared location at startup - Segregate the credentials for each backend system into environment-specific properties files. Package these properties files in each Mule application, from where they are loaded at startup So these are also wrong choices * Credentials service is the best approach in this scenario. Mule domain projects are not supported on CloudHub. Also its is not recommended to have multiple copies of configuration values as this makes difficult to maintain Use the Mule Credentials Vault to encrypt data in a .properties file. (In the context of this document, we refer to the .properties file simply as the properties file.) The properties file in Mule stores data as key-value pairs which may contain information such as usernames, first and last names, and credit card numbers. A Mule application may access this data as it processes messages, for example, to acquire login credentials for an external Web service. However, though this sensitive, private data must be stored in a properties file for Mule to access, it must also be protected against unauthorized – and potentially malicious – use by anyone with access to the Mule application

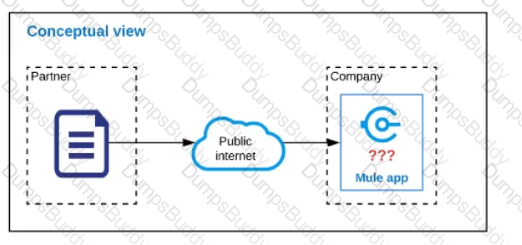

To securely consume compressed and digitally signed files from a partner's FTPS server, the following inputs are required:

• PGP Public Key of the Partner:
• PGP Private Key for the Company:
• FTP Username and Password:

By using these inputs, the Mule application can securely connect to the FTPS server, verify the integrity and authenticity of the files using PGP, and decrypt the contents for further processing.

References

• MuleSoft FTPS Connector
• MuleSoft PGP Module

In this business scenario, the supplier needs to deliver two fundamental integration use cases to provide an end-to-end solution:

A. Synchronized data transfer: This involves ensuring that the customer’s purchase orders (sent using ANSI X12 EDI standard) are accurately and timely transferred and reflected in the supplier’s ERP system. This synchronization ensures data consistency between the EDI transactions and the ERP system.

B. Sharing data with external partners: This involves providing the customer with a RESTful API to access current product inventory levels from the supplier’s ERP system. Sharing data through a RESTful API allows the customer to retrieve up-to-date inventory information as needed.

References:

• EDI Integration with APIs
• Integrating with External Partners Using APIs

In an HTTP/1.1-compliant web service, the class of HTTP response status codes that indicates successful client requests is the 2xx class. These status codes signify that the client's request was successfully received, understood, and accepted by the web service. Common 2xx status codes include:

• 200 OK: The request was successful.
• 201 Created: The request was successful and a new resource was created.
• 202 Accepted: The request has been accepted for processing, but the processing is not yet complete.

Other status code classes like 3xx (redirection), 4xx (client errors), and 5xx (server errors) indicate different types of responses and do not signify successful request processing.

References

• IETF RFC 2616: HTTP/1.1 Specification
• HTTP Status Code Definitions

According to MuleSoft's IT delivery and operating model, one effective approach to reduce the frequency of IT project delivery failures is to decouple central IT projects from the innovation that happens within each line of business. This approach allows individual business units to innovate and develop solutions tailored to their specific needs while the central IT team focuses on providing core services and governance. By decentralizing innovation, organizations can increase agility, reduce bottlenecks, and foster a more responsive IT environment that can quickly adapt to changing business requirements.

References

• MuleSoft IT Operating Model Guidelines
• Anypoint Platform Documentation on Decoupling IT Projects

• Requirement Analysis: The security team requires any external API call to be restricted by an IP include list. This ensures that only specified IP addresses can access the third-party API.
• Design Plan: To fulfill this requirement, implementing a proxy for the third-party API is the best approach. This proxy can enforce the IP include list policy.
• Implementation Steps:
• Advantages:

References

• MuleSoft Documentation on API Proxies
• MuleSoft Documentation on IP Whitelist Policy

Both Service Oriented Architecture (SOA) and API-led connectivity emphasize the principle of service reusability. This principle involves designing services and APIs in a way that they can be reused across different applications and use cases, reducing redundancy and improving efficiency. By creating reusable services, organizations can accelerate development, maintain consistency, and reduce costs associated with developing and maintaining multiple similar services.

References:

• MuleSoft's API-led Connectivity Approach
• Service-Oriented Architecture (SOA) Principles

According to MuleSoft, a significant business benefit associated with an API-led connectivity approach using Anypoint Platform is increased developer productivity through self-service of API assets. API-led connectivity promotes the creation of reusable APIs that can be easily discovered and consumed by developers across the organization. This self-service model reduces dependencies, accelerates development, and fosters innovation by enabling teams to quickly build and integrate applications using existing APIs without waiting for central IT to provide access.

References:

• API-led Connectivity: The Key to Unlocking IT Agility
• Benefits of API-led Connectivity

Explanation

By default, CloudHub replaces a Mule application's log4j2.xml file with a CloudHub log4j2.xml file. In CloudHub, you can disable the CloudHub provided Mule application log4j2 file. This allows integrating Mule application logs with custom or third-party log management systems

According to MuleSoft’s recommended REST conventions, the HTTP method GET should be used to specify how API clients can request data from a specified resource. The GET method is designed to retrieve data from a server at the specified resource. It is one of the most common HTTP methods used in RESTful APIs, ensuring that data retrieval is performed without any side effects on the server or resource.

References:

• MuleSoft REST API Design Best Practices
• HTTP Methods in RESTful Services

Explanation

Correct answer is When server-side load-balanced TLS mutual authentication is required between API implementations and API clients CloudHub dedicated load balancers (DLBs) are an optional component of Anypoint Platform that enable you to route external HTTP and HTTPS traffic to multiple Mule applications deployed to CloudHub workers in a Virtual Private Cloud (VPC). Dedicated load balancers enable you to: * Handle load balancing among the different CloudHub workers that run your application. * Define SSL configurations to provide custom certificates and optionally enforce two-way SSL client authentication. * Configure proxy rules that map your applications to custom domains. This enables you to host your applications under a single domain

Explanation

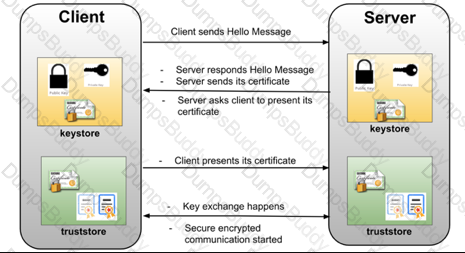

1 way SSL : The server presents its certificate to the client and the client adds it to its list of trusted certificate. And so, the client can talk to the server.

2-way SSL:  The same principle but both ways. i.e. both the client and the server has to establish trust between themselves using a trusted certificate. In this way of a digital handshake, the server needs to present a certificate to authenticate itself to client and client has to present its certificate to server.

* TLS is a cryptographic protocol that provides communications security for your Mule app.

* TLS offers many different ways of exchanging keys for authentication, encrypting data, and guaranteeing message integrity Keystores and Truststores Truststore and keystore contents differ depending on whether they are used for clients or servers:

For servers: the truststore contains certificates of the trusted clients, the keystore contains the private and public key of the server. For clients: the truststore contains certificates of the trusted servers, the keystore contains the private and public key of the client.

Adding both a keystore and a truststore to the configuration implements two-way TLS authentication also known as mutual authentication.

* in this case, correct answer is Support for TLS mutual (two-way) authentication with HTTP clients.

MuleSoft's API development best practices emphasize a design-first approach, which starts with writing and approving an API contract before any implementation begins. This approach ensures that the API's interface is agreed upon and understood by all stakeholders before the backend is built. It involves creating an API specification using tools like RAML or OpenAPI, which serves as a blueprint for development. This method promotes better planning, communication, and alignment between different teams and stakeholders, leading to more efficient and predictable API development processes.

References:

• API Design Best Practices
• MuleSoft's Approach to API Development

Explanation

Context of the question is about managing and governing mule applications deployed on Anypoint platform.

Anypoint API Manager (API Manager) is a component of Anypoint Platform that enables you to manage, govern, and secure APIs. It leverages the runtime capabilities of API Gateway and Anypoint Service Mesh, both of which enforce policies, collect and track analytics data, manage proxies, provide encryption and authentication, and manage applications.

Mule Ref Doc : https://docs.mulesoft.com/api-manager/2.x/getting-started-proxy

To extend Mule APIs to the EU (Frankfurt) region and minimize latency for European users, follow these steps:

• Set Region Property: In Runtime Manager, for each Mule application deployment, set the Region property to EU (Frankfurt). This deploys the application to the desired region, optimizing performance for European users.
• Reuse Application Names: Keep the same Mule application names as used in the North American region. This approach maintains consistency and simplifies management.
• Communicate New URLs: Inform the consuming API clients in Europe of the new URLs in the format {API-name}—{environment}.de-ci.cloudhub.io. These URLs will direct the clients to the applications deployed in the EU region, ensuring reduced latency and improved performance.

This strategy effectively deploys the same Mule APIs to the CloudHub EU region, leveraging the existing control plane in North America.

To design a caching strategy that queries the database only when there is an update to the Employees table, follow these steps:

• On Table Row Operation: Configure an On Table Row operation to monitor the Employees table for updates.
• Invalidate Cache: When the On Table Row operation detects an update, trigger the invalidate cache operation to clear the cache.
• Object Store Caching Strategy: Use an object-store-caching-strategy to store the cached responses.
• Default Expiration Interval: Use the default expiration interval for the cache, which ensures that cached data is invalidated based on the detection of changes in the Employees table rather than a fixed time interval.

This strategy ensures that the cache is only invalidated when there are actual changes in the Employees table, thereby minimizing redundant transactions and optimizing database performance.

References

• MuleSoft Documentation on Caching Strategies
• Best Practices for Database Integration with MuleSoft

Explanation

Correct answer is An HTTP Load Balancer.

Key thing to note here is that we are deploying application to customer hosted Mule runtime. This means we will need load balancer to route the requests to different instances of the cluster.

Rest all options are distractors and their requirement depends on project use case.

To monitor Mule applications deployed on customer-hosted Mule runtimes from Anypoint Platform, you need to enable monitoring for each application within the Runtime Manager's application settings. This step ensures that the Runtime Manager Agent, which is already part of the Mule runtime, will collect and send monitoring data to Anypoint Monitoring.

The Runtime Manager Agent acts as the intermediary, collecting metrics and operational data from the Mule applications and transmitting this data to Anypoint Monitoring for analysis and visualization. This setup provides real-time insights and allows for effective monitoring and management of Mule applications.

References:

• MuleSoft Documentation on Anypoint Monitoring

* Each Batch Job uses SEVERAL THREADS for the Batch Steps

* Each Batch Step instance receives ONE record at a time as the payload. It's not received in a block, as it does not wait for multiple records to be completed before moving to next batch step. (So Option D is out of choice)

* RECORDS are processed IN PARALLEL within and between the two Batch Steps.

* RECORDS are not processed in order. Let's say if second record completes batch_step_1 before record 1, then it moves to batch_step_2 before record 1. (So option C and D are out of choice)

* A batch job is the scope element in an application in which Mule processes a message payload as a batch of records. The term batch job is inclusive of all three phases of processing: Load and Dispatch, Process, and On Complete.

* A batch job instance is an occurrence in a Mule application whenever a Mule flow executes a batch job. Mule creates the batch job instance in the Load and Dispatch phase. Every batch job instance is identified internally using a unique String known as batch job instance id.

Explanation

* Object Store and VM Store is used for sharing data inter or intra mule applications in same setup. Can't be used with external Business Partner

* Also File connector will not be useful as the two companies currently have no shared IT infrastructure. It's specific for local use.

* Correct answer is SFTP connector. The SFTP Connector implements a secure file transport channel so that your Mule application can exchange files with external resources. SFTP uses the SSH security protocol to transfer messages. You can implement the SFTP endpoint as an inbound endpoint with a one-way exchange pattern, or as an outbound endpoint configured for either a one-way or request-response exchange pattern.

To reduce the overall development time to release the System API, the most efficient approach is to use the Anypoint Connector for Salesforce. This connector is specifically designed to interact with Salesforce APIs, providing a seamless and optimized way to access customer data directly from Salesforce. Using this connector simplifies development, reduces complexity, and leverages built-in capabilities for authentication and data retrieval, ensuring a faster and more secure implementation.

References:

• Anypoint Connector for Salesforce
• Connecting to Salesforce with Anypoint Platform

To ensure that the Java Invoke static connector in a Mule 4 application can access a static method in a dependency jar file, you need to make the dependency visible to the connector's class loader. Here are the two effective methods to achieve this:

• Using Maven Command:

com.example example-library 1.0.0

• uk.co.certification.simulator.questionpool.PList@18be75a0

mvn clean package

• Configuring Dependency as a Shared Library:

xml

com.example example-library 1.0.0 provided

• Steps for Java Invoke Configuration:
• Benefits:

References:

• MuleSoft Documentation on Java Module
• Maven Documentation on Dependency Management

• When using MUnit's test recorder in Anypoint Studio to create unit tests, consider the following points:

A. Tests for flows cannot be created with Mule errors raised inside the flow or already existing in the incoming event:

• Explanation: The test recorder cannot record flows if Mule errors are raised during the flow execution or if the incoming event already contains errors. This limitation requires users to handle or clear errors before recording the flow to ensure accurate test creation.

D. A recorded flow execution ends successfully but the result does not reach its destination because the application is killed:

• Explanation: If the application is killed before the recorded flow execution completes, the recorder captures the flow up to the point of termination. However, the final result may not be reached or recorded. This scenario should be avoided to ensure complete and reliable test recordings.

These considerations help ensure the accuracy and reliability of tests created using the test recorder.

References:

• MUnit Documentation: https://docs.mulesoft.com/munit/2.2/
• MUnit Test Recorder: https://blogs.mulesoft.com/dev/mule-dev/using-the-munit-test-recorder/

Explanation

CloudHub object store should be in same region where the Mule application is deployed. This will give optimal performance.

Before learning about Cache scope and object store in Mule 4 we understand what is in general Caching is and other related things.

WHAT DOES “CACHING” MEAN?

Caching is the process of storing frequently used data in memory, file system or database which saves processing time and load if it would have to be accessed from original source location every time.

In computing, a cache is a high-speed data storage layer which stores a subset of data, so that future requests for that data are served up faster than is possible by accessing the data’s primary storage location. Caching allows you to efficiently reuse previously retrieved or computed data.

How does Caching work?

The data in a cache is generally stored in fast access hardware such as RAM (Random-access memory) and may also be used in correlation with a software component. A cache’s primary purpose is to increase data retrieval performance by reducing the need to access the underlying slower storage layer.

Caching in MULE 4

In Mule 4 caching can be achieved in mule using cache scope and/or object-store. Cache scope internally uses Object Store to store the data.

What is Object Store

Object Store lets applications store data and states across batch processes, Mule components, and applications, from within an application. If used on cloud hub, the object store is shared between applications deployed on Cluster.

Cache Scope is used in below-mentioned cases:

● Need to store the whole response from the outbound processor

● Data returned from the outbound processor does not change very frequently

● As Cache scope internally handle the cache hit and cache miss scenarios it is more readable

Object Store is used in below-mentioned cases:

● Need to store custom/intermediary data

● To store watermarks

● Sharing the data/stage across applications, schedulers, batch.

If CloudHub object store is in same region where the Mule application is deployed it will aid in fast access of data and give optimal performance.

When configuring the TLS context for an HTTP request to the Google Maps API, the primary goal is to ensure that the Mule application can establish a secure connection. Here’s a detailed explanation of the necessary steps:

• Download Google Public Certificate:
• Generate JKS File from Certificate:

keytool -importcert -file google.cer -keystore truststore.jks -alias google

• Add JKS File to Truststore:

• Configure HTTP Request Connector:

By completing these steps, your Mule application will trust the Google Maps API server’s certificate, allowing for secure communication.

References

• MuleSoft Documentation: Configuring TLS
• Google Maps API Documentation

A major distinguishing characteristic of an application network, according to MuleSoft, is that it is built for change and self-service. An application network connects applications, data, and devices with APIs, enabling self-service access and reuse of assets. This architecture allows organizations to rapidly adapt to changing business needs, fosters innovation, and reduces time to market by empowering different teams to access and integrate systems independently without waiting for centralized IT.

References:

• Application Networks: The Future of Integration
• MuleSoft's Approach to Building Application Networks

https://docs.mulesoft.com/runtime-manager/dedicated-load-balancer-tutorial

To achieve efficient caching and reduce redundant database transactions, the following strategy can be implemented:

• On Table Row Listener: Implement an "On Table Row" trigger on the employees' table. This trigger will monitor changes (inserts, updates, deletes) in the employee records.
• Invalidate Cache: Upon detecting changes in the employees' table, the trigger will call a flow to invalidate the current cache.
• Object Store for Caching: Utilize MuleSoft's object store to cache the employee data. This store can hold the data for quick retrieval.
• Set Expiration Interval: Configure the expiration interval for the cached data to ensure it is cleared when necessary. For this scenario, since we are invalidating cache on actual data changes, setting the expiration interval to empty can be suitable.
• Return Cached Data: If there are no updates, the cached response is returned, reducing database load.

References:

• MuleSoft Documentation on Object Store
• Caching Strategies

Explanation

Correct answer is Federated Identity Management As the Anypoint Platform organization administrator, you can configure identity management in Anypoint Platform to set up users for single sign-on (SSO). Configure identity management using one of the following single sign-on standards: OpenID Connect: End user identity verification by an authorization server including SSO SAML 2.0: Web-based authorization including cross-domain SSO Where as Client Management is where Anypoint Platform acts as a client provider by default, but you can also configure external client providers to authorize client applications. As an API owner, you can apply an OAuth 2.0 policy to authorize client applications that try to access your API. You need an OAuth 2.0 provider to use an OAuth 2.0 policy

Explanation

Correct answer is MuleSoft-hosted Anypoint Platform control plane Customer-hosted runtime plane in each datacenter There are two things to note about the question which can help us figure out correct answer.. * Business data must be exchanged over these private network connections which means we can not use MuleSoft provided Cloudhub option. So we are left with either customer hosted runtime in external cloud provider or customer hosted runtime in their own premises. As customer does not use AWS at the moment. Hence that don't have the immediate option of using Customer-hosted runtime plane in multiple AWS regions. hence the most suitable option for runtime plane is Customer-hosted runtime plane in each datacenter * Metadata has no limitation to reside in organization premises. Hence for control plane MuleSoft hosted Anypoint platform can be used as a strategic solution.

Hybrid is the best choice to start. Mule hosted Control plane and Customer hosted Runtime to start with.Once they mature in cloud migration, everything can be in Mule hosted.

Explanation

CloudHub supports updating your applications at runtime so end users of your HTTP APIs experience zero downtime. While your application update is deploying, CloudHub keeps the old version of your application running. Your domain points to the old version of your application until the newly uploaded version is fully started. This allows you to keep servicing requests from your old application while the new version of your application is starting.

To meet the reliability requirements for Mule applications deployed to a Runtime Fabric (RTF) cluster, where data needs to be shared across application replicas and persist through restarts, the best approach is to use Anypoint Object Store v2. This service is designed to provide persistent storage that can be shared among different application instances and across restarts. Steps include:

• Configure Object Store v2: Set up Anypoint Object Store v2 in the Mule application to handle data storage needs.
• Persistent Data Handling: Ensure that the configuration allows data to be shared and persist, meeting the requirements for reliability and consistency.

This solution leverages MuleSoft's cloud-based storage service optimized for these use cases, ensuring data integrity and availability.

References

• MuleSoft Documentation on Object Store v2
• Configuring Persistent Data Storage in MuleSoft

Explanation

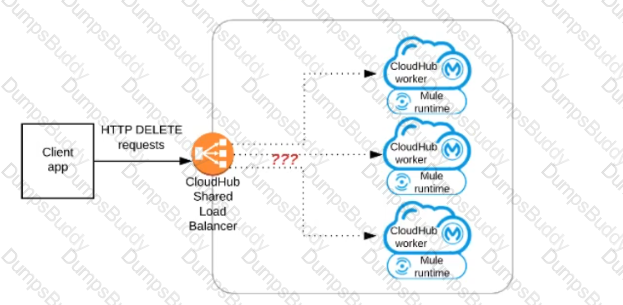

Correct behavior is Each request is routed to ONE ARBITRARY CloudHub worker out of ALL three CloudHub workers

Explanation

* Anypoint Runtime Fabric is a container service that automates the deployment and orchestration of your Mule applications and gateways.

* Runtime Fabric runs on customer-managed infrastructure on AWS, Azure, virtual machines (VMs) or bare-metal servers.

* As none of the Mule applications use Mule domain projects. applications are not required to be rewritten. Also when applications are deployed on RTF, by default ingress is allowed only on 8081.

* Hence port conflicts are not required to be managed by DevOps team

Explanation

* On Error Propagate halts execution and sends error to the client. In this scenario it's mentioned that "processing of other rows must not be affected" so Option B and C are ruled out.

* Scatter gather is used to club multiple responses together before processing. In this scenario, we need sequential processing. So option A is out of choice.

* Correct answer is For Each scope & On Error Continue scope Below requirement can be fulfilled in the below way

1) Using For Each scope , which will send each row from csv file sequentially. each row needs to be sent sequentially as requirement is to send the message in exactly the same way as it is mentioned in the csv file

2) Also other part of requirement is if any processing step for a row fails then it should log an error but should not affect other record processing . This can be achieved using On error Continue scope on these set of activities. so that error will not halt the processing. Also logger needs to be added in error handling section so that it can be logged.

* Attaching diagram for reference. Here it's try scope, but similar would be the case with For Each loop.

Diagram Description automatically generated

MuleSoft customers often favor a MuleSoft-hosted Anypoint Platform runtime plane over a customer-hosted runtime for the following reasons:

• Reduced time-to-market for the first application (C): Using a MuleSoft-hosted runtime plane accelerates the deployment process because MuleSoft manages the infrastructure, allowing customers to focus on developing and deploying their applications quickly. This leads to faster time-to-market for the initial application and subsequent updates.
• Reduced IT operations effort (E): By leveraging a MuleSoft-hosted environment, customers offload the operational responsibilities, such as infrastructure maintenance, updates, and scalability management, to MuleSoft. This reduces the IT operations workload and allows internal teams to focus on more strategic initiatives.

In contrast, other options like reduced application latency and increased application throughput are not directly influenced by whether the runtime plane is MuleSoft-hosted or customer-hosted.

References

• MuleSoft Anypoint Platform Documentation
• MuleSoft Hosted vs. Customer Hosted Deployment Guides

• Requirement Analysis: The organization wants to standardize dependencies across all new and ongoing MuleSoft projects to minimize the impact of frequent plugin version upgrades and external plugin project dependencies.
• Solution: Creating a parent POM (Project Object Model) file with all required dependencies and referencing it in each application's POM.xml file is the best practice.
• Implementation Steps:

pom 1.0.0 pom org.mule.runtime mule-core-extensions-maven-plugin 1.0.0

• uk.co.certification.simulator.questionpool.PList@18be4ec0

4.0.0 com.example parent-pom 1.0.0 child-application 1.0.0

• uk.co.certification.simulator.questionpool.PList@18be4f40
• Advantages:

References

• MuleSoft Documentation on Managing dependencies with Maven
• Apache Maven Documentation on POM Reference

Explanation

In this scenario, both A & C will work, but A is better as it does not require repackage to the domain project at all.

Correct answer is Package the HTTPS Listener configuration in a Mule DOMAIN project, referencing it from all Mule applications that need to expose an HTTPS endpoint. Store the server-side certificate in a shared filesystem location in the Mule runtime’s classpath, OUTSIDE the Mule DOMAIN or any Mule APPLICATION.

What is Mule Domain Project?

* A Mule Domain Project is implemented to configure the resources that are shared among different projects. These resources can be used by all the projects associated with this domain. Mule applications can be associated with only one domain, but a domain can be associated with multiple projects. Shared resources allow multiple development teams to work in parallel using the same set of reusable connectors. Defining these connectors as shared resources at the domain level allows the team to: - Expose multiple services within the domain through the same port. - Share the connection to persistent storage. - Share services between apps through a well-defined interface. - Ensure consistency between apps upon any changes because the configuration is only set in one place.

* Use domains Project to share the same host and port among multiple projects. You can declare the http connector within a domain project and associate the domain project with other projects. Doing this also allows to control thread settings, keystore configurations, time outs for all the requests made within multiple applications. You may think that one can also achieve this by duplicating the http connector configuration across all the applications. But, doing this may pose a nightmare if you have to make a change and redeploy all the applications.

* If you use connector configuration in the domain and let all the applications use the new domain instead of a default domain, you will maintain only one copy of the http connector configuration. Any changes will require only the domain to the redeployed instead of all the applications.

You can start using domains in only three steps:

1) Create a Mule Domain project

2) Create the global connector configurations which needs to be shared across the applications inside the Mule Domain project

3) Modify the value of domain in mule-deploy.properties file of the applications

Graphical user interface Description automatically generated

Use a certificate defined in already deployed Mule domain Configure the certificate in the domain so that the API proxy HTTPS Listener references it, and then deploy the secure API proxy to the target Runtime Fabric, or on-premises target. (CloudHub is not supported with this approach because it does not support Mule domains.)

Explanation

JMX Management Java Management Extensions (JMX) is a simple and standard way to manage applications, devices, services, and other resources. JMX is dynamic, so you can use it to monitor and manage resources as they are created, installed, and implemented. You can also use JMX to monitor and manage the Java Virtual Machine (JVM). Each resource is instrumented by one or more Managed Beans, or MBeans. All MBeans are registered in an MBean Server. The JMX server agent consists of an MBean Server and a set of services for handling Mbeans. There are several agents provided with Mule for JMX support. The easiest way to configure JMX is to use the default JMX support agent. Log4J Agent The log4j agent exposes the configuration of the Log4J instance used by Mule for JMX management. You enable the Log4J agent using the element. It does not take any additional properties MuleSoft Reference: https://docs.mulesoft.com/mule-runtime/3.9/jmx-management

Explanation

Object Store Connector is a Mule component that allows for simple key-value storage. Although it can serve a wide variety of use cases, it is mainly design for: - Storing synchronization information, such as watermarks. - Storing temporal information such as access tokens. - Storing user information. Additionally, Mule Runtime uses Object Stores to support some of its own components, for example: - The Cache module uses an Object Store to maintain all of the cached data. - The OAuth module (and every OAuth enabled connector) uses Object Stores to store the access and refresh tokens. Object Store data is in the same region as the worker where the app is initially deployed. For example, if you deploy to the Singapore region, the object store persists in the Singapore region. MuleSoft Reference : https://docs.mulesoft.com/object-store-connector/1.1/ Data can be shared between different instances of the Mule application. This is not recommended for Inter Mule app communication. Coming to the question, object store cannot be used to share cached data if it is deployed as separate Mule applications or deployed under separate Business Groups. Hence correct answer is When there is one CloudHub deployment of the API implementation to three workers that must share the cache state.

In a distributed application architecture, a service mesh typically manages communication between services within the application. A service mesh provides a dedicated infrastructure layer that handles service-to-service communication, including service discovery, load balancing, failure recovery, metrics, and monitoring. This allows developers to offload these operational concerns from individual services, ensuring consistent and reliable inter-service communication.

References:

• Understanding Service Mesh
• Service Mesh for Microservices

To support the company's goals of unlocking key systems and data, quickly deploying scalable APIs, and connecting to on-premises systems, while also preparing for future migrations, the best runtime deployment option is using Runtime Fabric on self-managed Kubernetes. Here's why:

• Scalability: Kubernetes is designed to scale applications easily and efficiently. By deploying Mule runtimes on a self-managed Kubernetes cluster, the company can dynamically scale its APIs based on demand, ensuring performance and reliability.
• Flexibility: Running on self-managed Kubernetes allows the company to have control over the infrastructure. They can customize the environment to meet their specific needs, integrate with existing on-premises systems, and support their microservices architecture running in Docker containers.
• Future-Proofing: Kubernetes supports hybrid and multi-cloud deployments, making it easier to migrate workloads between different environments as needed. This aligns with the company's goal of being able to migrate their systems as part of their strategic approach.
• Efficiency: By leveraging Kubernetes, the company can automate deployment, scaling, and management of containerized applications, reducing the burden on IT and DevOps teams.

References:

• MuleSoft Documentation on Runtime Fabric: https://docs.mulesoft.com/runtime-fabric/1.9/
• Kubernetes Documentation: https://kubernetes.io/docs/home/

To automate the promotion and deployment of API Manager policies as part of a CI/CD process, an organization can use the Anypoint CLI (Command Line Interface). The Anypoint CLI provides a set of commands to interact with various components of the Anypoint Platform, including API Manager.

Using the Anypoint CLI, you can:

• Apply policies to API instances.
• Promote APIs and their associated policies across different environments.
• Script these actions as part of the CI/CD pipeline to ensure consistency and automation in managing API policies.

Other tools like the MUnit Maven plugin, Mule Maven plugin, and Runtime Manager agent do not provide direct capabilities to manage API Manager policies.

References

• MuleSoft Anypoint CLI Documentation
• Automating API Management with Anypoint CLI

• Requirement Analysis: The organization needs to send email alerts to the internal operations team whenever a policy applied to an API instance is deleted in the CloudHub runtime plane.
• Solution: The most effective approach is to implement a new Mule application that uses the Audit Log REST API to detect when a policy is deleted and then sends an email using the SMTP connector.
• Implementation Steps:

GET /accounts/api/v2/organizations/{orgId}/audit-logs

• uk.co.certification.simulator.questionpool.PList@18be5070

Policy deletion detected: #[payload]

• uk.co.certification.simulator.questionpool.PList@189cae60
• Advantages:

References

• MuleSoft Documentation on Audit Log REST API
• MuleSoft Documentation on SMTP Connector
• MuleSoft Documentation on MuleSoft Scheduler Component

According to MuleSoft's surveys of global IT leaders, a common cause of IT project failure is a lack of alignment around business outcomes. When IT projects do not have clear business objectives or fail to align with the strategic goals of the organization, they are more likely to face challenges and fail to deliver value. Ensuring that IT initiatives are closely tied to business goals and have stakeholder buy-in is crucial for their success.

References:

• Why IT Projects Fail
• Aligning IT and Business Strategies
