Refer to the exhibit.
An AOS-Switch has the ACL shown in the exhibit. A network administrator then enters these commands:
Switch(config)# mac-access-list standard myACL
Switch(config-std-macl)# deny 007d.45cc.0000 0000.0000.ffff
How does this ACL treat these frames:
1 = 007d.45cc.ffff 2 = 007d.45cc.0000

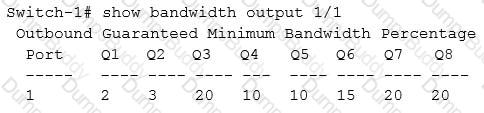

Refer to the exhibit.
Network administrators need to determine if the QoS settings on their AOS-Switches still meet their needs. Interface 1 is a 1 Gbps interface. Assume that the interface needs to forward this amount of traffic during a time of congestion:
Given the exhibit, how much bandwidth is available for the default traffic?
A customer wants access layer switches that support routing, ACLs, backplane stacking, and Smart rate ports. The customer asks about Aruba 5400R z 12 switches.
Which Aruba Switch model would better meet the customer’s requirements?
Network administrators want to gain insight into network utilization, traffic patterns, and the types of applications in use across the network over the long term.
Which technology can help them achieve this goal?
A company has a wireless Aruba solution and wired users that connect to AOS-Switches. The company wants deep insight into the types of applications that wired users run. The company also wants more control over the traffic.
What can the company do to meet these goals?

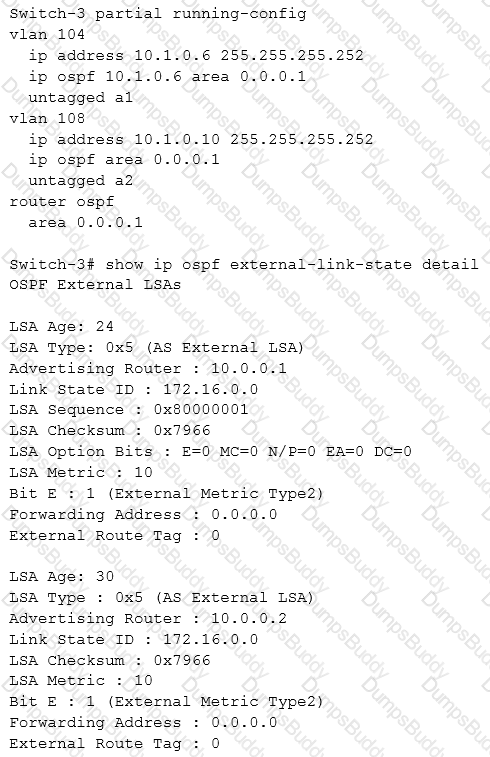

Refer to the exhibits.
Exhibit 1.
Exhibit 2.
The exhibits show the current operational state for routes on Switch-3 to send all traffic to 172.16.0.0/16 through Switch-2 during normal operation.
Which single configuration change creates the desired behavior?

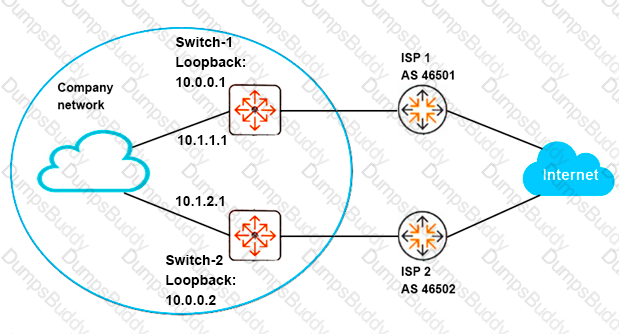

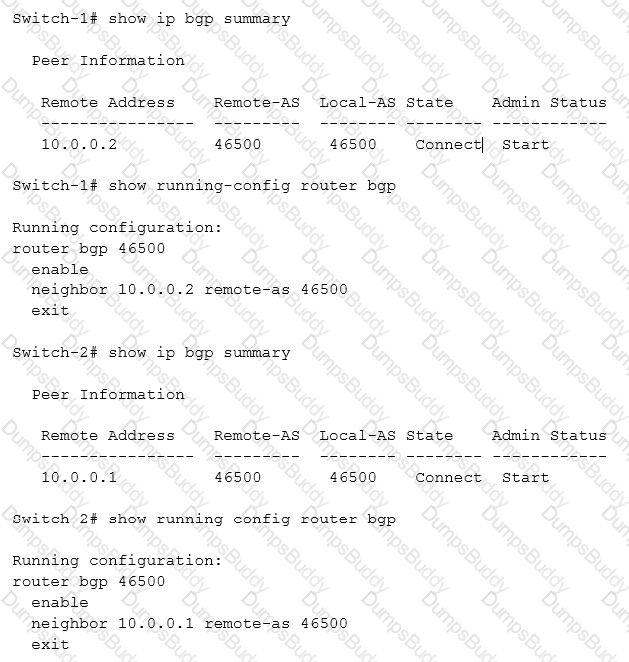

Refer to the exhibits.
Exhibit 1
Exhibit 2
The network administrator needs to set up BGP between the two company switches, Switch-1 and Switch-2. The BGP connection does not establish. Based on the exhibits, what does the administrator need to do to fix the issue?

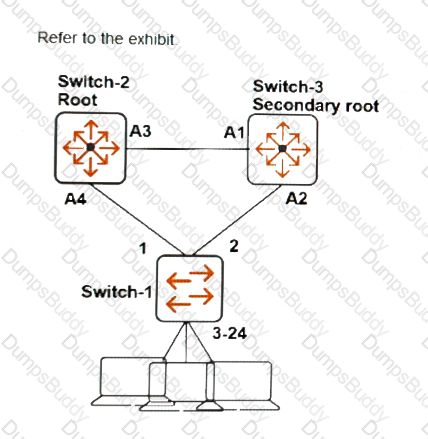

Refer to the exhibit.
A network administrator wants to add the protections of root guard to the network. Based on the spanning tree topology, on which ports should the network administrator implement root guard?

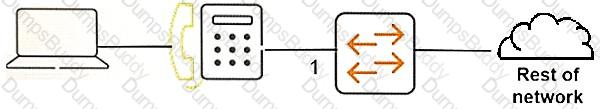

Refer to the exhibits.
Exhibit 1.
Exhibit 2.
The VoIP phone connects, authenticates successfully, and is dynamically assigned to tagged VLAN 6. The endpoint connected to the phone does not authenticate but starts to send untagged traffic.
How does the switch handle this traffic?
A company has a mixed wireless and wired Aruba solution. It wants to encrypt messages used to send configurations and other important messages to the APs carried outside the GRE tunnels. What can the company do to meet these goals?
An AOS-Switch enforces 802.1X authentication to an Aruba ClearPass server. A user connects but cannot receive network access, even though the ClearPass administrator finds an Access-Accept for the user on this switch. The switch administrator suspects that there is an issue with the dynamic settings returned by ClearPass.
Where should the administrator look for information about these settings?

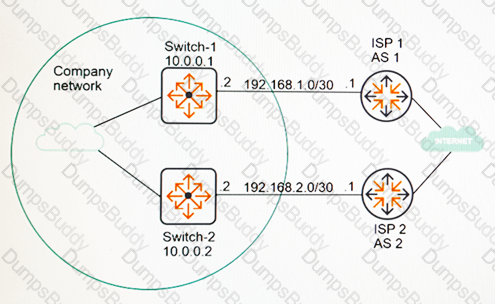

Refer to the exhibits.
Exhibit 1
Exhibit 2
Exhibit 1 shows a portion of the BGP routing table when the BGP solution was first deployed. Exhibit 2 shows the same portion at the current time. What can explain the current state?
An administrator wants to ensure that an AOS-Switch forwards all traffic that it receives on interface 1 with high priority.
- Switches should also communicate the high priority to other switches across the traffic path.
- The switch has type of service disabled.
- The administrator plans to apply 802.1p priority 5 to interface 1.
What should the administrator check to ensure that the configuration will work properly?
Which technologies can prevent split brain in a VSF fabric that includes Aruba 2930F switches?
Network administrators need to inspect all traffic that arrives on an AOS-Switch in VLAN 2 and is destined to TCP ports 50000-50010. They want to send the traffic to a protocol analyzer connected to the switch for deeper inspection.
What else must they create to achieve their goal?

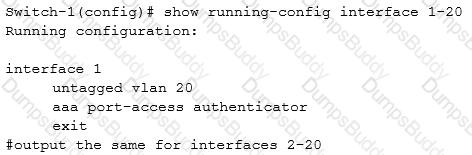

Refer to the exhibit.
Several interfaces on an AOS-Switch enforce 802.1X to a Radius server at 10.254.202.202. The interface 802.1X settings are shown in the exhibit, and 802.1X is also enabled globally. The security team have added a requirement for port security on the interfaces as well. Before administrators enable port security, which additional step must they complete to prevent issues?
An AOS-Switch enforces 802.1X. It receives an Access-Accept with this HPE VSA from its Radius server:
Attribute Name and ID = HPE-User-Role (25) Value = contractor
The switch then rejects the client. What is one requirement for the switch to accept the message and authorize the client?
A network administrator configures VSF settings on two Aruba 2930F switches. The switches form two separate VSF fabrics. What should the administrator check?
