HPE0-S60 Delta - HPE Compute Solutions Questions and Answers

When encountering an error while growing a VMware cluster using HPE OneView for VMware vCenter Server, it is crucial to verify that the server profile template is properly imported and registered in HPE OneView. This ensures that the necessary configurations and settings are correctly applied to the new compute nodes being added to the cluster.

A logical interconnect group in HPE Synergy is used to define a consistent network configuration across multiple frames. The HPE Virtual Connect SE 100 Gb F32 Module for Synergy allows for logical interconnect groups to span across multiple frames. This is because the 100 Gb module supports high-speed connectivity and the necessary infrastructure to maintain consistent network configurations over multiple frames, which is essential for scalable and flexible Synergy environments.

For HPE Virtual Connect Fibre Channel (VC FC) modules, utilization sampling is always enabled by default and cannot be disabled. This feature ensures continuous monitoring of the module's performance and utilization, providing valuable insights for managing the Fibre Channel network.

D. FC upgrade licenses for HPE Virtual Connect SE 100 GbF32 Module must be added:To enable Fibre Channel functionality on the HPE Virtual Connect SE 100Gb F32 Modules, it is necessary to add FC upgrade licenses. These licenses unlock the FC capabilities required for the proposed setup.

E. Remove 4 HPE Composer 2 modules from the design, as they are not required:The proposed design includes 6 HPE Composer 2 modules, but typically, only a pair of HPE Composer 2 modules is required to manage up to 21 frames. Therefore, the remaining 4 Composer 2 modules are not necessary and can be removed from the design.

All new HPE SimpliVity models are designed with integrated deduplication, compression, and optimization capabilities. These features are fundamental to the HPE SimpliVity architecture, providing enhanced storage efficiency and performance. Deduplication and compression reduce the amount of data stored and transmitted, which improves the overall efficiency of data management in the hyper-converged infrastructure.

The HPE Superdome Flex system supports configurations of up to 32 sockets and 48TB of memory, making it suitable for extremely large-scale and demanding workloads. In contrast, the HPE Superdome Flex 280 has a lower maximum configuration limit, making it more suited for smaller-scale deployments compared to the full Superdome Flex.

HPE Composer 2 offers enhanced scalability compared to HPE Composer 1. While HPE Composer 1 and HPE OneView support up to 21 frames, HPE Composer 2 extends this limit, allowing for greater scalability and more efficient management of larger HPE Synergy environments. This makes HPE Composer 2 a suitable recommendation for customers needing to manage more than 21 frames.

The HPE Superdome Flex 280 is a highly scalable server that supports 2 to 8 sockets in 2-socket increments. This allows for flexible scaling of compute resources based on the needs of the workload, providing a balance between performance and cost.

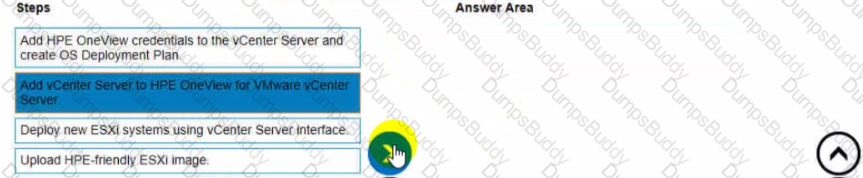

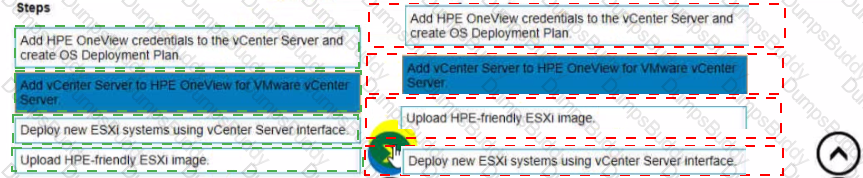

To configure HPE OneView for VMware vCenter Server to deploy ESXi systems, follow these steps in the correct order:

Add HPE OneView credentials to the vCenter Server and create OS Deployment Plan.

Add vCenter Server to HPE OneView for VMware vCenter Server.

Upload HPE-friendly ESXi image.

Deploy new ESXi systems using vCenter Server interface.

Add HPE OneView credentials to the vCenter Server and create OS Deployment Plan:Integrate HPE OneView with vCenter Server by adding the necessary credentials and setting up the OS Deployment Plan.

Add vCenter Server to HPE OneView for VMware vCenter Server:Ensure that vCenter Server is added to HPE OneView for VMware vCenter Server to enable communication and management.

Upload HPE-friendly ESXi image:Upload an ESXi image that is optimized for HPE hardware to the vCenter Server for use in the deployment process.

Deploy new ESXi systems using vCenter Server interface:Use the vCenter Server interface to deploy new ESXi systems based on the created server profile template and the uploaded ESXi image.

These steps ensure a seamless deployment and management of ESXi systems using HPE OneView integrated with VMware vCenter Server.

In HPE Synergy configurations, compute nodes must have a second CPU installed to access the second fabric. This requirement is due to the architecture of the Synergy compute nodes, where the second CPU is necessary to enable the additional PCIe lanes required for connectivity to the second fabric.

The HPE Apollo 2000 Gen10 Plus platform offers flexibility in processor options, supporting both AMD EPYC and Intel Xeon Scalable CPUs. This allows customers to choose the best processor architecture based on their specific workload requirements and performance needs.

When a new Ethernet network is created in HPE OneView and is not available in the server profile, it is typically because the network has not been added to the uplink set within the Logical Interconnect Group (LIG). To resolve this issue, the network must be included in the uplink set configuration, and then the logical interconnect configuration must be updated from the LIG to propagate the changes.

The issue of seeing multiple instances of an FC boot volume in Disk Management, with one online and three offline, is typically caused by the lack of Multi-Path I/O (MPIO) configuration. Installing and configuring MPIO on the Windows system will enable the operating system to recognize multiple paths to the same storage volume and manage them correctly, presenting only one online instance of the volume.

In HPE Synergy, a management ring can indeed contain mixed frame link module (FLM) configurations. This means you can have a mix of 2-port and 4-port FLM modules within the same management ring without needing to replace the existing 2-port modules. This flexibility allows for gradual upgrades and scalability within the management ring.

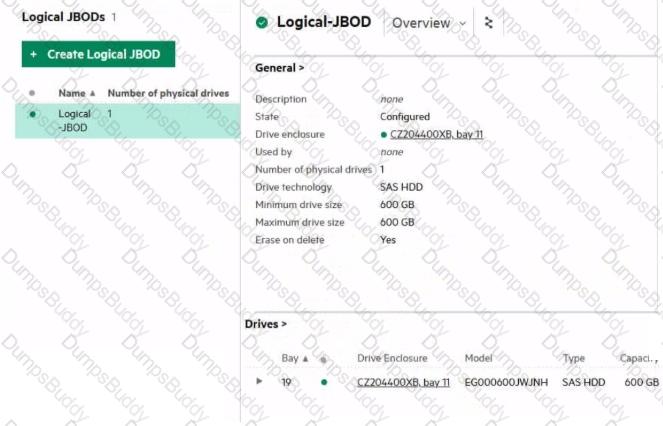

In HPE Synergy, logical JBODs (Just a Bunch of Disks) can be configured to be accessible by compute nodes across different frames. This flexibility allows for the logical JBOD to be presented to compute nodes that are not in the same frame as the storage module, facilitating better resource utilization and workload management.

When you configure a vVol datastore using the HPE Storage Integration Pack for VMware vCenter, the storage object to check in SSMC (HPE StoreServ Management Console) is the Storage Container. The Storage Container is a logical storage entity that houses virtual volumes (vVols) and represents the vVol datastore in the storage system. Verifying the Storage Container ensures that the vVol datastore is properly configured and managed.

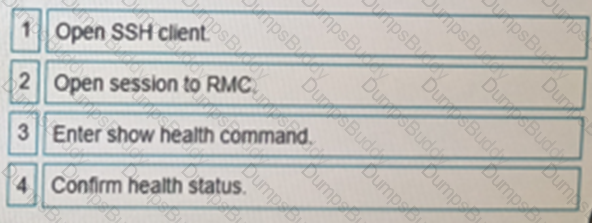

Open SSH client:Begin by opening an SSH client on your computer. This client will be used to establish a secure connection to the Rack Management Controller (RMC).

Open session to RMC:Use the SSH client to open a session to the RMC. The RMC is the central management component for the HPE Superdome Flex system.

Enter show health command:Once connected to the RMC, enter theshow healthcommand. This command will provide detailed information about the health status of various components within the Superdome Flex system.

Confirm health status:Review the output of theshow healthcommand to confirm the health status of the Superdome Flex components. This step ensures that all components are functioning correctly and identifies any potential issues.

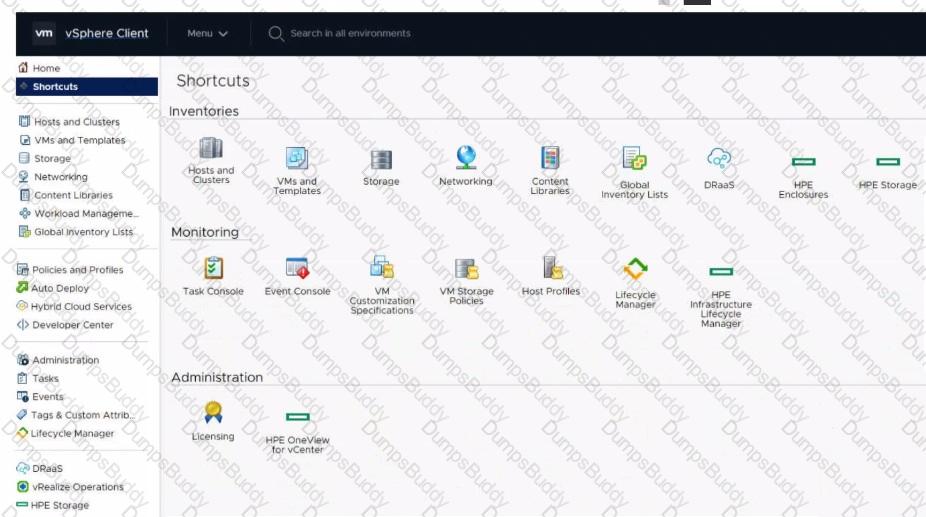

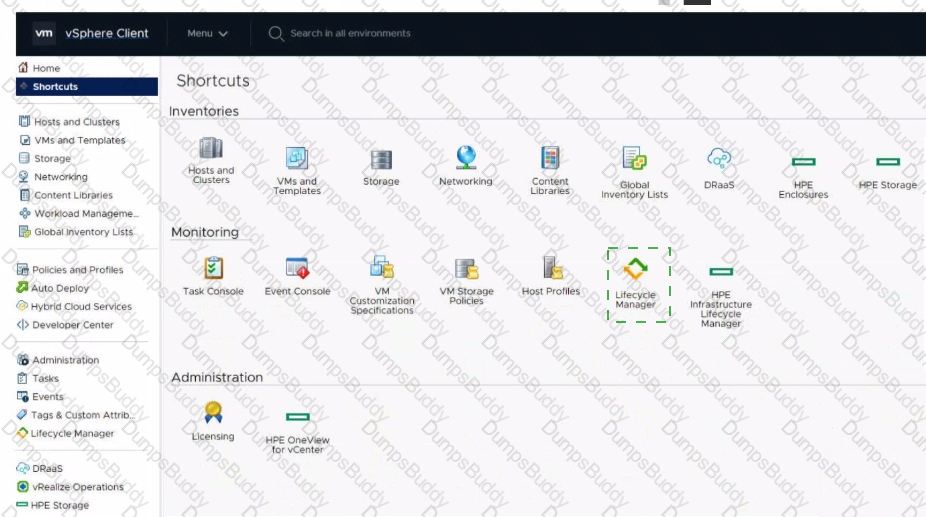

TheLifecycle Managerin the vSphere Client interface is used for managing and updating ESXi hosts, including changing the ESXi image used in an OS Deployment Plan. This tool allows administrators to import, export, and apply different ESXi images, ensuring that the hosts are running the desired version and configuration of ESXi.

The VMware vSphere Standard license does not include support for advanced features like Distributed Resource Scheduler (DRS) and Distributed Switches. These features are available onlywith the vSphere Enterprise Plus license. Therefore, to meet the customer's requirement of using Distributed Switches and a DRS cluster, the proposal should include vSphere Enterprise Plus licenses instead of Standard licenses.

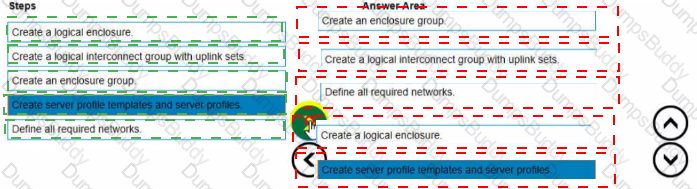

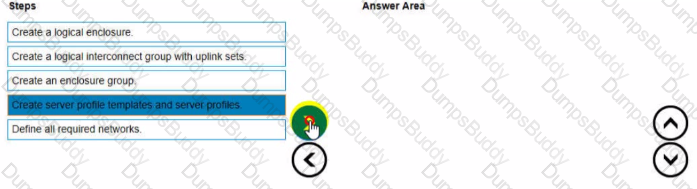

To set up HPE Synergy frames after the hardware components are discovered within HPE OneView, the following steps should be followed in the correct order:

Create an enclosure group.

Create a logical interconnect group with uplink sets.

Define all required networks.

Create a logical enclosure.

Create server profile templates and server profiles.

Create an enclosure group:This step involves defining the enclosure group, which includes the configurations for the enclosure such as firmware baselines and logical interconnect groups.

Create a logical interconnect group with uplink sets:Next, set up the logical interconnect group, which includes the uplink sets that define the connectivity from the enclosures to the data center networks.

Define all required networks:After setting up the logical interconnect group, define all the necessary networks that will be used within the HPE Synergy environment.

Create a logical enclosure:Create a logical enclosure by combining the physical enclosures with the defined enclosure group, effectively binding the hardware configuration with the logical settings.

Create server profile templates and server profiles:Finally, create server profile templates and individual server profiles to apply the required configuration settings to the compute modules.
