Desktop-Specialist Tableau Desktop Specialist Exam Questions and Answers

Explanation

When you connect to a new data source, Tableau assigns each field in the data source as dimension or measure in the Data pane, depending on the type of data the field contains. You use these fields to build views of your data.

Explanation

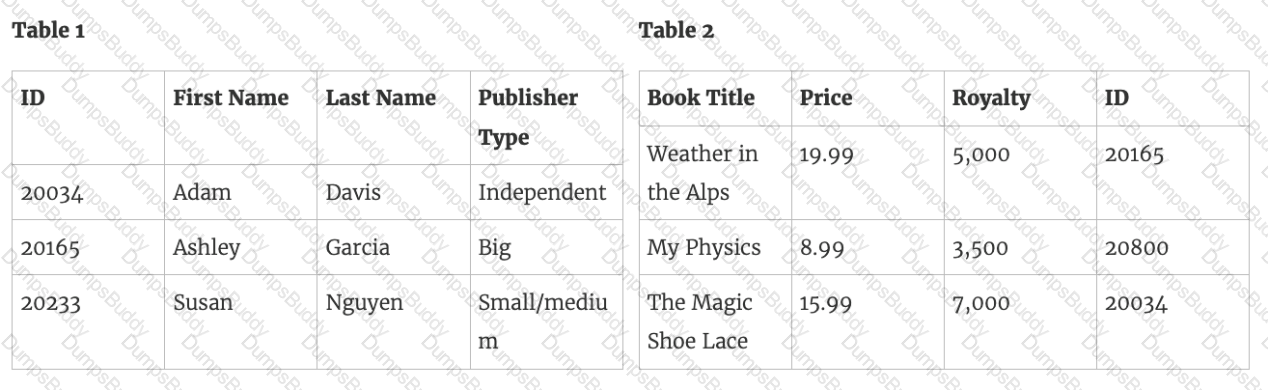

The INNER JOIN keyword selects all rows from both tables as long as there is a match between the columns. Consider 2 tables "Orders" and "Customers".

If there are records in the "Orders" table that do not have matches in "Customers", these orders will not be shown!

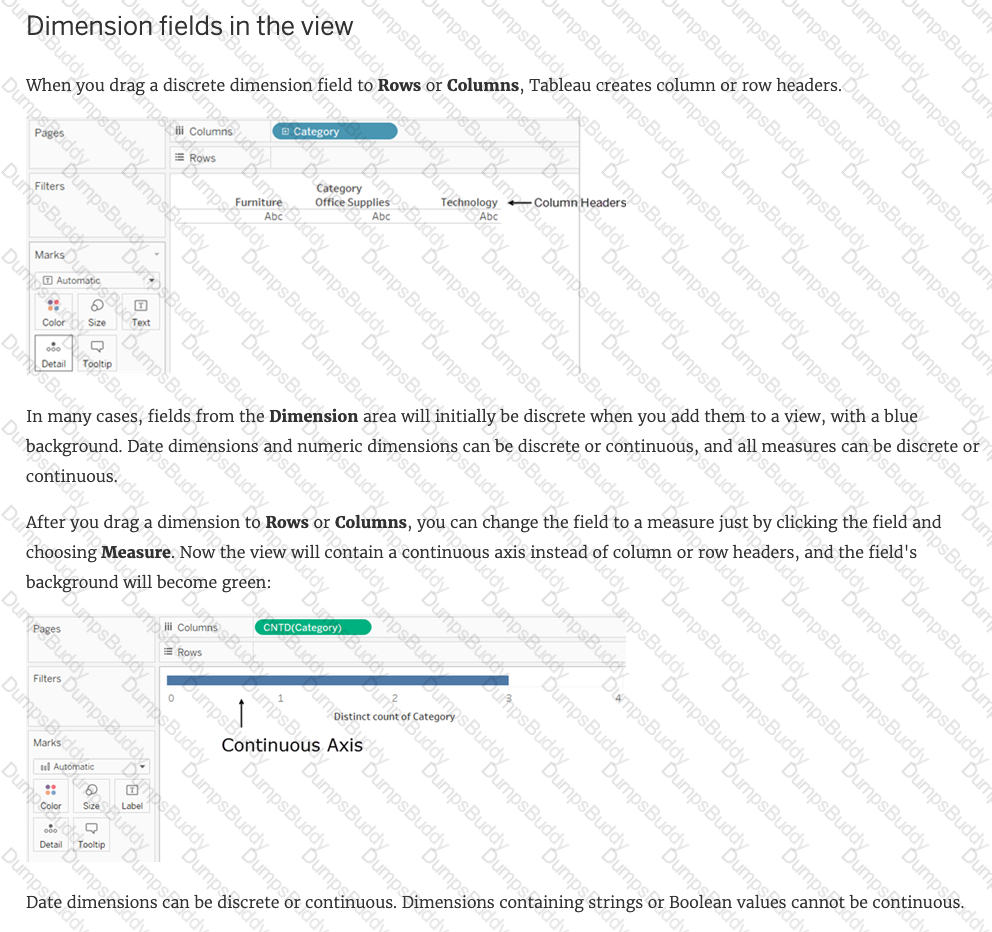

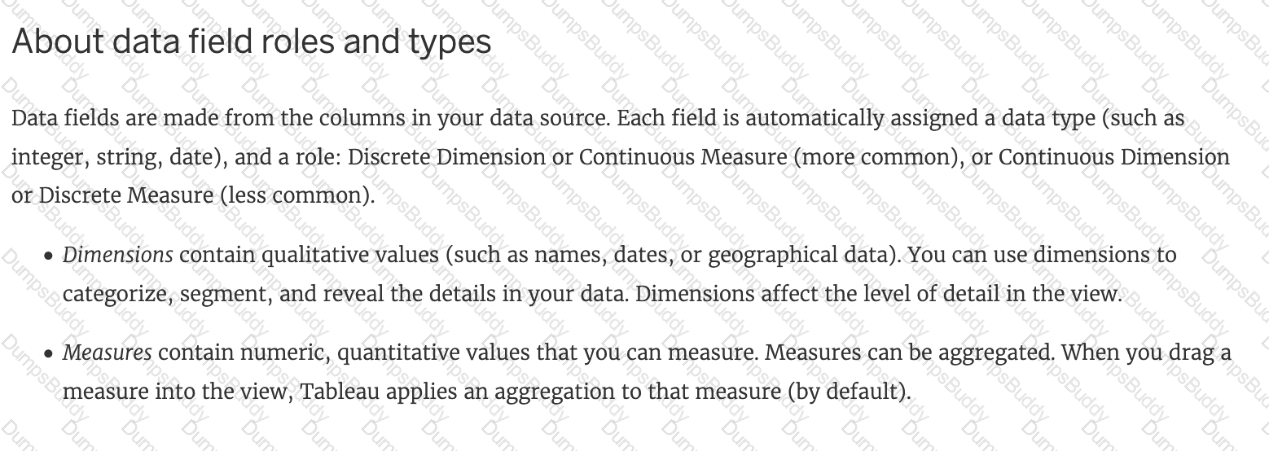

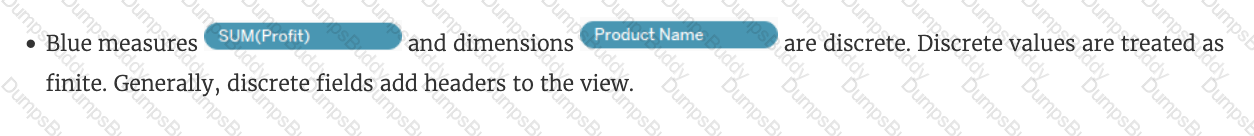

Three statements that accurately describe dimensions are: Contain qualitative values Affect the level of detail in the view Can be continuous or discrete Dimensions are fields that contain qualitative values, such as names, dates, or geographical data. You can use dimensions to categorize, segment, and reveal the details in your data. Dimensions affect the level of detail in the view by creating headers or labels for marks or by defining how data is partitioned for table calculations. Dimensions can be continuous or discrete depending on their data type and format. Continuous dimensions are those that have an infinite range of possible values, such as numbers or ratios. Discrete dimensions are those that have a finite number of distinct values, such as names, categories, or dates3 The other options are not accurate statements about dimensions. Contain numeric, quantitative values is not correct, because fields that contain numeric, quantitative values are measures, not dimensions. Measures are fields that contain numeric values that you can measure and aggregate. Affect the formatting options in the view is not correct, because formatting options are not determined by dimensions, but rather by user preferences and choices. Formatting options allow you to change the appearance of various elements in the workbook, such as fonts, borders, shading, alignment, etc3

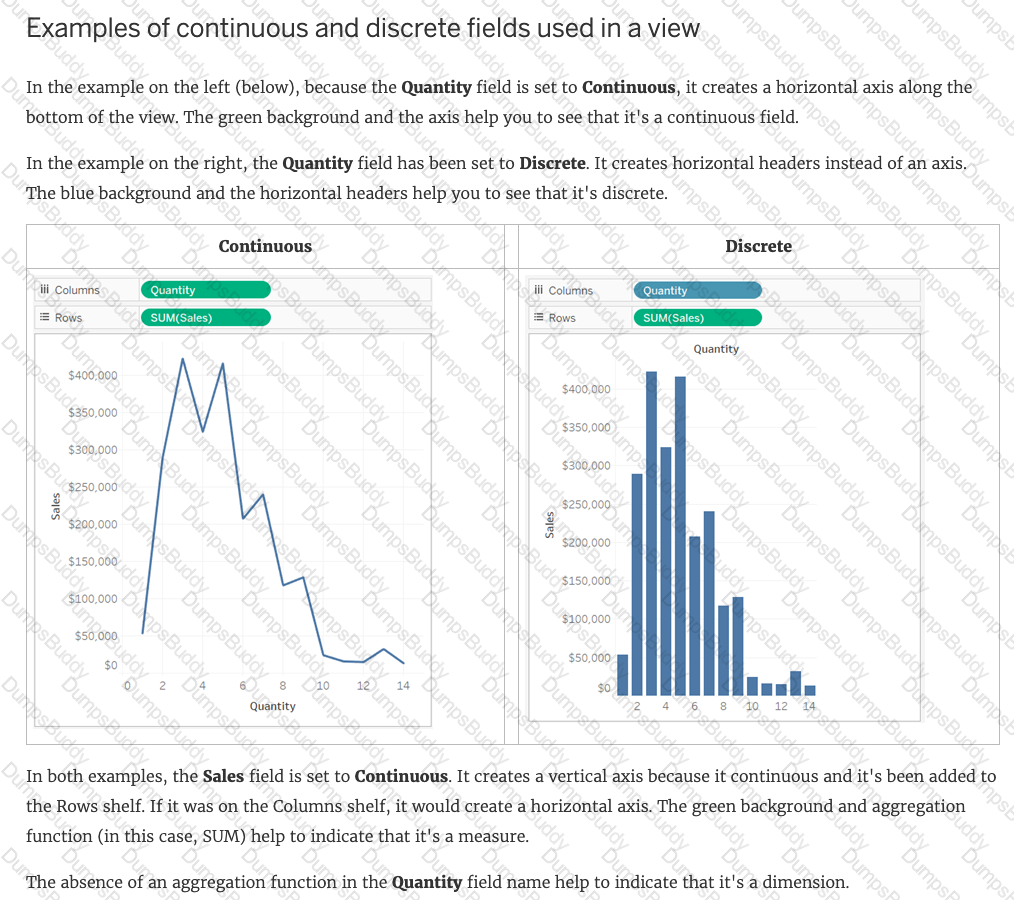

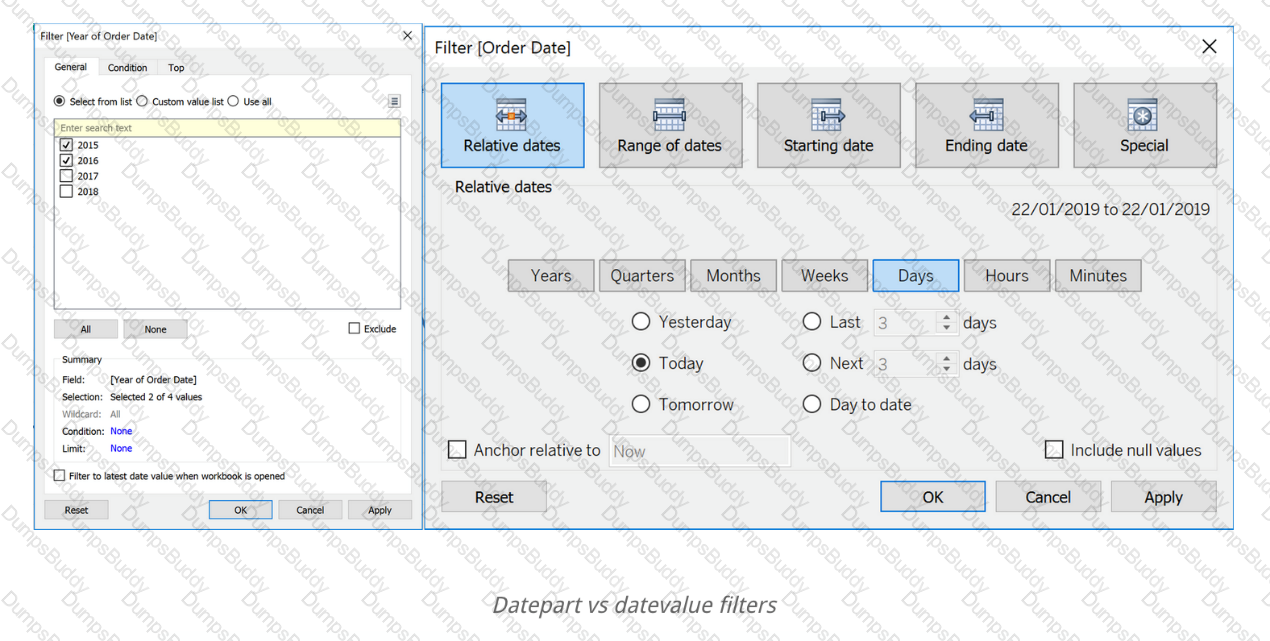

Dates in Tableau will behave differently depending on whether they are a Datepart (blue) or a Datevalue (green). This affects how the axes display/behave and also how visualisations such as line charts will display. The difference essentially boils down to Dateparts behaving like a dimension as opposed to a measure which is how Datevalues behave. This means that Dateparts behave like discrete categories on the view whereas Datevalues are more like continuous numeric values.

Dateparts are discrete and they behave the same as dimension filters. If all dates are used on the filter then each individual date will be a datepart that can be selected/excluded. This is the same for each level of date, if datepart months is placed on filters January to December will be tick-able options in the filter. This also means that conditions and top/bottom filters can be applied to datepart filters like any other dimension filter.

Datevalues placed on filters behave like measure filters. A min and a max date can be set and there is a relative dates option which allows you to choose things like only show the previous 3 months or years etc.

Explanation

When you track data in Excel spreadsheets, you create them with the human interface in mind. To make your spreadsheets easy to read, you might include things like titles, stacked headers, notes, maybe empty rows and columns to add white space, and you probably have multiple tabs of data too.

When you want to analyze this data in Tableau, these aesthetically pleasing attributes make it very difficult for Tableau to interpret your data. That’s where Data Interpreter can help.

Explanation

Remember that joins are defined in the physical layer and relationships in the logical layer.

You can still specify joins between tables in the physical layer of a data source. Double-click a logical table to go to the Join/Union canvas in the physical layer and add joins or unions.

Every top-level, logical table contains at least one physical table. Open a logical table to view, edit, or create joins between its physical tables. Right-click a logical table, and then click Open. Or, just double-click the table to open it.

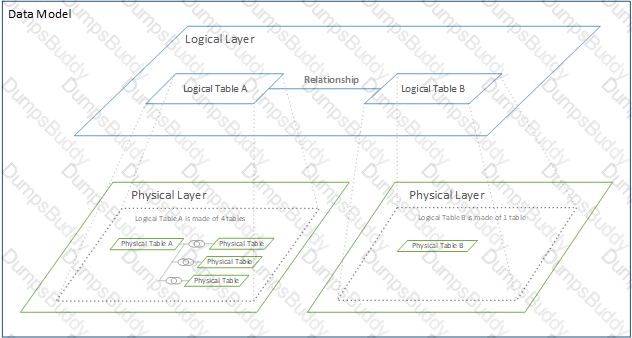

When you create a data source, it has two layers. The top-level layer is the logical layer of the data source. You combine data between tables in the logical layer using relationships.

The next layer is the physical layer of the data source. You combine data between tables at the physical layer using joins. For more information, see Logical and physical tables in the data model

Explanation

A geographic role associates each value in a field with a latitude and longitude value.

Assigning a geographic role based on the type of location (such as state versus postcode) helps ensure that your data is plotted correctly on your map view. For example, you can assign the City geographic role to a field that contains a list of city names.

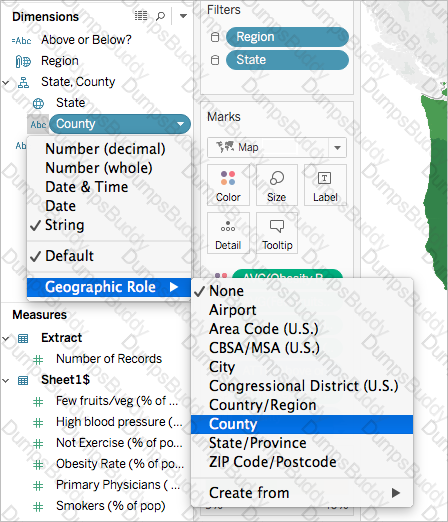

To assign a geographic role to a field:

In the Data pane, click the data type icon next to the field, select Geographic Role, and then select the geographic role you want to assign to the field.

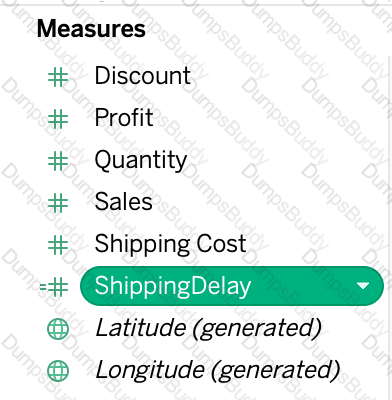

When you assign a geographic role to a field, Tableau adds two fields to the Measures area of the Data pane: Latitude (generated) and Longitude (generated).

These fields contain latitude and longitude values and are assigned the Latitude and Longitude geographic roles. If you double-click each of these fields, Tableau adds them to the Columns and Rows shelves and creates a map view using the Tableau background map.

Explanation

One way to view a measure in Tableau Desktop is to split it into bins. You can think of bins as buckets based on a range of values. For example, say you have a measure that represents age. Instead of aggregating the measure to calculate the average age, you can bin the measure to define age groups: 0–5, 6–10, 11–15, and so on. Then you can count the number of people in each age group.

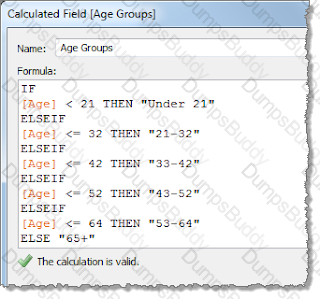

Create a calculated field for variable bin size

Step 1

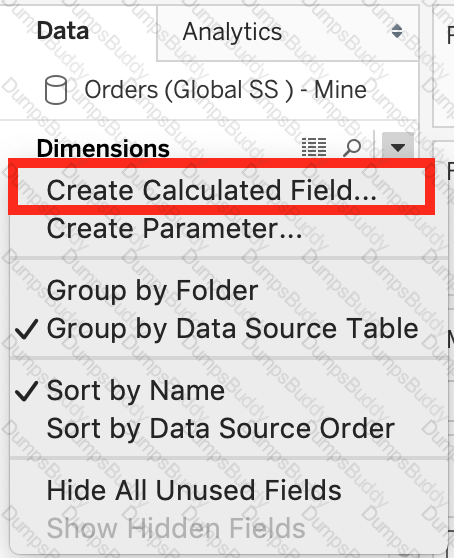

Select Analysis > Create Calculated Field.

Step 2

In the Calculated Field dialog box, complete the following steps:

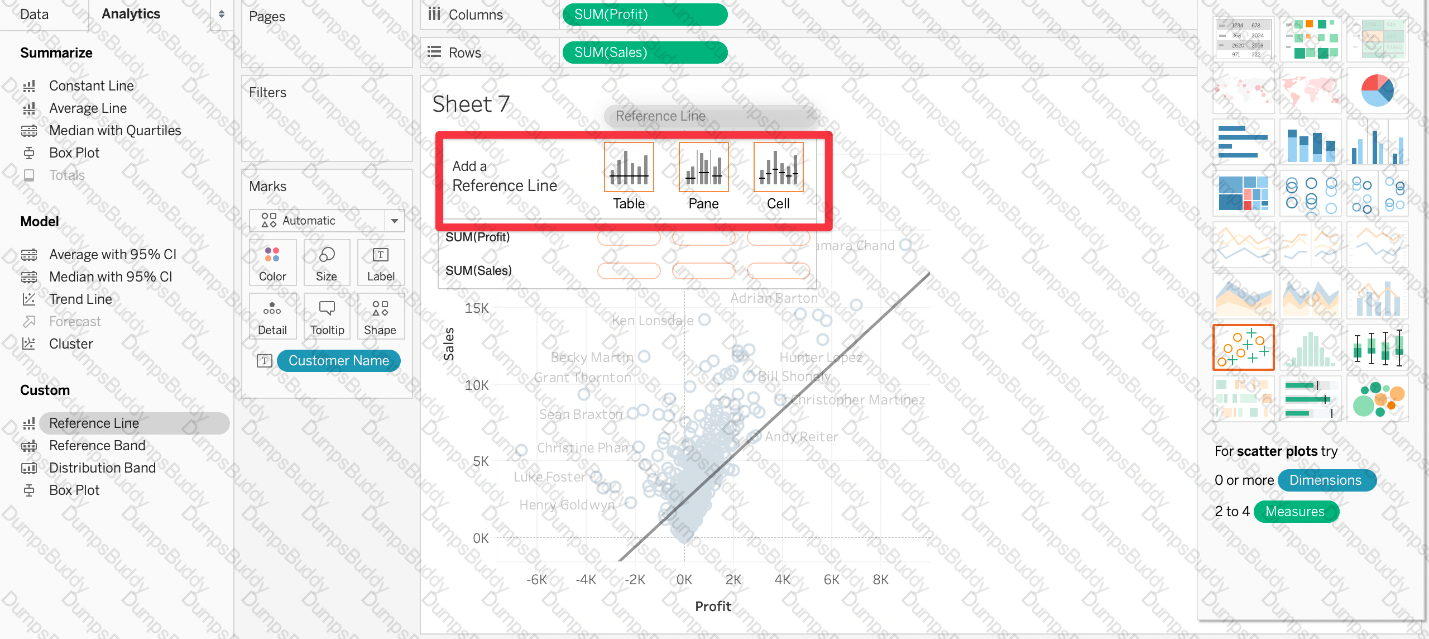

When we create a reference line, we get the following 3 options for the scope:

Graphical user interface, chart Description automatically generated

Explanation

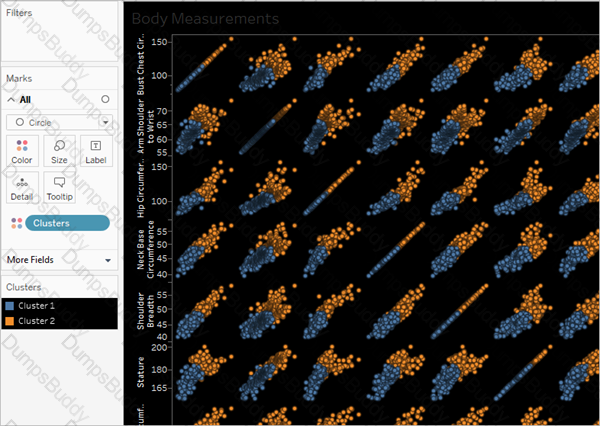

Cluster analysis partitions marks in the view into clusters, where the marks within each cluster are more similar to one another than they are to marks in other clusters.

Explanation

Relative date filters dynamically update to show a time period relative to when you open the view, such as the current week, the year to date, or the past 10 days. Relative date filters make it easy to create views that always show the most recent data.

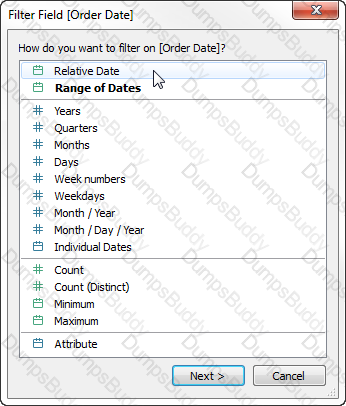

Step 1: Drag a date field to the filter shelf

Right-click (control-click on Mac) and drag a date field from the Data window to the Filters shelf. In the Filter Field dialog box, click Relative Date, and then click Next.

Step 2: Select a time unit

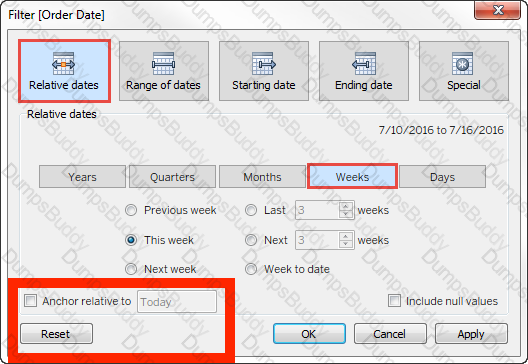

In the Filter dialog box, click Relative dates, and then select the unit of time for the filter. For example, to show only the three most recent weeks, select Weeks.

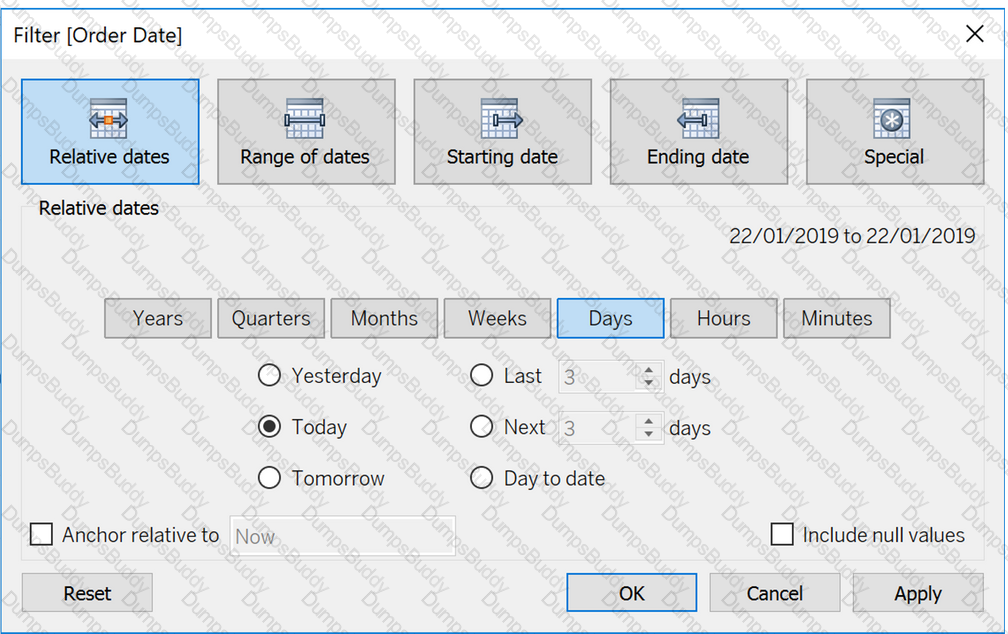

Here, you can clearly see that the default date is TODAY

Explanation

We need to use the concept of Groups for this question. Follow along:

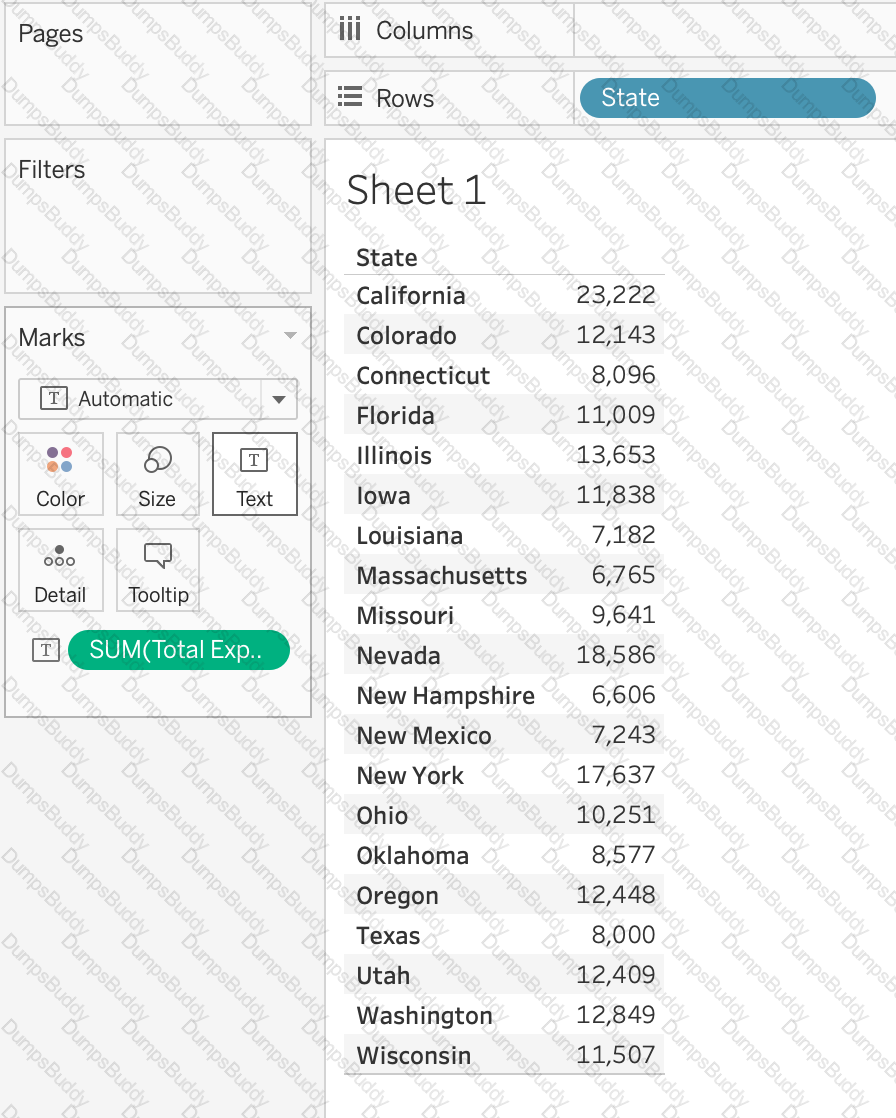

1) First, Drag State to the Rows shelf, and Total Expenses to the Text Mark on the Marks Shelf:

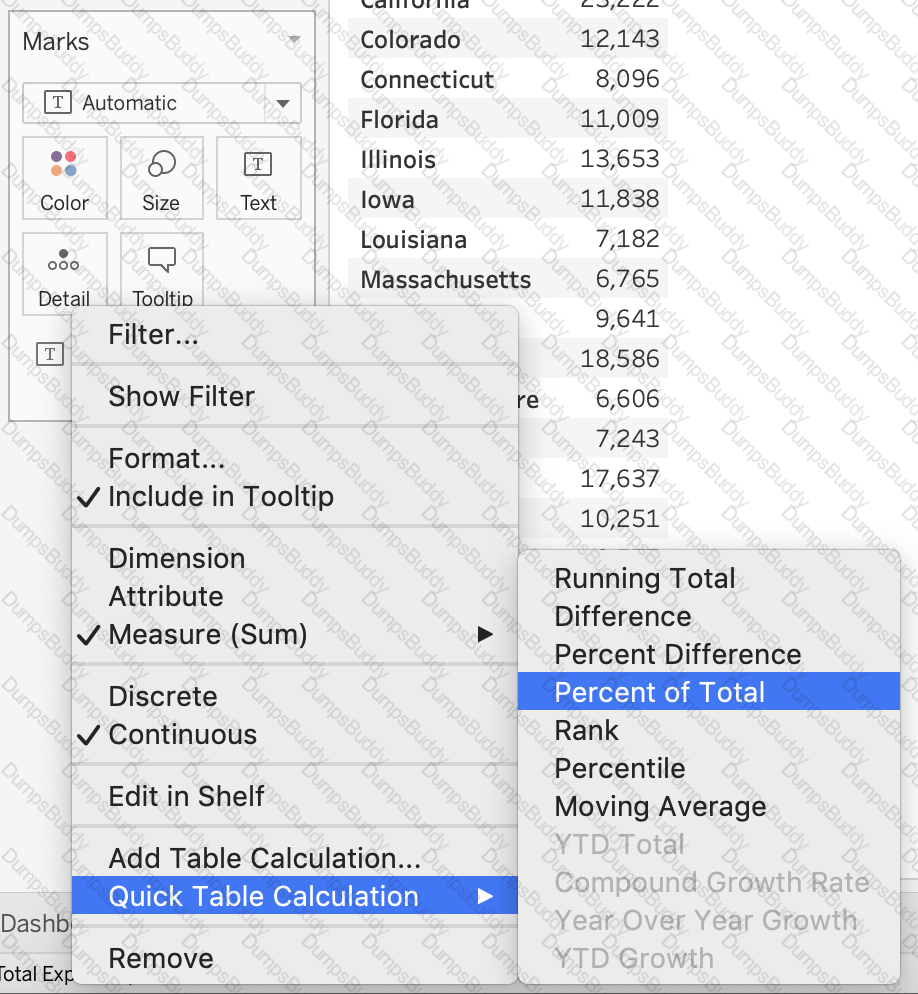

2) Now, remove the SUM aggregation from Total Expenses, and add a quick table calculation -> Percent of total:

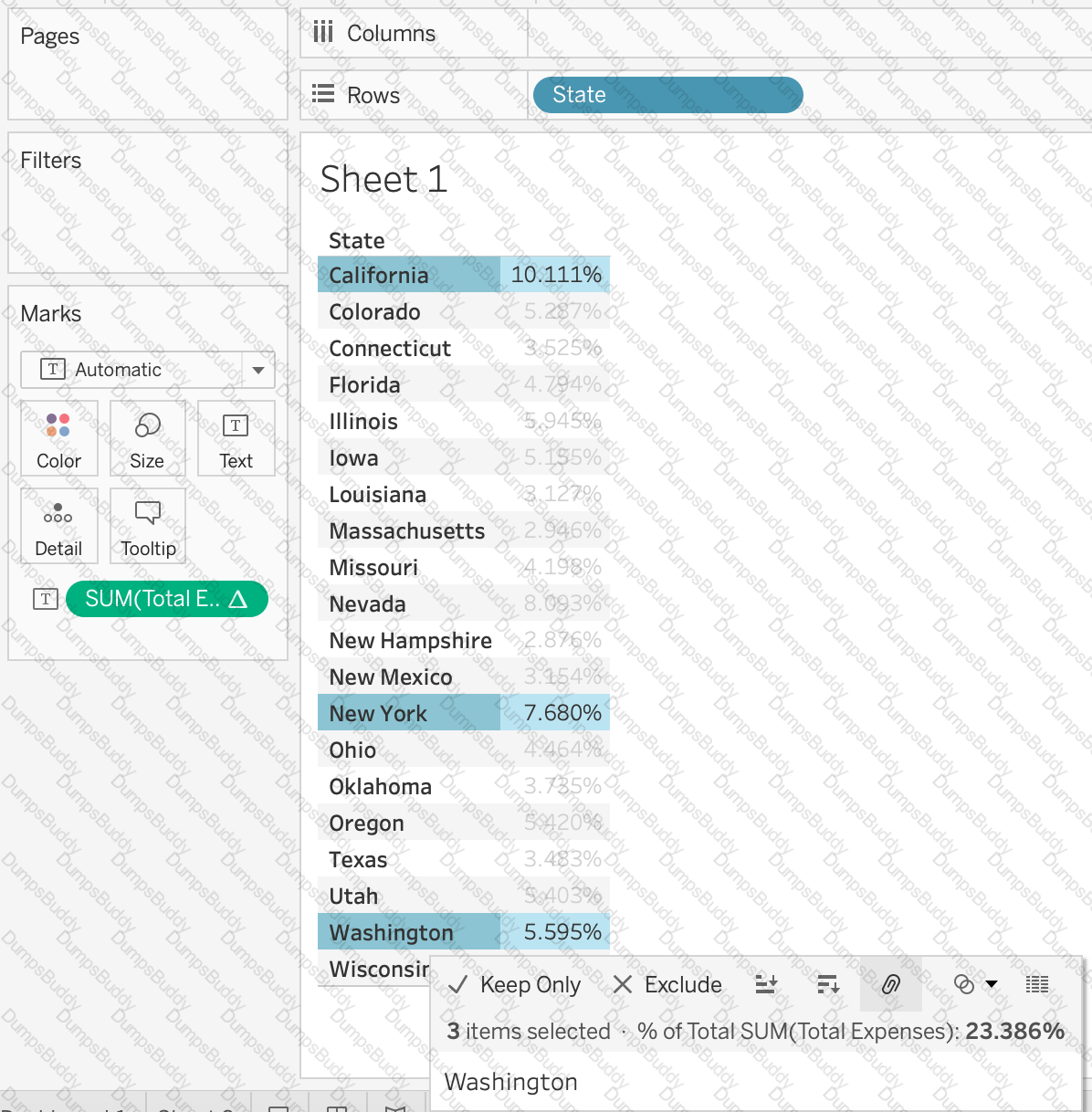

3) Next, Select the States of New York, California and Washington -> And then click the paperclip icon:

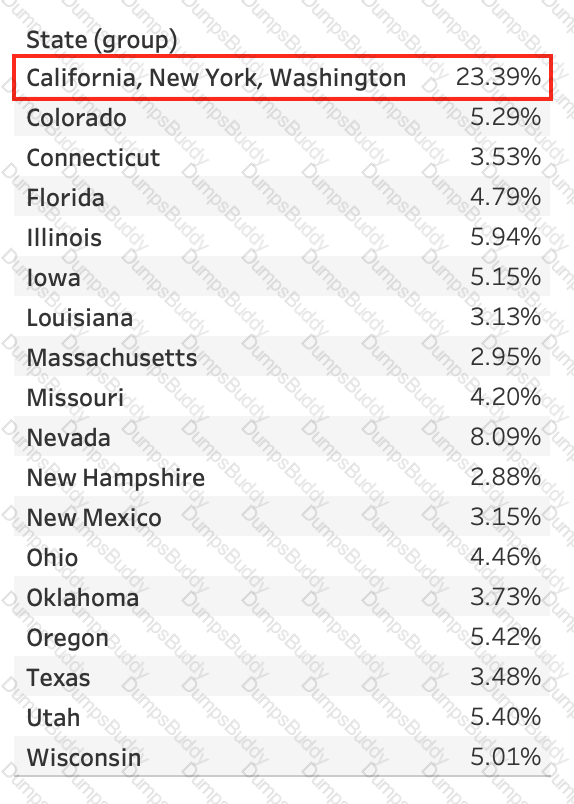

We can see the answer already : 23.386% in the view above (even before grouping!)

4) Finally, we get the following view and our answer:

Explanation

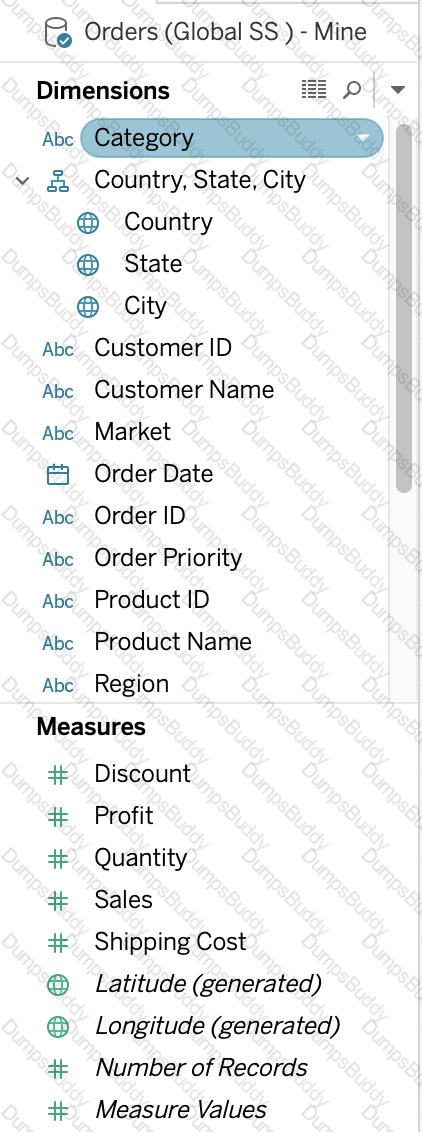

Tableau displays data source connections and data fields for the workbook in the Data pane on the left side of the workspace.

The Data pane includes:

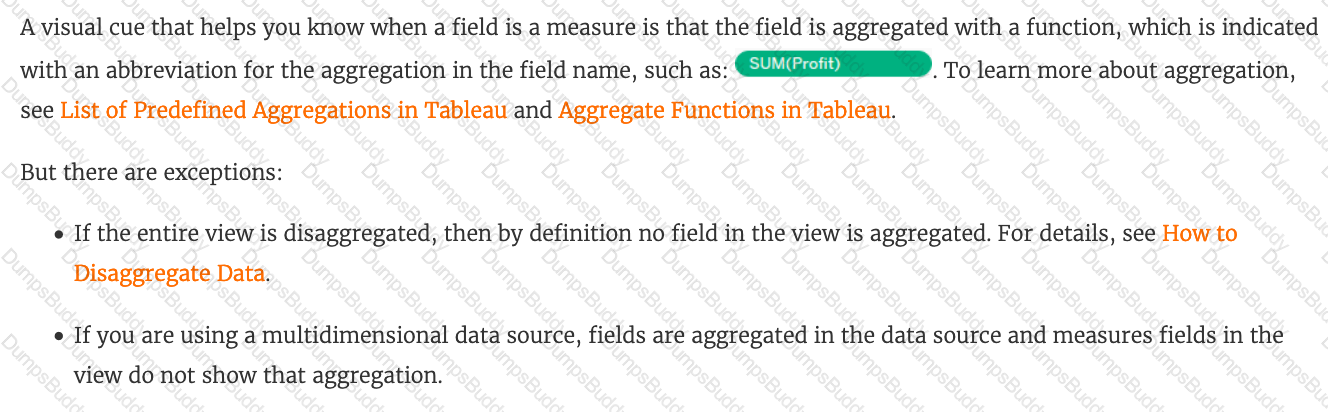

Dimension fields – Fields that contain qualitative values (such as names, dates, or geographical data). You can use dimensions to categorize, segment, and reveal the details in your data. Dimensions affect the level of detail in the view. Examples of dimensions include dates, customer names, and customer segments.

Measure fields – Fields that contain numeric, quantitative values can be measured. You can apply calculations to them and aggregate them. When you drag a measure into the view, Tableau applies an aggregation to that measure (by default). Examples of measures: sales, profit, number of employees, temperature, frequency.

For more information on what dimensions and measures are, see Dimensions and Measures, Blue and Green.

Calculated fields – If your underlying data doesn't include all of the fields you need to answer your questions, you can create new fields in Tableau using calculations and then save them as part of your data source. These fields are called calculated fields.

For more information on calculated fields, see Create Custom Fields with Calculations.

Sets – Subsets of data that you define. Sets are custom fields based on existing dimensions and criteria that you specify. For more information, see Create Sets.

Named sets from an MS Analysis Services server or from a Teradata OLAP connector also appear in Tableau in this area of the Data pane. You can interact with these named sets in the same way you interact with other custom sets in Tableau.

Parameters – Values that can be used as placeholders in formulas, or replace constant values in calculated fields and filters. For more information, see Create Parameters.

Explanation

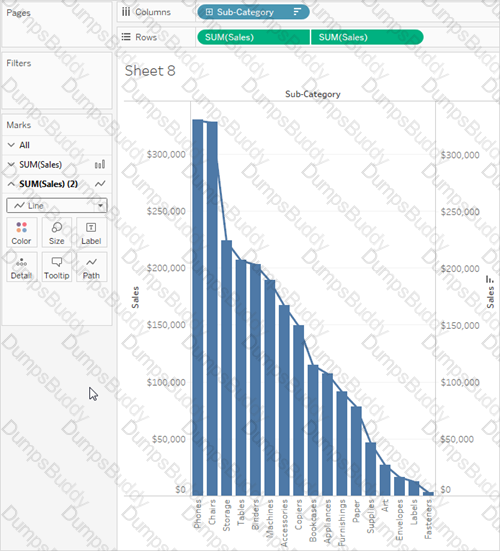

A Pareto chart is a type of chart that contains both bars and a line graph, where individual values are represented in descending order by bars, and the ascending cumulative total is represented by the line.

On the primary axis, bars are used to show the raw quantities for each dimension member, sorted in descending order.

On the secondary axis, a line graph is used to show the cumulative total in percent format.

You should save a workbook as a PDF document if you need paper copies of the workbook. A PDF document preserves the layout and formatting of the workbook, and can be easily printed or shared. Saving a workbook as a PDF document is not necessary or useful in the other situations1

Explanation

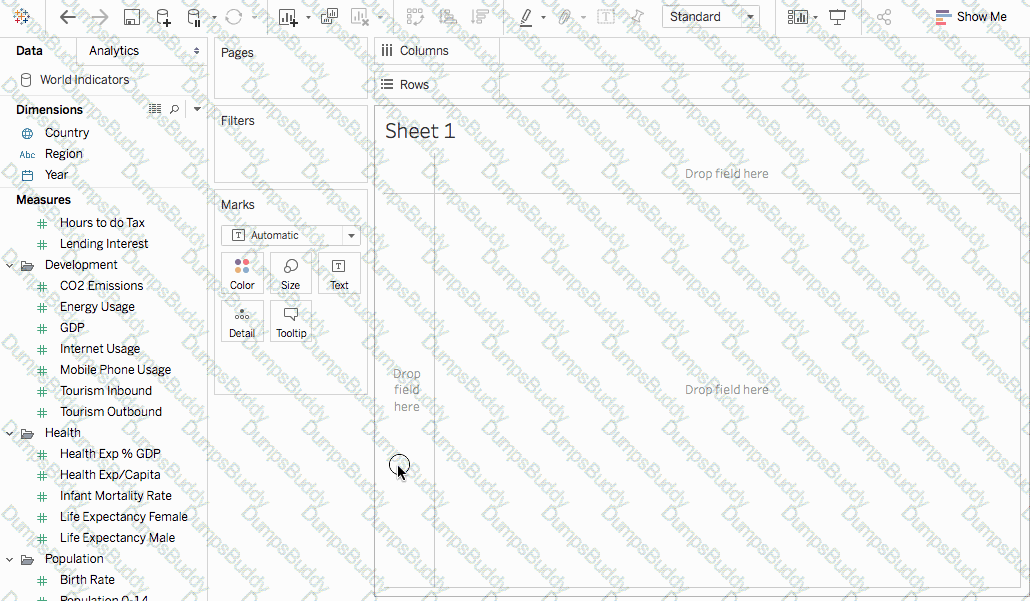

We can drag fields from the Data pane to create the structure for your visualizations.

The Columns shelf creates the columns of a table, while the Rows shelf creates the rows of a table. You can place any number of fields on these shelves.

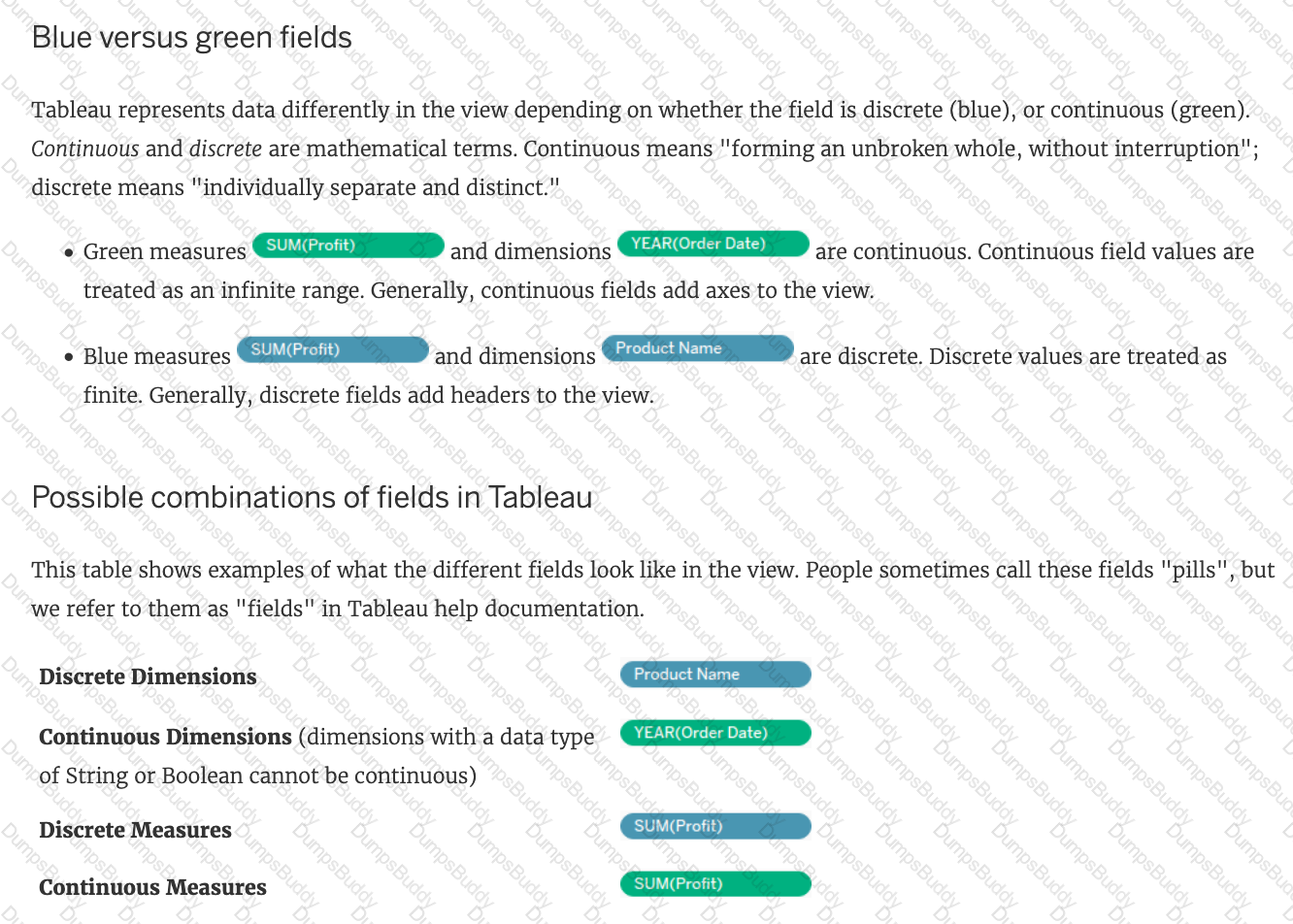

These FIELDS are also referred to as PILLS. See below:

Top of Form

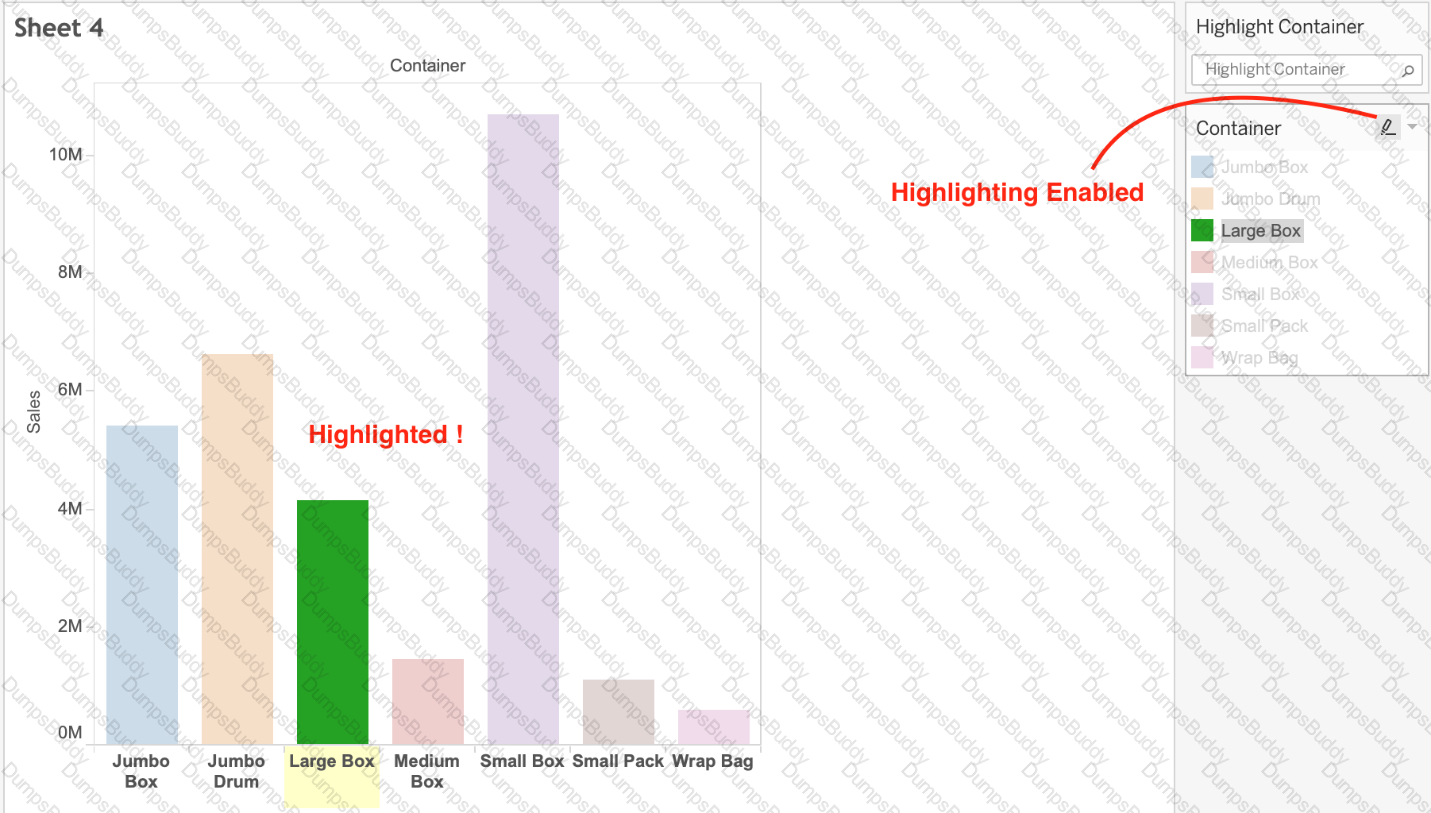

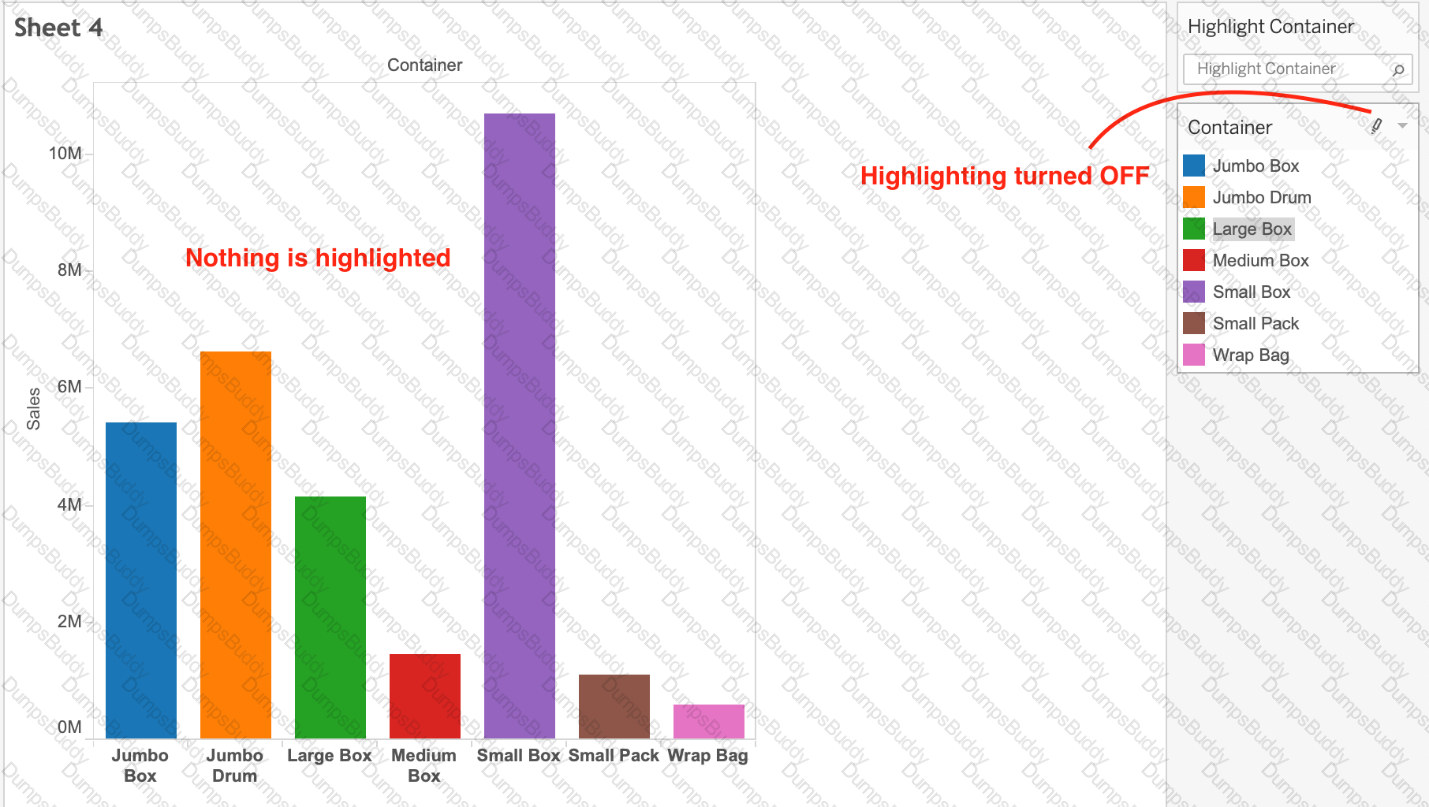

The correct answer is Toggle the highlighting ON/OFF. If selected, whichever value you choose from this legend will be highlighted in the view. However, if it is deselected, then even if you choose a value in the Legend, it will NOT be highlighted.

See below:

Chart, bar chart Description automatically generated

Chart, bar chart Description automatically generated

Bottom of Form

Explanation

Bin are a user-defined grouping of numerical data in the data source.

According to the official Tableau documentation: It's sometimes useful to convert a continuous measure (or a numeric dimension) into bins.

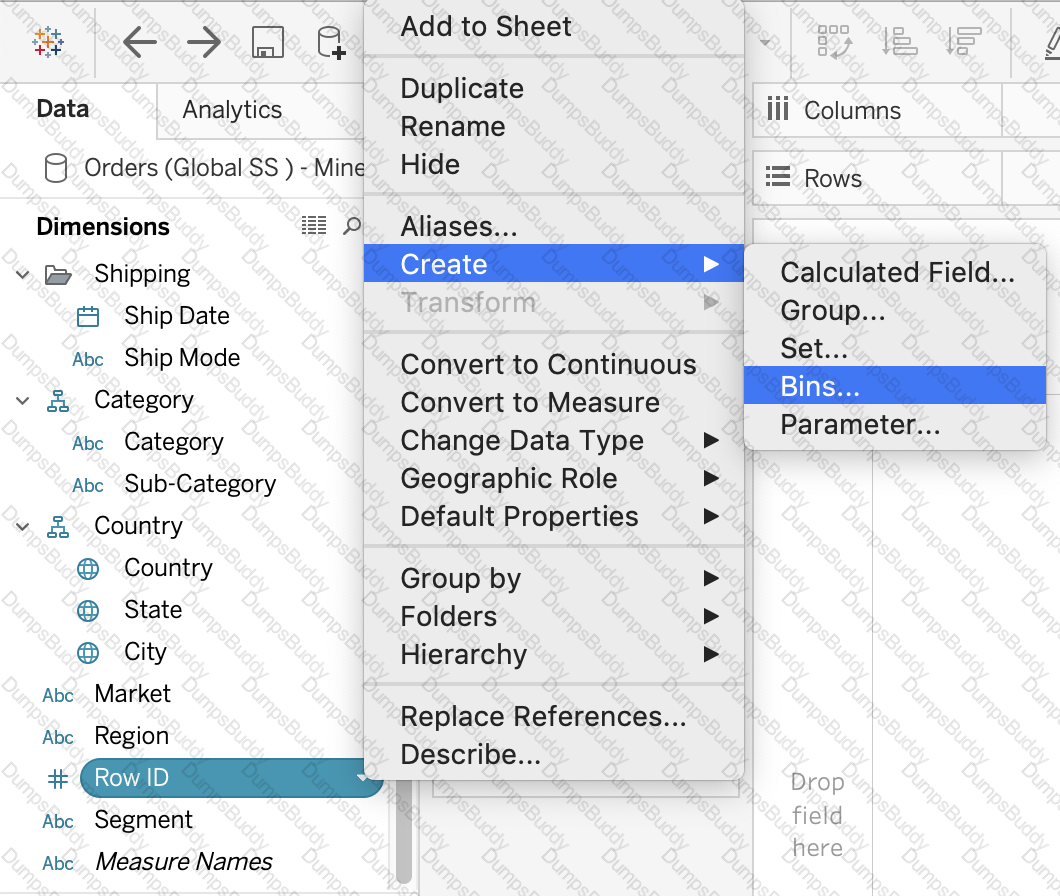

Have a look at the following image. When we right click a measure, we get the following options:

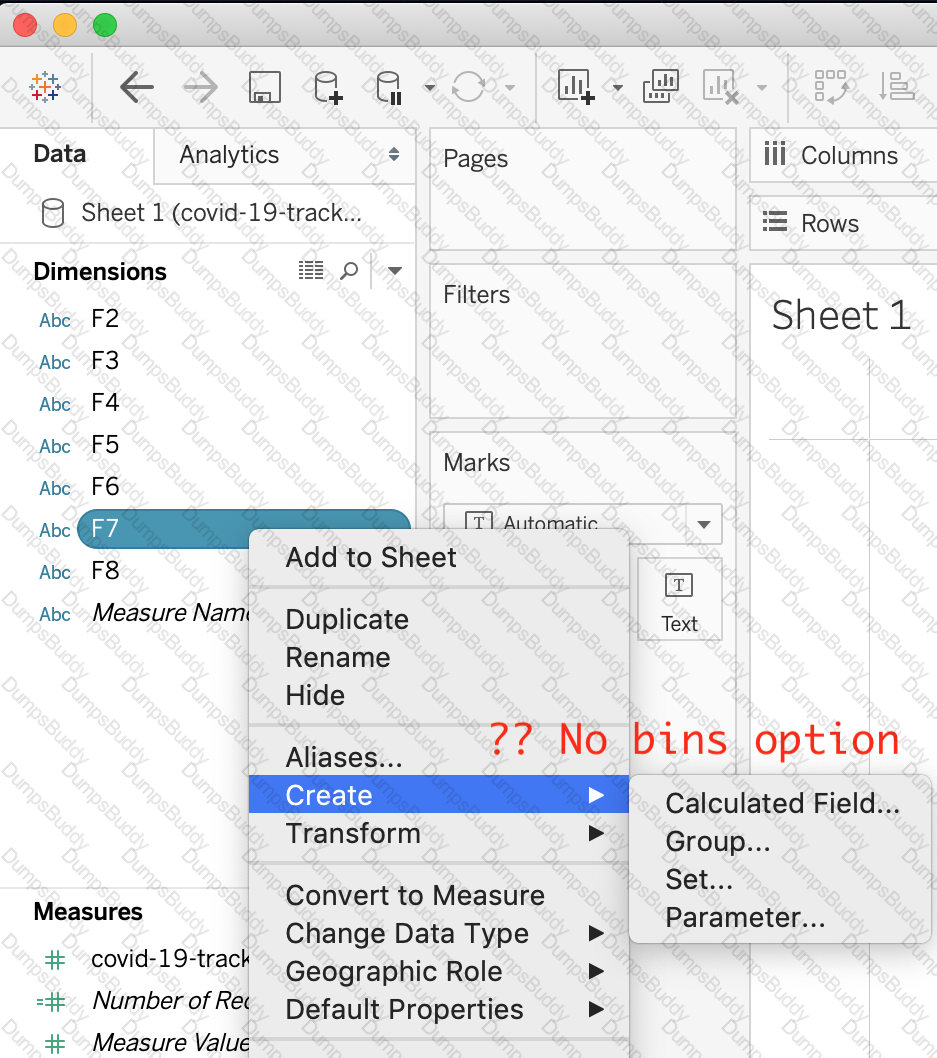

However, for a dimension (this is because the DATA TYPE of this dimension is a string:

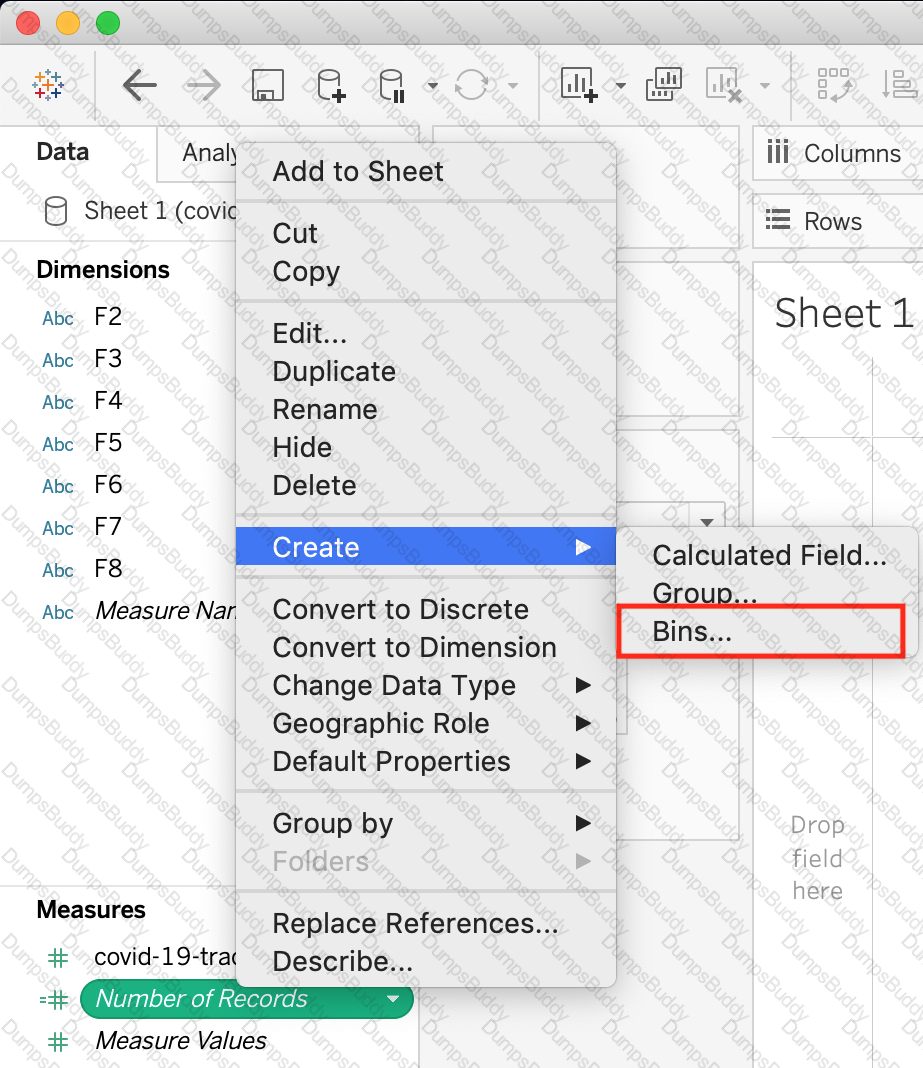

But what if we have a dimension of type NUMBER (NUMERIC DIMENSION)? See below:

We can clearly create bins from dimensions too - they just have to be numeric :)

For more information, please refer to : https://help.tableau.com/current/pro/desktop/en-us/calculations_bins.htm

From the official Tableau documentation:

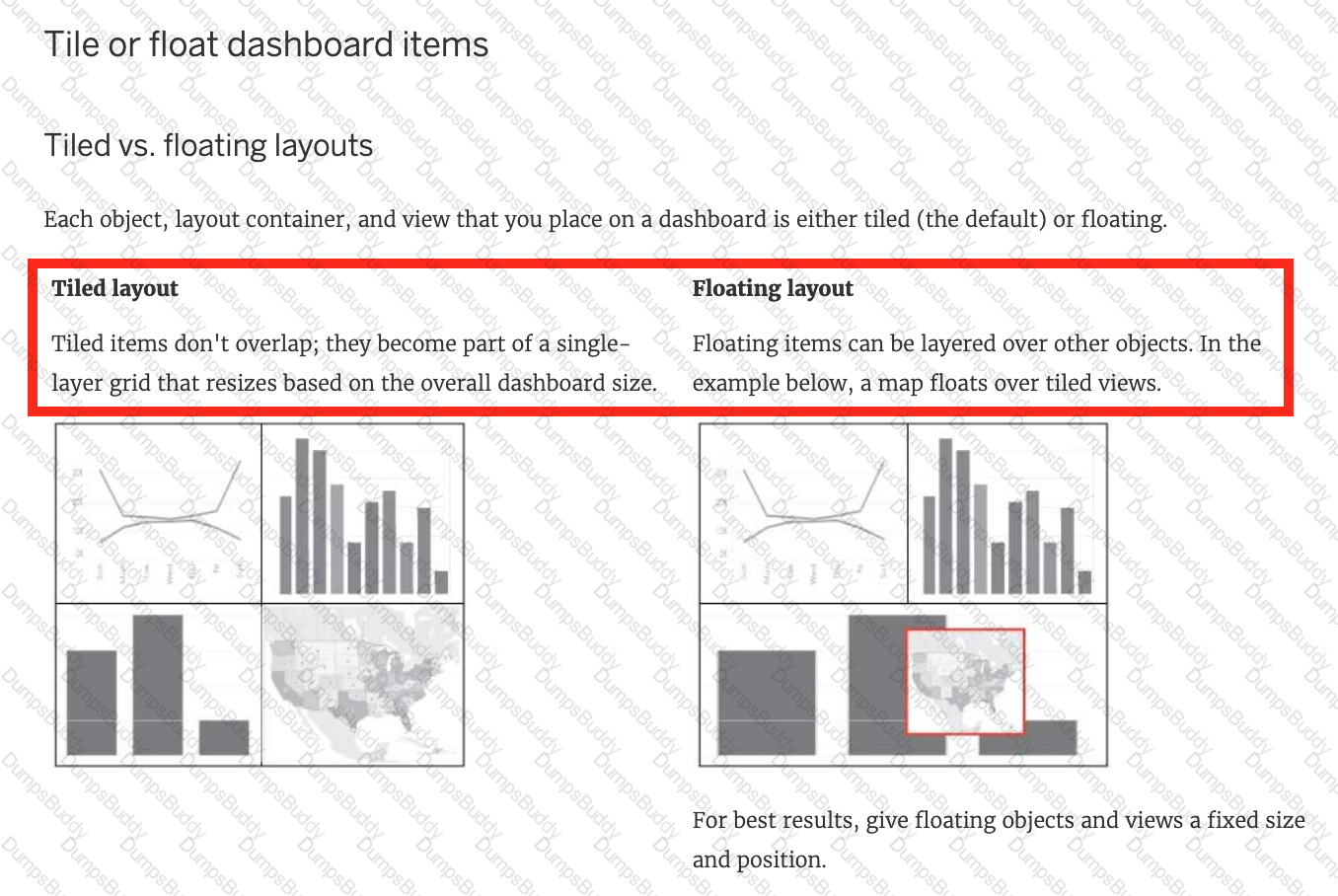

As we can see below, Bar charts can be used as a floating object.

you can change the data type of a field from the Data Source tab by clicking on the drop-down menu of the field or by clicking the data type icon of the field. You cannot change the data type of a field from the Data pane or by selecting and holding the field.

In Tableau, parameters are dynamic values that can replace a constant in calculations, filters, and reference lines. If you have a parameter controlling a calculation, changing the parameter value can change the results of that calculation, thus impacting the visualization. Parameters can also be used to switch between different fields in the visualization; for example, allowing users to choose which measure or dimension to display.

According to the official Tableau documentation:

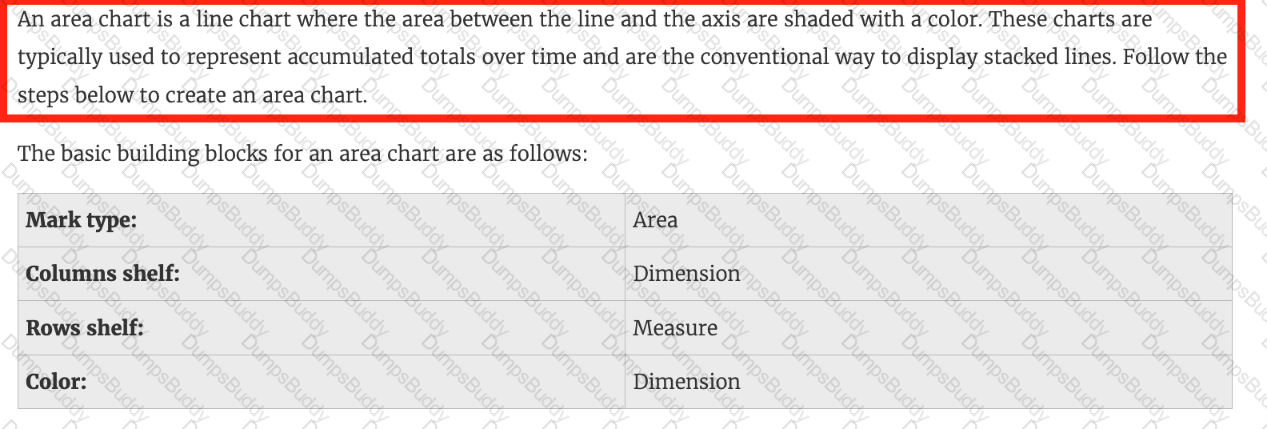

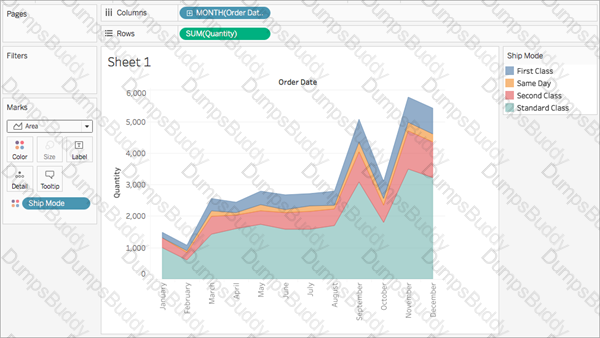

An example of an area chart is shown below:

When creating a histogram in Tableau, bin size refers to the range of the continuous measure counted in each bin. A histogram is a chart that displays the shape of a distribution of a continuous measure. A histogram looks like a bar chart but groups values for a continuous measure into ranges, or bins. The basic building blocks for a histogram are as follows: Mark type: Automatic; Rows shelf: Continuous measure (aggregated by Count or Count Distinct); Columns shelf: Bin (continuous or discrete)4 To create bins from a continuous measure, you need to specify the size of bins, which determines how many bins are created and how wide they are. The size of bins is equal to the difference between consecutive values along the axis that represents the bins. For example, if you have bins with values 0-10, 10-20, 20-30, etc., then the size of bins is 10. You can either enter a value for the size of bins manually or have Tableau suggest an optimal bin size based on a formula that considers the number of distinct rows and the minimum and maximum values in the data5 The other options are not valid definitions of bin size when creating a histogram in Tableau. The minimum number of axis ticks in the view is determined by Tableau’s automatic scaling and formatting of axes, which can be adjusted manually if needed. The count distinct (COUNTD) of items on either axis is an aggregation function that returns the number of unique values in a field, which can be used as a measure in a histogram but not as bin size. The maximum number of marks in the view is limited by the performance and readability of the visualization, which can be improved by filtering, sorting, or aggregating the data4

Explanation

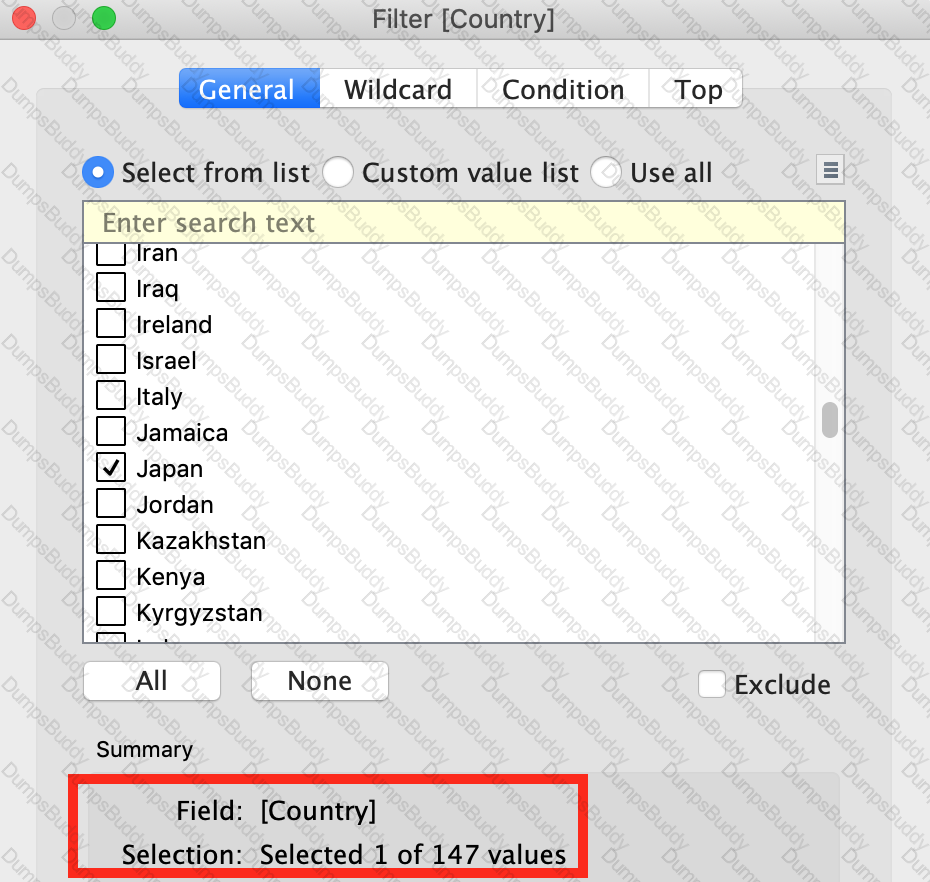

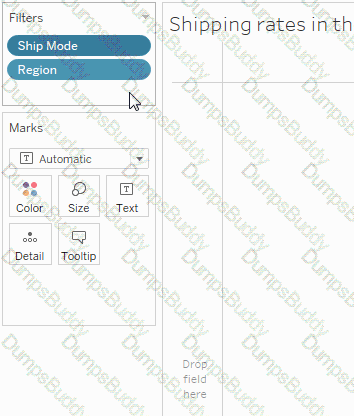

Yes, it is possible to create worksheet-specific filters in Tableau.

When you add a filter to a worksheet, by default it applies to the current worksheet. Sometimes, however, you might want to apply the filter to other worksheets in the workbook.

Then, you can select specific worksheets to apply the filter to or apply it globally to all worksheets that use the same data source or related data sources.

As a general best practice, your pie chart should contain 2 to 5 categories. Anything more than that is not easy for the eyes to distinguish. This is a common question and mentioned in Tableau's own eLearning module as well!

See how to build a pie chart:

Explanation

A bullet graph is a variation of a bar graph developed to replace dashboard gauges and meters. A bullet graph is useful for comparing the performance of a primary measure to one or more other measures.

Therefore, we need at least 2 measures for creating bullet graphs.

Explanation

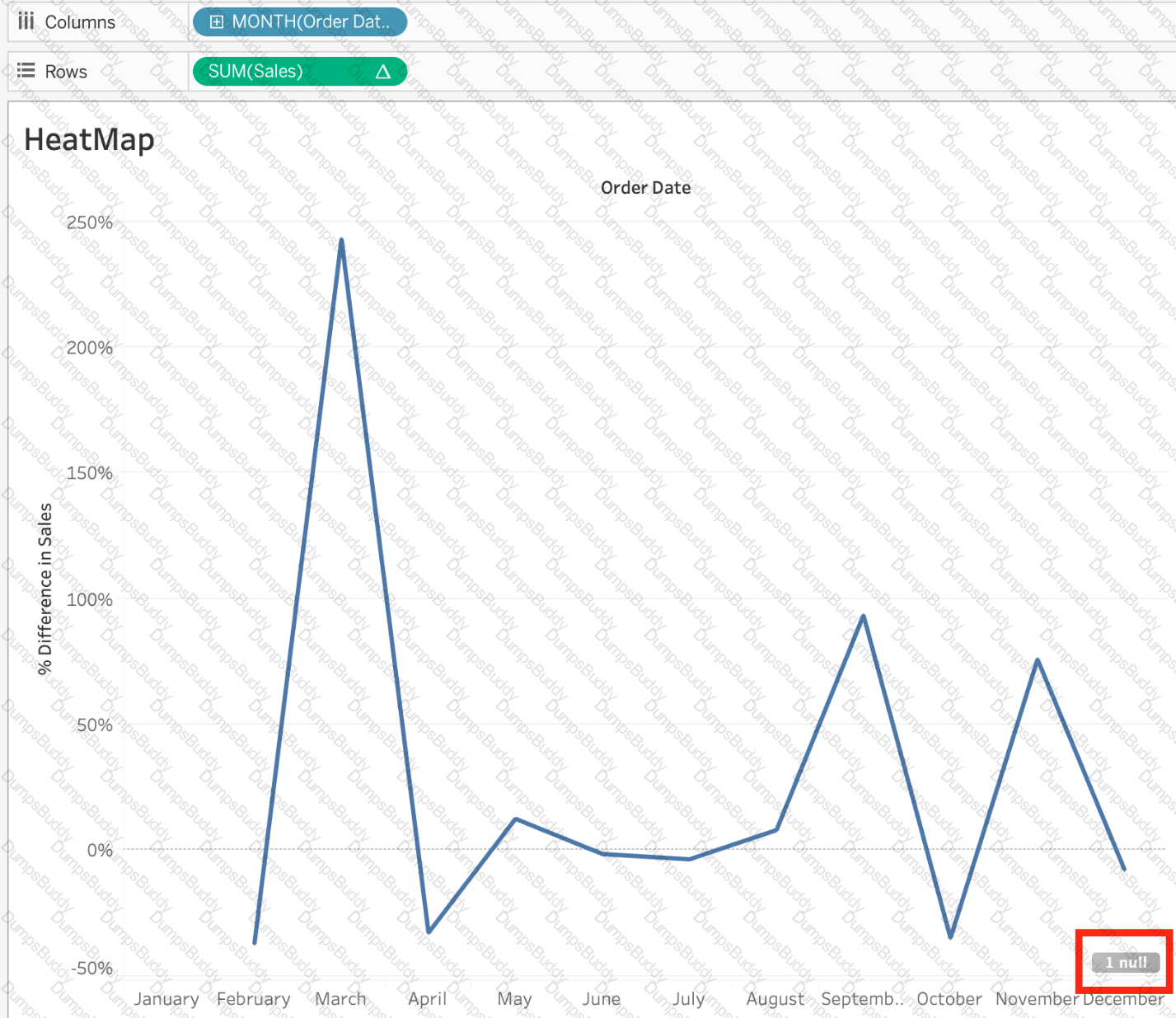

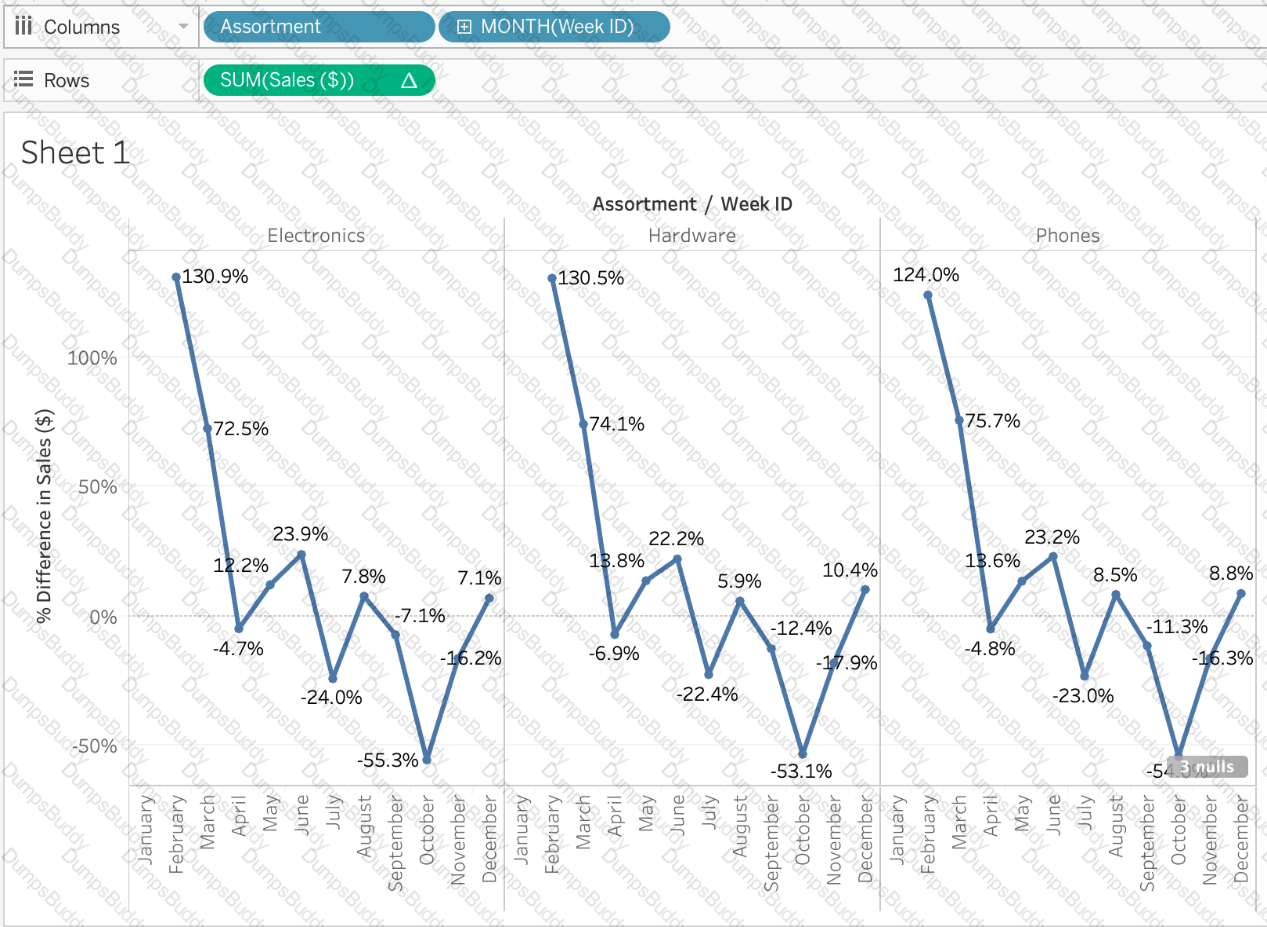

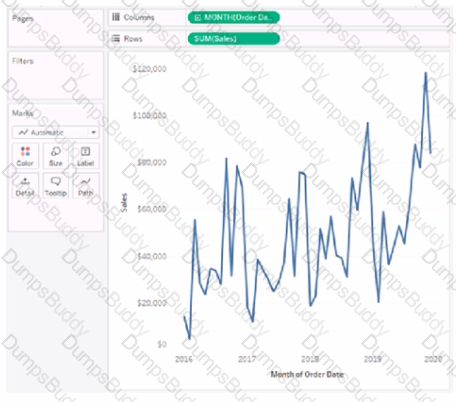

When using a Percent difference, Tableau calculates what the percent change has occured as compared to the last data value. BUT, for the first data value, there is no previous value to compare it to. Hence, it appears as NULL.

Chart, line chart Description automatically generated

**IMPORTANT QUESTION AND EXPLANATION, PLEASE READ**

3 ways to group data -

1) Marks

2) Labels

3) Dimensions shelf.

*IMPORTANT*

If we Group the data by selecting the marks, then they remain separate marks in the view and then have the same colour. Also, a new group is created in the Dimensions shelf. Example -

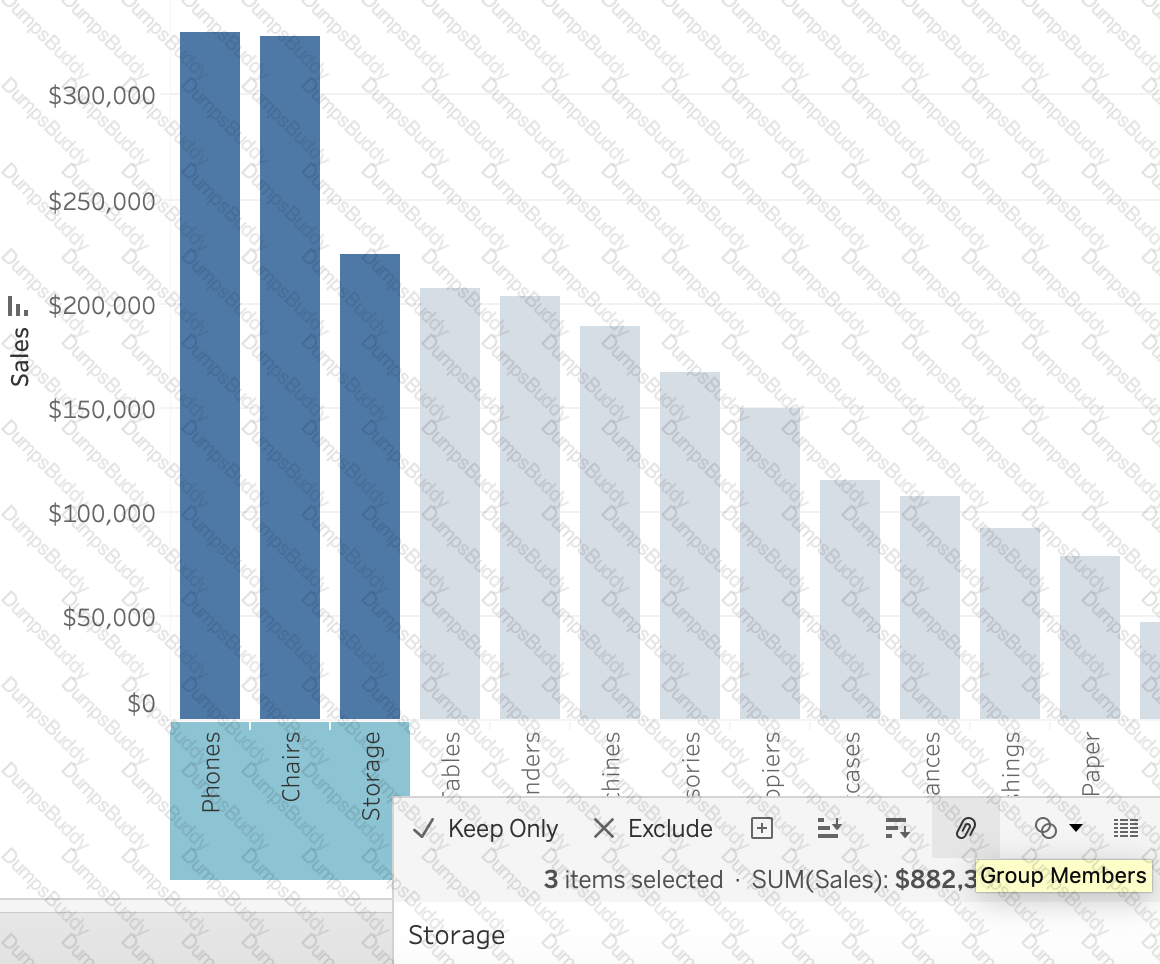

Using the sample superstore dataset, first plot a bar chart showing sales for each sub-category:

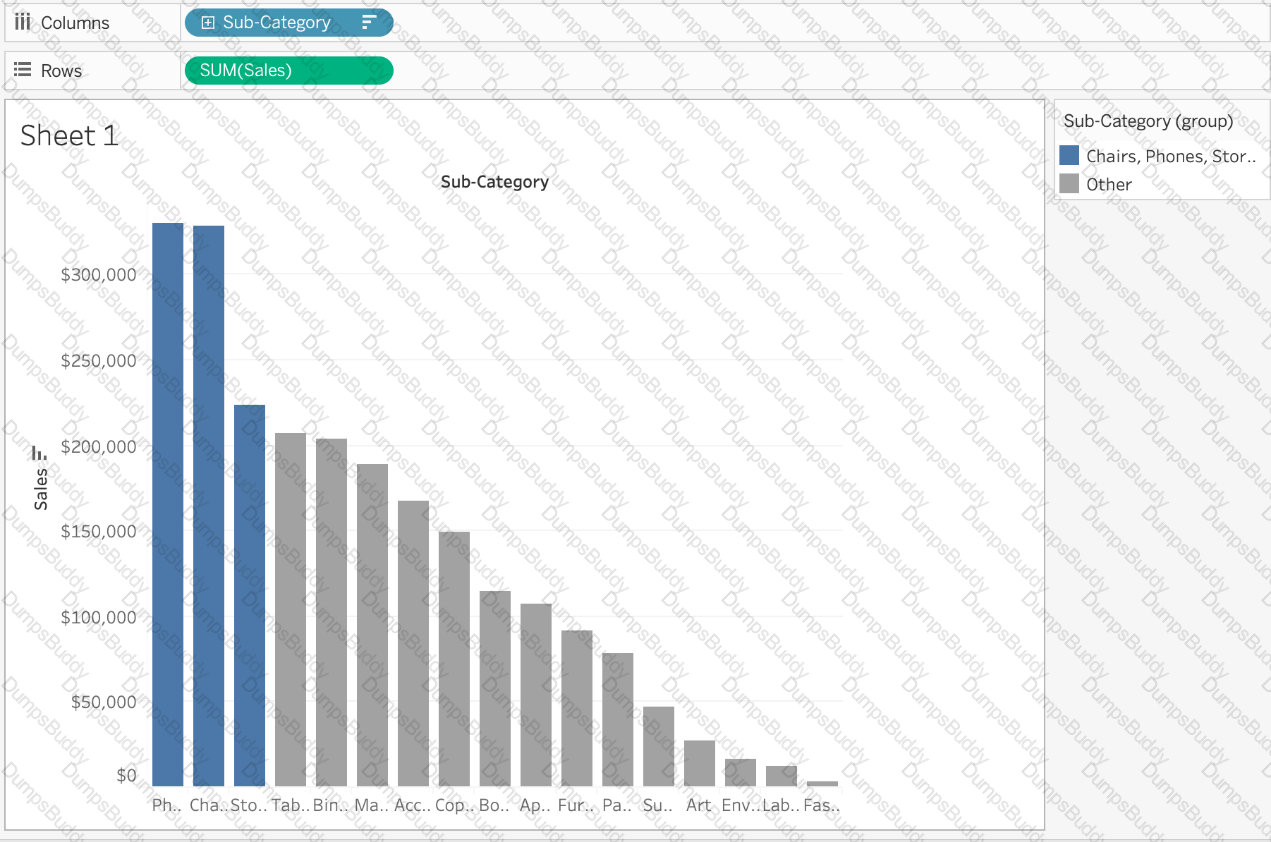

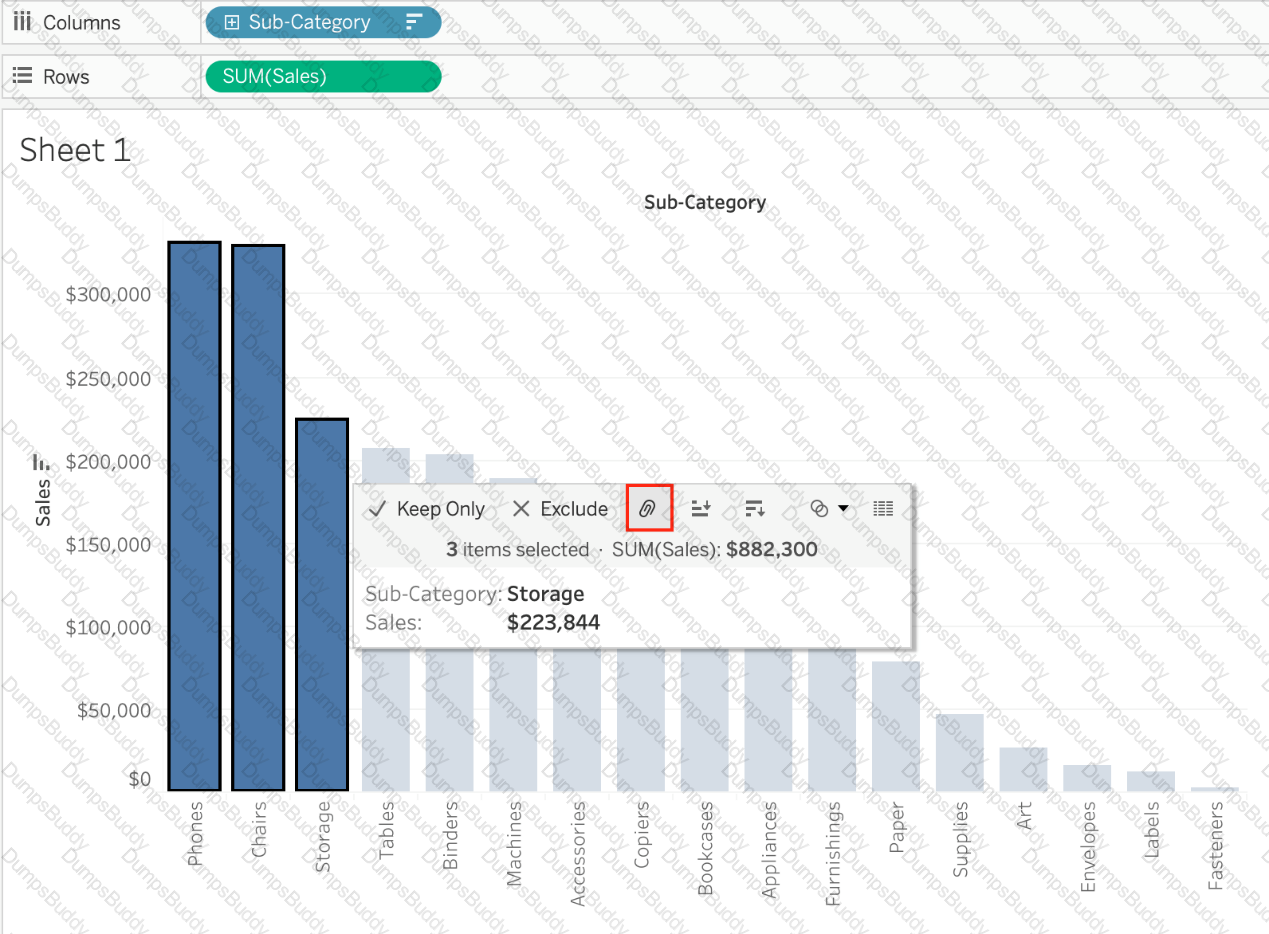

Here, if we Select Phones, Chairs and Storage by selecting the MARKS (Bars), and then group them:

They remain seperate marks (BARS) but are grouped by the same colour.

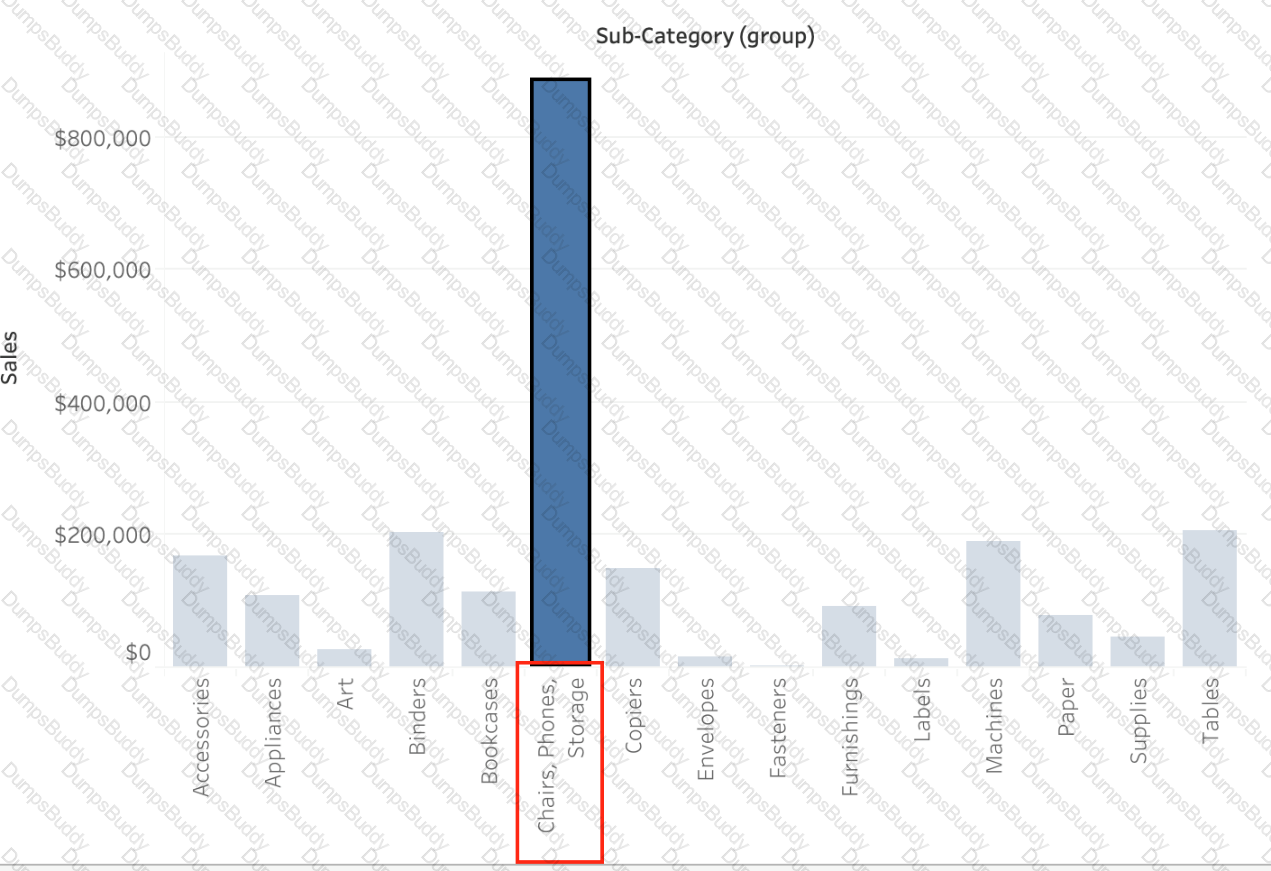

Now, if we didn't do this, and rather grouped by selecting their Labels (Names):

Then they no longer remain separate Marks (bars) but are rather consolidated into a single Bar:

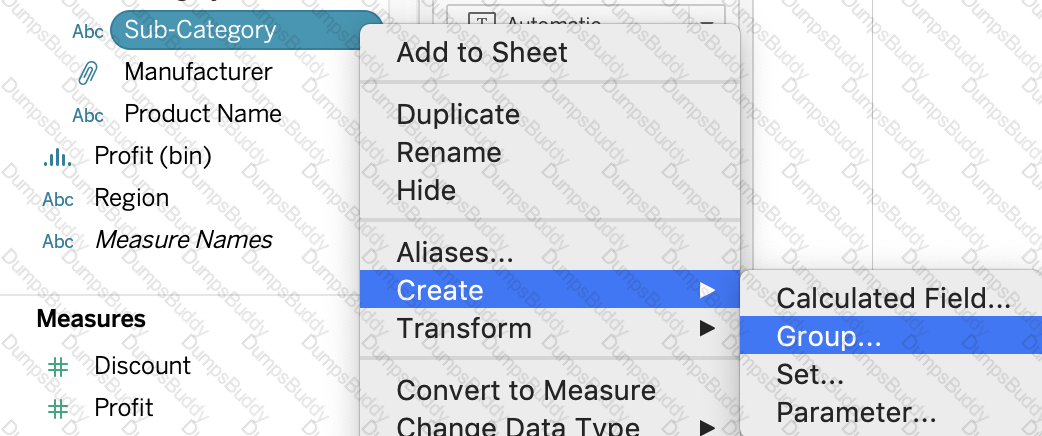

Finally, we can group directly from the Dimensions shelf as follows:

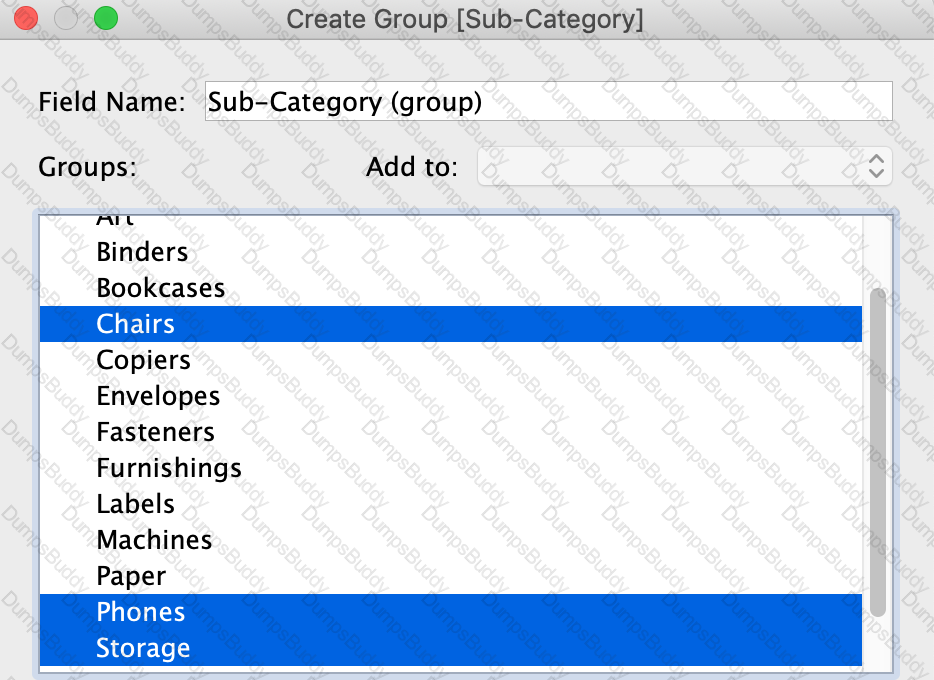

Now choose Phones, Chairs and Storage and Click Group:

You will now automatically have a new Dimension as follows:

Explanation

You can create a group to combine related members in a field. The icon associated with a group is a paper clip!

To assign a color to marks in the view, do the following:

From the Data pane, drag a field to Color on the Marks card.

Tableau applies different colors to marks based on the field’s values and members. For example, if you drop a discrete field (a blue field), such as Category, on Color, the marks in the view are broken out by category, and each category is assigned a color.

If you drop a continuous field, such as SUM(sales), on Color, each mark in the view is colored based on its sales value.

 A dual axis chart is useful for comparing two measures that have different scales. A dual axis chart is a type of visualization that shows two measures using two independent axes layered on top of one another. A dual axis chart allows you to compare and contrast two measures that have different ranges or units of measurement, such as sales and profit margin, temperature and precipitation, or population and GDP per capita. A dual axis chart can also show different mark types for each measure, such as bars and lines, circles and areas, or shapes and texts. The other options are not valid reasons for using a dual axis chart for comparing two measures. Have little in common is not correct, because a dual axis chart is meant to show some kind of relationship or correlation between two measures, not just contrast them. Are Table Calculations is not correct, because a dual axis chart can be used with any type of measure, whether it is an aggregation, a calculation, or an expression. Are aggregated Dimensions is not correct, because a dual axis chart cannot be used with dimensions, only with measures. Dimensions are fields that contain qualitative values that are used to categorize or segment data, not compare them.

Explanation

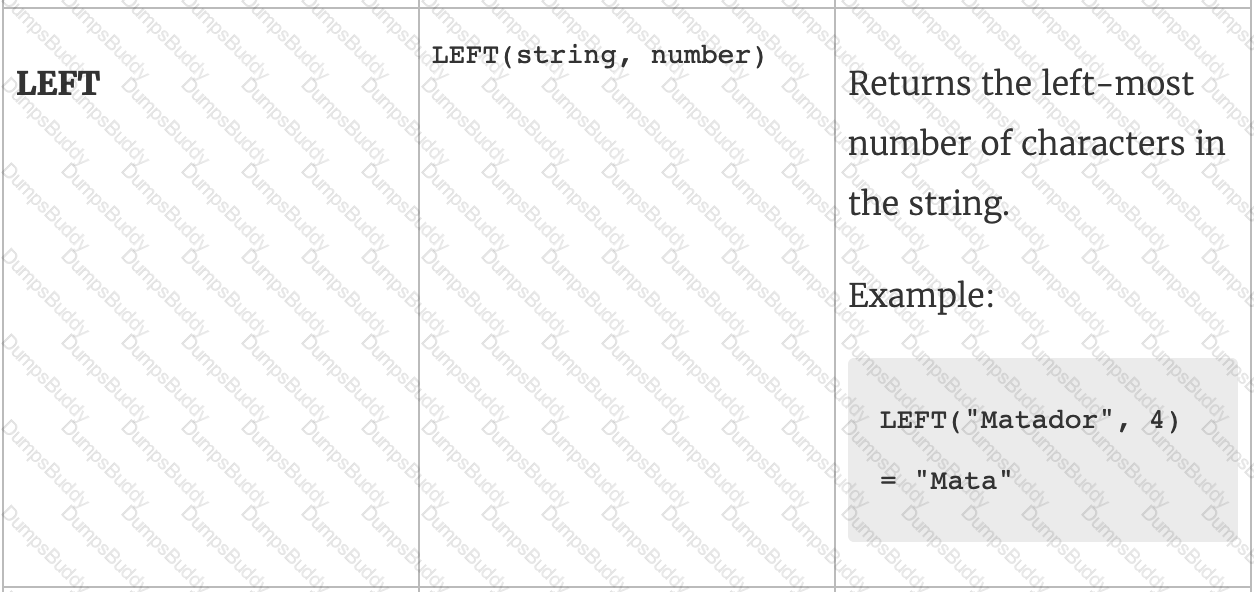

The following is the official documentation for the String function LEFT:

According to the official Tableau documentation:

Tableau packaged workbooks have the .twbx file extension. A packaged workbook is a single zip file that contains a workbook along with any supporting local file data and background images. This format is the best way to package your work for sharing with others who don’t have access to the original data. For more information, see Packaged Workbooks.

Explanation

Tableau Public is a free service that lets anyone publish interactive data visualizations to the web. Visualizations that have been published to Tableau Public (“vizzes”) can be embedded into web pages and blogs, they can be shared via social media or email, and they can be made available for download to other users.

Check it out : https://public.tableau.com/en-us/s/

Explanation

Tableau Data Extract (TDE) is a snapshot of the data that Tableau stores locally. Good for very large datasets of which we only need few fields. Performance is optimised because it queries its own database engine instead of the local data source.

When you create an extract of your data, you can reduce the total amount of data by using filters and configuring other limits. After you create an extract, you can refresh it with data from the original data. When refreshing the data, you have the option to either do a full refresh, which replaces all of the contents in the extract, or you can do an incremental refresh, which only adds rows that are new since the previous refresh.

Extracts are advantageous for several reasons:

1) Supports large data sets: You can create extracts that contain billions of rows of data.

2) Fast to create: If you're working with large data sets, creating and working with extracts can be faster than working with the original data.

3) Help improve performance: When you interact with views that use extract data sources, you generally experience better performance than when interacting with views based on connections to the original data.

4) Support additional functionality: Extracts allow you to take advantage of Tableau functionality that's not available or supported by the original data, such as the ability to compute Count Distinct.

5) Provide offline access to your data: Extracts allow you to save and work with the data locally when the original data is not available. For example, when you are traveling.

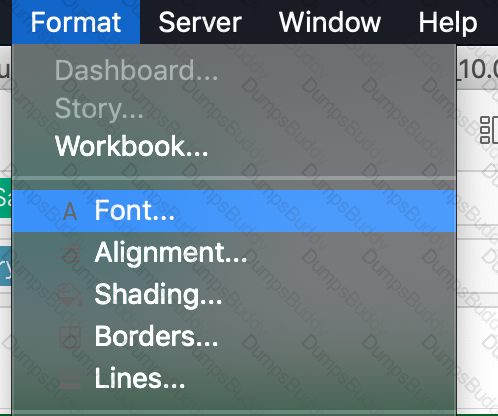

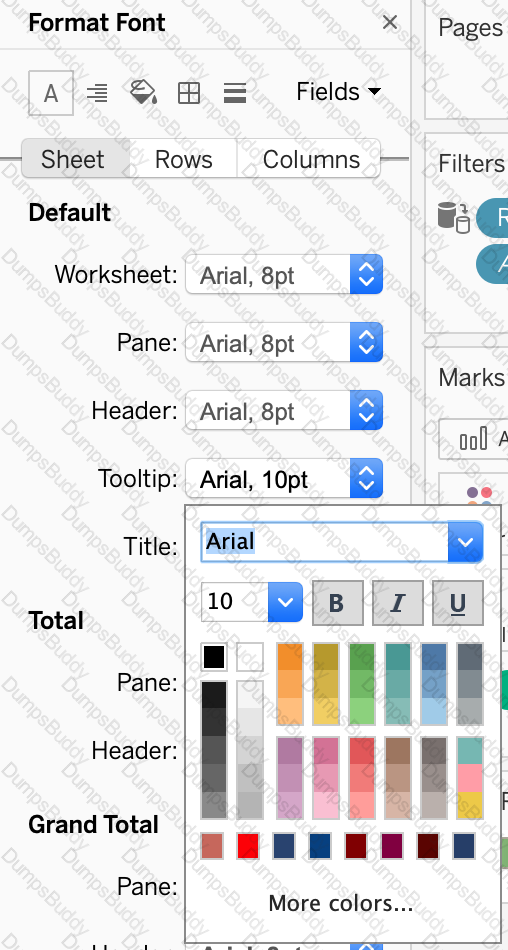

To update the font of an entire workbook in Tableau, you should use the "Format Workbook" pane. This feature allows you to set and modify the default font settings for the entire workbook, ensuring consistency in font style across all sheets and dashboards. It's a global setting that applies to all visual elements in the workbook, including titles, captions, axis labels, and other text elements.

Explanation

By default, all filters that you set in Tableau are computed independently. That is, each filter accesses all rows in your data source without regard to other filters. However, you can set one or more categorical filters as context filters for the view. You can think of a context filter as being an independent filter. Any other filters that you set are defined as dependent filters because they process only the data that passes through the context filter.

You may create a context filter to:

1) Improve performance – If you set a lot of filters or have a large data source, the queries can be slow. You can set one or more context filters to improve performance.

2) Create a dependent numerical or top N filter – You can set a context filter to include only the data of interest, and then set a numerical or a top N filter.

Explanation

Here's how to add image files to your repository:

1) Find image file on the internet. I try to find consistent image formats if I plan to use a set of shapes such as logos or flags.

2) Download the image to your computer.

3) Drag images into your My Documents -> My Tableau repository -> Shapes folder.

4) Open Tableau and your new shapes will automatically be included in your "edit shapes" menu.

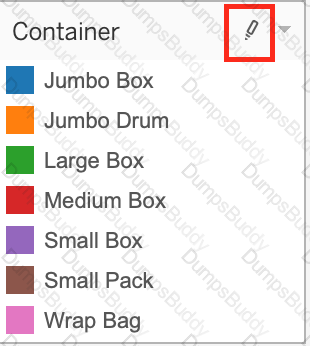

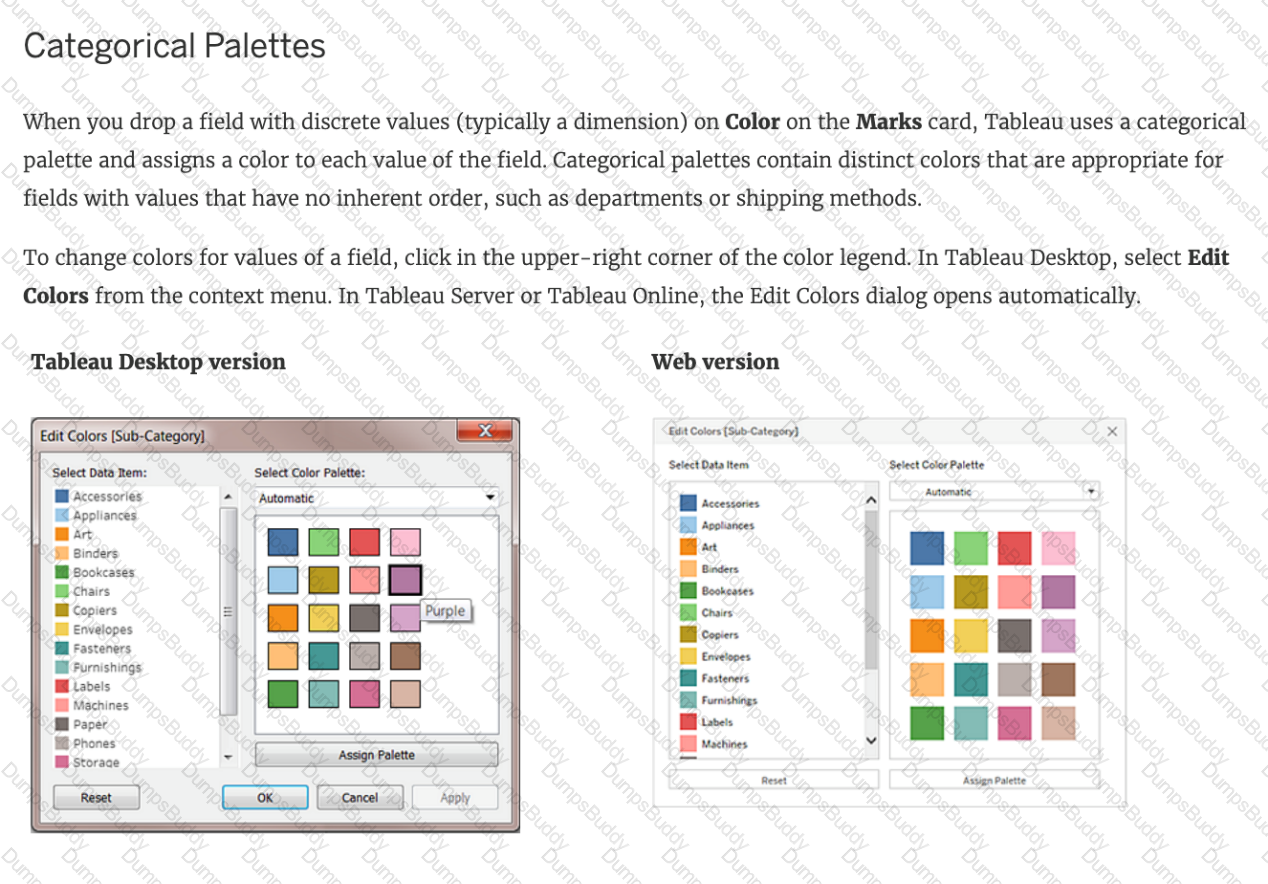

When you drop a discrete field on Color in the Marks card, Tableau displays a categorical palette and assigns a color to each value of the field.

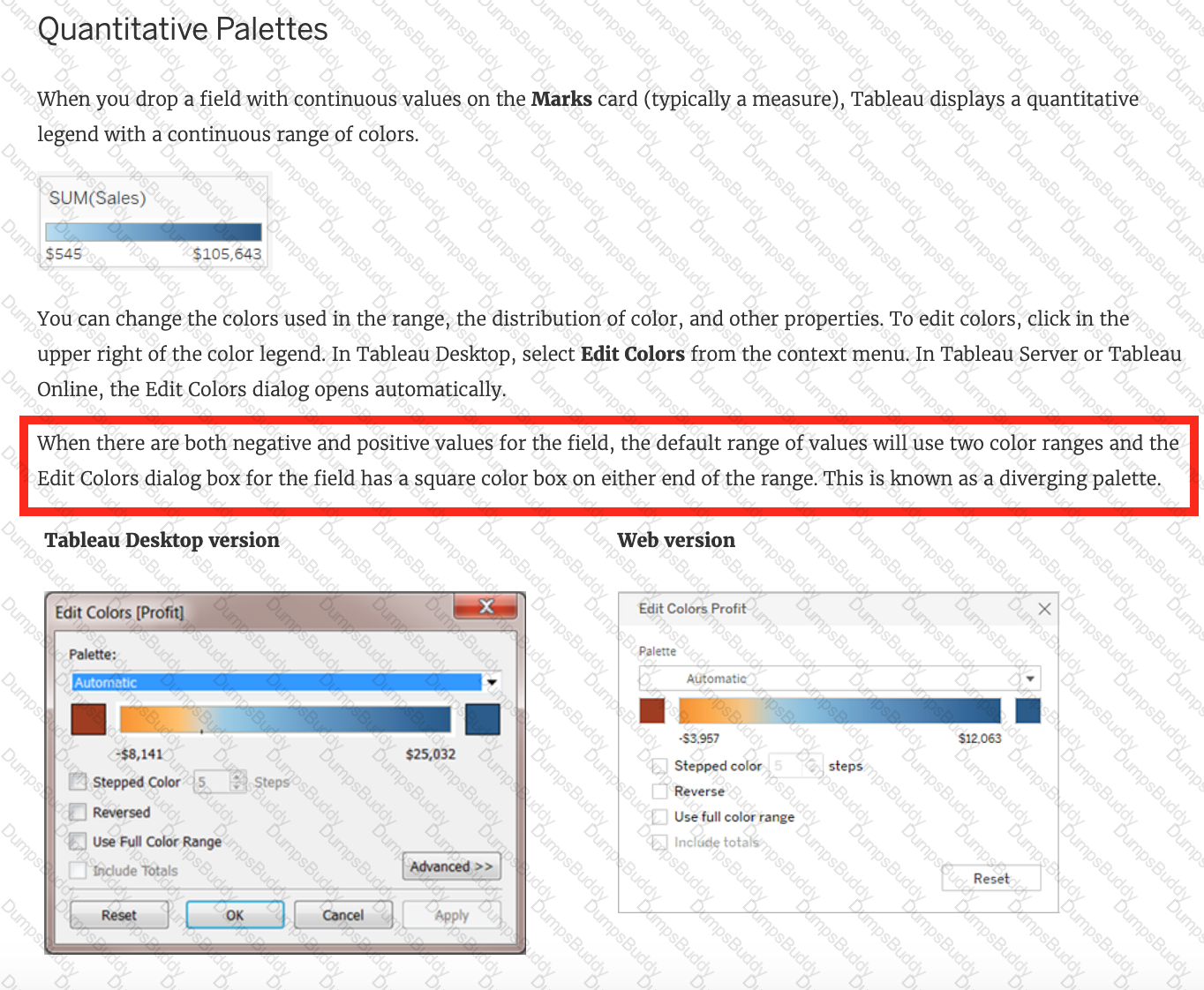

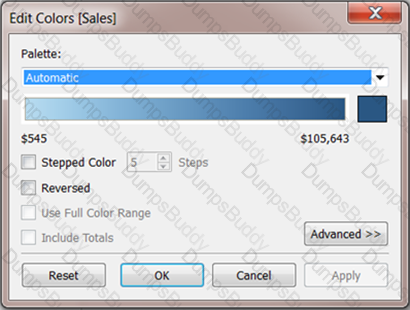

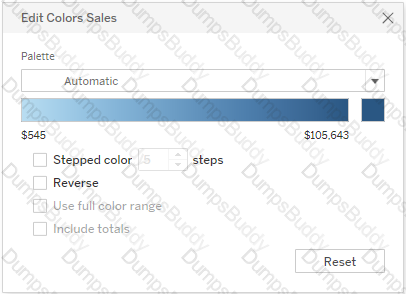

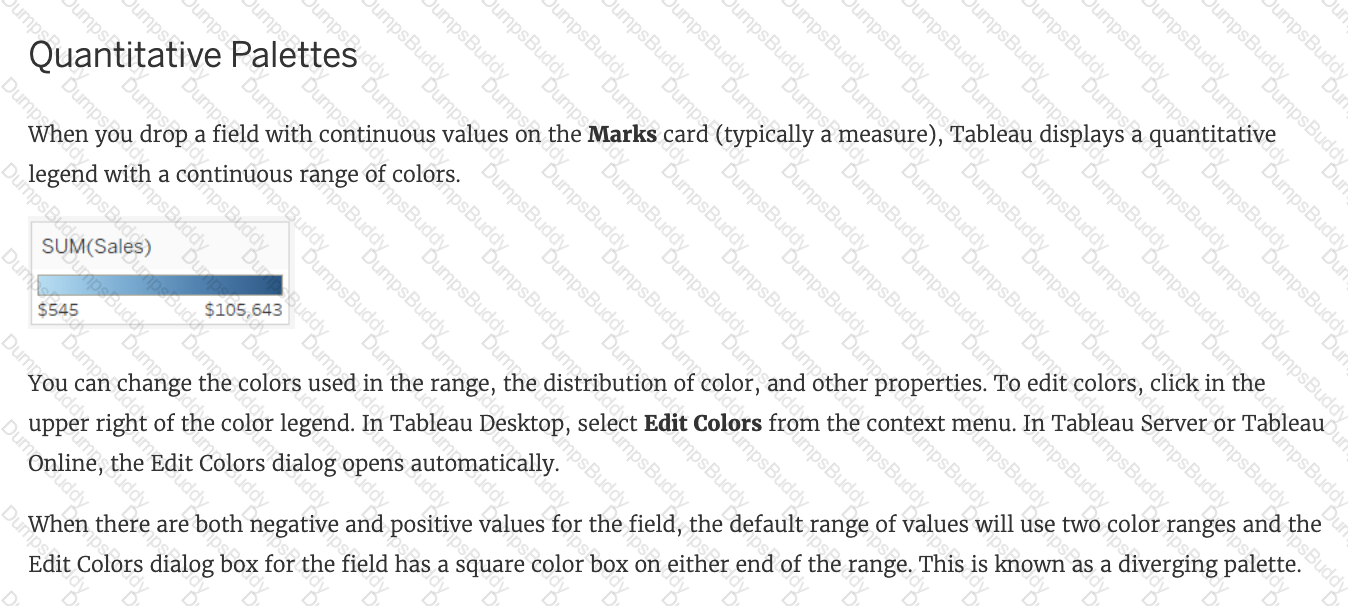

When you drop a continuous field on Color, Tableau displays a quantitative legend with a continuous range of colors.

Web version:

Desktop Version:

For more information about color palettes, see Color Palettes and Effects.

Explanation

To reach the correct answer, follow these steps:

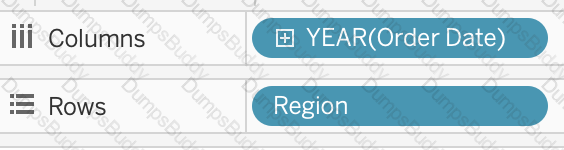

1) Drag Order Date (Discrete Year) to the Column shelf, and Region to the Row Shelf as shown:

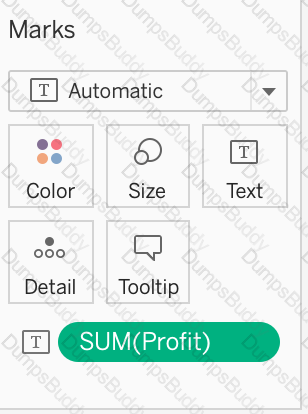

2) Drag Profit to Text in the Marks Shelf as shown:

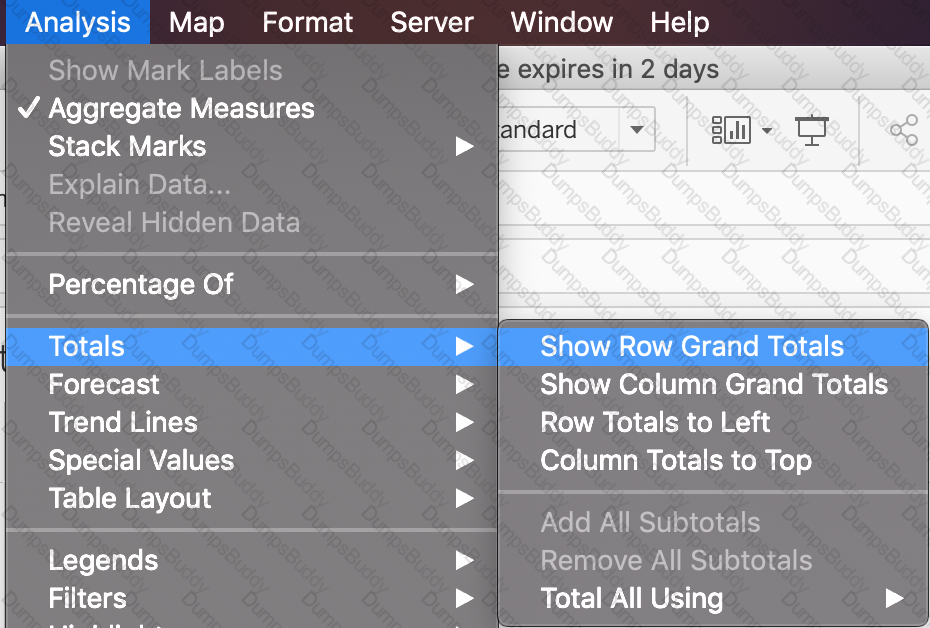

3) Click on Analysis as shown -> Totals -> SELECT ROW GRAND TOTALS

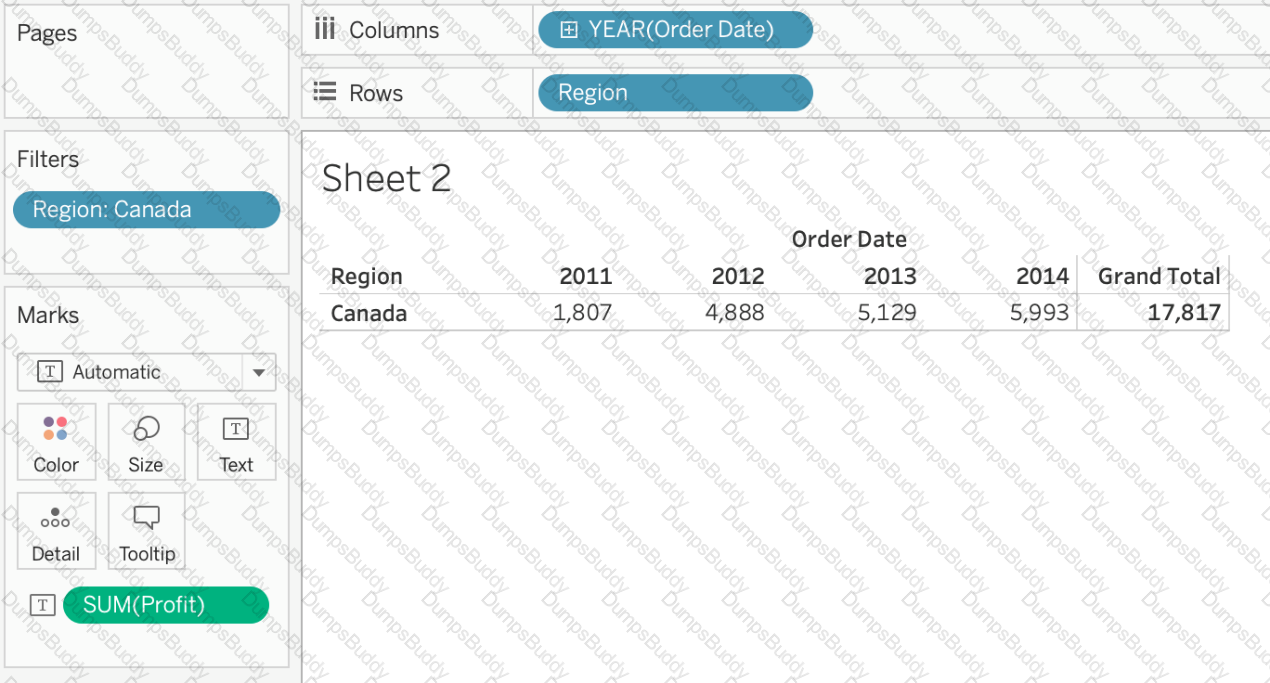

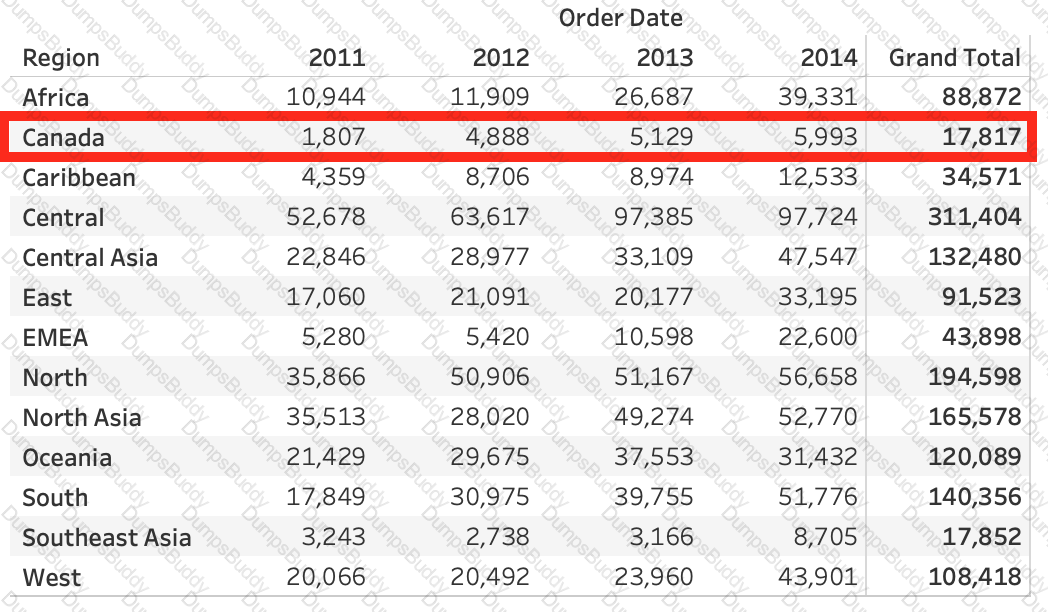

The following will be the final view:

You could also Filter by Region to only Focus on Canada, but that's your choice:

THEREFORE,

2012 = 4,888

2011 -> 2014 = 17,817

Explanation

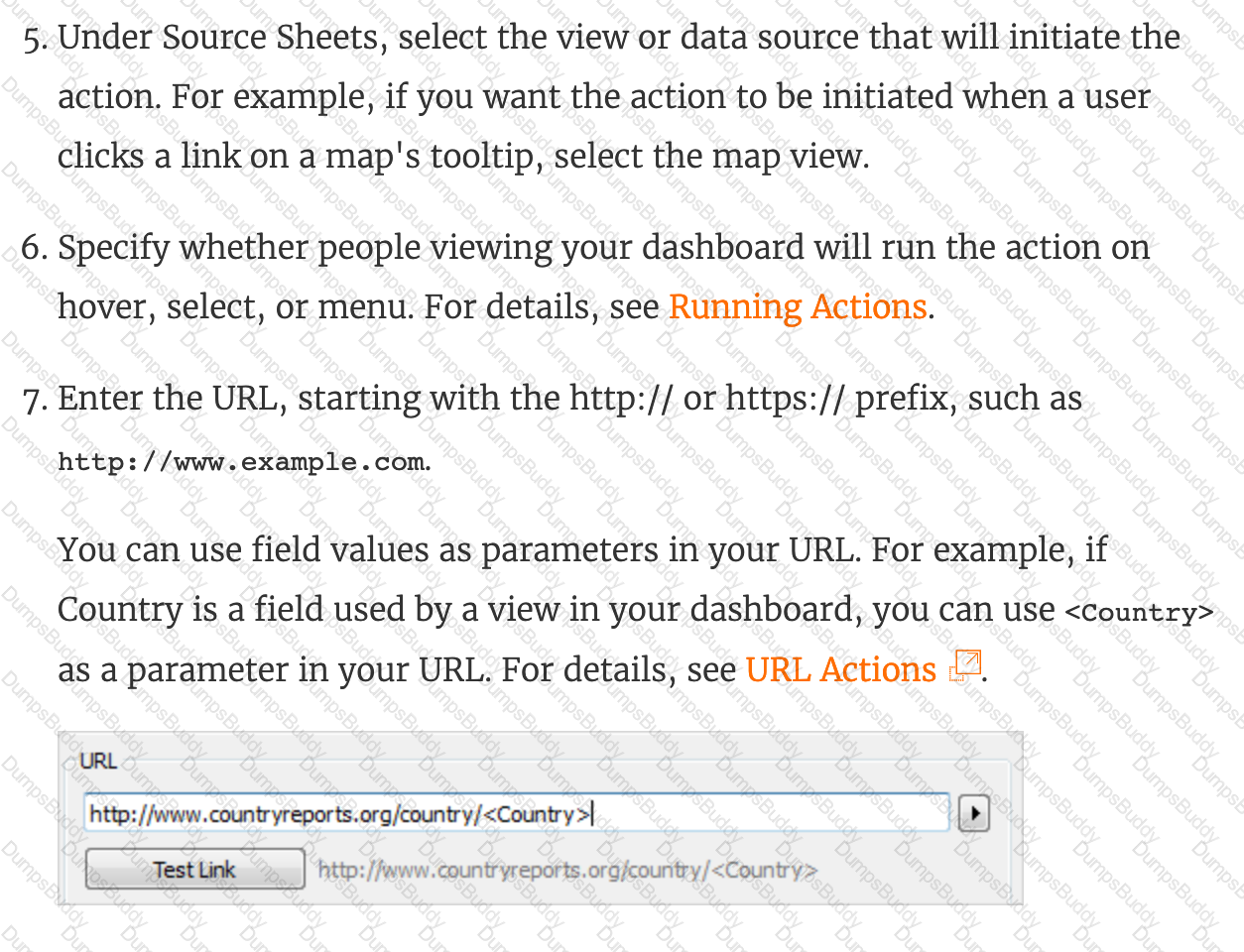

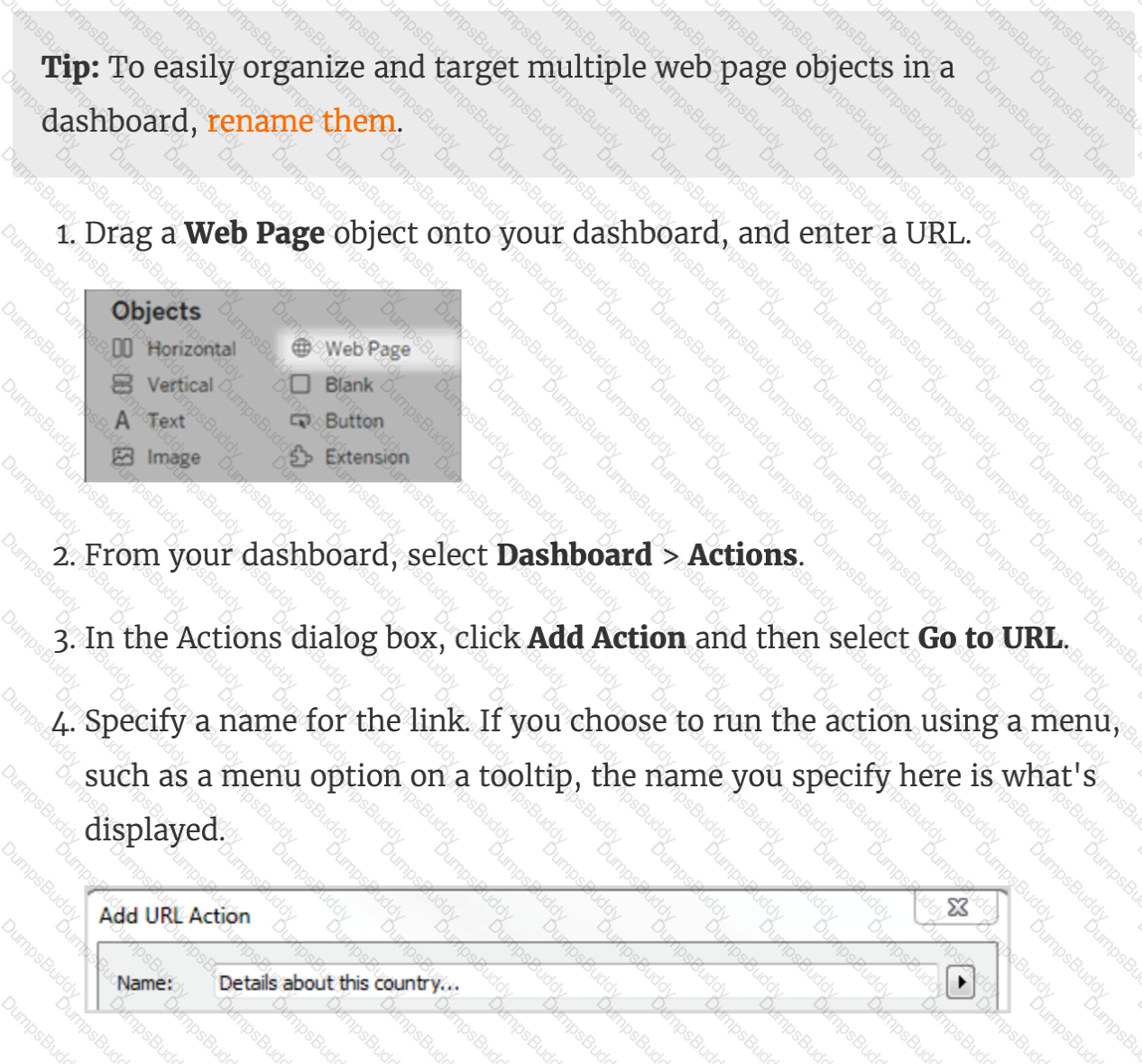

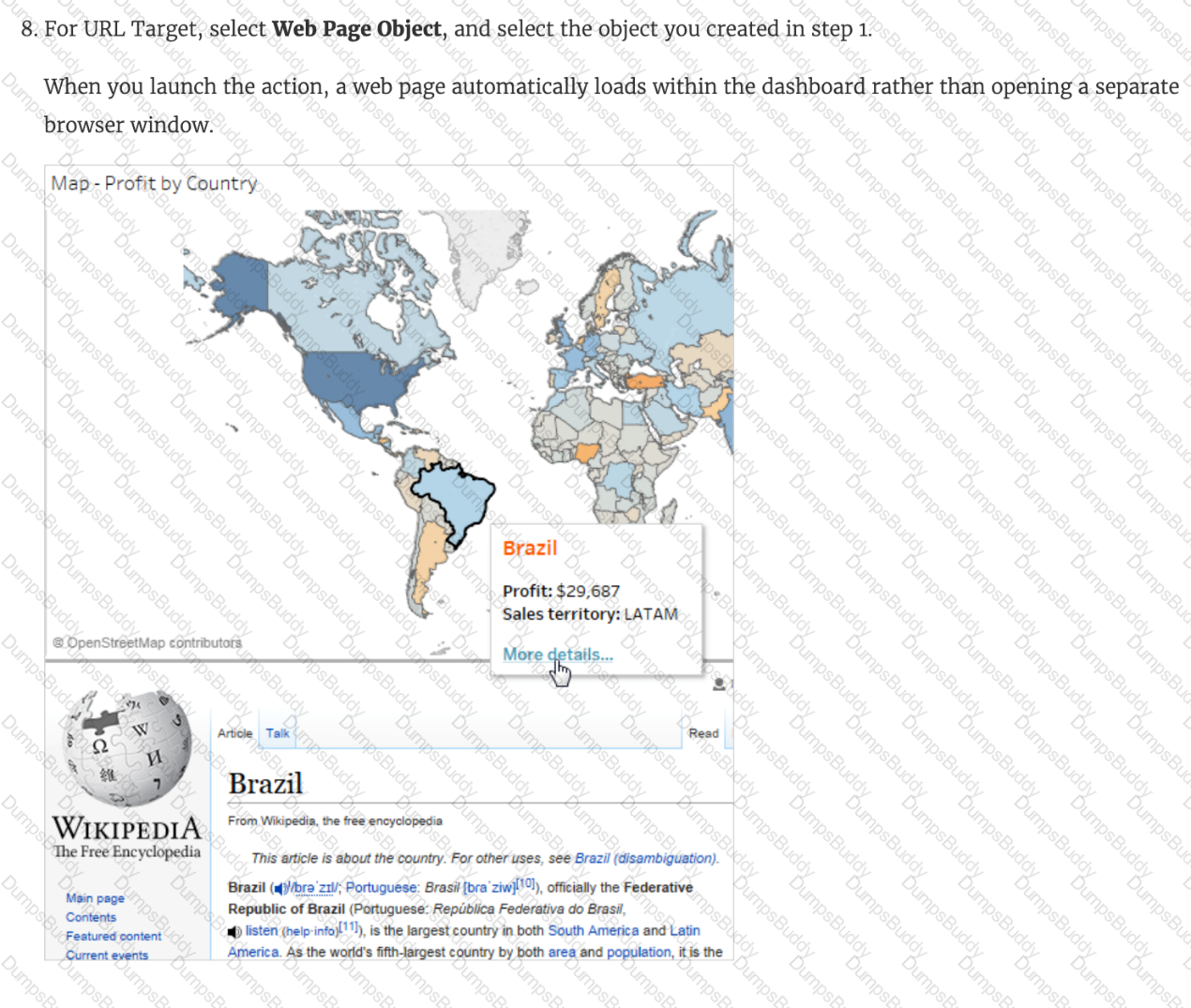

To interactively display information from the web INSIDE a dashboard, you can use a URL action with a web page object.

For example, you might have a dashboard that shows profits by country. In addition to showing the profit data in your dashboard, you also want to display supplemental information about the countries from a web site.

Explanation

According to the official Tableau documentation, there are 5 types of trend lines which we can work with in Tableau :

1) Linear Trend Line

2) Logarithmic Trend Line

3) Exponential Trend Line

4) Polynomial Trend Line

5) Power Model

Hence, the correct answer is BINOMIAL trend line which is not present in Tableau.

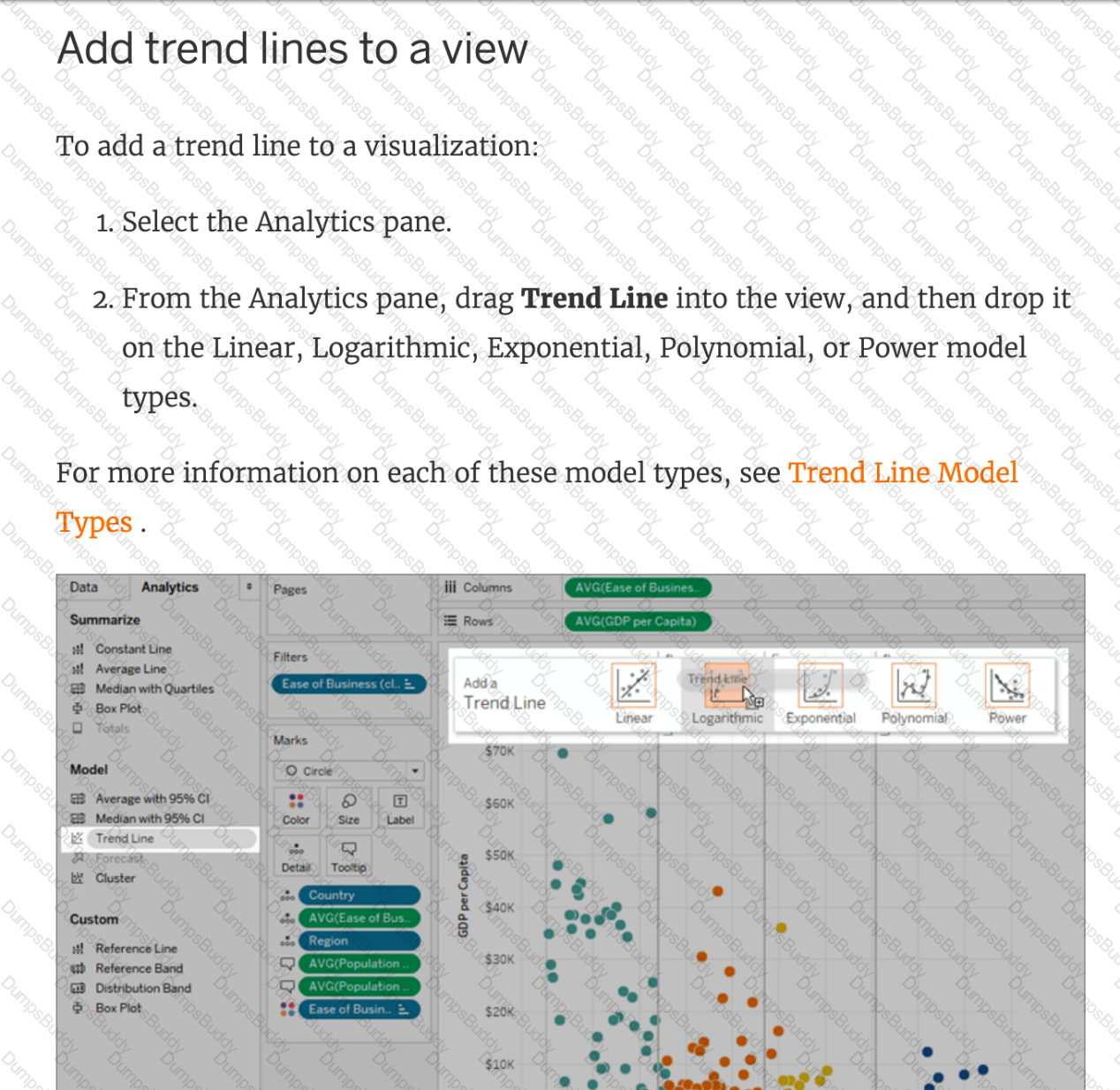

See the following image:

For more information, refer to: https://help.tableau.com/current/pro/desktop/en-us/trendlines_add.htm

According to the [Tableau Desktop Specialist Exam Guide], an incremental refresh only adds rows that are new, based on a specified column and value. A full refresh replaces all the extracted data with the data in the underlying data source. A full refresh is usually very slow, especially for large extracts. An incremental refresh can take less time, depending on how many new rows are added. A full refresh does not need to be configured, it is the default option for extracts in Tableau. An incremental refresh can be run from both Tableau Desktop and Tableau Server.

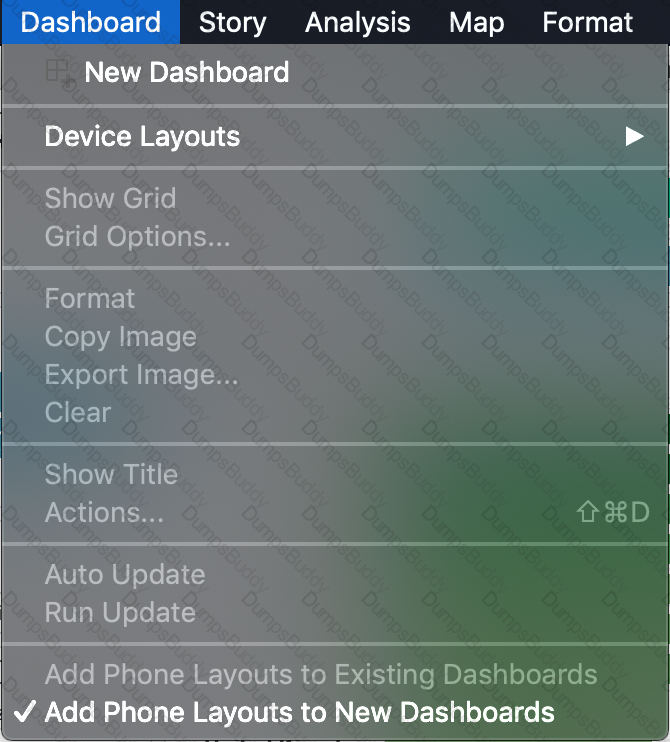

You can change the device layout of a dashboard by using the Dashboard pane or the Dashboard menu. The Dashboard pane allows you to select a device type and customize the layout for that device. The Dashboard menu allows you to create a new device layout or copy an existing one. The Format menu and the Layout pane do not have options for changing the device layout1

When the Physical Tables option is selected for an extract in Tableau, an individual table is created for each physical table in the extract. This means that the extract will include a separate table for each underlying table in your database, maintaining the database's structure within the extract. This can be useful when you need to preserve the original granularity of the data or when working with certain database optimizations.

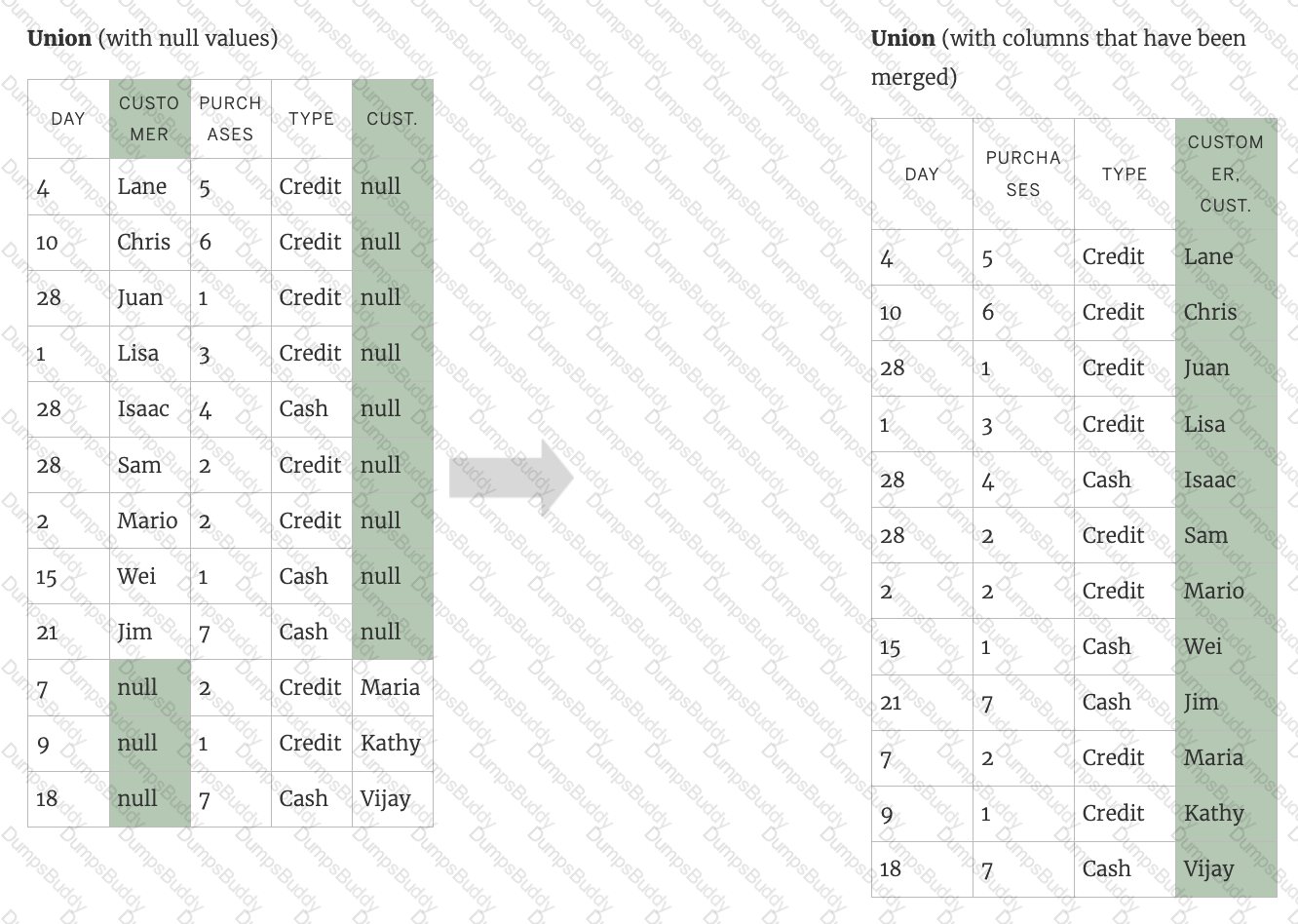

By default, both field names are present in the Union, but contain several null values!

When field names in the union do not match, fields in the union contain null values. You can merge the non-matching fields into a single field using the merge option to remove the null values. When you use the merge option, the original fields are replaced by a new field that displays the first non-null value for each row in the non-matching fields.

You can also create your own calculation or, if possible, modify the underlying data to combine the non-matching fields.

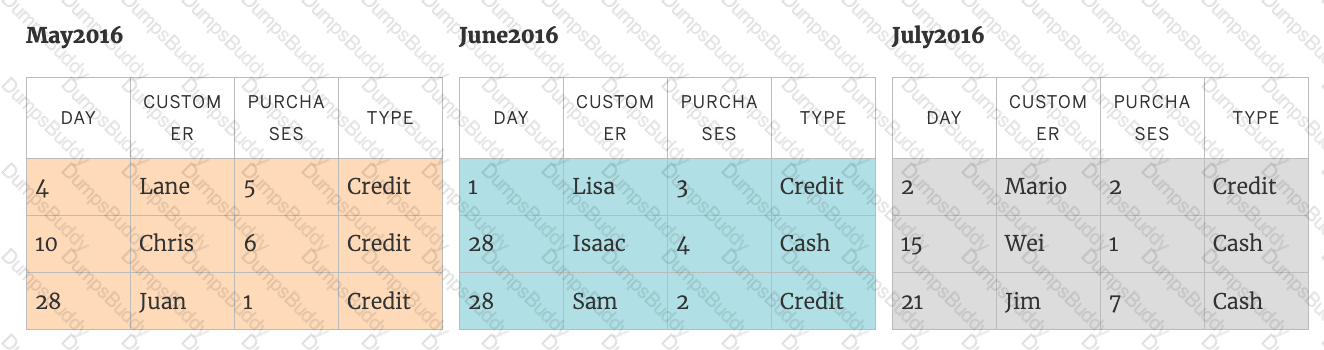

For example, suppose you have the following customer purchase information stored in three tables, separated by month. The table names are "May2016," "June2016," and "July2016."

Table Description automatically generated

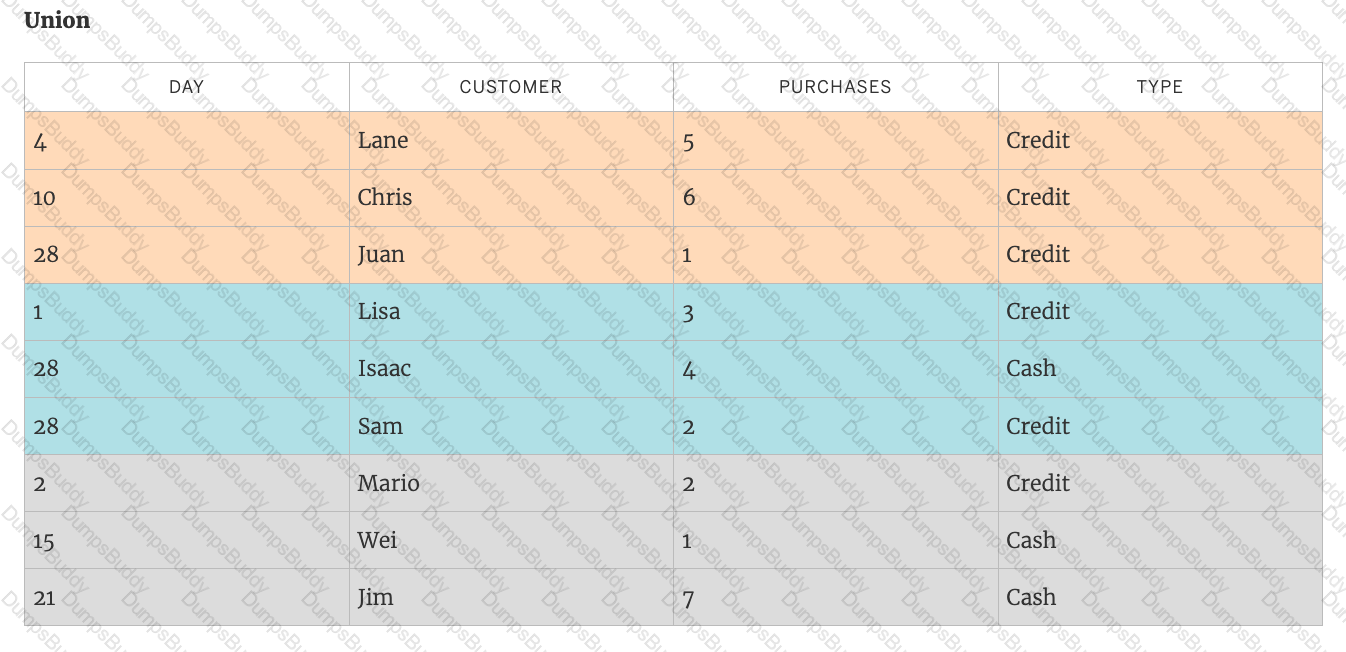

A union of these tables creates the following single table that contains all rows from all tables.

Table Description automatically generated

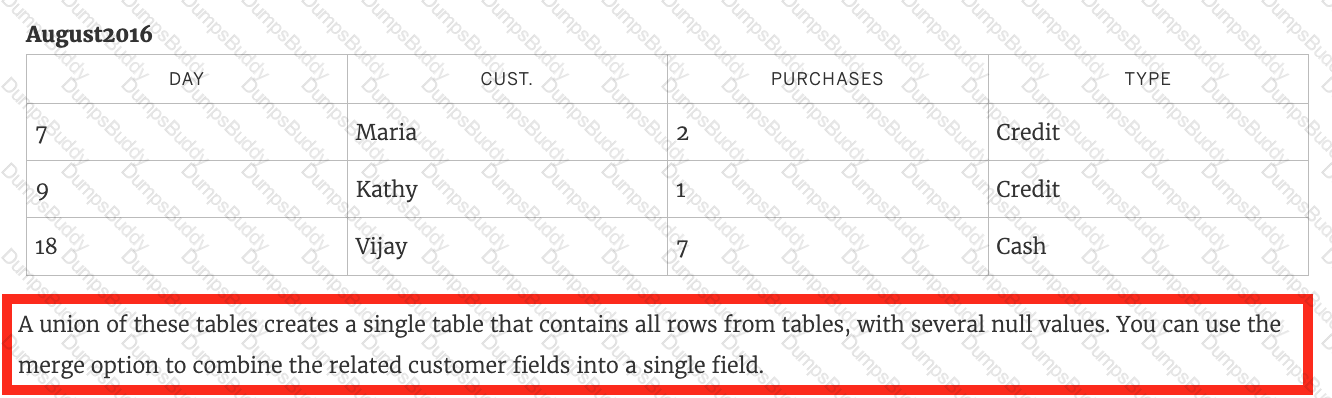

Now suppose a fourth table, "August2016", is added to the underlying data. Instead of the standard "Customer" field name, it contains an abbreviated version called "Cust."

Table Description automatically generated

Table Description automatically generated

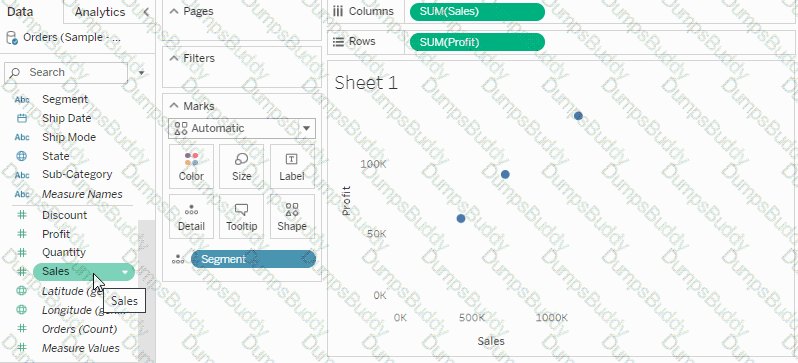

We can use scatter plots to visualize relationships between numerical variables!

In Tableau, you create a scatter plot by placing at least one measure on the Columns shelf and at least one measure on the Rows shelf (Total 2 minimum). If these shelves contain both dimensions and measures, Tableau places the measures as the innermost fields, which means that measures are always to the right of any dimensions that you have also placed on these shelves. The word "innermost" in this case refers to the table structure.

 ( Simple Scatter Plot)

 (Matrix of Scatter Plots)

A scatter plot can use several mark types. By default, Tableau uses the shape mark type. Depending on your data, you might want to use another mark type, such as a circle or a square. For more information, see Change the Type of Mark in the View.

To create a scatter plot, follow the steps below:

Explanation

The word 'static tool' gives it away.

According to the official website :

According to the Tableau Help, one of the ways to improve a crosstab is to “Include an Other group”. The help also states that “If you have a large number of members in a dimension, you can create groups to combine low-frequency members into an Other group. This can help you focus on the most relevant data and reduce clutter in your view” (page 2).

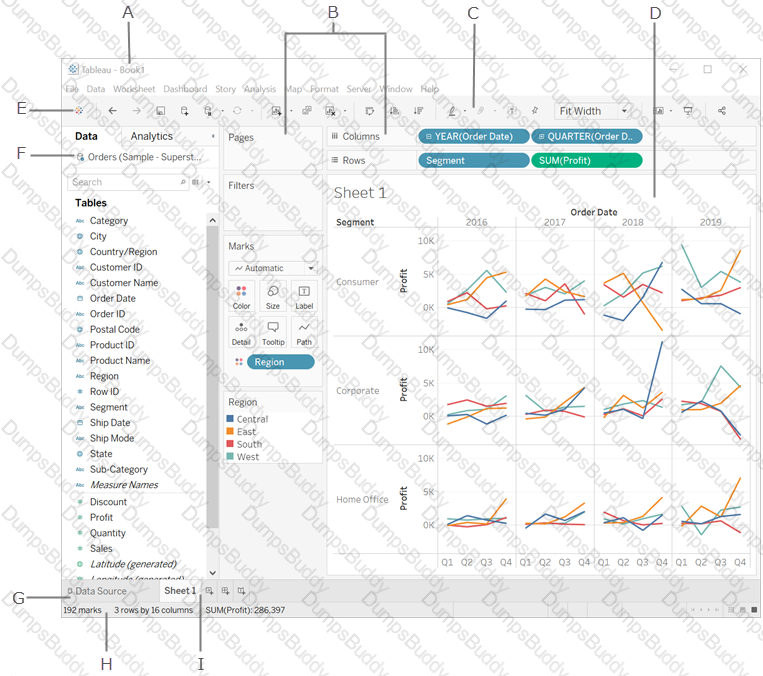

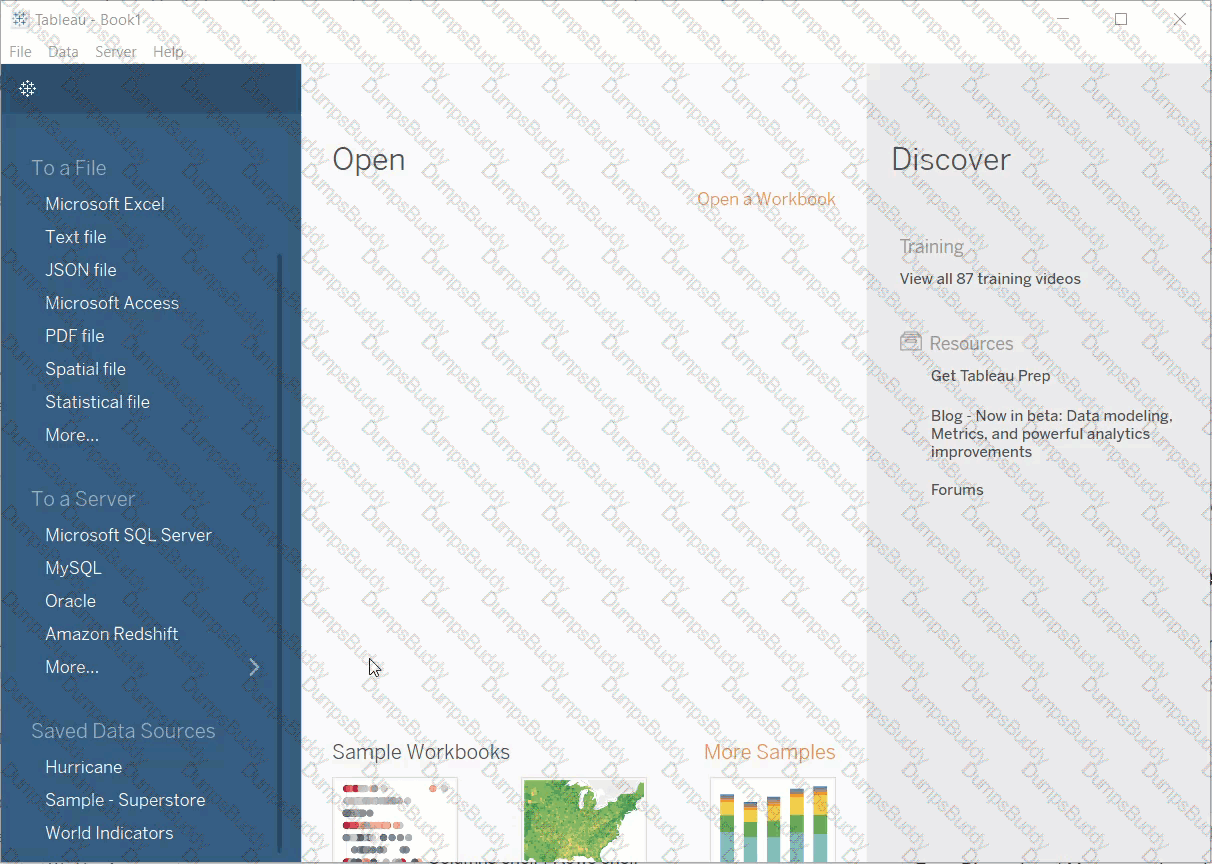

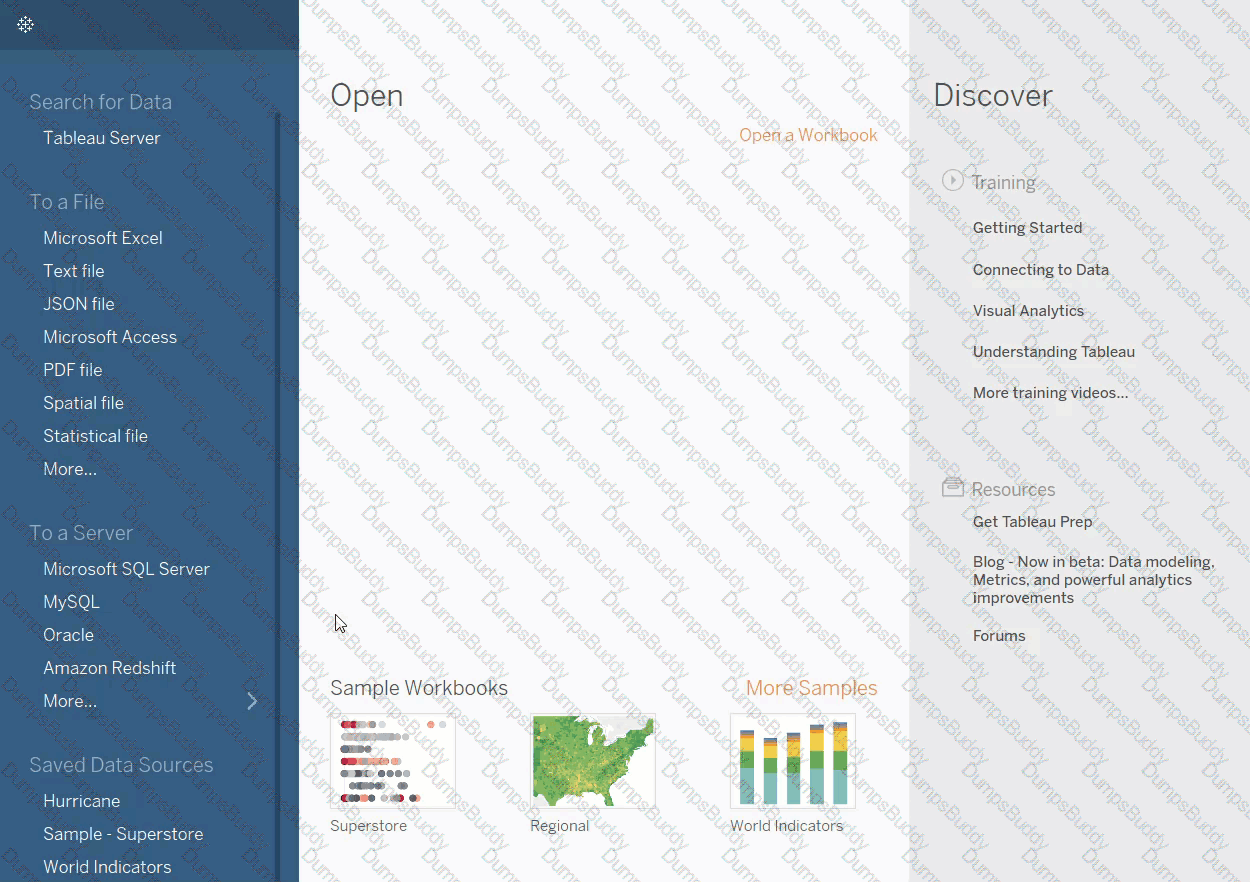

The Tableau workspace consists of menus, a toolbar, the Data pane, cards and shelves, and one or more sheets. Sheets can be worksheets, dashboards, or stories. For details on dashboard or story workspaces, see Create a Dashboard or The Story Workspace.

Graphical user interface, application Description automatically generated

The main thing you do in the workspace is to create visualisations to analyze your data.

Renaming data fields, cleaning the data, previewing the data can all be done in the Data source window.

When you double-click a continuous numeric measure named Sales in Tableau, it automatically creates a bar chart. Tableau's default behavior for a single measure is to display it as a bar chart, with the measure values represented on the Y-axis and an automatic range on the X-axis.

According to the Tableau Help, there are two filter modes for continuous filters: Range of Values and Single Value. The help also states that “Range of Values lets you specify a minimum and maximum value for the filter using sliders or input fields” and “Single Value lets you select one value on a slider for the filter” (page 1).

Explanation

The data that you analyze in Tableau is often made up of a collection of tables that are related by specific fields (that is, columns). Joining is a method for combining data on based on those common fields. The result of combining data using a join is a virtual table that is typically extended horizontally by adding columns of data.

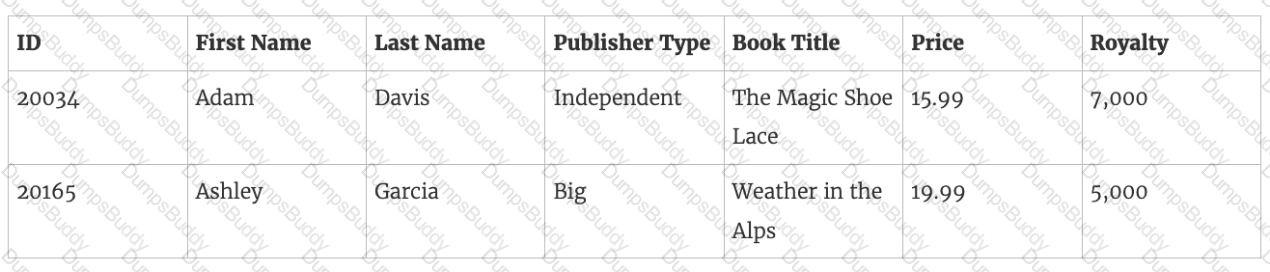

For example, consider the following two tables originating from a single data source:

We can combine these 2 tables, simply by joining the tables on ID to answer questions like, "How much was paid in royalties for authors from a given publisher?". By combining tables using a join, you can view and use related data from different tables in your analysis.

The relative date filter can be used to select a range of dates relative to the current date, such as the past month, the current quarter, etc. This filter type dynamically adjusts the range based on the current system date, making it suitable for use with the TODAY() function.

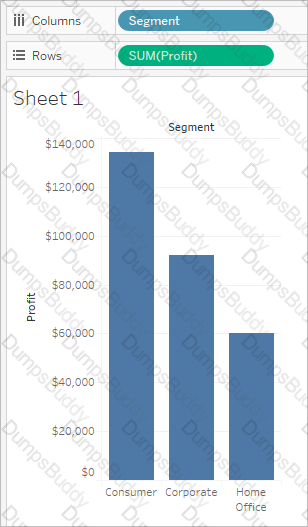

By default, measures placed in a view are aggregated. Mostly you'll notice that the aggregation is SUM, but not ALWAYS.

The type of aggregation applied varies depending on the context of the view.

Tableau Desktop will display marks by using a diverging palette as the default to display data that has both negative and positive quantitative values. A diverging palette is a type of color palette that uses two different color ranges to show positive and negative values. For example, a red-green diverging palette uses shades of red for negative values and shades of green for positive values. A diverging palette is automatically applied when there are both negative and positive values for a measure that is placed on Color on the Marks card5 The other options are not correct types of color palettes that Tableau Desktop uses as the default for data with both negative and positive values. A full color range is not a valid term for a color palette in Tableau. A sequential palette is a type of color palette that uses different shades of one color to show variations in a single measure. A sequential palette is usually applied when there are only positive values for a measure that is placed on Color on the Marks card5 A categorical palette is a type of color palette that uses different colors to show discrete values or categories. A categorical palette is usually applied when there is a dimension that is placed on Color on the Marks card5

Explanation

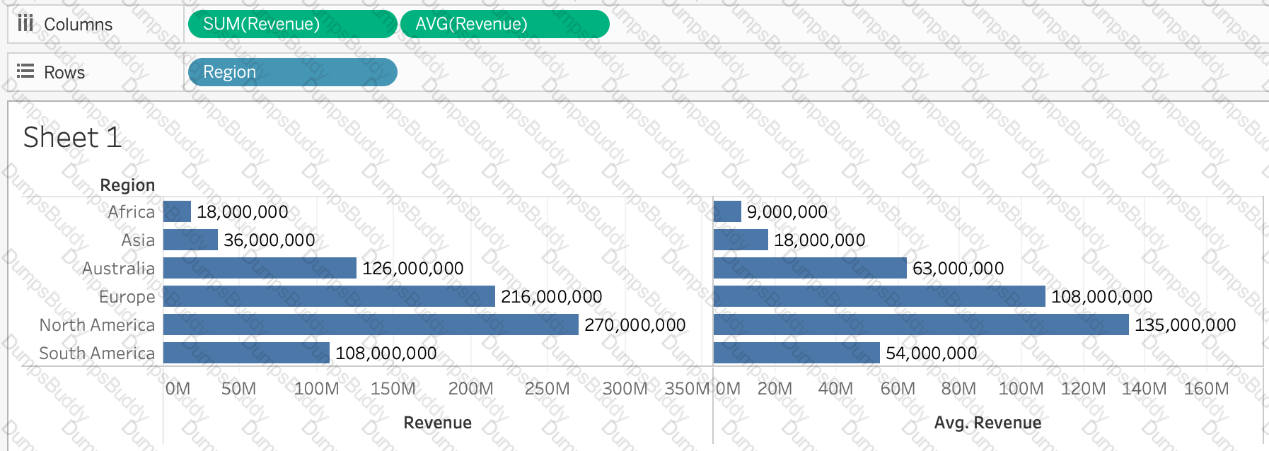

Yes, it is very much possible to use measures in the same view multiple times. For example, refer to the image below:

We are using BOTH the Sum of the revenue and the AVG of the revenue in the same view!

Exporting the visualisation gives us a static view of the visualisation.

It is NOT possible to interact with it, use filters, or dynamically enter anything in a visualisation exported PDF.

In Tableau Desktop, you can save views as PDF files rather than printing them as hard copies. You do not need to have Adobe Acrobat installed on your computer.

When you print an individual sheet to PDF, filters in the view are not included. To show filters, create a dashboard containing the sheet and export the dashboard to PDF. (IMPORTANT)

Explanation

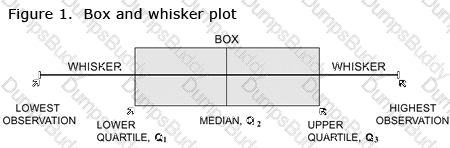

In a box and whisker plot:

1) The ends of the box are the upper and lower quartiles, so the box spans the interquartile range

2) The median is marked by a vertical line inside the box

3) The whiskers are the two lines outside the box that extend to the highest and lowest observations.

Explanation

Explanation

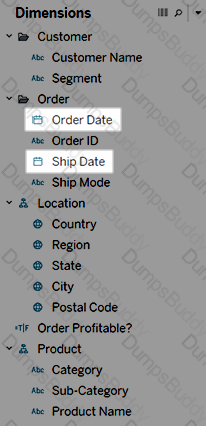

For relational data sources, dates and times are automatically placed in the Dimensions area of the Data pane and are identified by the date or date-time icon. For example, the Order Date and Ship Date dimensions from an Excel data source are shown below:

When you place a relational date on a shelf, the field name is automatically modified to reflect the default date level. Tableau defines the default date level to be the level at which there are multiple instances. For example, if the date field includes multiple years, the default level is year. However, if the date field contains data for just one year but includes multiple months, then the default level is month.

Explanation

Follow along:

1) Drag Assortment and Year ID (choose Discrete Month) to Columns shelf, and Sales to the Columns Shelf.

For sales, click on the pill -> choose Quick Table calculation -> Year over Year growth.

The view should now look like:

It is clear that October with -55.3% had the lowest Year on Year growth.

Explanation

Since Sales is a measure, it can easily be depicted via size.

To drill down and change the level of detail, Country is the correct choice since it will contain STATE. We can then depict the various states by different shapes such as circle, square etc.

Finally, the Profit can be depicted via a color! Eg - Red for poor and green for excellent profits!

According to the Tableau Desktop Specialist Exam Guide, a packaged workbook (.twbx) includes background images, extract files, and custom shapes. A PDF copy of the workbook and Tableau Datasource Customization (TDC) files are not included in a packaged workbook.

Padding lets you precisely space items on dashboard, while borders and background colors let you visually highlight them. Inner padding sets the spacing between item contents and the perimeter of the border and background color; outer padding provides additional spacing beyond the border and background color.

In Tableau, when creating a combined axis chart, after dragging the first measure to the Rows shelf, you should drag the second measure directly onto the existing axis in the view. This will combine both measures on the same axis, allowing them to share a scale and an axis, which is the essence of a combined axis chart.

In the context of Tableau, "Migrated Data" typically refers to data or workbooks that have been upgraded from a previous version of Tableau Desktop. When you open a workbook in a newer version of Tableau, the data sources within that workbook might be labeled as "Migrated Data," indicating that they have undergone a conversion process to be compatible with the new version's features and architecture.

Explanation

Since you need BOTH State and the YEAR, we need to use an Inner Join.

Follow the steps below:

Bar charts in Tableau do not require a dimension to be created. You can create a bar chart using only a measure; this will produce a single bar that represents the aggregate of the measure values, such as the sum or average of sales.

The option to create bins in Tableau is available for numeric fields. Bins allow you to group a series of numeric values into larger segments, which can simplify analysis and help in creating histograms or other visualizations that show the distribution of data. For example, you can create bins to group ages into categories like 0-10, 11-20, etc.

Explanation

Since we need to focus on 1 country -> Japan, let's filter on it first as follows:

1) Drag Country to the filter shelf, and choose only Japan. Click OK.

2) Read the Question Carefully, we need to break down the visualisation by Region, then by Country, and then by State. So let's do that:

Drag Region to the column shelf, followed by Country. Drill down into Country to include states as well.

Then drag Quantity to the Row Shelf, and change the Aggregation to AVERAGE.

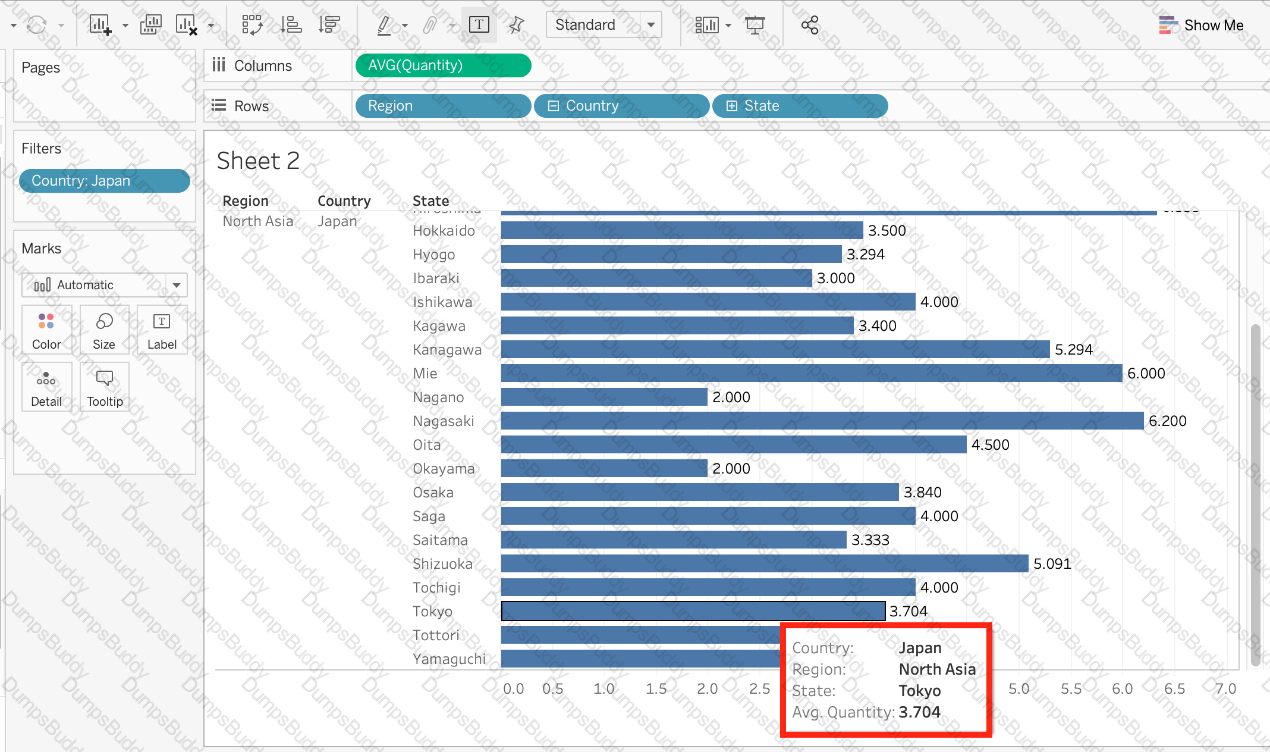

The following is our visualisation:

Now that you think of it, EVEN IF YOU REMOVE THE REGION, THE ANSWER REMAINS THE SAME. Such elements will be present in the actual exam too, just to make the question sound a little difficult, but actually it is pretty straightforward :)

According to the [Tableau Desktop Specialist Exam Guide], a join is a way to combine table columns in relational databases by using shared values. A join can be inner, left, right, or full, depending on how the matching rows are included or excluded.

When using a data source that has relationships, you can add a join between two or more tables by dragging a table directly on top of an existing logical table from the Tables pane. This will create a logical table that contains the joined tables. You can then edit the join type, join clauses, and join calculation as needed2 The other options are not valid ways to add a join between tables when using relationships. From the Tables pane, double-clicking a table will add it to the data source as a separate logical table, not joined with any other table. From the Connections pane, selecting Add will allow you to add another connection to the data source, not join tables within the same connection. Double-clicking a logical table in the canvas will open the Data Source page, where you can view and edit the fields in the logical table, not join it with another table2

Your Tableau Desktop Specialist exam will be based on the 2020.1 version.

Set controls are a new feature introduced in the 2020.2 version, and hence is the correct answer - it is not a part of 2020.1

For the 2020.1 version the new features were:

1) Viz animations:

Viz animations help you see and understand your changing data. It’s easy to track the logical steps behind data’s evolution and tell powerful data stories. Sorting, filtering, adding fields, and other actions will now smoothly animate your visualizations. Choose whether to turn Viz Animations on or off, and decide how you’d best like to apply animations to your new workbooks.

2) Dynamic Parameters:

Say goodbye to republishing workbooks with parameters every time the underlying data changes. Set your parameter once, and Tableau will automatically update the parameter’s list of values every time someone opens the workbook.

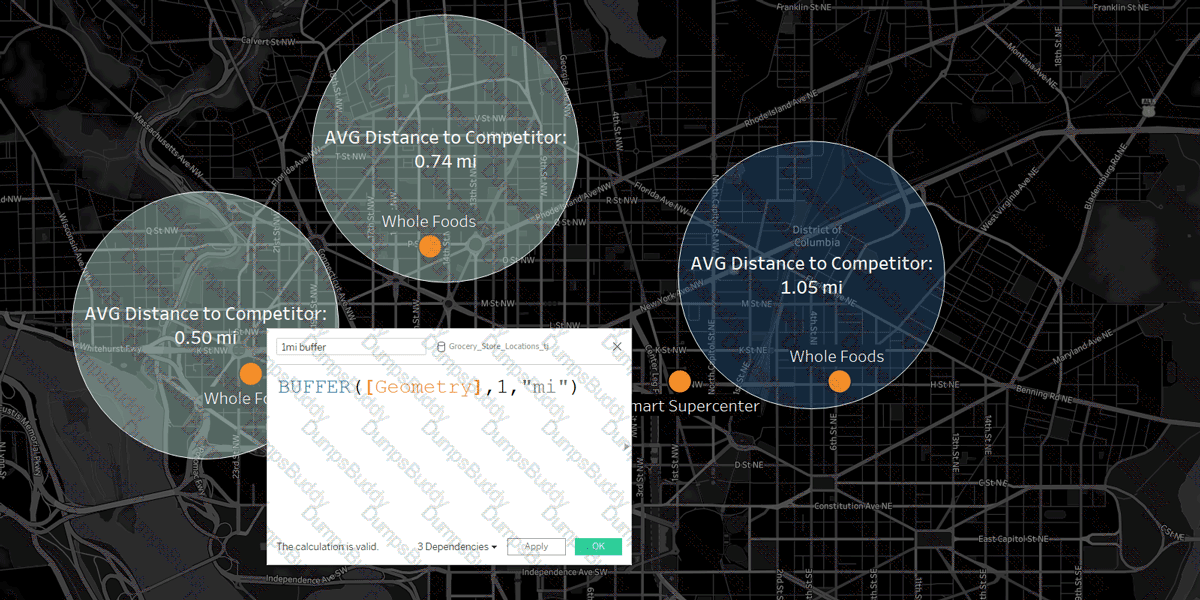

3) Buffer Calculations:

Buffer calculations allow you to visualize the distance around point locations. Give Tableau three parameters—location, distance, and a unit of measure—and a buffer, or boundary is instantly created. Answering complex spatial questions becomes easier than ever before—visualize what properties are within 200 meters of a proposed transit site, or how many competitors’ stores are within 1 mile of their store, and more.

To create a stacked bar chart in Tableau, you can drag a second dimension to the Color shelf on the Marks card. This action will segment the bars already present in the chart by the new dimension, stacking the segments on top of each other within each bar. This is a common method to add additional layers of detail to a bar chart and effectively compare parts to a whole across categories.

You can use Wildcard Search to set up search criteria to automatically include tables in your union. Use the wildcard character, which is an asterisk (*), to match a sequence or pattern of characters in the Excel workbook and worksheet names, Google Sheets workbook and worksheet names, text file names, JSON file names, .pdf file names, and database table names.

When working with Excel, text file data, JSON file, .pdf file data, you can also use this method to union files across folders, and worksheets across workbooks. Search is scoped to the selected connection. The connection and the tables available in a connection are shown on the left pane of the Data source page.

To add totals to a view using the Analytics pane:

Also, you can add totals from the Analytics tab in the Menu above:

Explanation

This question is directly from the Official Tableau Desktop Specialist exam guide.

Since we are talking about the AVERAGE home values for the United States in 2016, the question is directly offering us a hint that the answer has something to do with aggregation and that too the values tell us that we're working with MEASURES.

Date part and Date values don't really make much sense given the question, and neither does geography.

Therefore, the answer naturally is "An aggregated measure".

Explanation

From the official Tableau website:

To display multiple distinct lines on the same axis based on a field, you should place the field on the Color shelf in the Marks card. This will encode each distinct value in the Region field with a different color, resulting in separate lines for each region on the same axis.

Explanation

VERY IMPORTANT QUESTION FOR THE EXAM, PAY ATTENTION

1) To find the number of days between order date and shipping date, we will make use of a calculated field:

In the data pane, click on the dropdown arrow, and choose create calculated field.

Let's name this calculated field "ShippingDelay" (you can name it anything you want :) )

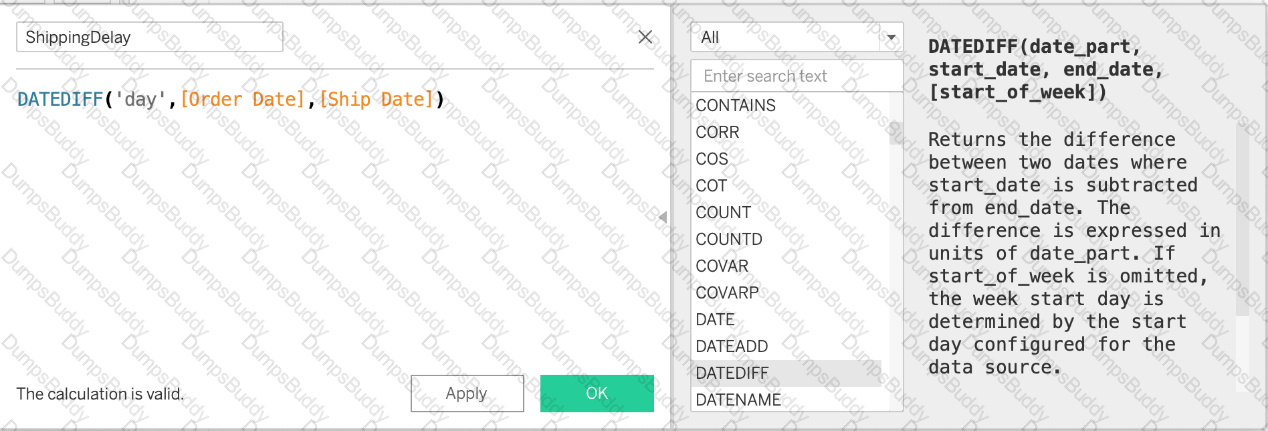

2) Use the DATEDIFF() function, and pass it the arguments as follows:

'day' depicts that we want to calculate the number of DAYS between the two dates. The first argument is 'start_date' which is the ORDER_DATE (day the order was placed), the second argument is 'end_date', which is the SHIP_DATE (date the order was shipped). So by subtracting as follows: SHIP_DATE - ORDER_DATE, we can find the delay in shipping.

Click OK.

3) You should now have a new measure as follows:

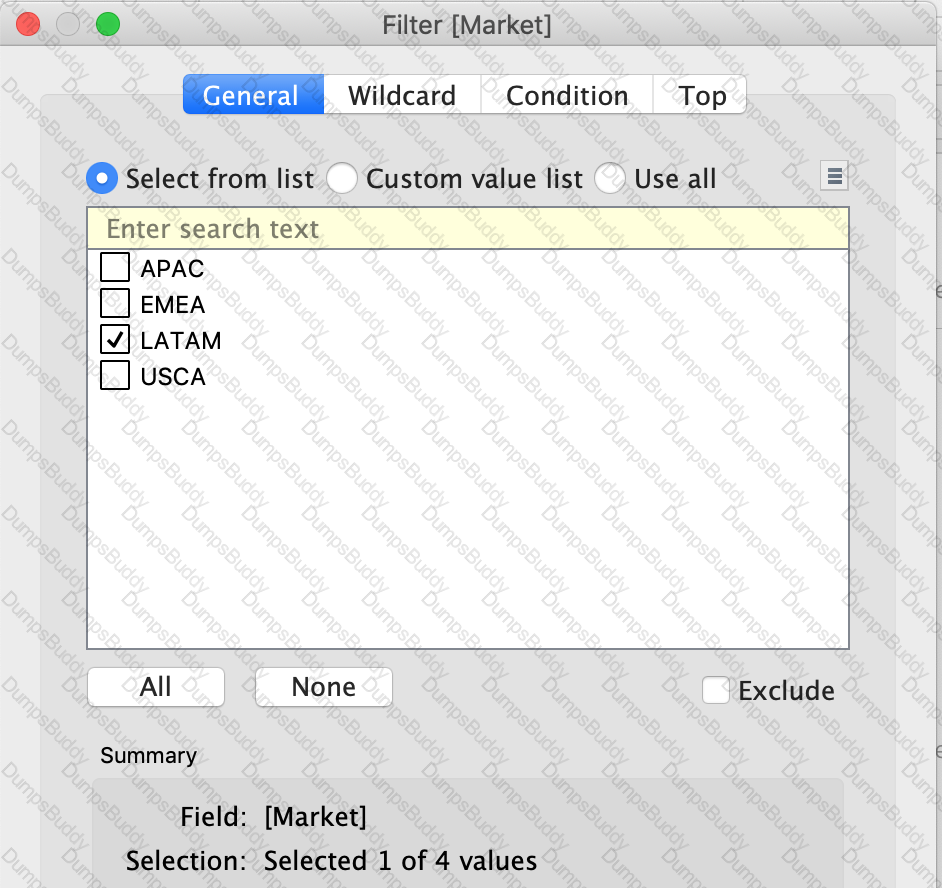

4) Phew! The hard part is done! Now let's filter by Market to include only LATAM:

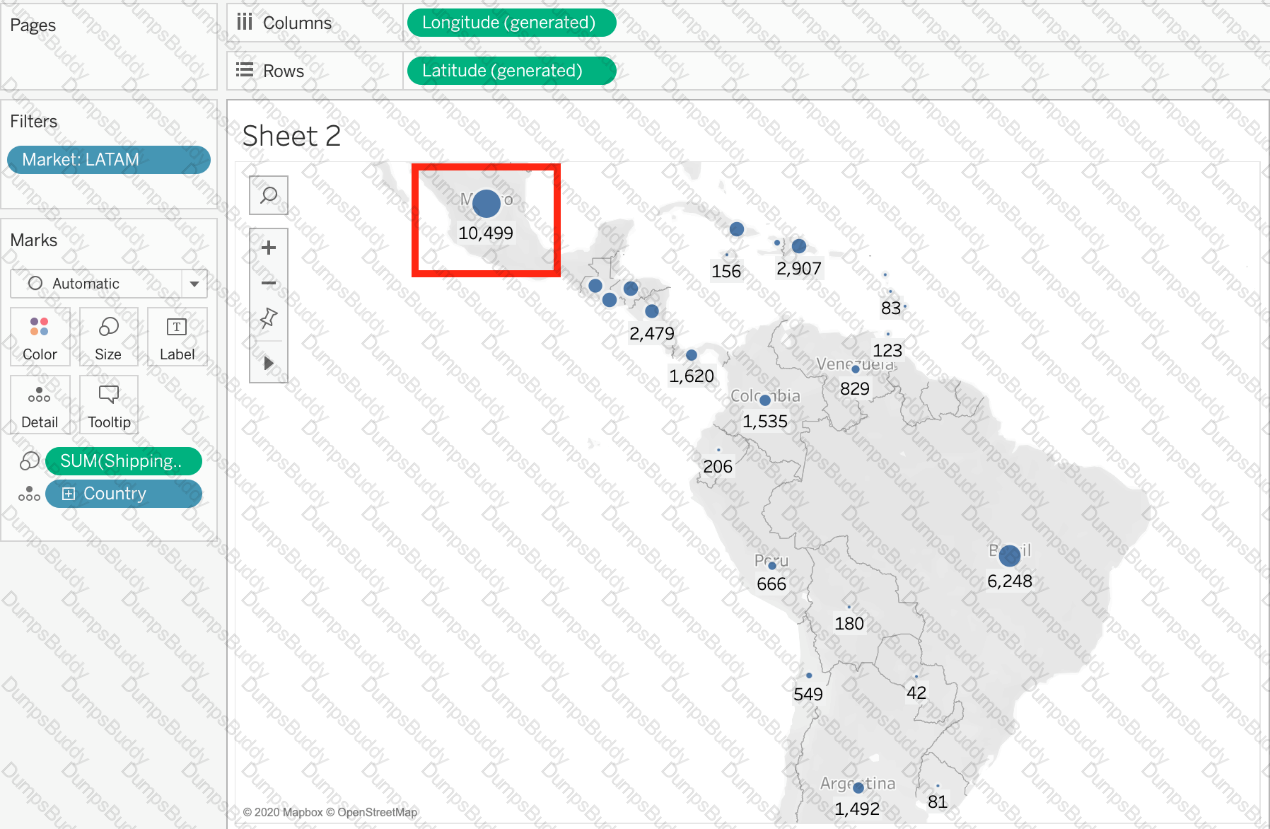

5) Drag Country to the view, and the new calculated field 'ShippingDelay' to SIZE on the Marks Shelf as follows:

*You can also click on Show Text Labels to be sure that you're choosing the Largest value*

Clearly, Mexico has the highest Shipping Delay!

You can drag the filter by clicking on the 2 lines on top, and then dragging the filter as shown:

February is a discrete date part, because it is a specific value that can be used to group or filter data by month. 07Mar2017, 20Sep2016:9:8:8:6546, and 01/23/2021 are continuous date values, because they represent points along a continuous timeline that can be used for analysis.

Important question! If you selected Dimension and Measure, don't worry! It is a very common mistake. But we're here to learn aren't we?

When you connect to a new data source, Tableau assigns each field in the data source as dimension or measure in the Data pane, depending on the type of data the field contains. You use these fields to build views of your data.

Explanation

When you connect to a new data source, Tableau assigns each field in the data source as dimension or measure in the Data pane, depending on the type of data the field contains. You use these fields to build views of your data.

Further,

Remember that dragging a discrete value to colour creates distinct colours for each item whereas dragging a continuous value to colour creates a gradient. ( Same for Map )

From the official documentation:

By default, all filters that you set in Tableau are computed independently. That is, each filter accesses all rows in your data source without regard to other filters. However, you can set one or more categorical filters as context filters for the view. You can think of a context filter as being an independent filter (Option stating - To create a dependent filter eliminated here). Any other filters that you set are defined as dependent filters because they process only the data that passes through the context filter.

You may create a context filter to:

1) Improve performance – If you set a lot of filters or have a large data source, the queries can be slow. You can set one or more context filters to improve performance.

2) Create a dependent numerical or top N filter – You can set a context filter to include only the data of interest, and then set a numerical or a top N filter.

For example, suppose you’re in charge of breakfast products for a large grocery chain. Your task is to find the top 10 breakfast products by profitability for all stores. If the data source is very large, you can set a context filter to include only breakfast products. Then you can create a top 10 filter by profit as a dependent filter, which would process only the data that passes through the context filter.

Graphical user interface, application Description automatically generated

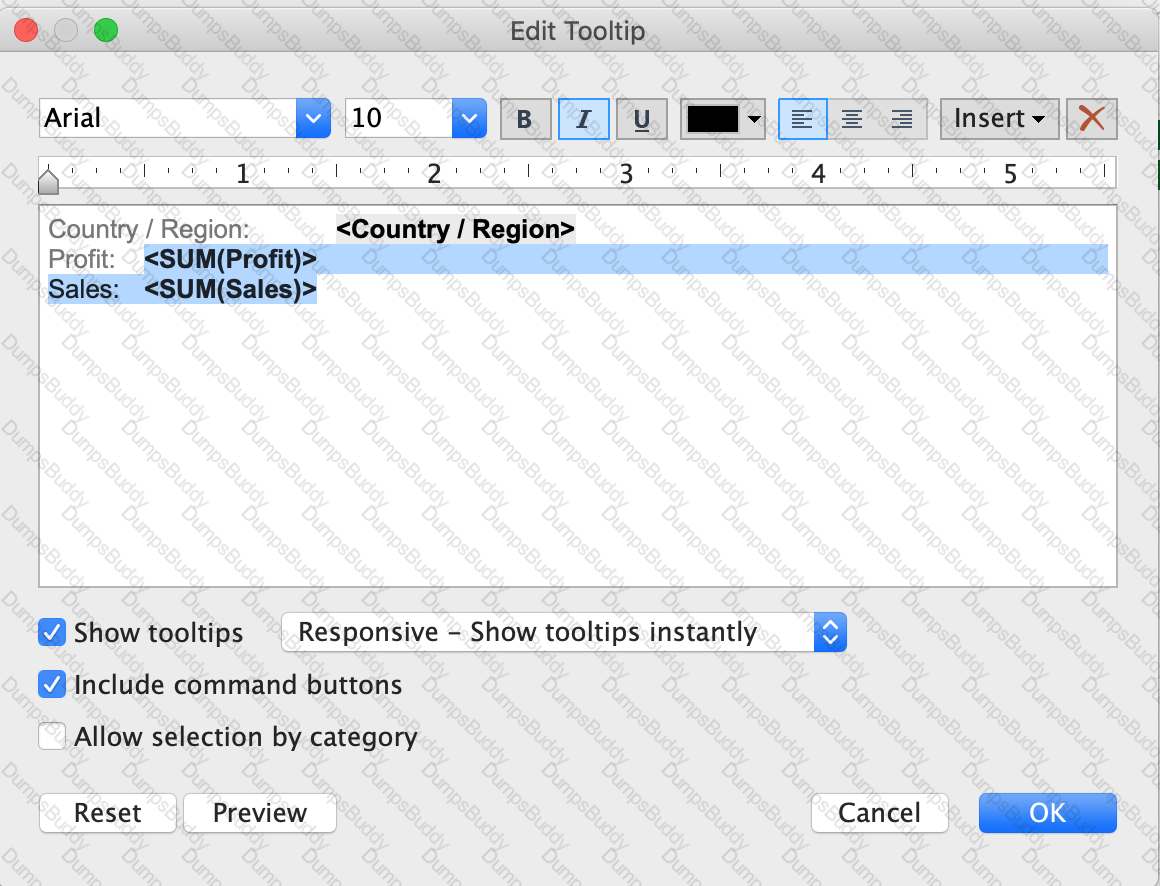

The only incorrect option is - Click on Dashboard in the Menu bar, select Tooltip, and then use the italics option.

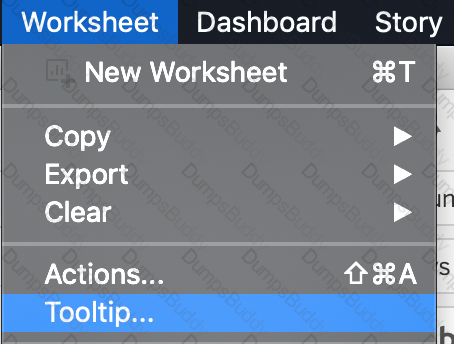

This option doesn't exist. See below:

The rest of the options do exist, and therefore are correct:

Graphical user interface, text, application Description automatically generated

You can add reference lines, bands, distributions, or (in Tableau Desktop but not on the web) box plots to any continuous axis in the view.

Reference Lines - You can add a reference line at a constant or computed value on the axis. Computed values can be based on a specified field. You can also include confidence intervals with a reference line.

To combine data from another database with an existing data source in Tableau, the first step is to add a new connection. This will allow you to access the additional database and either blend or join the data from the two sources depending on your analysis needs.

The default behavior of Tableau when you add a measure to the view is to automatically apply an aggregation to that measure. The type of aggregation applied can vary depending on the context of the view. For example, if no other measures or dimensions affect the measure, Tableau might default to SUM. However, if there are other dimensions in the view that define the level of detail, the aggregation might be different to reflect the context.
