CPSA-FL ISAQB Certified Professional for Software Architecture -Foundation Level Questions and Answers

In the context of software architecture, the common definitions often focus on the structural aspects of system design. Here’s how the chosen answers align with the iSAQB® guidelines on software architecture:

• Building Blocks (B): A fundamental concept in software architecture, building blocks refer to the modular units from which the system is constructed. These can include modules, classes, or components, all of which are vital for defining the structure and behavior of the system.
• Relationships (D): Relationships in software architecture define how different components or building blocks interact with each other. These interactions are essential for understanding data flow, dependencies, and communication patterns within the system.
• Components (E): Components are larger than building blocks and encompass them, representing significant units of functionality within the system. Each component usually encapsulates a portion of the system's overall functionality and interacts with other components via interfaces.
• Interfaces (G): Interfaces define the points of interaction between components or building blocks. They are critical for ensuring that components can function independently yet interact seamlessly when required.

The term 'coupling' in software architecture refers to the degree of direct knowledge that one component has about another. This can be reflected in:A. A building block uses an interface of another building block. - This represents a form of coupling where components interact through well-defined interfaces, influencing the level of dependency between them.D. A building block uses internal data structures of another building block. - This indicates a higher degree of coupling, as it involves direct knowledge of another component’s internal workings, which is generally discouraged to maintain modularity and ease of maintenance.

These answers are based on fundamental software architecture and design principles widely recognized in the field.

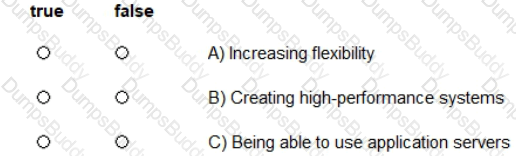

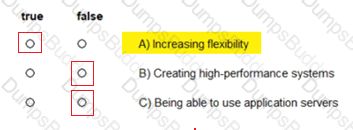

The layered architectural pattern, also known as n-tier architecture, is a common framework in software development that organizes a system into distinct layers with specific roles and responsibilities. The primary advantage of this pattern is its Separation of Concerns (SoC), which means each layer is independent and can be understood without the others2. This separation enhances flexibility because changes in one layer can be made with minimal impact on others, allowing for easier maintenance and scalability12.

While creating high-performance systems (B) and being able to use application servers © are also considerations in system architecture, they are not the main benefits attributed to the layered pattern. The layered architecture is more about managing complexity and promoting modularity rather than directly enhancing performance or dictating the use of specific technologies like application servers34.

References:

• Baeldung on Computer Science article on Layered Architecture1.
• O’Reilly’s Software Architect’s Handbook on Advantages of Layered Architectures2.
• Bitloops documentation on Layered Architecture3.
• Developn article on Software Architecture Patterns

Designing effective interfaces is critical in software architecture, ensuring that they are both usable and robust. The characteristics that generally make interfaces more desirable include:

• A: Easy to extend - An interface should be designed such that it can be extended without breaking existing implementations. This characteristic is important for maintaining backward compatibility while allowing for future growth and changes in requirements.
• C: Clear descriptions of assertions and prerequisites - Interfaces should clearly specify what is required of the caller (prerequisites) and what the interface guarantees in return (assertions). This clarity is vital for ensuring that the interface is used correctly.
• G: Hard to misuse - An interface should be designed in such a way that there is little room for incorrect usage by the client. This involves making the interface intuitive and minimizing the potential for errors, which improves the robustness and reliability of the software system.

These characteristics help in creating interfaces that are not only functional but also robust, maintainable, and adaptable to future needs, aligning with best practices in software architecture.

The techniques best suited to illustrate the interaction of runtime building blocks are:A. Activity diagrams - Useful for showing the flow of control among various activities and decisions in the system.B. Sequence diagrams - Ideal for depicting the order of messages exchanged between components or objects in a specific scenario.C. State diagram - Shows how a component or an object changes its state in response to events, highlighting dynamic behavior.G. Depiction of screen flows (sequence of user interactions) - Useful for visualizing the sequence of user interactions with the system, which is critical for user-centric design and runtime behavior analysis.

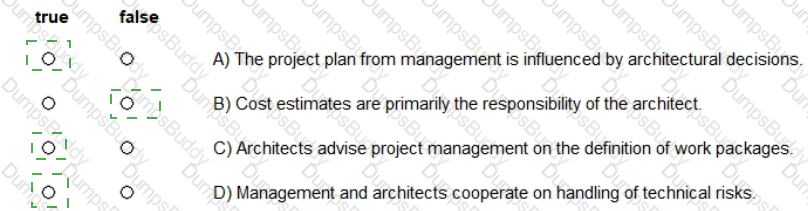

A) TrueB) FalseC) TrueD) True

A) The project plan from management is influenced by architectural decisions.

• True. Architectural decisions often have significant implications on the project plan, including timelines, resource allocation, and technical approaches1.

B) Cost estimates are primarily the responsibility of the architect.

• False. While architects may contribute to cost estimates, especially regarding design-related expenses, it is typically the management’s responsibility to oversee and finalize cost estimates for the entire project2.

C) Architects advise project management on the definition of work packages.

• True. Architects play a crucial role in defining work packages, particularly in ensuring that the technical aspects of the project are accurately captured and planned for1.

D) Management and architects cooperate on handling of technical risks.

• True. Both management and architects need to work closely to identify, assess, and manage technical risks throughout the project2.

A) FalseB) TrueC) TrueD) False

A) Architectural objectives and project objectives need to be identical.

• This is false. Architectural objectives are concerned with the technical goals and quality attributes of the system, while project objectives are broader and include timelines, budgets, and overall project deliverables12.

B) Most of the time, architectural objectives are of a more long-term nature than project objectives.

• This is true. Architectural objectives often focus on the sustainability and maintainability of the system, which are long-term considerations, whereas project objectives may be more immediate and focused on the project’s completion12.

C) Architectural objectives and project objectives need to be negotiated between the concerned parties.

• True. Both sets of objectives should align with the stakeholders’ needs and the project’s overall goals, and thus require negotiation to ensure that all parties’ interests are addressed3.

D) Architectural objectives are a subset of project objectives.

• This is false. Architectural objectives are not necessarily a subset but are related and should support the project objectives. They deal specifically with the architecture of the system, which is one aspect of the project

The principles that apply to testing include:A. In general, exhaustive testing is not possible. - It is widely recognized in software testing that it is not feasible to test every possible input or state of a software application due to the vast number of variations and combinations, especially in complex systems.B. Where many errors exist, more errors are usually hidden. - This principle, often referred to as the pesticide paradox in software testing, suggests that discovering numerous bugs in a specific area of the software often indicates the presence of additional, less obvious bugs.

The most accurate statements about quality characteristics are:B. Increased flexibility improves robustness - Flexibility in design allows the system to handle and recover from errors and unexpected inputs more robustly.C. Simplicity increases comprehensibility - A simpler design is easier to understand, maintain, and less prone to errors, directly impacting the comprehensibility of the software.
