AZ-800 Administering Windows Server Hybrid Core Infrastructure Questions and Answers

To deploy a new primary DNS zone named fabrikam.com to DC1 and sign the zone, you can follow these steps:

Step 1: Create the Primary DNS Zone Use the Add-DnsServerPrimaryZone PowerShell command to create the primary zone:

Add-DnsServerPrimaryZone -Name "fabrikam.com" -ZoneFile "fabrikam.com.dns" -DynamicUpdate Secure

This command creates a primary zone for fabrikam.com with a DNS file named fabrikam.com.dns and allows secure dynamic updates.

Step 2: Sign the Zone To sign the zone, you can use the DNS Manager or Windows PowerShell. Here’s how to sign the zone using PowerShell:

Add-DnsServerSigningKey -ZoneName "fabrikam.com" -Type KeySigningKey -CryptoAlgorithm RsaSha256

Set-DnsServerDnsSecZoneSetting -ZoneName "fabrikam.com" -DenialOfExistence NSEC3 -NSEC3Parameters 1,0,10,""

These commands add a signing key to the zone and set DNSSEC settings with NSEC3 parameters.

Step 3: Publish the Signed Zone After signing the zone, ensure that it is published and available for DNS queries. You can verify the zone signing status using the following command:

Get-DnsServerZone -Name "fabrikam.com"

Note: Ensure that you have the appropriate permissions to perform these actions on DC1 and that the DNS Server role is installed and properly configured. Also, replace "fabrikam.com.dns" with the actual path to your DNS file if it’s different12.

By following these steps, you should be able to deploy and sign the new primary DNS zone fabrikam.com on DC1.

One possible solution to ensure that the Azure file share named share1 can sync to on-premises servers is to use Azure File Sync. Azure File Sync allows you to centralize your file shares in Azure Files without giving up the flexibility, performance, and compatibility of an on-premises file server. It does this by transforming your Windows Servers into a quick cache of your Azure file share. You can use any protocol available on Windows Server to access your data locally (including SMB, NFS, and FTPS) and you can have as many caches as you need across the world1.

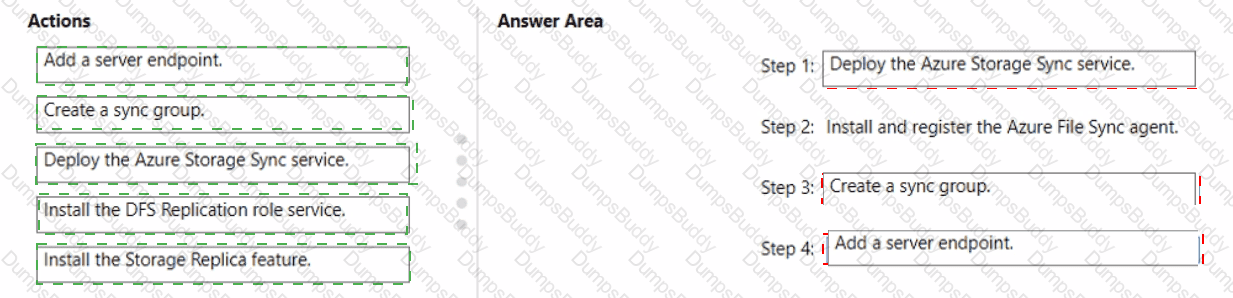

Here are the steps to configure Azure File Sync for the Azure file share named share1 and the source files located in a folder named \dc1.contoso.com\install:

On the Azure portal, create a Storage Sync Service in the same region as your storage account that contains the Azure file share named share1. For more information on how to create a Storage Sync Service, see How to deploy Azure File Sync.

On the on-premises server that hosts the folder named \dc1.contoso.com\install, install the Azure File Sync agent. For more information on how to install the Azure File Sync agent, see Install the Azure File Sync agent.

On the on-premises server, register the server with the Storage Sync Service that you created in the first step. For more information on how to register a server with a Storage Sync Service, see Register/unregister a server with Storage Sync Service.

On the Azure portal, create a sync group that defines the sync topology for a set of files. In the sync group, select the Azure file share named share1 as the cloud endpoint and the folder named \dc1.contoso.com\install as the server endpoint. For more information on how to create a sync group, see Create a sync group and a cloud endpoint and Create a server endpoint.

Wait for the initial sync to complete. You can monitor the sync progress on the Azure portal or on the on-premises server. For more information on how to monitor sync progress, see [Monitor sync progress].

Once the initial sync is complete, you can add more on-premises servers to the same sync group to sync and cache the content locally. You can also enable cloud tiering to optimize the storage space on the on-premises servers by tiering infrequently accessed or older files to Azure Files.

One possible solution to ensure that all DHCP clients that get an IP address from SRV1 will be configured to use DC1 as a DNS server is to use the DHCP scope options. DHCP scope options are settings that apply to all DHCP clients that obtain an IP address from a specific scope. You can use the DHCP scope options to specify the DNS server IP address, as well as other parameters such as the default gateway, the domain name, and the DNS suffix. Here are the steps to configure the DHCP scope options on SRV1:

On SRV1, open DNS Manager from the Administrative Tools menu or by typing dnsmgmt.msc in the Run box.

In the left pane, expand your DHCP server and click on IPv4.

In the right pane, right-click on the scope that you want to configure and select Properties.

In the Scope Properties dialog box, click on the DNS tab.

Check the box Enable DNS dynamic updates according to the settings below. This option allows the DHCP server to register and update the DNS records for the DHCP clients.

Select the option Always dynamically update DNS records. This option ensures that the DHCP server updates both the A and PTR records for the DHCP clients, regardless of whether they request or support dynamic updates.

Check the box Discard A and PTR records when lease is deleted. This option allows the DHCP server to delete the DNS records for the DHCP clients when their leases expire or are released.

Check the box Dynamically update DNS records for DHCP clients that do not request updates. This option allows the DHCP server to update the DNS records for the DHCP clients that do not support dynamic updates, such as legacy or non-Windows clients.

In the DNS servers section, click on the Add button to add a new DNS server IP address.

In the Add Server dialog box, enter the IP address of DC1, which is the DNS server that you want to use for the DHCP clients, and click Add.

Click OK to close the Add Server dialog box and return to the Scope Properties dialog box.

Click OK to apply the changes and close the Scope Properties dialog box.

Now, all DHCP clients that get an IP address from SRV1 will be configured to use DC1 as a DNS server. You can verify the DNS configuration by using the ipconfig /all command on a DHCP client computer and checking the DNS Servers entry. You can also check the DNS records for the DHCP clients by using the DNS Manager console on DC1.

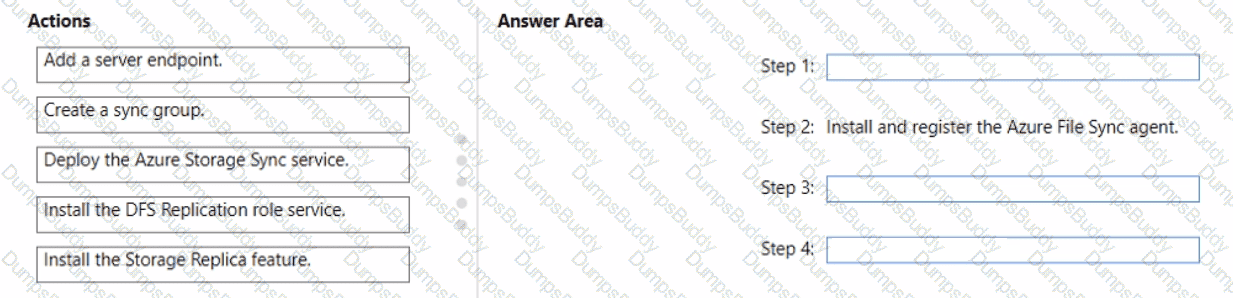

To use Azure File Sync to replicate the contents of C:\app on SRV1 to an Azure file share named sharel1, with the source files located in \\dc1.contoso.com\install, follow these steps:

Step 1: Prepare Windows Server for Azure File Sync Ensure that SRV1 meets the prerequisites for Azure File Sync, such as having a supported version of Windows Server and PowerShell 5.1 or later1.

Step 2: Deploy the Storage Sync Service In the Azure portal, deploy the Storage Sync Service in the same region as your Azure file share1.

Step 3: Create an Azure File Share Create an Azure file share named sharel1 in your storage account1.

Step 4: Install the Azure File Sync Agent Download and install the Azure File Sync agent on SRV11.

Step 5: Register SRV1 with the Storage Sync Service After installing the agent, register SRV1 with the Storage Sync Service using the Azure portal1.

Step 6: Create a Sync Group and Server Endpoint In the Azure portal, go to your Storage Sync Service and create a new sync group. Add a server endpoint with the path C:\app on SRV12.

Step 7: Configure Cloud Endpoint Add the Azure file share sharel1 as the cloud endpoint to the sync group2.

Step 8: Initiate the Sync Process The initial sync will start automatically after the cloud endpoint and server endpoint are added to the sync group. Ensure that the Azure File Sync agent is running on SRV11.

Step 9: Monitor the Sync Status Monitor the sync status in the Azure portal to ensure that the files are being replicated correctly from C:\app on SRV1 to the Azure file share sharel11.

Note: Make sure that the network connectivity between SRV1 and the Azure file share is established and that the necessary ports are open. Also, verify that the SMB security settings allow for the required SMB protocol version and authentication methods1.

By following these steps, you should be able to replicate the contents of C:\app on SRV1 to the Azure file share sharel1 using Azure File Sync. Ensure that you have the necessary permissions to perform these actions and that SRV1 is properly configured to communicate with Azure services.

One possible solution to monitor the security configuration of DC1 by using Microsoft Defender for Cloud is to use the Guest Configuration feature. Guest Configuration is a service that audits settings inside Linux and Windows virtual machines (VMs) to assess their compliance with your organization’s security policies. You can use Guest Configuration to monitor the security baseline settings for Windows Server in the Microsoft Defender for Cloud portal by following these steps:

On DC1, open a web browser and go to the folder named \dc1.contoso.com\install. Download the Guest Configuration extension file (GuestConfiguration.msi) and save it to a local folder, such as C:\Temp.

Run the Guest Configuration extension file and follow the installation wizard. You can choose to install the extension for all users or only for the current user. For more information on how to install the Guest Configuration extension, see Install the Guest Configuration extension.

After the installation is complete, sign in to the Microsoft Defender for Cloud portal (2).

In the left pane, select Security Center and then Recommendations.

In the recommendations list, find and select Vulnerabilities in security configuration on your Windows machines should be remediated (powered by Guest Configuration).

In the Remediate Security Configurations page, you can see the compliance status of your Windows VMs, including DC1, based on the Azure Compute Benchmark. The Azure Compute Benchmark is a set of rules that define the desired configuration state of your VMs. You can also see the number of failed, passed, and skipped rules for each VM. For more information on the Azure Compute Benchmark, see Microsoft cloud security benchmark: Azure compute benchmark is now available.

To view the details of the security configuration of DC1, click on the VM name and then select View details. You can see the list of rules that apply to DC1 and their compliance status. You can also see the severity, description, and remediation steps for each rule. For example, you can see if DC1 has the latest security updates installed, if the firewall is enabled, if the password policy is enforced, and so on.

To monitor the security configuration of DC1 over time, you can use the Compliance over time chart, which shows the trend of compliance status for DC1 in the past 30 days. You can also use the Compliance breakdown chart, which shows the distribution of compliance status for DC1 by rule severity.

By using Guest Configuration, you can monitor the security configuration of DC1 by using Microsoft Defender for Cloud and ensure that it meets your organization’s security standards. You can also use Guest Configuration to monitor the security configuration of other Windows and Linux VMs in your Azure environment.

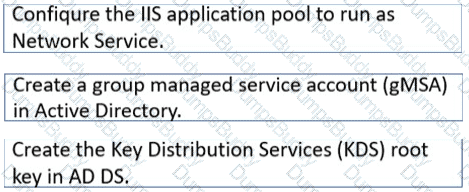

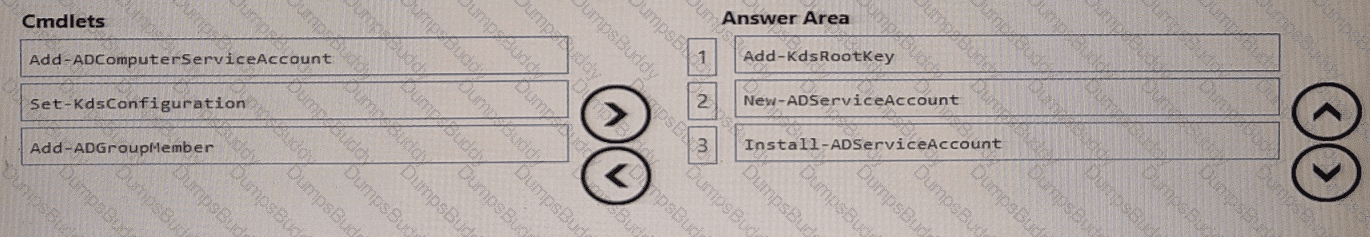

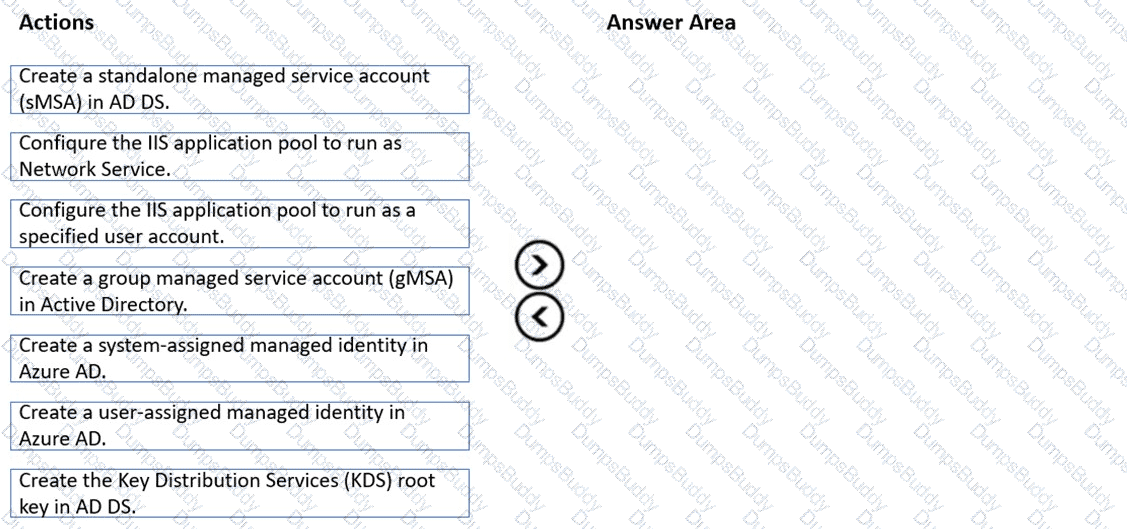

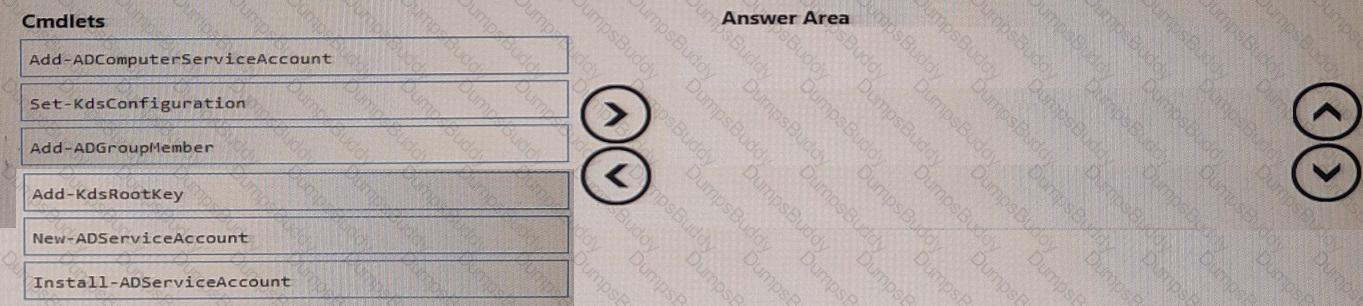

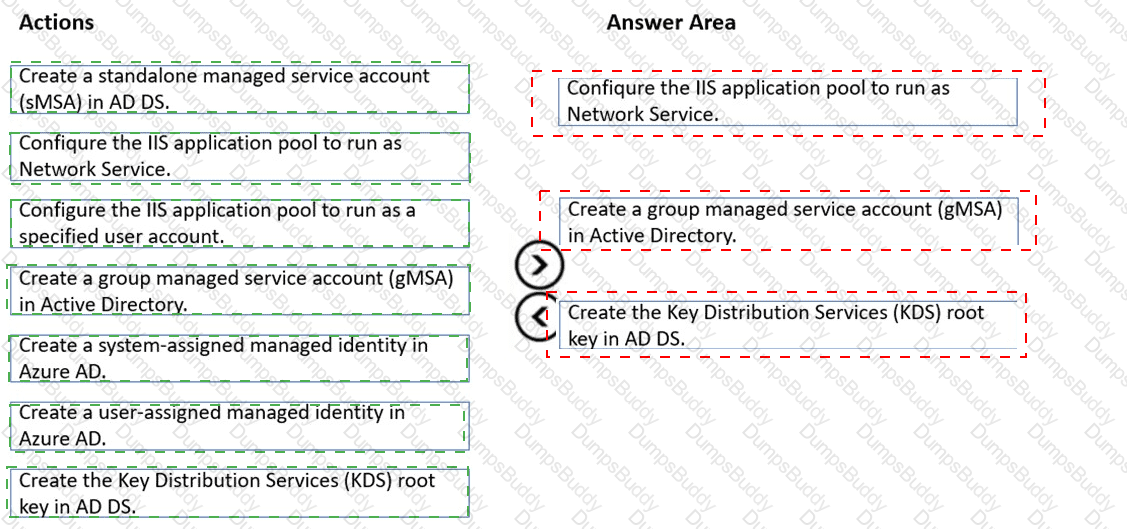

To configure the domain to support the creation of gMSAs, you need to perform the following steps:

On a domain controller or a computer that has the Remote Server Administration Tools (RSAT) installed, open PowerShell as an administrator and run the following command to install the Active Directory module:

Install-WindowsFeature -Name RSAT-AD-PowerShell

Run the following command to create a Key Distribution Service (KDS) root key, which is required for generating passwords for gMSAs. You only need to do this once per domain:

Add-KdsRootKey -EffectiveImmediately

Wait for at least 10 hours for the KDS root key to replicate to all domain controllers in the domain. Alternatively, you can use the -EffectiveTime parameter to specify a past date and time for the KDS root key, but this is not recommended for security reasons. For more information, see Add-KdsRootKey.

After the KDS root key is replicated, you can create and configure gMSAs using the New-ADServiceAccount and Set-ADServiceAccount cmdlets. For more information, see Create a gMSA and Configure a gMSA.

One possible solution to prevent domain users from saving executable files in a share named \SRVl\Data is to use file screening on the file server. File screening allows you to block certain files from being saved based on their file name extension. Here are the steps to configure file screening:

On the file server, open File Server Resource Manager from the Administrative Tools menu.

In the left pane, expand File Screening Management and click on File Groups.

Right-click on File Groups and select Create File Group.

In the File Group Properties dialog box, enter a name for the file group, such as Executable Files.

In the Files to include box, enter the file name extensions that you want to block, such as .exe, .bat, .cmd, .com, .msi, .scr. You can use wildcards to specify multiple extensions, such as *.exe.

Click OK to create the file group.

In the left pane, click on File Screen Templates.

Right-click on File Screen Templates and select Create File Screen Template.

In the File Screen Template Properties dialog box, enter a name for the template, such as Block Executable Files.

On the Settings tab, select the option Active screening: Do not allow users to save unauthorized files.

On the File Groups tab, check the box next to the file group that you created, such as Executable Files.

On the Notification tab, you can configure how to notify users and administrators when a file screening event occurs, such as sending an email, logging an event, or running a command or script. You can also customize the message that users see when they try to save a blocked file.

Click OK to create the file screen template.

In the left pane, click on File Screens.

Right-click on File Screens and select Create File Screen.

In the Create File Screen dialog box, enter the path of the folder that you want to apply the file screening to, such as \SRVl\Data.

Select the option Derive properties from this file screen template (recommended) and choose the template that you created, such as Block Executable Files.

Click Create to create the file screen.

Now, domain users will not be able to save executable files in the share named \SRVl\Data. They will be able to save other files to the share.

To ensure that all computers in the domain use DNSSEC to resolve names in the adatum.com zone, you’ll need to configure both the DNS servers and the client computers. Here’s how you can do it:

Step 1: Sign the adatum.com Zone First, you need to sign the adatum.com DNS zone. This can be done using the DNS Manager or PowerShell. Here’s a PowerShell example:

Add-DnsServerSigningKey -ZoneName "adatum.com" -CryptoAlgorithm RsaSha256

Set-DnsServerDnsSecZoneSetting -ZoneName "adatum.com" -DenialOfExistence NSEC3 -NSEC3Parameters 1,0,10,""

This will add a signing key and configure DNSSEC for the zone with NSEC3 parameters.

Step 2: Configure DNS Servers Ensure that your DNS servers are configured to support DNSSEC. This includes setting up trust anchors for the zones that you want to validate and configuring the DNS servers to provide DNSSEC validation for DNS queries.

Step 3: Configure DNS Clients For DNSSEC validation to occur on the client side, the client computers must be configured to trust the DNS server’s validation process. This typically involves configuring the client’s DNS settings to point to a DNS server that supports DNSSEC.

Step 4: Validate Configuration You can validate that DNSSEC is working correctly by using tools like nslookup or dig to query DNS records and check for the presence of DNSSEC signatures in the responses.

Note: The exact steps may vary depending on your environment and the version of Windows Server you are using. Ensure that you have the appropriate administrative rights to make these changes and that you test the configuration in a controlled environment before deploying it domain-wide12.

By following these steps, you should be able to ensure that all computers in your domain use DNSSEC to resolve names in the adatum.com zone.

One possible solution to configure SRV1 as a DNS server that can resolve names from the contoso.com domain by using DC1 and all other names by using the root hint servers is to use conditional forwarding. Conditional forwarding allows a DNS server to forward queries for a specific domain name to another DNS server, while using the normal forwarding or root hint servers for other queries. Here are the steps to configure conditional forwarding on SRV1:

On SRV1, open DNS Manager from the Administrative Tools menu or by typing dnsmgmt.msc in the Run box.

In the left pane, right-click on Conditional Forwarders and select New Conditional Forwarder.

In the New Conditional Forwarder dialog box, enter contoso.com as the DNS Domain name.

In the IP addresses of the master servers box, enter the IP address of DC1, which is the DNS server for the contoso.com domain. You can also click on Resolve to verify the name resolution of DC1.

Optionally, you can check the box Store this conditional forwarder in Active Directory, and replicate it as follows if you want to store and replicate the conditional forwarder in AD DS. You can also select the replication scope from the drop-down list.

Click OK to create the conditional forwarder.

Now, SRV1 will forward any queries for the contoso.com domain to DC1, and use the root hint servers for any other queries. You can test the name resolution by using the nslookup command on SRV1 or another computer that uses SRV1 as its DNS server. For example, you can run the following commands:

nslookup www.contoso.com

nslookup www.microsoft.com

The first command should return the IP address of www.contoso.com from DC1, and the second command should return the IP address of www.microsoft.com from a root hint server.

To map \\dd.contoso.com\instal1 as drive H for all users using Group Policy Preferences and ensure that the new drive mapping takes precedence over any existing mappings, follow these steps:

Step 1: Open Group Policy Management Console Open the Group Policy Management Console (GPMC) on a machine that has administrative privileges over the domain.

Step 2: Create or Edit a GPO Create a new Group Policy Object (GPO) or edit an existing one that applies to the users who need the drive mapping.

Step 3: Navigate to Drive Mappings In the GPO Editor, navigate to:

User Configuration -> Preferences -> Windows Settings -> Drive Maps

Step 4: New Drive Mapping Right-click on Drive Maps and select New -> Mapped Drive.

Step 5: Configure Drive Mapping In the New Drive Properties window, configure the following settings:

Action: Select Replace. This action will overwrite any existing mappings with the same drive letter.

Location: Enter the UNC path \\dd.contoso.com\instal1.

Drive Letter: Choose H: from the drop-down menu.

Reconnect: Check this option if you want the drive mapping to persist across logon sessions.

Label As: Optionally, provide a label for the drive mapping.

Hide/Show this drive: Set according to your preference.

Hide/Show all drives: Set according to your preference.

Step 6: Common Tab Go to the Common tab and configure the following:

Run in logged-on user’s security context (user policy option): Check this option.

Item-level targeting: Click on Targeting and set up any specific criteria if needed.

Step 7: Apply the GPO Click Apply and then OK to save the drive mapping configuration.

Step 8: Link the GPO Link the GPO to an Organizational Unit (OU) or domain that contains the users who should receive the drive mapping.

Step 9: Update Group Policy Instruct users to log off and log back on, or use the gpupdate /force command to refresh Group Policy on their computers.

To create a GPO named GPO1 that only applies to a group named MemberServers, you can follow these steps:

On a domain controller or a computer that has the Remote Server Administration Tools (RSAT) installed, open Group Policy Management from the Administrative Tools menu or by typing gpmc.msc in the Run box.

In the left pane, expand your domain and right-click on Group Policy Objects. Select New to create a new GPO.

In the New GPO dialog box, enter GPO1 as the Name of the new GPO and click OK. You can also optionally select a source GPO to copy the settings from.

Right-click on the new GPO and select Edit to open the Group Policy Management Editor. Here, you can configure the settings that you want to apply to the group under the Computer Configuration and User Configuration nodes. For more information on how to edit a GPO, see Edit a Group Policy Object.

Close the Group Policy Management Editor and return to the Group Policy Management console. Right-click on the new GPO and select Scope. Here, you can specify the scope of management for the GPO, such as the links, security filtering, and WMI filtering.

Under the Security Filtering section, click on Authenticated Users and then click on Remove. This will remove the default permission granted to all authenticated users and computers to apply the GPO.

Click on Add and then type the name of the group that you want to apply the GPO to, such as MemberServers. Click OK to add the group to the security filter. You can also click on Advanced to browse the list of groups available in the domain.

Optionally, you can also configure the WMI Filtering section to further filter the GPO based on the Windows Management Instrumentation (WMI) queries. For more information on how to use WMI filtering, see Filter the scope of a GPO by using WMI filters.

To link the GPO to an organizational unit (OU) or a domain, right-click on the OU or the domain in the left pane and select Link an Existing GPO. Select the GPO that you created, such as GPO1, and click OK. You can also change the order of preference by using the Move Up and Move Down buttons.

Wait for the changes to replicate to other domain controllers. You can also force the update of the GPO by using the gpupdate /force command on the domain controller or the client computers. For more information on how to update a GPO, see Update a Group Policy Object.

Now, you have created a GPO named GPO1 that only applies to a group named MemberServers. You can verify the GPO application by using the gpresult /r command on a member server and checking the Applied Group Policy Objects entry. You can also use the Group Policy Results wizard in the Group Policy Management console to generate a report of the GPO application for a specific computer or user. For more information on how to use the Group Policy Results wizard, see Use the Group Policy Results Wizard.

To collect the recommended Windows Performance Counters from SRV1 in a Log Analytics workspace, you can follow these steps:

Step 1: Access the Log Analytics Workspace Log in to the Azure portal and navigate to your Log Analytics workspace.

Step 2: Configure Performance Counters In the Log Analytics workspace, select Advanced settings and then choose Data > Windows Performance Counters1. You can add the recommended performance counters by selecting the + button. If you’re using legacy agent management, you can add counters from the Legacy agents management menu2.

Step 3: Add Performance Counters Select the counters you want to collect. You can add common counters quickly by checking the boxes next to them. For specific counters, enter the name of the counter in the format object(instance)\counter. For example, to collect the Processor Time counter for all instances of the Processor object, specify Processor(_Total)\% Processor Time.

Step 4: Set Sample Interval When adding a counter, you can set the sample interval, which is the frequency at which data is collected. The default is 10 seconds, but you can change this to a higher value if needed.

Step 5: Apply Configuration After adding the desired performance counters, select Apply at the top of the screen to save the configuration.

Step 6: Install and Configure the Agent Ensure that the Microsoft Monitoring Agent (MMA) is installed on SRV1. Configure the agent to report to your Log Analytics workspace by specifying the workspace ID and key during setup.

Step 7: Verify Data Collection After the agent is configured, it will start collecting the specified performance counters. You can verify the data collection in the Log Analytics workspace by running queries against the collected data.

Note: The legacy Log Analytics agent will be deprecated by August 2024. Migrate to the Azure Monitor agent before this date to continue ingesting data3.

By following these steps, you should be able to collect the recommended Windows Performance Counters from SRV1 in your Log Analytics workspace. Ensure that you have the necessary permissions and that SRV1 has network connectivity to Azure services.

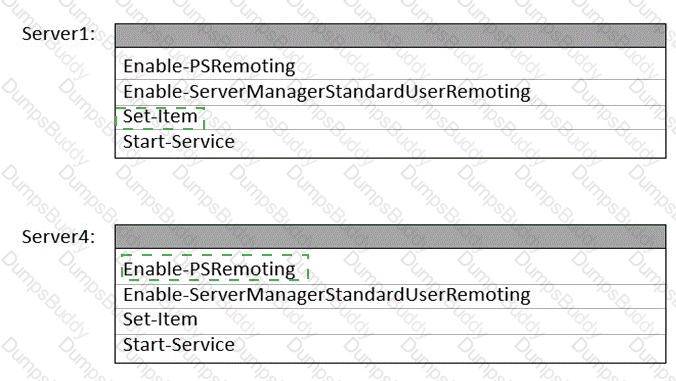

To manage SRV1 remotely using PowerShell, you’ll need to set up PowerShell Remoting. Here’s a step-by-step guide:

Step 1: Enable PowerShell Remoting on SRV1 On SRV1, run the following command to enable PowerShell Remoting:

Enable-PSRemoting -Force

This command configures the computer to receive PowerShell remote commands that are sent by using the WS-Management technology.

Step 2: Configure the TrustedHosts List (If Needed) If you’re managing SRV1 from a computer that is not part of the same domain, you’ll need to add the managing computer’s name to the TrustedHosts list on SRV1:

Set-Item wsman:\localhost\Client\TrustedHosts -Value "ManagingComputerName" -Concatenate -Force

Replace “ManagingComputerName” with the name of your managing computer.

Step 3: Start a Remote Session From your managing computer, start a remote session with SRV1 using the Enter-PSSession cmdlet:

Enter-PSSession -ComputerName SRV1 -Credential (Get-Credential)

This command prompts you for credentials and then starts a remote session with SRV1.

Step 4: Run Remote Commands Once the remote session is established, you can run any PowerShell command as if you were directly on SRV1. For example:

Get-Service

This command gets the status of services on SRV1.

Step 5: Exit the Remote Session When you’re finished, exit the remote session:

Exit-PSSession

Note: Ensure that both the managing computer and SRV1 are properly configured to communicate over the network, and that any firewalls allow for the necessary ports (default is 5985 for HTTP and 5986 for HTTPS) to be open for WS-Management traffic12.

By following these steps, you should be able to manage SRV1 remotely using PowerShell. Make sure you have the appropriate administrative privileges to perform these actions.

To run a container on SRV1 using the mcrmicrosoft.com/windows/servercofe/iis image, publish port 80 on the container to port 5001 on SRV1, and ensure it runs in the background, you can follow these steps:

Step 1: Pull the IIS Image First, pull the correct IIS image from the Microsoft Container Registry:

docker pull mcr.microsoft.com/windows/servercore/iis

Step 2: Run the Container Next, run the container with the required port mapping and ensure it runs in the background using the -d flag:

docker run -d -p 5001:80 --name iis_container mcr.microsoft.com/windows/servercore/iis

This command will start a container named iis_container using the IIS image, map port 80 inside the container to port 5001 on SRV1, and run the container in detached mode.

Step 3: Verify the Container is Running To verify that the container is running and the port is published, use the following command:

docker ps

This will list all running containers and show the port mappings.

Step 4: Access the IIS Server You can now access the IIS server running in the container by navigating to http:// :5001 in a web browser, where is the IP address of SRV1.

Note: Ensure that Docker is installed on SRV1 and that the port 5001 is open on the firewall to allow incoming connections1.

By following these steps, you should be able to run the IIS container on SRV1 with the specified port mapping and have it running in the background. Please replace mcrmicrosoft.com/windows/servercofe/iis with the correct image name mcr.microsoft.com/windows/servercore/iis as shown in the commands above.

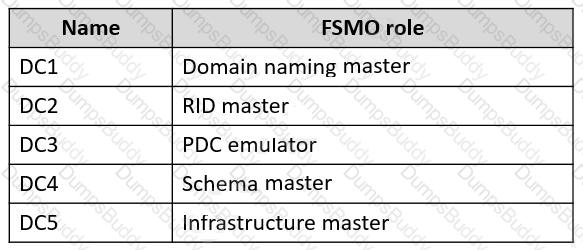

Membership in the Enterprise Admins group or the Domain Admins group in the forest root domain is required.
