AZ-720 Troubleshooting Microsoft Azure Connectivity Questions and Answers

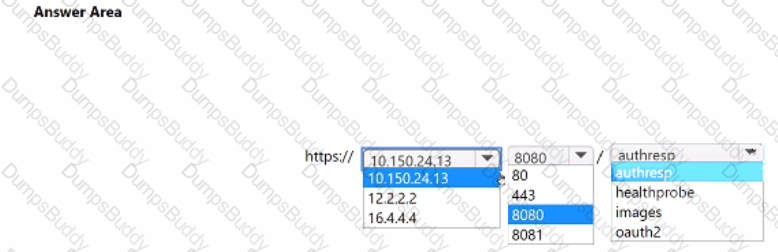

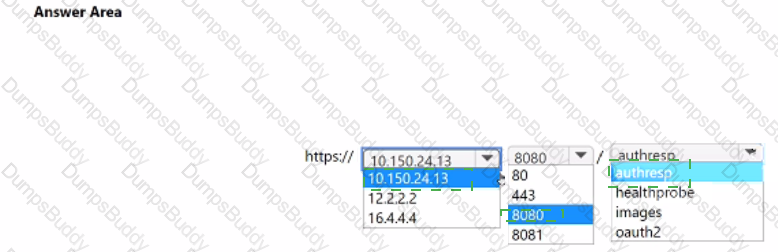

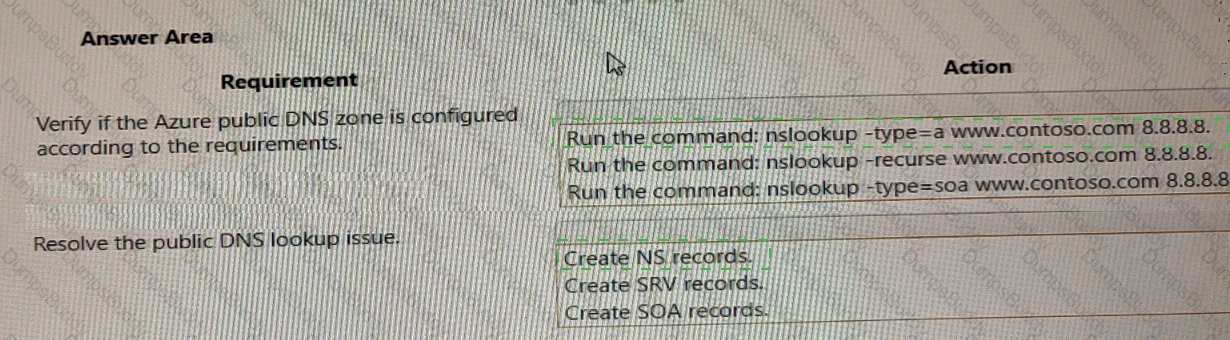

BOX 1: Run the command: nslookup -type=a www.contoso.com 8.8.8.8

nslookup is a command-line tool that queries DNS servers for information about domain names and IP addresses. It can be used to troubleshoot DNS issues and verify DNS configurations1.

The -type option specifies the type of DNS record to query. The -type=a option queries for A records, which map domain names to IPv4 addresses1. The www.contoso.com argument specifies the domain name to query. The 8.8.8.8 argument specifies the DNS server to use for the query, which is a public DNS server provided by Google 2.

By running this command, you can verify if the Azure Public DNS zone is configured according to the requirements by checking if the A record for www.contoso.com matches the expected IPv4 address. If the A record is missing or incorrect, you can use the Azure portal, PowerShell, or Azure CLI to create or update it in your DNS zone 3.

Box2: Create NS records

NS (Name Server) records are used to delegate a domain or subdomain name to a set of authoritative DNS servers, which can provide information about that domain. In this scenario, there appears to be an issue with resolving the domain in question via public DNS lookup since it's only resolving locally on one server and not across all networks. By creating NS records for the domain, authoritative nameservers will be identified and designated as responsible for providing accurate information about the specific zone. This will ensure your domain is properly distributed on various different network zones and help users globally reach your website without any delays or connectivity problems. Alternatively, SRV (Service locator) record is used when you have multiple servers offering similar services such as email or SIP but want to use a weight system indication greater trustworthiness/proximity of datacenters within providers dns infrastructure. And SOA (Start Of Authority) - indicates who in control ofthe DNS zone and provides other related information such as the serial number and default TTL values. Therefore, option A. Create NS records would be the best solution for resolving public DNS lookup issues in this scenario. References: - "NS record," Microsoft Docs, accessed March 27, 2023. [Online]. Available: https://docs.microsoft.com/en-us/windows-server/networking/dns/deploy/create-a-dns-record-for-domain-access#ns-record - "SRV record," Cloudflare Help Center, accessed March 27, 2023. [Online]. Available: https://support.cloudflare.com/hc/en-us/articles/216672888-SRV-Record-Setup - "SOA record," DigitalOcean Product Documentation, accessed March 27, 2023. [Online]. Available: https://www.digitalocean.com/community/tutorials/how-to-manage-dns-using-the-digitalocean-control-panel#start-of-authority-record

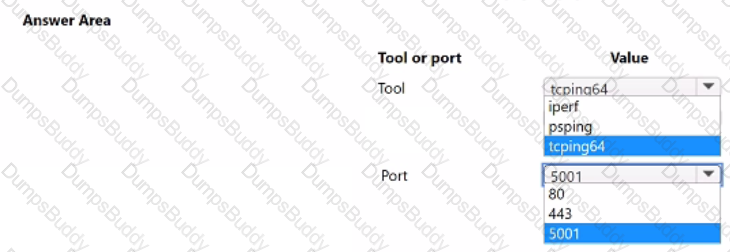

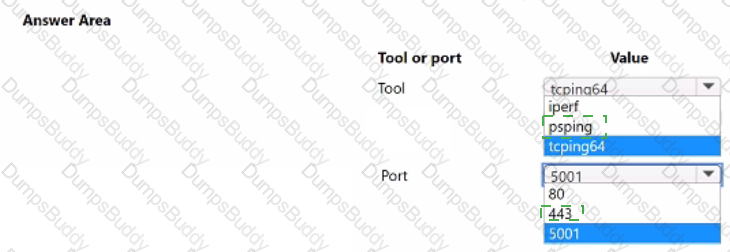

Tool: B. psping Port: B. 443

To troubleshoot the issues that scheduling agents report accessing Alpine Ski House resources, you need to test the network latency by using the psping tool and the port 443. The psping tool is a command-line utility that can measure network performance and connectivity by sending TCP or UDP packets to a target host and reporting the round-trip time (RTT) and other statistics. The port 443 is the default port for HTTPS, which is the protocol used by Alpine Ski House to secure their web traffic. By using the psping tool with the port 443, you can test the latency of the HTTPS connection from VM3 to Alpine Ski House and compare it with the expected latency. If the latency is higher than expected, it could indicate a network issue that affects the performance of accessing Alpine Ski House resources.

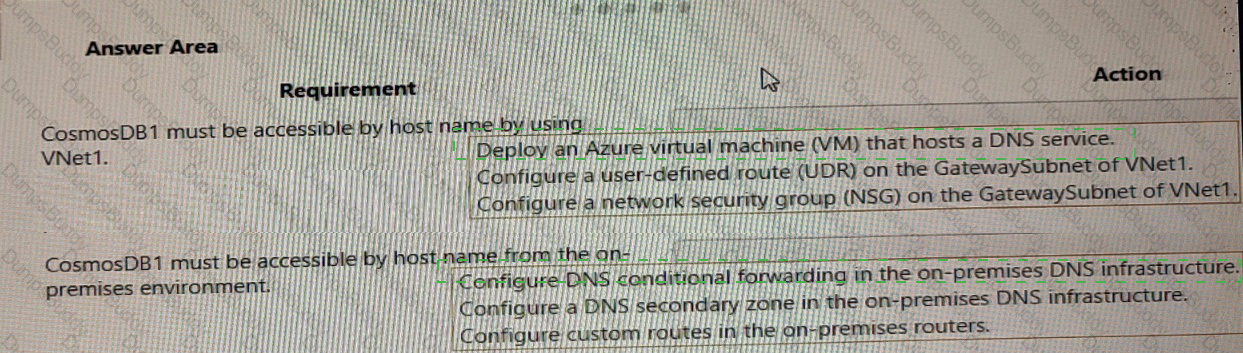

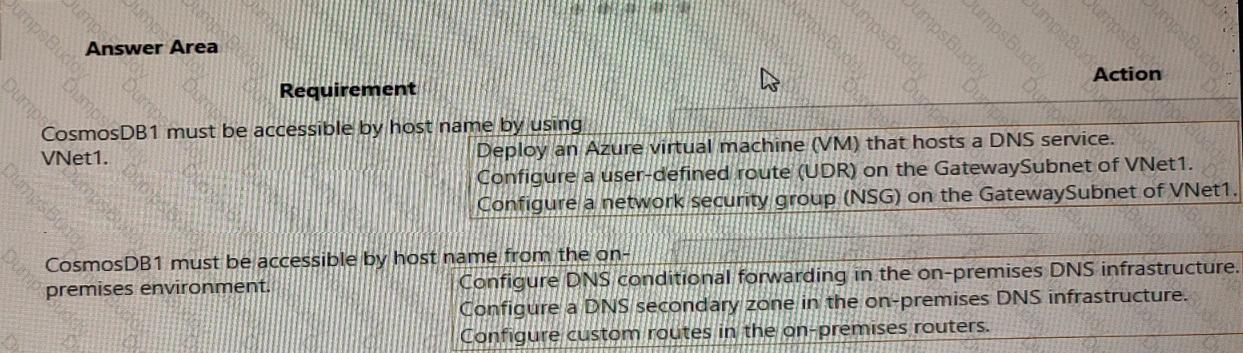

Box 1: Deploy an Azure virtual machine (VM) that hosts a DNS service.

In the given scenario, CosmosDB1 is an on-premises database, and you need to make it accessible by host name using VNet1. To achieve this, you should deploy an Azure virtual machine that hosts a DNS service. This will allow you to configure custom DNS settings for VNet1, enabling the resolution of the on-premises database's host name. Reference: https://docs.microsoft.com/en-us/azure/virtual-network/virtual-networks-name-resolution-for-vms-and-role-instances#name-resolution-that-uses-your-own-dns-server

Box 2: Configure DNS conditional forwarding in the on-premises DNS infrastructure.

In the given scenario, you need to resolve the connectivity issue with the on-premises database named CosmosDB1, and it must be accessible by hostname from the on-premises environment. To achieve this, you should configure DNS conditional forwarding in the on-premises DNS infrastructure. DNS conditional forwarding allows you to specify that DNS queries for a specific domain (in this case, the Azure Cosmos DB) are forwarded to a specific DNS server or set of servers. This ensures that the on-premises environment can resolve the hostname of CosmosDB1 by forwarding the DNS queries to the appropriate DNS server responsible for that domain. References: 1. https://docs.microsoft.com/en-us/previous-versions/windows/it-pro/windows-server-2003/cc782142(v=ws.10) 2. https://docs.microsoft.com/en-us/azure/private-link/private-endpoint-dns#on-premises-workloads-using-a-dns-forwarder

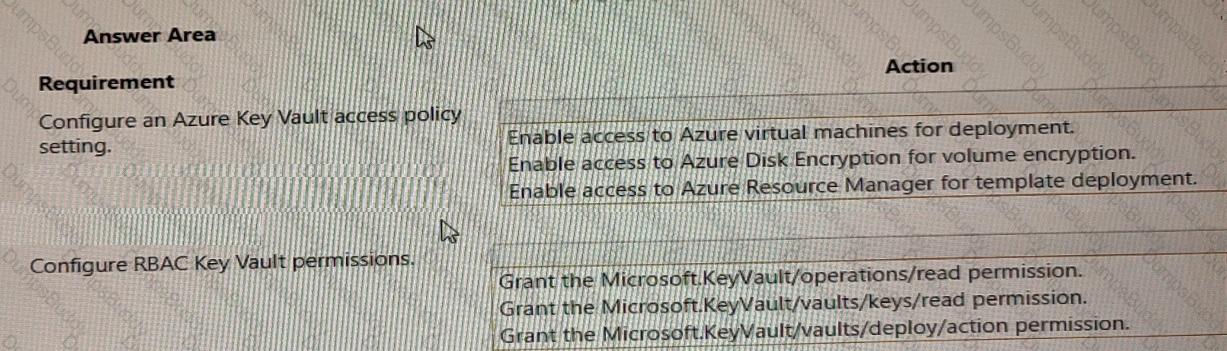

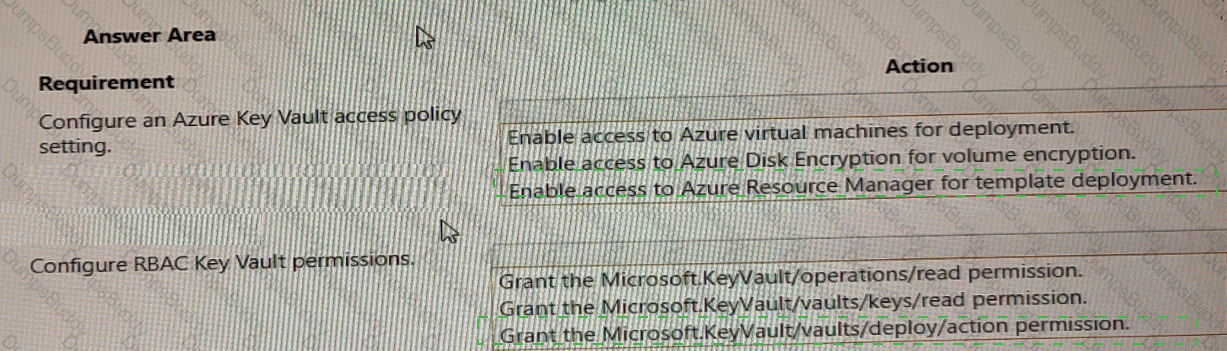

Box 1: Enable access to Azure Resource Manager for template deployment.

In the given scenario, you are trying to resolve Azure VM deployment issues. To configure an Azure Key Vault access policy setting for VM deployment, you need to enable access to Azure Resource Manager for template deployment. This will allow the VM deployment process to access the secrets and certificates stored in the Key Vault during the deployment of the VM using an ARM (Azure Resource Manager) template. Reference: - https://docs.microsoft.com/en-us/azure/key-vault/general/tutorial-net-create-vault-azure-web-app

BoX 2: Grant the Microsoft.KeyVault/vaults/deploy/action permission

 This is the permission that you should configure on an RBAC Key Vault role to resolve the Azure virtual machine (VM) deployment issues. This permission allows Azure Resource Manager to retrieve secrets from the key vault when deploying resources using an ARM template1. Therefore, option C is correct.

A detailed explanation with references is as follows:

As mentioned in the scenario, the Azure virtual machine (VM) deployment issues are caused by the inability of Azure Resource Manager to retrieve secrets from the key vault when deploying resources using an ARM template. To resolve this issue, you need to configure an RBAC Key Vault role that grants Azure Resource Manager the permission to access the key vault.

RBAC Key Vault roles are roles that can be assigned to users, groups, or applications to manage access to key vault secrets, keys, and certificates2. RBAC Key Vault roles are based on Azure role-based access control (Azure RBAC), which is an authorization system that provides fine-grained access management of Azure resources3. With Azure RBAC, you can control access to resources by creating role assignments, which consist of three elements3:

• The security principal: The user, group, or application that you want to grant or deny access to the resource.
• The role definition: The predefined or custom set of permissions that you want to grant or deny on the resource. For example, read, write, delete, backup, restore, etc.
• The scope: The level at which you want to apply the role assignment. For example, at the management group, subscription, resource group, or individual resource level.

To configure a role assignment that allows Azure Resource Manager to retrieve secrets from the key vault when deploying resources using an ARM template, you need to grant the Microsoft.KeyVault/vaults/deploy/action permission1. This is a special permission that grants Azure Resource Manager a limited permission to get secrets from the key vault during resource deployment1. This permission does not grant any other permissions to Azure Resource Manager on the key vault or its contents1.

To grant the Microsoft.KeyVault/vaults/deploy/action permission using the Azure portal, follow these steps1:

• In the Azure portal, navigate to the Key Vault resource.
• Select Access control (IAM), then select Add > Add role assignment.
• Under Role, select a built-in or custom role that includes the Microsoft.KeyVault/vaults/deploy/action permission. For example, you can select Key Vault Administrator or Key Vault Secrets User.
• Under Assign access to, select Azure AD user, group, or service principal.
• Under Select, enter Azure Resource Manager in the search field and select it.
• Select Save to create the role assignment.

To grant the Microsoft.KeyVault/vaults/deploy/action permission using the Azure CLI or PowerShell, see Grant permissions for template deployment.

the three actions that should be performed to minimize downtime for all services and resolve the connectivity issue are: C. Configure the pre-shared key to be the same on the Azure VPN gateway and the on-premises VPN gateways. D. Reset the VPN connection. E. Configure the hashing algorithm to be the same on both gateways.

To resolve the problem reported by User2, you need to assign an Azure AD Premium P1 license to User2. User2 is a member of the warehouse group, which is enabled for the self-service password reset (SSPR) feature. However, User2 cannot register for SSPR because they do not have a valid license that supports SSPR. To use SSPR, a user must have one of the following licenses: Azure AD Premium P1, Azure AD Premium P2, Enterprise Mobility + Security (EMS) E3 or EMS E5. By assigning an Azure AD Premium P1 license to User2, you can enable them to use the SSPR feature and reset their password without contacting the helpdesk

The error 8344 insufficient access rights to perform the operation indicates that the Azure AD Connect service account does not have the required permissions to synchronize the Admin1 account. This could be because the Admin1 account is in an organizational unit (OU) that has security inheritance disabled, which prevents the service account from inheriting the necessary permissions from the parent OU. To resolve this issue, you should enable security inheritance in AD DS for the OU that contains the Admin1 account. This will allow the service account to synchronize the Admin1 account to Azure AD. Alternatively, you could also grant the service account explicit permissions on the Admin1 account, but this would be more tedious and less scalable than enabling security inheritance.

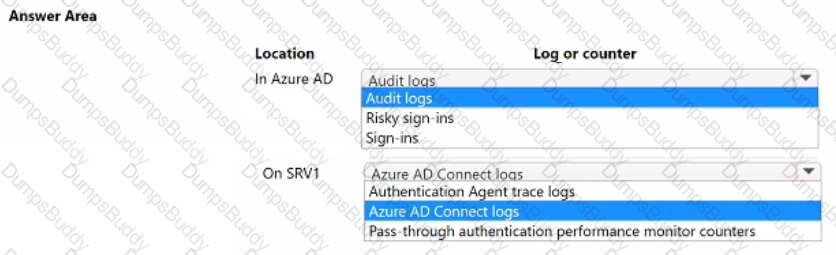

Audit Logs

Azure AD connect logs

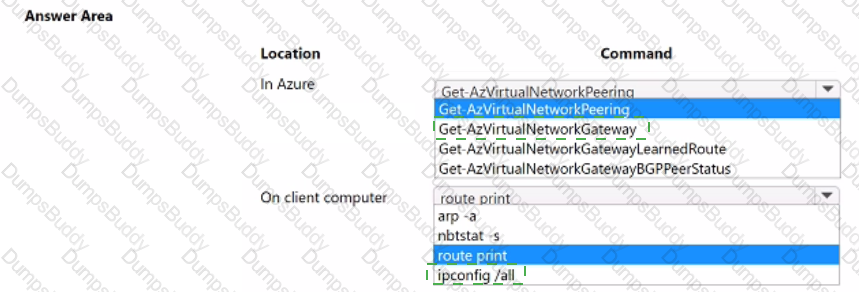

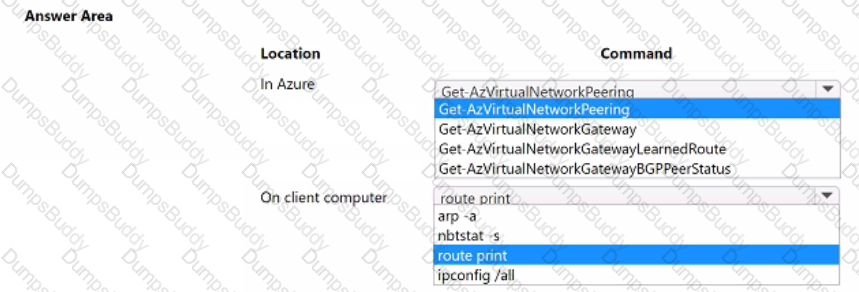

Location in Azure: B. Get-AzVirtualNetworkGateway

Location on Client Computer: D. ipconfig /all

To troubleshoot the issues reported by User1, you need to use the Get-AzVirtualNetworkGateway PowerShell cmdlet in Azure and the ipconfig /all command on the client computer. The Get-AzVirtualNetworkGateway cmdlet returns information about the virtual network gateways in a subscription or a resource group. You can use this cmdlet to verify the status and configuration of the VNetGW virtual network gateway, which provides point-to-site VPN connectivity for User1. The ipconfig /all command displays the IP configuration information for all network adapters on the client computer. You can use this command to check the IP address, subnet mask, default gateway, and DNS servers assigned to User1 when connected to the point-to-site VPN. This can help you identify any misconfiguration or connectivity issues that affect User1’s access to Azure resources.

To resolve the issue reported by Admin2, you need to disassociate NSG5 from NIC4, which is the network interface of VM4. NSG5 is a network security group that has an inbound security rule that denies traffic from ASG2 to ASG5 over port 80. This rule prevents Admin2 from connecting to the web server public IP address on VM4 from VM2, as VM2 is in ASG2 and VM4 is in ASG5. By disassociating NSG5 from NIC4, you can remove the rule that blocks the traffic and allow Admin2 to access the web server on VM4. Alternatively, you could also modify or remove the rule in NSG5, but disassociating NSG5 from NIC4 is simpler and more effective.

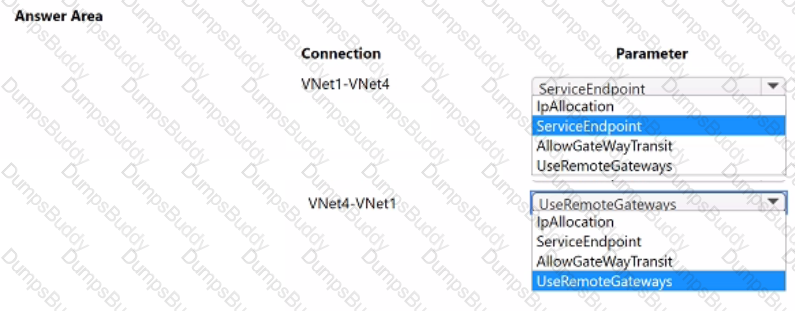

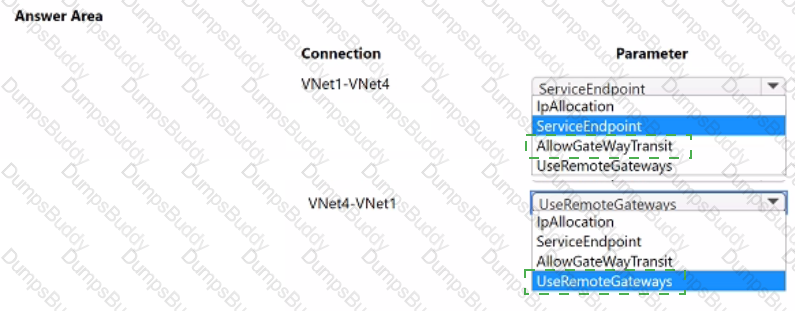

• Connection: VNet1-VNet4 Parameters are: AllowGatewayTransit: Enabled

• Connection: VNet4-VNet1 Parameters are: UseRemoteGateways: Enabled

To resolve the connectivity issues for VM1 to Contoso Suites, you need to configure the peering connections between VNet1 and VNet4 correctly. The peering connection from VNet1 to VNet4 should have the AllowGatewayTransit parameter enabled, which allows VNet1 to use the virtual network gateway in VNet4 as a transit point for traffic. The peering connection from VNet4 to VNet1 should have the UseRemoteGateways parameter enabled, which allows VNet4 to use the remote gateway in VNet1 for traffic destined to Contoso Suites. The IP Allocation parameter should be set to Dynamic for both peering connections, which allows Azure to assign IP addresses from the address space of the peered virtual network. The ServiceEndpoint parameter should be set to None for both peering connections, as there is no need to enable service endpoints for this scenario.

To troubleshoot the issue with SRV2, you need to run the Get-MsolServicePrincipalCredential PowerShell cmdlet, which returns the credentials that are associated with a service principal in Azure AD. The service principal is an identity that represents an application or a service that interacts with Azure AD. In this case, the service principal is used by the NPS extension for Azure AD MFA to communicate with Azure AD and perform MFA requests. The credentials of the service principal include a certificate and a key that are used to authenticate the service principal to Azure AD. If the credentials are expired or invalid, the MFA requests will fail with a security token error. To resolve this issue, you need to renew the credentials of the service principal by using the New-MsolServicePrincipalCredential cmdlet.

To resolve the issue with VM10, you need to remove the inbound security rule that has a priority of 100 in NSG10, which is blocking ICMP traffic from ASG1 to ASG10. The rule has a source of Any, a destination of VirtualNetwork, a protocol of ICMP, and an action of Deny. This means that any ICMP traffic from outside the VNet4 address space will be denied by NSG10, which is attached to subnet4. This prevents VM1 from pinging VM10 by using ICMP, as VM1 is in VNet1 and not in VNet4. By removing this rule, you can allow ICMP traffic from ASG1 to ASG10, as there is no other rule in NSG10 that explicitly denies it. Alternatively, you could also modify the rule to change the source to VirtualNetwork or the action to Allow, but removing the rule is simpler and more effective.

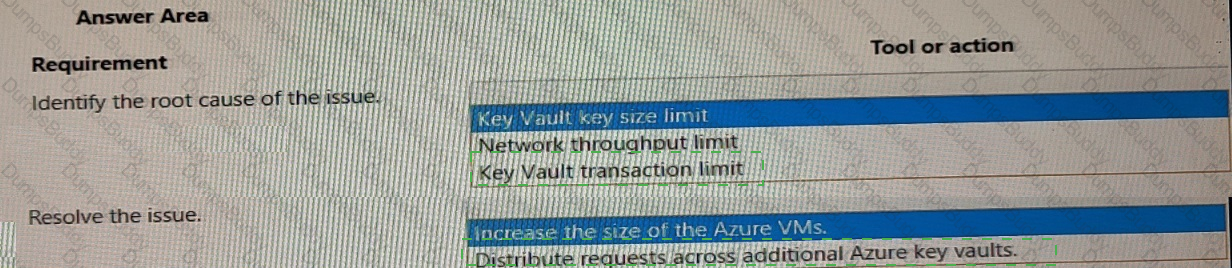

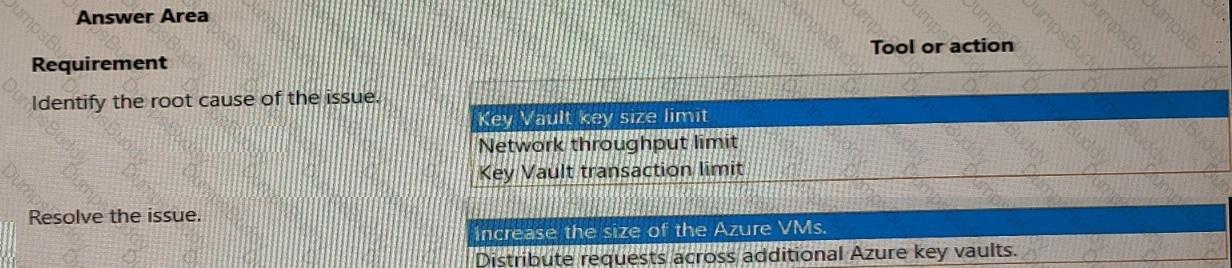

Box 1: Key Vault transaction limit.Based on the given scenario, the issue is related to the number of transactions per second (TPS) being throttled. The Azure Key Vault has a transaction limit, which varies depending on the service tier. In the provided images, the error message states that the request rate is too large, indicating that the transaction limit has been reached. To resolve this issue, you can either distribute the transactions over a longer period, implement a retry policy, or consider upgrading to a higher service tier if the current tier's transaction limit is insufficient for your needs. Reference: https://docs.microsoft.com/en-us/azure/key-vault/general/service-limits

Box : 2 Distribute requests across additional Azure Key vaults

In the provided scenario, the issue is that the Azure Key Vault is experiencing throttling due to too many requests per second. Throttling occurs when the number of requests exceeds the allowed limits for a given time period. To resolve this issue, you should distribute the requests across additional Azure Key Vaults. By doing so, you can balance the load and prevent exceeding the request limits, thus avoiding throttling. Reference: https://docs.microsoft.com/en-us/azure/key-vault/general/overview-throttling

This tool helps you troubleshoot network connectivity issues from a virtual machine to a given endpoint. It tests for reachability from the virtual machine to the endpoint and provides information about why a connection fails1. In this case, you can use this tool to troubleshoot the connectivity issues from the on-premises environment to CosmosDB1.

This will ensure that the route table RT12, which has a route to direct internet traffic to the virtual network gateway VNG1, is applied to the subnet where VM1 is located. This will override the default route that sends internet traffic to the internet gateway.

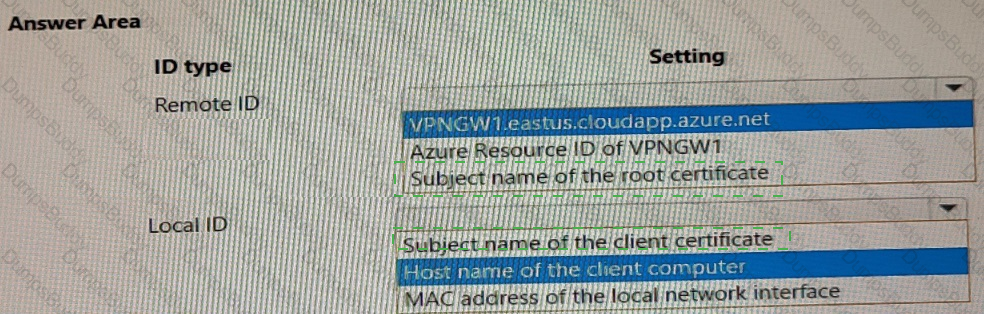

Box 1:  Subject name of the root certificate.

This is the value that should be configured as the system Remote ID for the VPN client on the sales department devices. The system Remote ID is used to identify the VPN server that the client is connecting to, and it must match the value that is configured on the VPN gateway in Azure. For Azure VPN Gateway, the system Remote ID is the subject name of the root certificate that is used for authentication1. Therefore, option C is correct.

A detailed explanation with references is as follows:

As mentioned in the scenario, the sales department devices are using Point-to-Site VPN connections to access Azure resources. A Point-to-Site VPN connection lets you create a secure connection to your virtual network from an individual client computer2. To configure a Point-to-Site VPN connection, you need to create a virtual network gateway of type VPN in Azure, and then install a VPN client on each device that needs to connect2. The VPN client configuration includes several settings, such as the VPN server address, the tunnel type, and the authentication method. One of these settings is the system Remote ID, which is used to identify the VPN server that the client is connecting to1. The system Remote ID must match the value that is configured on the VPN gateway in Azure, otherwise the connection will fail.

For Azure VPN Gateway, there are three authentication methods available for Point-to-Site VPN connections: certificate-based authentication, OpenVPN with Azure AD authentication, and OpenVPN with certificate-based authentication2. For certificate-based authentication, which is used in this scenario, the system Remote ID is the subject name of the root certificate that is used for authentication1. The root certificate is uploaded to Azure when creating a Point-to-Site VPN connection, and it must be installed on each device that needs to connect2. The subject name of the root certificate can be obtained by using PowerShell or OpenSSL commands1. For example, using PowerShell:

$cert = Get-ChildItem -Path Cert:\CurrentUser\My | Where-Object {$_.Subject -like “ContosoRootCert”} $cert.Subject

The output of this command will show the subject name of the root certificate that matches ContosoRootCert. This value should be configured as the system Remote ID for the VPN client on each device.

Box 2: Subject name of the client certificate

In the provided scenario, the sales department is using a VPN to connect to the corporate network, and the VPN server is configured to use certificate-based authentication. To troubleshoot the sales department issues, you should configure the system Local ID to use the subject name of the client certificate. The subject name of a client certificate uniquely identifies the client and is used during the certificate-based authentication process. This allows the VPN server to verify the client's identity and grant access to the corporate network.

This is the value that should be configured as the system Local ID for the VPN client on the sales department devices. The system Local ID is used to identify the VPN client that is connecting to the VPN server, and it must match the value that is configured on the VPN gateway in Azure. For Azure VPN Gateway, the system Local ID is the subject name of the client certificate that is used for authentication1. Therefore, option A is correct.

A detailed explanation with references is as follows:

As mentioned in the scenario, the sales department devices are using Point-to-Site VPN connections to access Azure resources. A Point-to-Site VPN connection lets you create a secure connection to your virtual network from an individual client computer2. To configure a Point-to-Site VPN connection, you need to create a virtual network gateway of type VPN in Azure, and then install a VPN client on each device that needs to connect2. The VPN client configuration includes several settings, such as the VPN server address, the tunnel type, and the authentication method. One of these settings is the system Local ID, which is used to identify the VPN client that is connecting to the VPN server1. The system Local ID must match the value that is configured on the VPN gateway in Azure, otherwise the connection will fail.

For Azure VPN Gateway, there are three authentication methods available for Point-to-Site VPN connections: certificate-based authentication, OpenVPN with Azure AD authentication, and OpenVPN with certificate-based authentication2. For certificate-based authentication, which is used in this scenario, the system Local ID is the subject name of the client certificate that is used for authentication1. The client certificate is generated from a root certificate that is uploaded to Azure when creating a Point-to-Site VPN connection, and it must be installed on each device that needs to connect2. The subject name of the client certificate can be obtained by using PowerShell or OpenSSL commands1. For example, using PowerShell:

$cert = Get-ChildItem -Path Cert:\CurrentUser\My | Where-Object {$_.Subject -like “ContosoClientCert”} $cert.Subject

The output of this command will show the subject name of the client certificate that matches ContosoClientCert. This value should be configured as the system Local ID for the VPN client on each device.

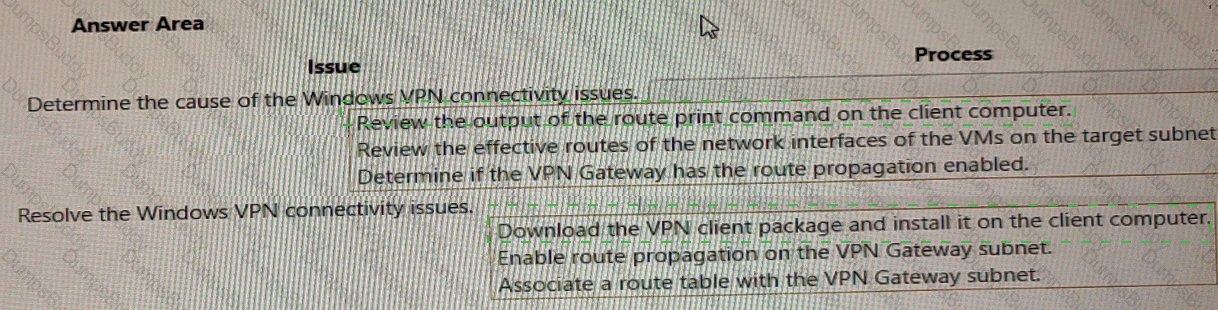

BOX1: Review the output of the route print command on the client computer.

A Windows VPN connection is a point-to-site connection that allows a client computer to connect to an Azure virtual network gateway using IKEv2 or SSTP protocols1. To troubleshoot Windows VPN connectivity issues, you need to check the configuration and status of the VPN client on the client computer.

One of the common problems that can cause Windows VPN connectivity issues is incorrect routing configuration on the client computer1. The client computer needs to have a route that directs the traffic destined for the target subnet in Azure to the VPN interface. If the route is missing or incorrect, the traffic will not reach the Azure virtual network gateway.

To check the routing configuration on the client computer, you can use the route print command in a command prompt window. This command displays the routing table of the client computer, which shows the destination network, the gateway address, and the interface for each route2. You can compare the output of this command with the expected routes for your VPN connection.

For example, if your target subnet in Azure is 10.0.0.0/24 and your VPN interface has an IP address of 172.16.0.1, you should see a route like this in the output of route print:

Destination Network | Gateway Address | Interface 10.0.0.0/24 | On-link | 172.16.0.1

This route means that any traffic destined for 10.0.0.0/24 will be sent directly to the VPN interface (On-link) with an IP address of 172.16.0.1.

If you do not see this route or see a different gateway address or interface, you need to correct the routing configuration on the client computer. You can use the route add command to add a new route or use the route change command to modify an existing route2.

Box 2: Download the VPN client package and install it on the client computer

A Windows VPN connection is a point-to-site connection that allows a client computer to connect to an Azure virtual network gateway using IKEv2 or SSTP protocols1. To establish a Windows VPN connection, you need to install a VPN client package on the client computer that contains the configuration files and certificates required for the connection1.

One of the common problems that can cause Windows VPN connectivity issues is missing or outdated VPN client package on the client computer1. The VPN client package may be missing if it was not installed properly or deleted accidentally. The VPN client package may be outdated if the Azure virtual network gateway configuration has changed since the package was downloaded.

To resolve this problem, you need to download the latest VPN client package from the Azure portal and install it on the client computer1. To download the VPN client package, follow these steps:

• Go to the Azure portal and select your virtual network gateway.
• On the Overview page, click Point-to-site configuration.
• On the Point-to-site configuration page, click Download VPN client.
• Select the appropriate version of Windows for your client computer and click Download.
• Extract the contents of the downloaded ZIP file to a folder on your client computer.
• Run the executable file in the folder to install the VPN client package.

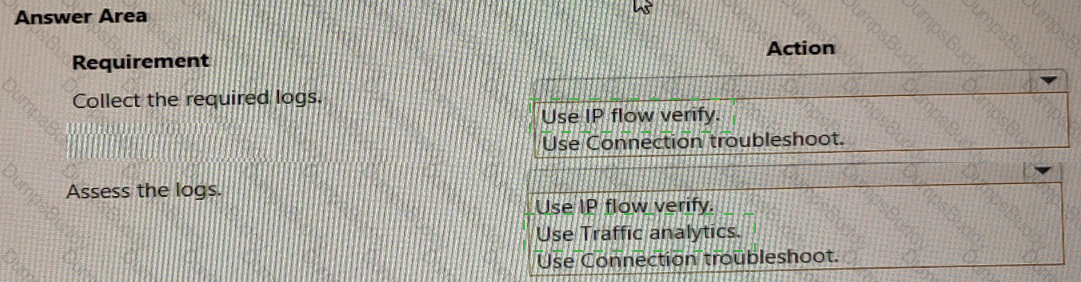

Box 1 =  Use IP flow verify.

IP flow verify is a feature of Azure Network Watcher that checks if a packet is allowed or denied to or from a virtual machine. It can help diagnose connectivity issues caused by network security groups, user-defined routes, or Azure Virtual Network Manager rules1. IP flow verify can also return the name of the rule that denied the packet, which can be useful for troubleshooting2.

Connection troubleshoot is another feature of Azure Network Watcher that helps reduce the time to diagnose and resolve network connectivity issues. However, it can only test TCP or ICMP connections from certain Azure resources, such as virtual machines, Azure Bastion instances, or application gateways3. Connection troubleshoot can also detect issues such as high VM CPU utilization, DNS resolution failures, or inability to open a socket at the specified source port3.

In this scenario, you need to collect the required logs for the SharePoint workload in VNet2. Since you are not testing a specific TCP or ICMP connection, but rather checking if packets are allowed or denied by any network configuration, IP flow verify is more suitable than connection troubleshoot. You can use IP flow verify to check the direction, protocol, local IP, remote IP, local port, and remote port of the packets and see which rule is blocking them12.

To use IP flow verify, you need to enable a network watcher in the same region as the virtual machines you want to troubleshoot. Then you can use the Azure portal, PowerShell, or Azure CLI to run IP flow verify and get the results24.

Box 2 =  Use Traffic analytics

To troubleshoot issues related to the SharePoint workload in VNet2, we can use Traffic Analytics. It is a networking monitoring solution that uses Network Watcher to analyze and report on traffic flows in your Azure virtual network. With Traffic Analytics, you could see information about the traffic flow patterns and security concerns detected across Azure subscriptions using network security group (NSG) flow logs. IP Flow Verify is used to verify if packets are flowing as expected between two endpoints within an Azure virtual network or between a public IP address and an endpoint inside an azure virtual network. But it doesn't provide visibility into overall traffic patterns or identify potential security threats. Connection Troubleshoot can be used when you have connectivity problems while interacting with a specific instance of a resource type being served out from Microsoft datacenters over Internet, but for troubleshooting SharePoint workloads related issue which might not necessarily correspond to internet routing/connectivity problems this may not apply.

To resolve the VM2 routing issue, you should modify the IP configuration setting of the Azure network interface resource of VM2. This will ensure that VM2 can communicate with other resources in the virtual network.

Troubleshooting connectivity problems between Azure VMs involves several steps such as checking whether NIC is misconfigured, whether network traffic is blocked by NSG or UDR, whether network traffic is blocked by VM firewall, whether VM app or service is listening on the port and whether the problem is caused by SNAT1.
