300-620 Implementing Cisco Application Centric Infrastructure (300-620 DCACI) Questions and Answers

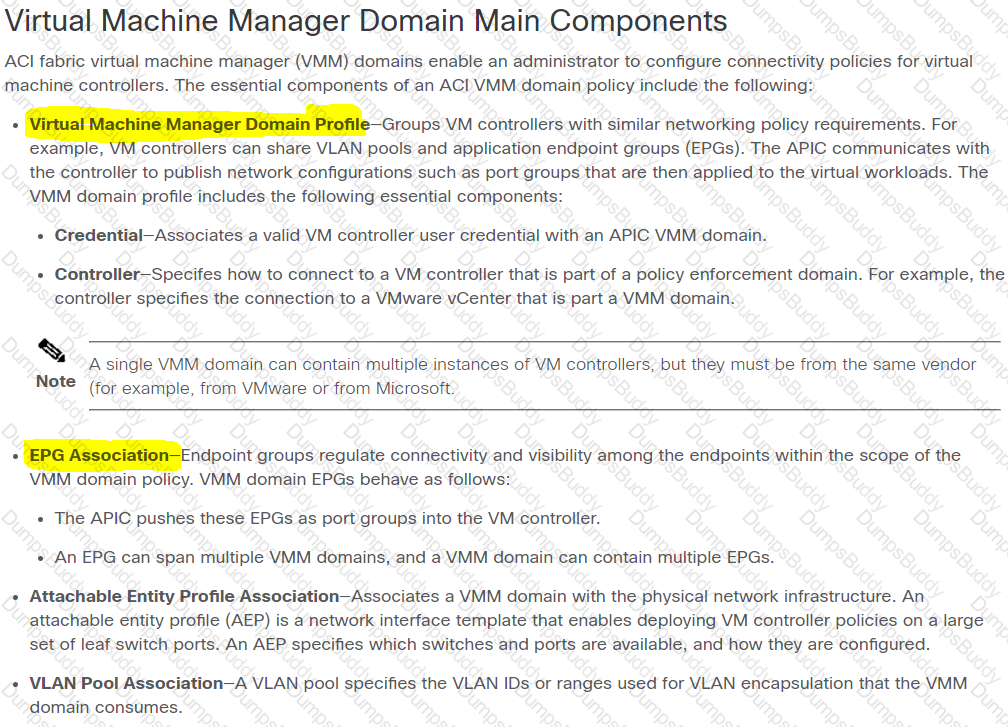

The two essential components of a Cisco ACI Virtual Machine Manager (VMM) domain policy configuration are:

VMM domain profile1.

EPG association1.

https://www.cisco.com/c/en/us/td/docs/switches/datac enter/aci/apic/sw/1-x/aci-fundamentals/b_ACI-Fundamentals/b_ACI-Fundamentals_chapter_01011.html#concept_74EFC437C0AA44A391676F70ACE59DF3

On the egress leaf switch, when traffic is received from an L3Out, no source MAC or IP address of the traffic is learned as a remote endpoint1. The Cisco ACI fabric does not learn the IP addresses from the data plane in an L3Out domain; instead, it uses ARP to resolve next-hop IP and MAC relationships to reach the prefixes behind external routers1.

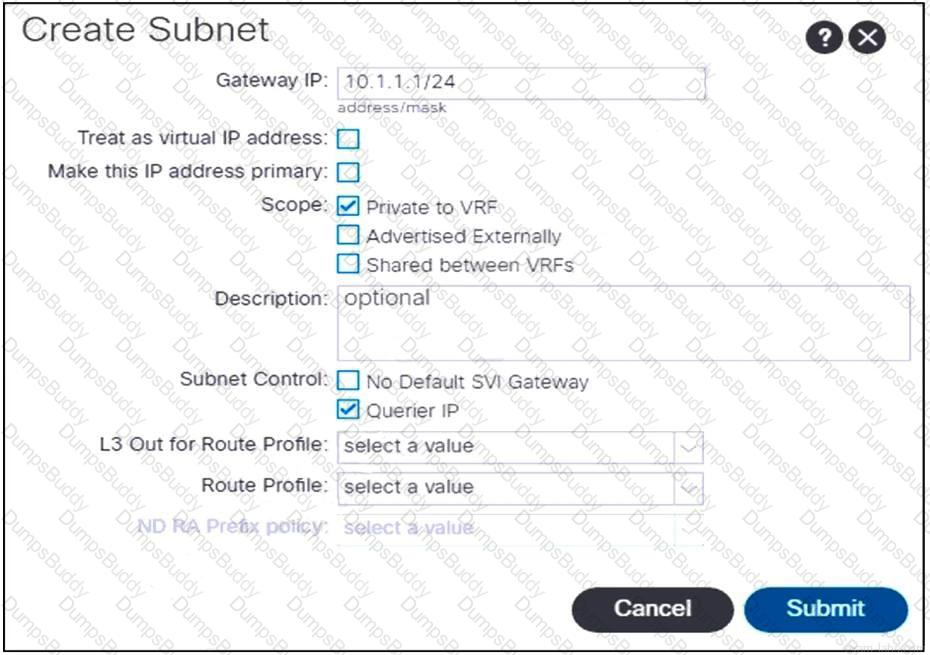

To advertise a bridge domain subnet out of the ACI fabric to an OSPF neighbor, the following configuration steps are required:

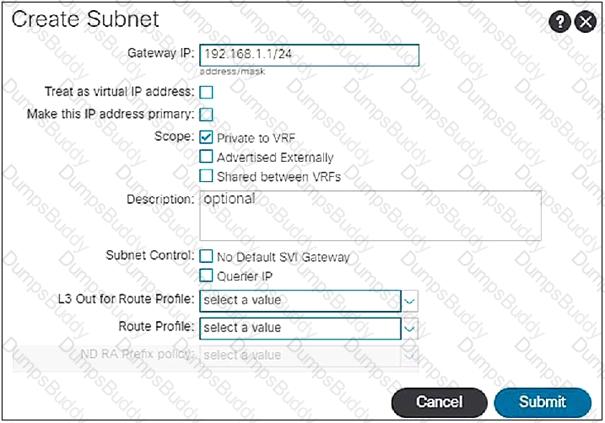

Configure Subnet scope to Advertised Externally: This step involves setting the scope of the subnet within the bridge domain to be advertised externally, which allows the subnet to be propagated to external routing entities3.

Add L30ut profile to the bridge domain using Associated L30uts section: This step involves associating the bridge domain with an L3Out profile, which is necessary for the bridge domain subnet to be advertised to OSPF neighbors4.

 In Cisco Application Centric Infrastructure (ACI), when a subnet is configured on a bridge domain, the gateway IP address is configured on the leaf switches where the bridge domain of the tenant is present. This configuration allows for localized routing within the fabric, providing efficient east-west traffic handling without requiring traffic to traverse up to the spine nodes unless necessary for north-south routing or policy enforcement.

The setting that prevents the learning of Endpoint IP addresses whose subnet does not match the bridge domain subnet is the “Limit IP learning to subnet” setting within the bridge domain1. This setting ensures that only IP addresses belonging to the subnets configured on the bridge domain are learned, preventing mis-learning of IP addresses that may not belong to the fabric1.

The feature that dynamically assigns or modifies the EPG association of virtual machines based on their attributes is uSeg EPGs. uSeg EPGs allow for microsegmentation within the Cisco ACI environment, enabling the dynamic assignment of VMs to EPGs based on attributes such as VM name, tag, or other identifiers

 In the context of ACI Multi-Site, the information of an endpoint (MAC/IP) that belongs to site 1 is advertised to site 2 using the EVPN control plane as soon as the endpoint is discovered in one site. This allows for immediate visibility of the endpoint across sites.

The import mode that must be used to ensure that the import process terminates if the imported configuration is incompatible with the existing system is the ‘atomic’ mode. This mode ignores shards that contain objects that cannot be imported while proceeding with shards that can be imported. If the incoming configuration’s version is incompatible with the existing system, the import process will terminate2.

In a Cisco ACI environment with multiple silent hosts that are often relocated between leaf switches, configuring IP Data-Plane Learning to ‘No’ will minimize the relocation impact and make the ACI fabric relearn the new location of the host faster. Disabling IP Data-Plane Learning prevents the fabric from learning IP addresses from the data plane, which can speed up the process of relearning host locations when they move3.

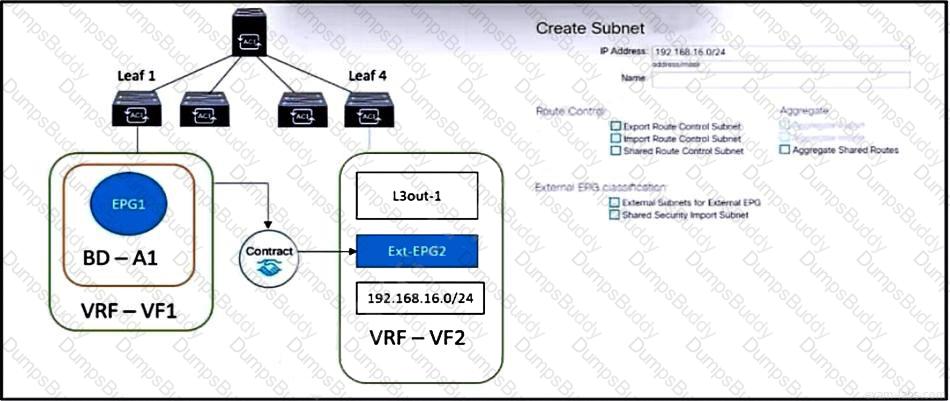

To enable communication between the external subnet and internal EPG1, and to allow L3Out traffic to leak into the VRF named “VF1”, the following configuration set should be used:

External Subnets for External EPG: This configuration defines the subnets that are external to the ACI fabric but need to be reachable from within the fabric. It is necessary to specify which subnets are to be considered part of the L3Out1.

Shared Route Control Subnet: This setting allows the subnets to be shared across different VRFs, enabling communication between EPGs that are in different tenants but within the same VRF1.

Shared Security Import Subnet: This configuration ensures that the security policies (contracts) associated with the shared subnets are also imported, allowing for the necessary traffic to flow between the internal and external endpoints1.

By applying this configuration set, the external subnet and internal EPG1 will be able to communicate, and the L3Out traffic will be properly leaked into the designated VRF, meeting the specified goals.

References :=

ACI Inter VRF/Tenant Route Leaking Configuration Example1

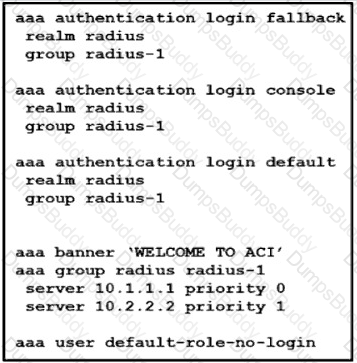

To ensure authentication if the RADIUS servers are unavailable, the action that should be taken is to set the fallback login to local. This setting allows users to authenticate using the local database on the Cisco APIC when external RADIUS servers cannot be reached.

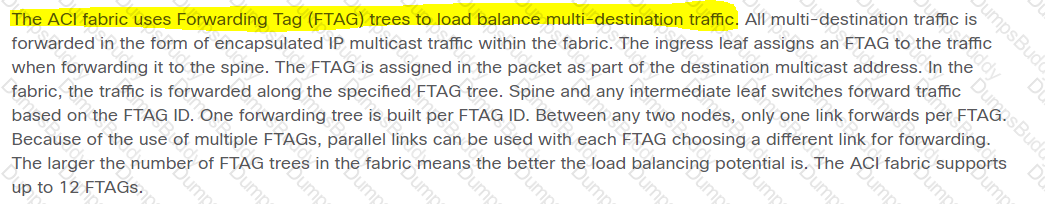

The method that the Cisco ACI fabric uses to load-balance multidestination traffic is forwarding tag trees3. This method involves assigning a forwarding tag (FTAG) to the traffic when it is forwarded within the fabric, ensuring efficient load balancing of multi-destination traffic3.

https://www.cisco.com/c/en/us/td/doc s/switches/datacenter/aci/apic/sw/1-x/aci-fundamentals/b_ACI-Fundamentals/b_ACI-Fundamentals_chapter_010010.html

The two dynamic routing protocols supported when using Cisco ACI to connect to an external Layer 3 network are iBGP (Option A) and eBGP (Option E)78. These protocols are included in the routing protocol options for a Layer 3 external outside network configuration in ACI

In Cisco ACI, when a packet is routed between two endpoints on different leaf switches, the VXLAN VNID that is applied to the packet corresponds to the Bridge Domain (BD). The BD VNID is used to encapsulate the packet for Layer 2 transport across the fabric. This VNID ensures that the packet is delivered to the correct bridge domain, maintaining the segmentation and policy enforcement required by the ACI fabric.

References :=

Cisco ACI Fabric Forwarding White Paper

Cisco ACI Basic Configuration Guide

To implement a Layer 3 out (L3Out) inside the Cisco ACI fabric that meets the specified requirements, the following steps should be taken:

Configure the OSPF Protocol policy with an area of 0: This step involves setting up OSPF, a link-state routing protocol that supports hierarchical network design, as the routing protocol for the L3Out1.

Create Routed Outside object and Node Profile, selecting OSPF: This step involves creating a Routed Outside object and associating it with a Node Profile that specifies OSPF as the routing protocol1.

Build the Interface profile, selecting Routed Sub-interface and the appropriate VLAN: This step involves creating an Interface profile for the connection to the data center core switch, using 802.1Q tagging for VLAN separation2.

Configure the External Network object with a network of 0.0.0.0/0: This step involves setting up the External Network object to advertise routes to the rest of the network1.

When the default gateway for endpoints is on an external device instead of a Cisco ACI bridge domain Switched Virtual Interface (SVI), the unicast routing feature should be disabled on the bridge domain. This prevents the ACI fabric from attempting to route traffic for the endpoints, which should instead be directed to the external default gateway.

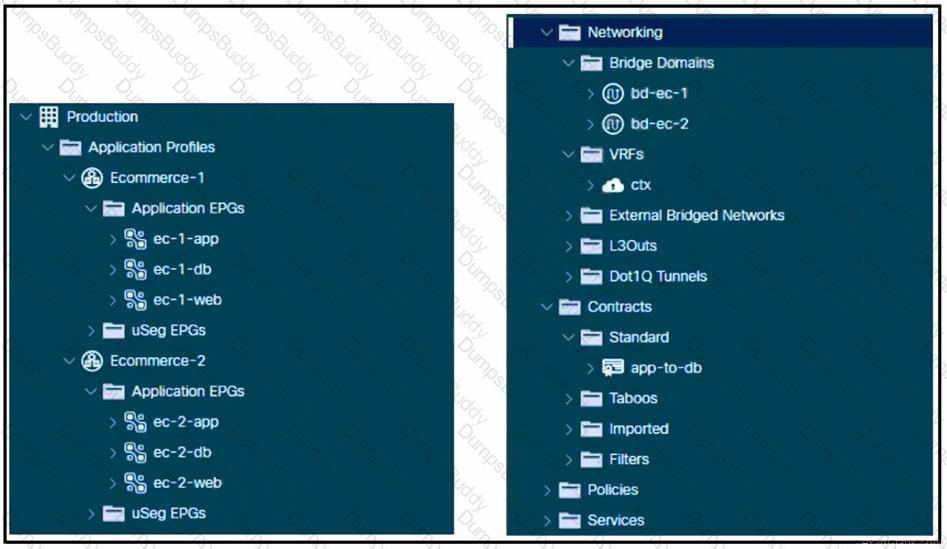

To ensure that application EPGs communicate only with their respective database EPGs, the app-to-db contract should be configured with a scope set to the Application Profile. This scope ensures that the contract is applied only within the specific application profile, allowing for granular control over the communication between the application and database tiers. By setting the scope to Application Profile, the contract will not apply to other application profiles, thus preventing unwanted traffic between EPGs of different applications1.

References :=

Cisco ACI Contract Guide White Paper1

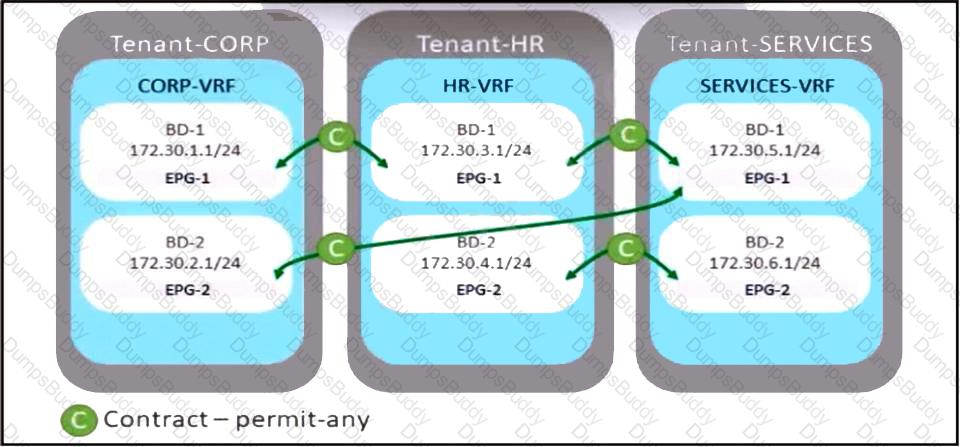

To configure communication between the EPGs in different tenants, the subnet scope should be set to “Shared between VRFs”. This allows the subnet to be shared across different VRFs, enabling communication between EPGs that are in different tenants but within the same VRF. By marking the subnet as shared, it becomes visible to other VRFs, which is necessary for inter-tenant communication1.

References :=

Learning ACI - Part 12: Inter-VRF and Inter-Tenant Communication

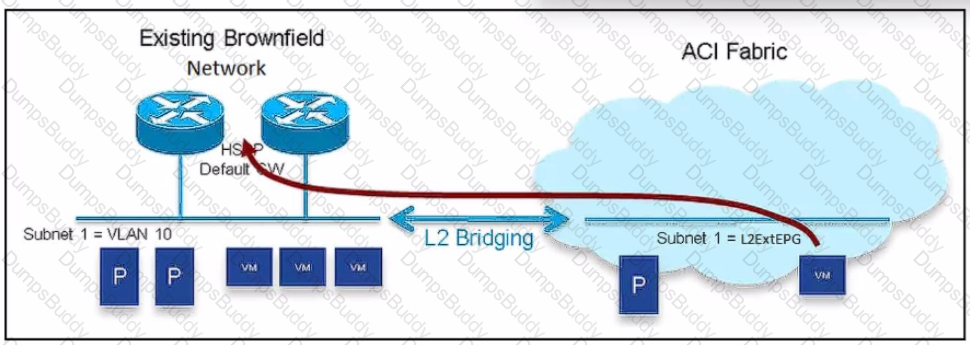

To migrate the gateway address out of the ACI fabric for an endpoint group (EPG), the bridge domain configuration must ensure that routing is contained within the ACI fabric and that ARP requests are managed efficiently. The correct configuration set is:

L2 Unknown Unicast: Set to Hardware Proxy. This setting allows the ACI fabric to use the spine proxy function to handle unknown unicast traffic, which helps to reduce flooding within the fabric.

Unicast Routing: Set to Disabled. Since the gateway is being migrated out of the ACI fabric, unicast routing should be disabled to prevent the ACI fabric from attempting to route traffic for the EPG.

ARP Flooding: Set to Enabled. This allows ARP requests to be flooded within the bridge domain, which is necessary when the unicast routing is disabled, to ensure that ARP requests can still be resolved.

References :=

Cisco ACI Bridge Domain Configuration Guide

Cisco ACI Best Practices Guide

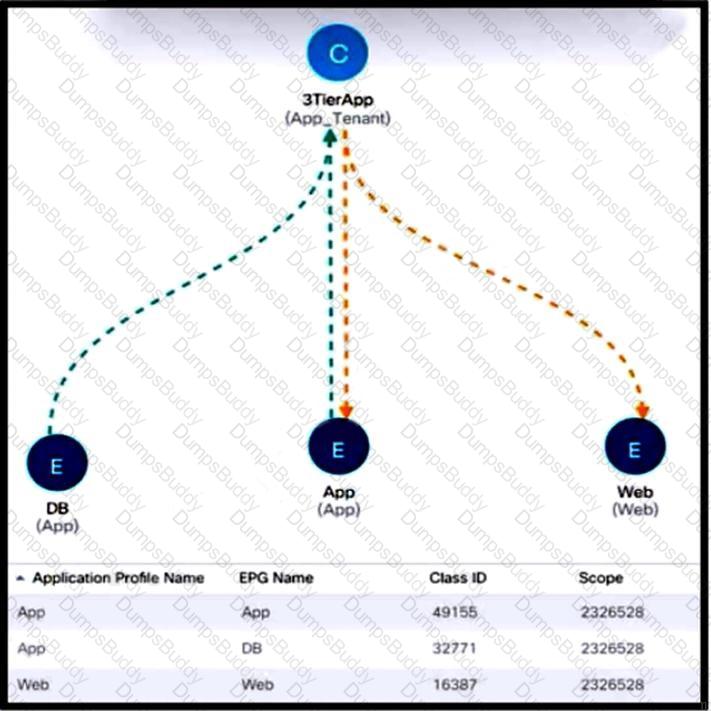

To meet the requirements for the new e-commerce software deployed on the Cisco ACI fabric, the scope of the contracts should be set to “Application Profile”. This scope ensures that the contracts are applied within the same Application Network Profile (ANP), allowing the e-commerce software to communicate only with software Endpoint Groups (EPGs) that are part of the same ANP. It also prevents communication with applications in different ANPs, thus maintaining the necessary isolation and reducing the overall number of contracts by reusing existing ones within a VRF.

References :=

Cisco ACI Contracts and Scopes Documentation

Cisco ACI Best Practices Guide

In Cisco ACI, the mgmt0 interface is used for out-of-band (OOB) management, and its IP address must be explicitly assigned through the Node Management Address Policy under the mgmt tenant. When new leaf switches are registered in the fabric, they do not automatically receive an IP address for their mgmt0 interfaces unless they are added to this policy.

 In Cisco ACI, communication between Endpoint Groups (EPGs) is controlled by contracts. Contracts define the types of traffic and the rules that govern how EPGs can communicate with each other. They act as a policy framework that enforces security and segmentation within the ACI fabric.

 In the Cisco ACI Active-Active Across Pods deployment mode, one of the key characteristics of Policy-Based Redirect (PBR) is that traffic is dynamically redirected to the firewall that owns the connection. This allows for load distribution across multiple Layer 4 to Layer 7 devices, also known as symmetric PBR. Additionally, deployment in this mode occurs in go-to mode only, which means that traffic is explicitly directed to a service node or firewall for processing

To ensure that servers supporting only Cisco Discovery Protocol are discovered automatically by the Cisco ACI fabric when connected, the action that must be taken is to Create an override policy that enables Cisco Discovery Protocol after LLDP is enabled in the default policy group

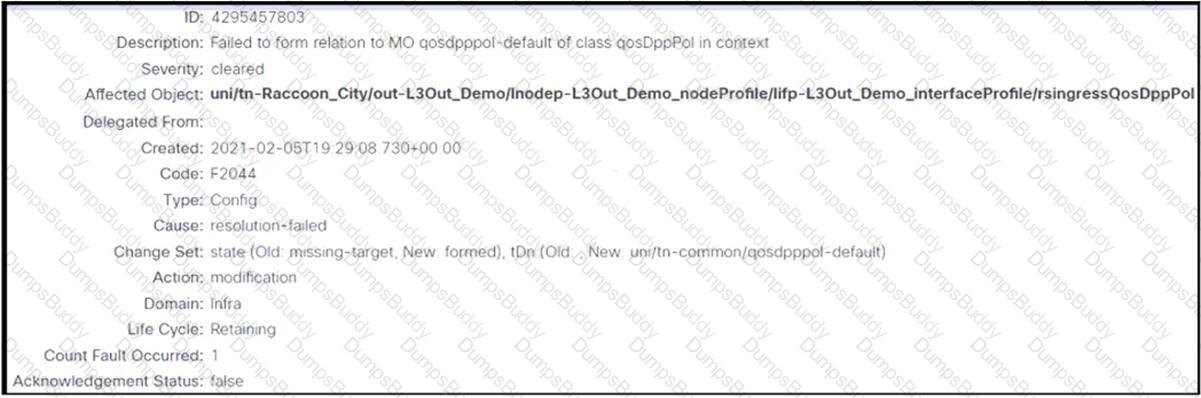

When configuring an L3Out in Cisco ACI and encountering a QoS-related error, creating a custom QoS policy is often necessary to clear the fault. This involves defining a QoS policy that meets the specific requirements of the L3Out configuration and applying it to the relevant interfaces or globally within the fabric. The custom QoS policy should be designed to prioritize traffic appropriately and ensure that the necessary QoS settings are in place for the L3Out connections1.

References :=

Cisco ACI L3Out Configuration Examples1

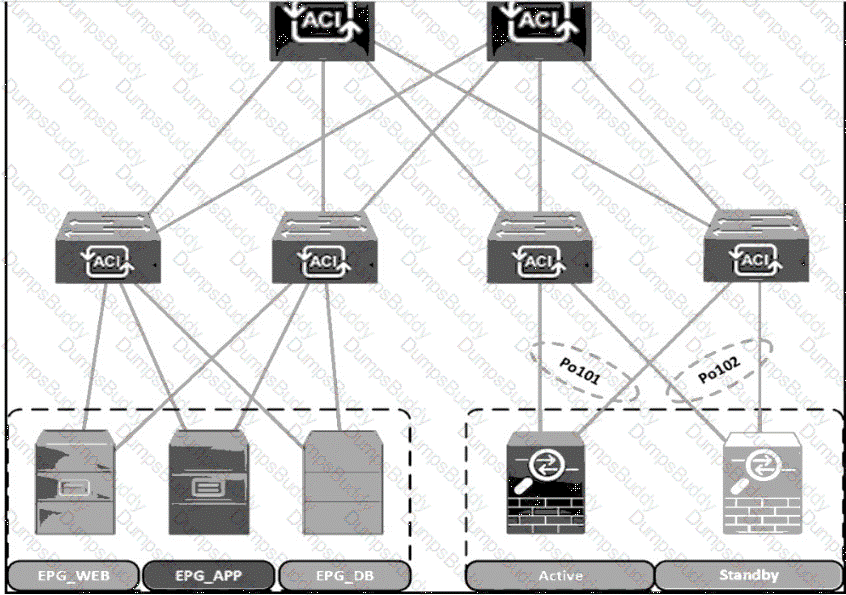

 To design a method that allows the Cisco ACI to redirect traffic to the firewalls based on specific L4-L7 policy rules and distribute the load across multiple firewalls, the action that must be taken is to Configure ACI Service Graph with Unidirectional PBR (

https://www.cisco.com/c/en/us/solutions/collateral/data-center-virtualization/applicatio n-centric-infrastructure/white-paper-c11-739971.html

To create a backup of the Cisco ACI fabric for disaster recovery that is secure, encrypted, and in a format conducive to processing with a Python script, the engineer must select Secure Copy Protocol (SCP) for secure and encrypted transport. The backup file should be in JSON format, which is similar to a Python dictionary and can be easily processed by a Python script. Additionally, enabling Global AES Encryption ensures that all user and password-related information is included securely in the backup1.

The Cisco ACI site deployment feature that enables an engineer to control which bridge domains contain Layer 2 flooding across geographically separated data centers is Multi-Site. This feature allows for the extension of Layer 2 and Layer 3 connectivity between different locations with consistent policy enforcement5.

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/aci_multi-site/sw/2x/fundamentals/Cisco-ACI-Multi-Site-Fundamentals-Guide-211/Cisco-ACI-Multi- Site-Fundamentals-Guide-211_chapter_011.html#id_51188

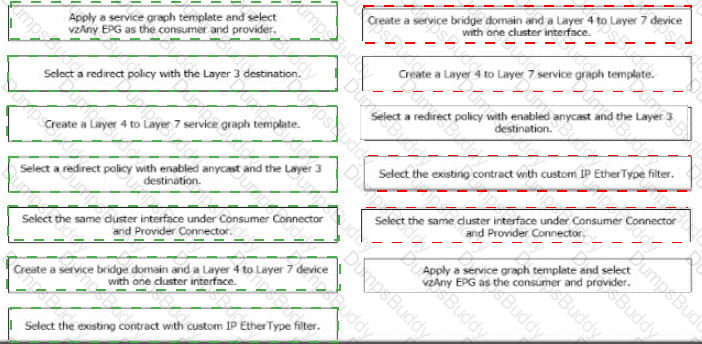

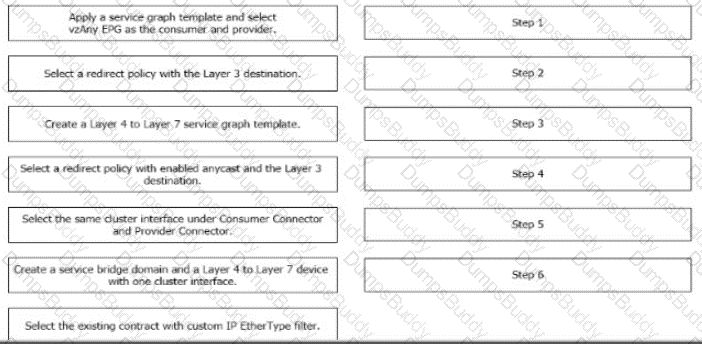

The advantage of implementing an active-active firewall cluster that is stretched across separate pods when anycast services are configured is that local traffic within a pod is load-balanced between the clustered firewalls. This means that traffic destined for the anycast IP address of the service node (firewall) will preferentially be directed to the local node within the same pod, thus optimizing traffic flows and reducing latency by avoiding unnecessary traffic tromboning to a remote pod1.

The type of policy that configures the suppression of faults generated from a port being down is the ‘fault severity assignment’ policy. This policy allows administrators to change the severity of a fault or suppress it altogether, which can be useful for managing expected faults and reducing noise from non-critical events

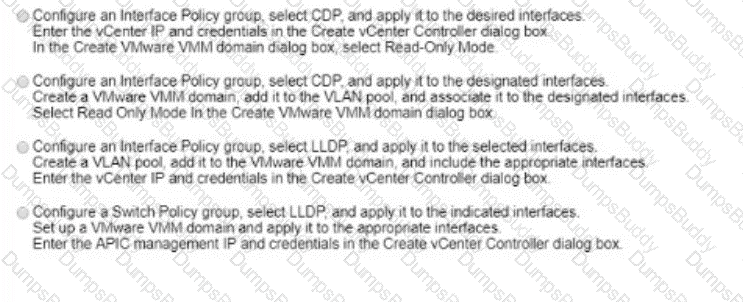

To integrate a new Hyperflex storage cluster into an existing Cisco ACI fabric and manage it with vCenter, the following steps should be taken:

Create a new vSphere Distributed Switch (vDS): This is done within the vCenter interface. The vDS acts as a single virtual switch across all associated hosts in the data center, providing centralized management and monitoring of the network configuration1.

Configure the vDS for the Hyperflex cluster: This involves setting up the correct port groups, VLANs, and uplink profiles to ensure proper network segmentation and performance2.

Enable hardware discovery using a vendor-neutral protocol: This could involve using protocols like LLDP (Link Layer Discovery Protocol) or CDP (Cisco Discovery Protocol), which are supported by vCenter and can help in identifying and managing physical network devices3.

Integrate the Hyperflex cluster with ACI using the Application Policy Infrastructure Controller (APIC): This involves creating the necessary policies and profiles in ACI to manage the Hyperflex storage traffic effectively4.

References :=

Cisco HyperFlex Systems Installation Guide for VMware ESXi1

Cisco HyperFlex Virtual Server Infrastructure 3.0 with Cisco ACI 3.2 and VMware vSphere 6.52

How to Set Up Networking with vSphere Distributed Switches - VMware Docs3

Tutorial: How to integrate HyperFlex and ACI with VMM (VMware) and UCSM4

The engineer is implementing out-of-band (OOB) management access for the Cisco ACI fabric with the following requirements:

Only GUI (HTTPS) and Secure Shell (SSH) must be allowed to access the management interfaces.

Only IP ranges 10.10.10.0/24 and 192.168.15.0/24 must be permitted to connect.

This requires configuring access control and restricting IP ranges for OOB management.

Requirement Analysis

OOB management in ACI is typically handled via the Management Tenant (mgmt) and an OOB contract to define allowed protocols and sources.

The external network instance profile defines the permitted IP ranges for external access.

Option Evaluation

A. Implement HTTPS and SSH protocol filters in the OOB contract. Add the required subnets to the external network instance profile:

An OOB contract can specify allowed protocols (HTTPS on port 443 and SSH on port 22) to restrict access to GUI and SSH only. Adding the subnets 10.10.10.0/24 and 192.168.15.0/24 to the external network instance profile limits the source IP ranges, meeting both requirements.

The two IP address types that are available for transport over the Inter-Site Network (ISN) when they are configured from Cisco ACI Multi-Site Orchestrator (MSO) are the Anycast Overlay Multicast Tunnel Endpoint (TEP) and the MP-BGP EVPN Router-ID. These IP addresses are used for inter-site communication and routing in a Multi-Site deployment.

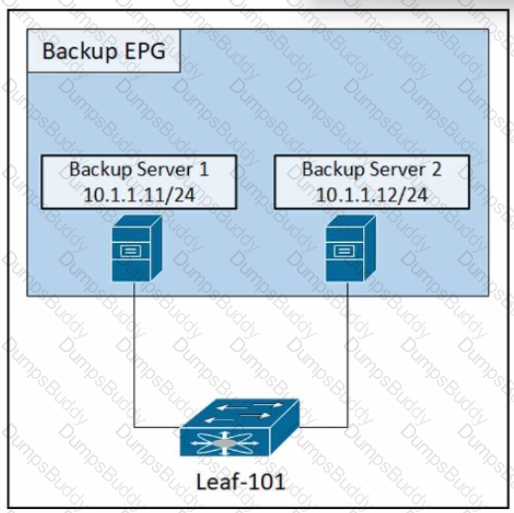

In Cisco ACI, Intra-EPG Isolation is a feature that prevents communication between endpoints within the same EPG. By default, endpoints in the same EPG can communicate freely without requiring contracts. To disable communication between two backup servers within the same EPG (e.g., in the "Backup EPG"), you need to enforce Intra-EPG Isolation.

 A bridge domain in Cisco ACI represents a Layer 2 forwarding construct345. It defines a unique Layer 2 MAC address space and can include one or more subnets. Bridge domains are associated with a VRF and can contain multiple EPGs345.

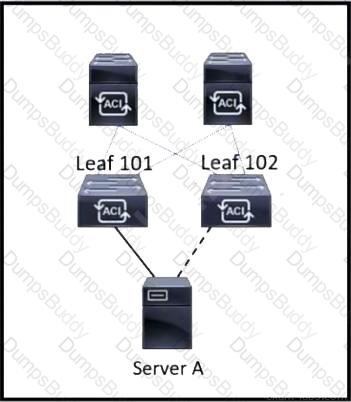

 In the scenario where Server A is connected to the Cisco ACI fabric using teamed interfaces with one active and one standby, enabling ARP flooding in the bridge domain configuration is necessary to resolve the issue that occurs when the standby interface becomes active and uses its built-in MAC address to send traffic. Enabling ARP flooding allows the fabric to learn the new MAC address without waiting for the ARP timeout, which helps to ensure that traffic continues to flow to the correct destination after a failover event1.

References :=

Discuss Cisco 300-620 Exam Topic 9 Question 71 | Pass4Success1

 To redirect traffic to the firewall using a one-armed policy-based redirect service insertion, the following configuration set should be used:

Configure a service graph: This involves defining the service graph template that represents the logical flow of traffic through network services.

Associate the service graph with All_Traffic_Allowed: By associating the service graph with the contract named All_Traffic_Allowed, traffic that matches the contract will be redirected through the service graph to the firewall device.

References :=

Cisco ACI Fabric Administration Guide, Release 4.2(1)

Cisco ACI Virtualization Guide, Release 4.2(1)

To enable communication between EPGs and BDs from any tenant without the need for contracts or VRF route leaking, the best approach is to implement an unenforced VRF within the common tenant. By doing so, all bridge domains that are associated with this VRF will be able to communicate with each other without additional configurations. This method simplifies the network architecture and reduces the complexity associated with contract management and VRF route leaking1.

References :=

Cisco ACI Contract Guide White Paper1

In a Cisco ACI Multi-Pod environment, the supported routing protocol between Cisco ACI spines and IPNs (Inter-Pod Network) is Open Shortest Path First (OSPF)4.

The true statement regarding ACI Multi-Pod and TEP pool is that the same TEP pool is used in all Pods. This shared TEP pool ensures consistent addressing and simplifies the management of the overlay network across multiple Pods.

The correct statement about ACI syslog is that all syslog messages are sent to the destination through APIC1. This centralized approach allows for consistent logging and monitoring across the ACI fabric1.

To deploy a leaf access port policy group in ACI Fabric that controls the amount of application data flowing into the system and allows auto-negotiation of link speed, the two ACI policies that must be configured are:

Link level policy2.

Ingress data plane policing policy2.

Slow Drain handles FCoE packets that are causing traffic congestion on ACI fabric. So, it is wrong.

Ingress control plane is wrong, because the request is for “application data flowing”.

L2 interface policy is concerned about QinQ and VLAN scope.

For a redundant interconnection that routes both unicast and multicast traffic, the L3Out (Layer 3 Outside) implementation in Cisco ACI should include the following:

Redundant Connections: Ensure there are at least two connections from the ACI fabric to the external network for redundancy. These connections should be to different leaf switches if possible.

Routing Protocols: Configure a routing protocol that supports both unicast and multicast routing. OSPF or EIGRP can be used for unicast, and PIM (Protocol Independent Multicast) should be configured for multicast.

Route Redistribution: Set up route redistribution between the ACI fabric and the external network to ensure that routes are shared across both networks.

Multicast Configuration: Enable multicast routing within the ACI fabric and configure the necessary multicast policies.

Contract and Policy Configuration: Define contracts and policies that allow the required unicast and multicast traffic to flow between the ACI fabric and the external network.

References :=

Cisco documentation on configuring L3Outs in ACI

Cisco white paper on ACI Multicast Routing

https://learnduty.com/cisco-aci/aci-multi-pod-overview-and-basics/

 In a Cisco ACI Multi-Site fabric, when the Inter-Site BUM Traffic Allow option is enabled for a stretched bridge domain, ingress replication on the spines in the source site is used to forward Broadcast, Unknown unicast, and Multicast (BUM) traffic to all endpoints in the same broadcast domain. This method ensures that BUM traffic is replicated and sent out through the spines to the destination sites.

To securely export Cisco APIC configuration snapshots to a secure, offsite location using an encrypted tunnel and a platform-agnostic data format that provides namespace support, the following configuration set must be used:

Choose a Platform-Agnostic Data Format: Export the configuration in a data format like JSON or XML, which are platform-agnostic and support namespaces1.

Use an Encrypted Tunnel: Transfer the configuration snapshot over a secure protocol such as SFTP or SCP, which provides an encrypted tunnel for the data transfer1.

Schedule the Export: Set up a scheduled export of the configuration in the Cisco APIC to occur at regular intervals, ensuring the process is automated1.

Enable Encryption: Make sure the configuration export policy includes encryption settings. Cisco APIC supports AES-256 encryption for securing exported configuration files2.

Verify Namespace Support: Ensure that the chosen data format and the method of export support the use of namespaces, which are essential for organizing elements and attributes in XML documents1.

By following these steps and choosing Option B, the engineer can meet the requirements for securely exporting Cisco APIC configuration snapshots to an offsite location.

When extending an EPG out of the ACI fabric using static path binding, it is true that external endpoints are in the same EPG as the directly attached endpoints8. This means that traffic received on a statically bound leaf port with a specific VLAN ID is mapped to the EPG, and the same policies applied to directly attached endpoints are enforced on the external endpoints8.

In the context of VMM, the protocol between ACI leaf and compute hosts that ensures that the policies are pushed to the leaf switches for immediate and on-demand resolution immediacy is LLDP (Link Layer Discovery Protocol)2. LLDP is used for discovery and to ensure that the policies are applied as needed for the virtual machines2.

https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/1-x/aci-fundamentals/b_ACI-Fundamentals/b_ACI-Fundamentals_chapter_01011.html

When upgrading the Cisco ACI fabric through an intermediate release, the following steps should be taken:

Upgrade the APICs to an interim release: This is the first step to ensure that the APICs are running a stable version that is compatible with both the current and the targeted release1.

Upgrade the switches to an interim release: After the APICs are upgraded, the next step is to upgrade the leaf and spine switches to the same interim release. This ensures that the entire fabric is running on a compatible version before moving to the targeted release1.

Upgrade the APICs to the targeted release: Once the fabric is stable on the interim release, the APICs can be upgraded to the targeted release. It’s important to verify that the APICs are fully operational before proceeding to upgrade the switches1.

Upgrade the leaf and spine switches to the targeted release: The final step is to upgrade the leaf and spine switches to the targeted release. This should be done after the APICs have been successfully upgraded and are stable on the targeted release1.

By following these steps, the customer can successfully upgrade the Cisco ACI fabric to the new code release that includes the desired feature.

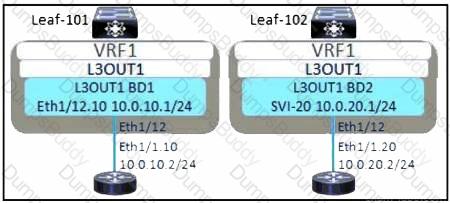

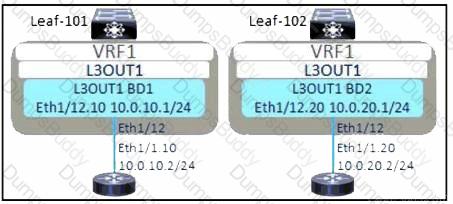

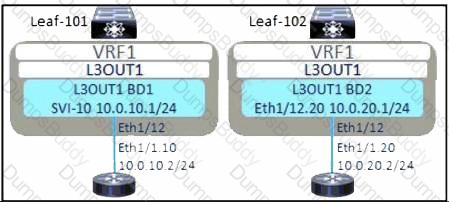

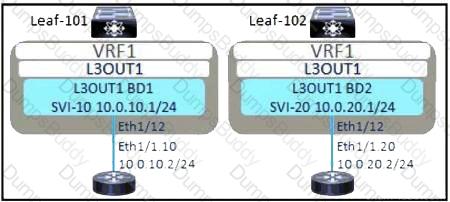

On border leaf switches in Cisco ACI, the two types of interfaces supported to connect to an external router are subinterface with 802.1Q tagging and Switch Virtual Interface (SVI)7. These interfaces allow for the segmentation of traffic and the extension of Layer 2 and Layer 3 services to external networks7.

The Cisco APIC configuration that prevents a remote network that is not configured on the bridge domain from being learned by the fabric is to enable Limit IP Learning to Subnet2. This setting restricts IP address learning to only those subnets that are defined on the bridge domain2.

 To determine if a change in the behavior of the ACI fabric was due to human intervention, an ACI administrator should inspect the audit logs in the APIC UI. The audit logs provide a record of all user events, which includes actions performed by users, making it possible to trace any changes back to specific human activities1.

 After ARP flooding is enabled in Cisco ACI Multi-Pod, broadcast frames are forwarded within the pod and across the Inter-Pod Network (IPN) using the multicast address associated with the bridge domain. If the setting is ‘Flood’, the leaf switch floods to the Group IP (GIPo) multicast group allocated for the bridge domain, ensuring that both local and remote pods receive a flooded copy

In Cisco ACI, a leaf switch learns a source IP or MAC as a remote endpoint when VXLAN traffic arrives on a leaf fabric port from the spine, and the inner source IP is within the range of the bridge domain subnets associated with the leaf. This process is part of the ACI’s COOP (Council Of Oracles Protocol), which ensures that endpoint information is accurately disseminated across the fabric for efficient traffic forwarding.

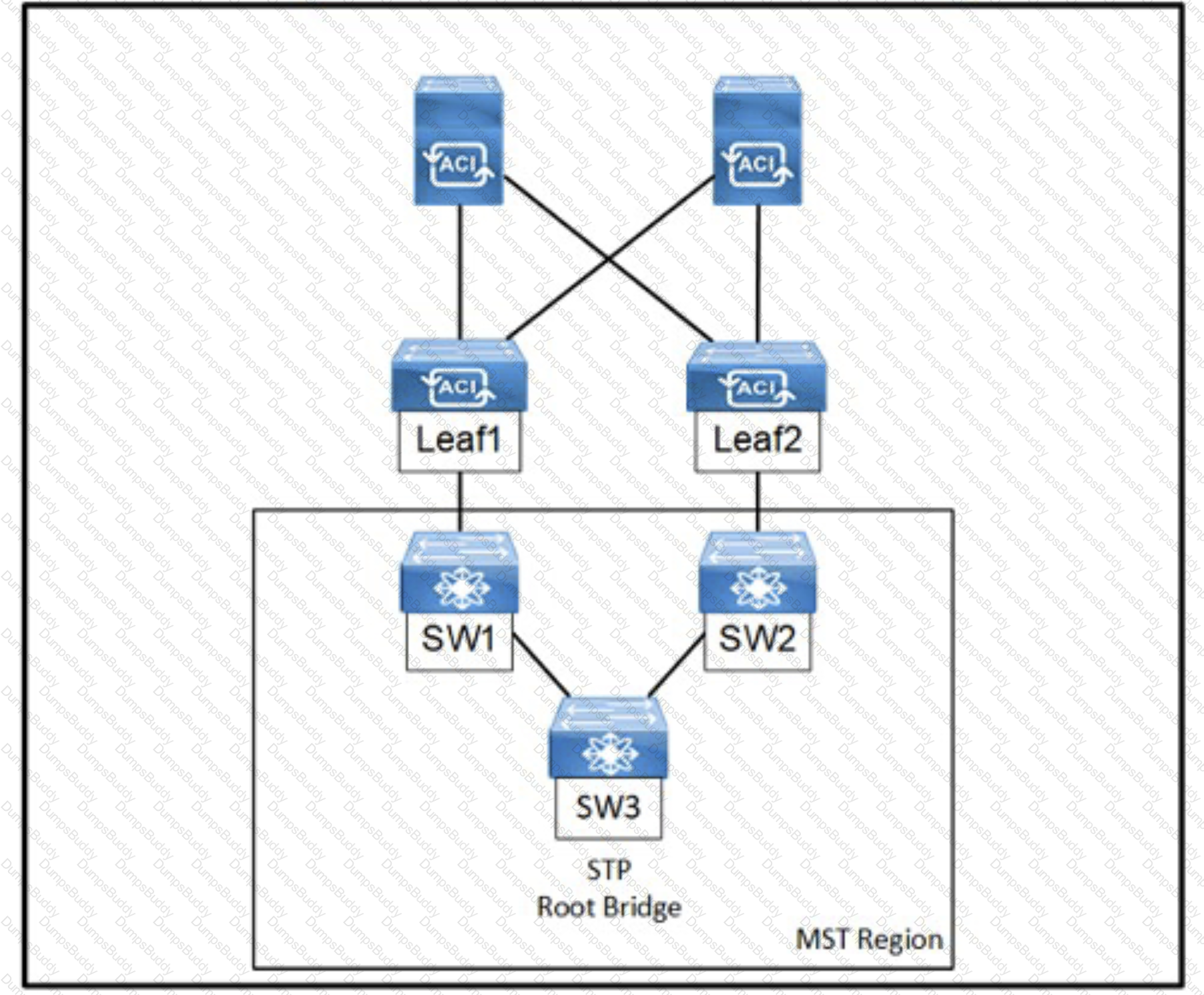

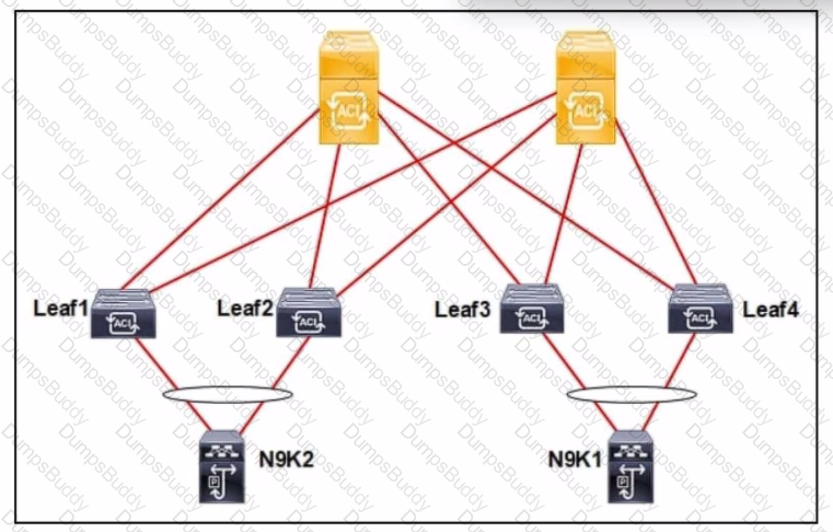

To break the STP loop between switch1 and switch2 in a Cisco ACI environment, enabling BPDU filtering on the interfaces facing the MST (Multiple Spanning Tree) switches is the necessary step. BPDU filtering prevents BPDUs from being sent or received through a port, which effectively stops the STP process on those ports and breaks the loop1.

When BPDU filtering is enabled on an interface, the switch does not send any BPDUs and ignores any BPDUs it receives on that interface. This can be used to prevent unwanted STP negotiations on ports where loops are not expected to happen or where STP is not desired1.

References :=

Use of ACI Operation with L2 Switches and Spanning Tree Link Types - Cisco1

ACI uses the SCP (Secure Copy Protocol) to securely save the configuration in a remote location. SCP is a network protocol that supports file transfers and relies on the Secure Shell (SSH) protocol to provide security for the transferred data.

The two requirements for the IPN network when implementing a Multi-Pod ACI fabric are:

PIM ASM multicast routing2.

OSPF routing3.

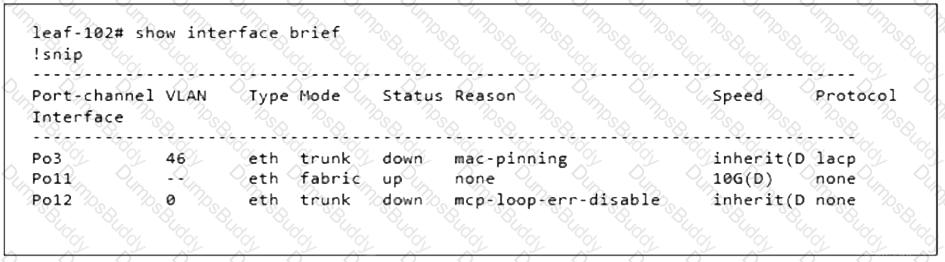

To resolve the issue of STP convergence causing a microloop and significant CPU spike on all switches after connecting legacy non-ACI switches to the Cisco ACI fabric, BPDU filtering should be configured on the interfaces of the external switches that face the Cisco ACI fabric. BPDU filtering prevents Bridge Protocol Data Units (BPDUs) from being sent or received on those interfaces, which stops the STP process and eliminates the possibility of microloops.
