1z0-822 Oracle Solaris 11 Advanced System Administration Questions and Answers

AD: Manifests from the standard directory trees /lib/svc/manifest and /var/svc/manifest are processed during system boot and anytime an administrator or program runs:

$ svcadm restart manifest-import

C: svccfg

apply subcommand

If the argument is a service profile or manifest, apply the configuration to the admin layer of the SMF repository. Services, instances, property groups, and properties will be created as necessary.

E: import [-V] [file | directory]

svccfg import on a file in a system-managed filesystem location (subdirectories of /lib/svc/manifest and /var/svc/manifest) invokes: svcadm restart manifest-import.

Placing your manifests in a system-managed location and invoking svcadm restart manifest-import to import them is the recommended practice.

svccfg import on files in other locations imports their properties as administrative customization into the admin layer. It is equivalent to:

svccfg apply [file | directory]

Incorrect:

not B: Manifests are processed in two different phases during boot.

The service svc:/system/early-manifest-import:default, a pseudo service, is responsible for the first manifest processing. This service processes only manifests from the /lib/svc/manifest directory tree before svc.startd(1M) initializes any services thus enabling services delivered in /lib/svc/manifest to always start with their most updated definition. Since this is a pseudo service, svcadm(1M) commands are ignored though svcs(1) can be used to observe status and get log file information.

The svc:/system/manifest-import:default service handles the second manifest processing and imports manifest files from both /lib/svc/manifest and /var/svc/manifest directory trees, in that respective order.

See steps 7 and 8 below.

How to Re-create a ZFS Root Pool and Restore Root Pool Snapshots

1. Boot from an installation DVD or the network.

2. Mount the remote snapshot file system if you have sent the root pool snapshots as a file to the remote system.

3. If the root pool disk is replaced and does not contain a disk label that is usable by ZFS, you must relabel the disk.

4. Re-create the root pool.

5. Restore the root pool snapshots.

6. Verify that the root pool datasets are restored.

7. Set the bootfs property on the root pool BE.

8. Install the boot blocks on the new disk.

9. Reboot the system.

How to Manually Specify Target Systems for Probe-Based Failure Detection

1. Add a route to a particular host to be used as a target in probe-based failure detection.

$ route -p add -host destination-IP gateway-IP -static

where destination-IP and gateway-IP are IPv4 addresses of the host to be used as a target. For example, you would type the following to specify the target system 192.168.10.137, which is on the same subnet as the interfaces in IPMP group itops0:

$ route -p add -host 192.168.10.137 192.168.10.137 -static

This new route will be automatically configured every time the system is restarted. If you want to define only a temporary route to a target system for probe-based failure detection, then do not use the -p option.

2.Add routes to additional hosts on the network to be used as target systems.

All interfaces in the same group must have the same STREAMS modules configured in the same order.

How to Move a Running Process Into a New Task

This example shows how to associate a running process with a different task and new project.

To perform this action, you must either be superuser, or be the owner of the process and be a

member of the new project.

1. Become superuser or assume an equivalent role

2. Obtain the process ID of thebook_catalogprocess.

# pgrep book_catalog

8100

3. Associate process8100with a new task ID in thebooksiteproject.

# newtask -v -p booksite -c 8100

17

The -coption specifies that newtaskoperate on the existing named process.

4. Confirm the task to process ID mapping.

# pgrep -T 17

8100

Incorrect:

Not C: projmod does not change the processes of a project.

The projmod utility modifies a project's definition on the system. projmod changes the definition of the specified project and makes the appropriate project-related system file and file system changes.

Interface mode displays the state of all IP interfaces (IP links) that are tracked by in.mpathd on the system.

Incorrect:

Not A: Address mode displays the state of all IPMP data addresses on the system.

Not B: Group mode displays the state of all IPMP groups on the system.

Not D: Probe mode displays information about the probes being sent by in.mpathd.

Not E: Target mode displays IPMP probe target information.

Global Actions on Resource Control Values

Global actions apply to resource control values for every resource control on the system. You can use the rctladm command to perform the following actions:

* Display the global state of active system resource controls

* Set global logging actions

The beadm utility enables you to create a new boot environment based on an existing snapshot.

Note:

* You can manage the boot environments on your system either by using the beadm command or by using the Package Manager.

* A boot environment is a bootable instance of the Oracle Solaris operating system image plus any other application software packages installed into that image. System administrators can maintain multiple boot environments on their systems, and each boot environment can have different software versions installed.

The following list provides a brief description of each default checkpoint in the order the checkpoints are executed in most manifests.

transfer-ips-install – At this checkpoint, the distribution constructor contacts the IPS publishers and adds to the image the packages that are listed in the software_data element of the manifest.

set-ips-attributes – At this checkpoint, the constructor sets the publisher to be used by the installed system. The values set by this checkpoint are not relevant if you are building an automated installation image.

pre-pkg-img-mod – At this checkpoint, the constructor imports into the image the SMF service files that were specified in the configuration element of the manifest. Also, the constructor modifies some files to optimize the image.

Rights profiles – The user_attr, prof_attr, and exec_attr databases are now read-only. These local files databases are assembled from fragments that are located in /etc/user_attr.d, /etc/security/prof_attr.d, and /etc/security/exec_attr.d.

The fragment files are not merged into a single version of the file, but left as fragments. This change enables packages to deliver complete or partial RBAC profiles. Entries that are added to the local files repository with the useradd and profiles commands are added to the local-entries file in the fragment directory.

Once basic networking has been achieved, there is something called the Location Profile that loads system-wide network configuration information. This includes:

- Condition under which it is activated

- Naming service to use

- Domain name

- IP Filter rules

- IPsec policy

Incorrect:

Not A: The Automatic NCP is a system-defined profile and cannot be modified by a user. It contains one Link NCU and one Interface NCU for each physical link on the system. For this particular profile, Physical links take precedence over Wireless links when it is time to activate an NCU. This profile changes dynamically when new links are inserted or removed from the system.

URL: http://www.oracle.com/technetwork/articles/servers-storage-admin/o11-118-s11-script-zones-524499.html

A:

Note:

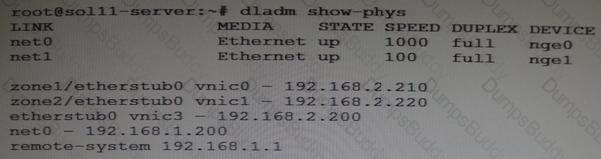

Use dladm show-phys to obtain information about the system's datalinks in relation to the physical NICs with which they are associated. Used without any options, the command displays information similar to the following:

# dladm show-phys

LINK MEDIA STATE SPEED DUPLEX DEVICE

net0 Ethernet up 100Mb full e1000g0

net1 Ethernet down 0Mb -- nge0

net2 Ethernet up 100Mb full bge0

net3 Infiniband -- 0Mb -- ibd0

* Your link aggregation configuration is bound by the following requirements:

/You must use the dladm command to configure aggregations.

/ (not B) An interface that has been created cannot become a member of an aggregation.

/All interfaces in the aggregation must run at the same speed and in full-duplex mode.

/ (not E) You must set the value for MAC addresses to “true” in the EEPROM parameter local-mac-address? For instructions, refer to How to Ensure That the MAC Address of an Interface Is Unique.

* -p pattern

Set the per-process core file name pattern to pattern for each of the specified process-IDs. The pattern can contain any of the special % variables

* Variables:

%f, executable file name, up to a maximum of MAXCOMLEN characters

%p, process-ID

* Example. The core file name pattern:

/var/core/core.%f.%p

would result, for command foo with process-ID 1234, in the core file name: /var/core/core.foo.1234

* Example. Setting the core file name pattern

When executed from a user's $HOME/.profile or $HOME/.login, the following command sets the core file name pattern for all processes run during the login session:

example$ coreadm -p core.%f.%p $$

$$ is the process-id of the currently running shell. The per-process core file name pattern is inherited by all child processes.

Note (see synopsis 2 below).

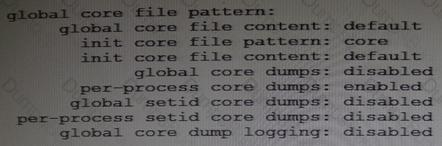

* The coreadm command is used to specify the name and location of core files produced by abnormally-terminating processes.

SYNOPSIS

coreadm [-g pattern] [-i pattern] [-d option...] [-e option...]

coreadm [-p pattern] [pid...]

coreadm –u

The first form shown in the synopsis can be executed only by the super-user and is used to configure system-wide core file options, including a global core file name pattern and a per-process core file name pattern for the init(1M) process.

The second form can be executed by non-privileged users and is used to specify the file name pattern to be used by the operating system when generating a per-process core file.

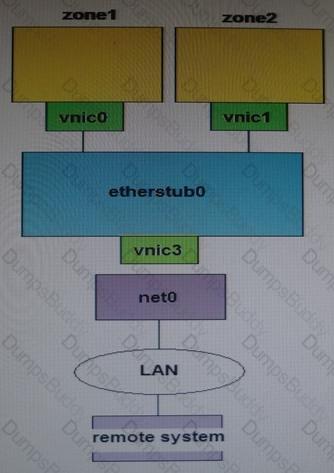

Create the etherstub.

global# dladm create-etherstub etherstub

Create a VNIC over the etherstub.

global# dladm create-vnic -l etherstub vnic

Note: Etherstubs / Virtual Switches

The Etherstub is craeated as a dummy device to connect the various virtual NICs. User can imagine etherstub as a Virtual Switch to help visualize the virtual network as a replacement for a physical network where each physical switch is replaced by a virtual switch.

Global Monitoring of Resource Control Events

Often, the resource consumption of processes is unknown. To get more information, try using the global resource control actions that are available with the rctladm command. Use rctladm to establish a syslog action on a resource control. Then, if any entity managed by that resource control encounters a threshold value, a system message is logged at the configured logging level.

B: Link aggregations provide high availability and higher throughput by aggregating multiple interfaces at the MAC layer. IP Multipathing (IPMP) provides features such as higher availability at the IP layer. Both IPMP and Link Aggregation are based on the grouping of network interfaces, and some of their features overlap, such as higher availability. These technologies are however implemented at different layers of the stack, and have different strengths and weaknesses.

E: Internet Protocol Network Multipathing (IPMP) provides fault-tolerance and load balancing across multiple network interface cards. By using IPMP, you can configure one or more interfaces into an IP multipathing group. After configuring IPMP, the system automatically monitors the interfaces in the IPMP group for failure. If an interface in the group fails or is removed for maintenance, IPMP automatically migrates, or fails over, the failed interface's IP addresses

Incorrect:

Not A: The same (non-null) character string IPMP group name identifies all interfaces in the group. You can place interfaces from NICs of different speeds within the same IPMP group, as long as the NICs are of the same type.

Not C:If LACP (Link Aggregation Control Protocol) cannot aggregate all the ports that are compatible (for example, the remote system might have more restrictive hardware limitations), then all the ports that cannot be actively included in the channel are put in hot standby state and are used only if one of the channeled ports fails.

Not D: MP is built into Oracle Solaris and does not require any special hardware. Any interface that is supported by Oracle Solaris can be used with IPMP. However, IPMP does impose the following requirements on your network configuration and topology:

/All interfaces in an IPMP group must have unique MAC addresses.

/ All interfaces in an IPMP group must be of the same media type.

/ All interfaces in an IPMP group must be on the same IP link
